Uvod
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Pacific Auto Clean Under Cabinet Ducted Range Hood. Designed for powerful and efficient ventilation, this appliance features a 900 CFM motor, 6-speed settings, LED lighting, and an innovative auto steam cleaning function to ensure a clean and odor-free kitchen environment.
Ključne karakteristike uključuju:
- Ultra-snažan motor: Superior S-shape venting system with a turbine-blower generating 900 CFM suction power.
- Funkcija automatskog čišćenja: High-speed spinning blower blades distribute cleaner for effective degreasing and residue flushing.
- Filter-Less Design: Eliminates the need for cleaning or replacing greasy filters, reducing fire hazards.
- Moderan i prilagođen korisniku: Sleek stainless steel design with metal touch control and LED indicator.
- Versatile Cooking Styles: 6 speed settings and a convenient 5-minute Auto-Delay Off feature.
Sigurnosne informacije
Please read all instructions carefully before installation and operation to prevent injury or damage. Keep this manual for future reference.
- Uvijek isključite napajanje prije servisiranja ili čišćenja uređaja.
- Instalaciju mora izvršiti kvalificirani tehničar u skladu sa svim lokalnim propisima i standardima.
- Osigurajte pravilno uzemljenje kako biste smanjili rizik od strujnog udara.
- Do not operate the range hood without the grease tray properly installed.
- Never use flammable liquids or harsh chemicals to clean the interior or exterior of the hood.
- Maintain adequate ventilation in the room when the range hood is used simultaneously with gas or other fuel-burning appliances.
Postavljanje i instalacija
The Pacific Auto Clean Range Hood is designed for under-cabinet mounting. Professional installation is recommended due to the unit's weight and the precision required for ducting and electrical connections. Refer to the detailed user manual PDF for specific dimensions, cutout templates, and step-by-step instructions.
Ključne stvari prilikom instalacije:
- Cjevovod: This model uses a top round 6-inch vent exhaust. Ensure your existing ductwork is compatible or make necessary modifications.
- Montaža: Verify cabinet dimensions against hanging hole locations. For secure mounting, consider using machine screws with washers and nuts instead of wood screws, especially if cabinet walls are thin.
- Električni priključak: The unit requires a dedicated electrical circuit. The power cord provided is approximately 12 inches long; plan your outlet location accordingly or consult an electrician for proper wiring.
- Protection Film: The stainless steel unit comes with an off-white protective film. This should be removed after installation to reveal the true finish.
Slika 1: Prednja strana view of the Pacific Auto Clean Range Hood. This image shows the overall design and the control panel on the right side.

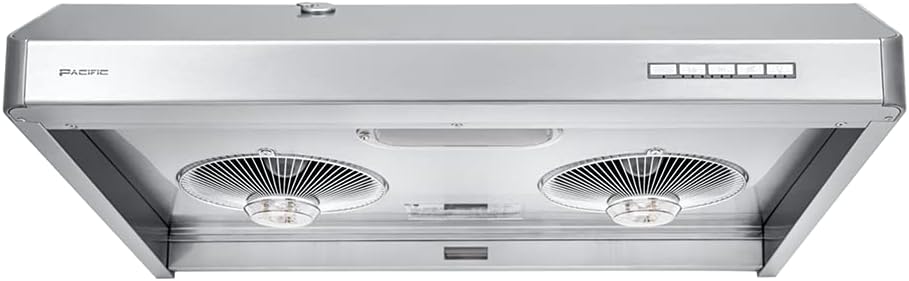

Slika 2: Donja strana view of the range hood, highlighting the two powerful fans and the central LED light fixture.
Uputstvo za upotrebu
Your Pacific Auto Clean Range Hood features intuitive touch controls for easy operation.
- Uključivanje/isključivanje: Pritisnite dugme za napajanje da uključite ili isključite jedinicu.
- Kontrola brzine ventilatora: Use the speed control buttons to select one of the 6 available fan speeds. Higher speeds provide greater suction power for heavy cooking.
- LED svjetla: Press the light button to turn the integrated LED lights on or off, illuminating your cooking surface.
- Auto-Delay Off: Activate the 5-minute Auto-Delay Off feature to allow the hood to continue ventilating for a short period after cooking, ensuring all odors and steam are cleared before automatically shutting down.
Figure 3: The range hood in operation, demonstrating its effectiveness in capturing and removing cooking steam and odors.
Održavanje
The Pacific Auto Clean Range Hood is designed for easy maintenance, featuring a filter-less design and an auto-clean function.
- Funkcija automatskog čišćenja: This innovative feature simplifies internal cleaning. To use, add a small amount of cleaner and water to the designated reservoir (often a small cup or opening). Activate the auto-clean cycle, and the high-speed spinning blower blades will distribute the solution, degreasing and flushing residue into the removable grease tray. This process typically takes about 38 seconds.
- Posuda za podmazivanje: The removable grease tray collects all flushed residue. Regularly empty and clean this tray to prevent overflow and maintain hygiene.
- Eksterijerno čišćenje: Wipe the stainless steel exterior with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could scratch the finish.
- LED svjetla: The LED lights are long-lasting and generally do not require replacement. If an issue occurs, consult the troubleshooting section or contact customer support.
Figure 4: A user demonstrating the process of adding cleaning solution to the range hood for the auto-clean function.
Figure 5: Close-up of the internal fan grates and mounting screws, which are part of the filter-less design.
Rješavanje problema
If you encounter issues with your range hood, please refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Napa se ne uključuje | No power, circuit breaker tripped, loose connection. | Check power supply, reset circuit breaker, ensure all connections are secure. |
| Mala usisna snaga | Ductwork obstruction, incorrect fan speed, grease tray full. | Check ductwork for blockages, increase fan speed, empty and clean grease tray. |
| Pretjerana buka | Loose components, fan imbalance, ductwork issues. | Ensure all screws are tightened, check for foreign objects in fan, inspect ductwork for proper installation. |
| Auto Clean function not working | Insufficient cleaning solution, blockage in cleaning system. | Ensure adequate cleaning solution is added, check for any blockages in the cleaning solution path. |
Ako problem i dalje postoji nakon isprobavanja ovih rješenja, obratite se korisničkoj podršci.
Specifikacije
| Feature | Detalj |
|---|---|
| Model | AC3342BS |
| Dimenzije (D x Š x V) | 41.75"D x 42"Š x 41.75"H |
| Kapacitet protoka zraka | 900 kubnih stopa u minuti (CFM) |
| Materijal | nerđajući čelik |
| Vrsta montaže | Ispod ormarića |
| Tip kontrole | Dodirnite |
| Broj brzina | 6 |
| Vrsta izvora svjetlosti | LED |
| Filter Type | Filter-Less Design |
| Uključene komponente | Grease Tray, LED Lights |
| Posebne karakteristike | 5-Min Auto Delay Off, Max 900 CFM, Metal Touch Control, Round corner design |
| Certifikati | UL Certified |
Garancija i podrška
Pacific offers a 10-year limited warranty on parts for this range hood, ensuring long-term reliability and performance.
For technical assistance, warranty claims, or any questions regarding your Pacific Auto Clean Range Hood, please contact Pacific customer service. You can also visit the official PACIFIC Store on Amazon za više informacija i resursa o proizvodu.
