1. Uvod
This manual provides essential information for the safe and efficient use of your ExpertPower 100W Flexible Solar Panel. Please read these instructions carefully before installation and operation to ensure optimal performance and longevity of your solar panel.
Figure 1: ExpertPower 100W Flexible Solar Panel
The ExpertPower 100W Flexible Solar Panel is designed for various applications, including RVs, boats, camping, and generator charging. Its flexible and lightweight design makes it suitable for curved surfaces and portable use.
2. Značajke proizvoda
- Visoka efikasnost: Utilizes Maxeon Monocrystalline solar cells, offering 22-25% efficiency for maximum power output.
- Fleksibilan dizajn: Constructed with top-grade, lightweight polymer materials, allowing flexibility up to 30 degrees for adaptation to various surfaces.
- Lagana: Weighs approximately 4.4 lbs (2 kg), enhancing portability and ease of handling.
- Izdržljiva konstrukcija: Built on a solid copper foundation, resistant to power loss from cracking and corrosion. Features a Micro Junction box with IP67 protection for robust weather resistance.
- Lako povezivanje: Equipped with MC4 cable connectors for simple plug-and-play connection to solar generators and other compatible systems.
- Jednostavna montaža: Pre-drilled holes facilitate secure mounting on vehicles, boats, RVs, or other desired locations.
Figure 2: Key Features - MC4 Cables, Grommets, and IP67 Waterproofing
The panel includes MC4 connectors for universal compatibility, reinforced grommets for secure attachment, and an IP67 rated junction box for environmental protection.

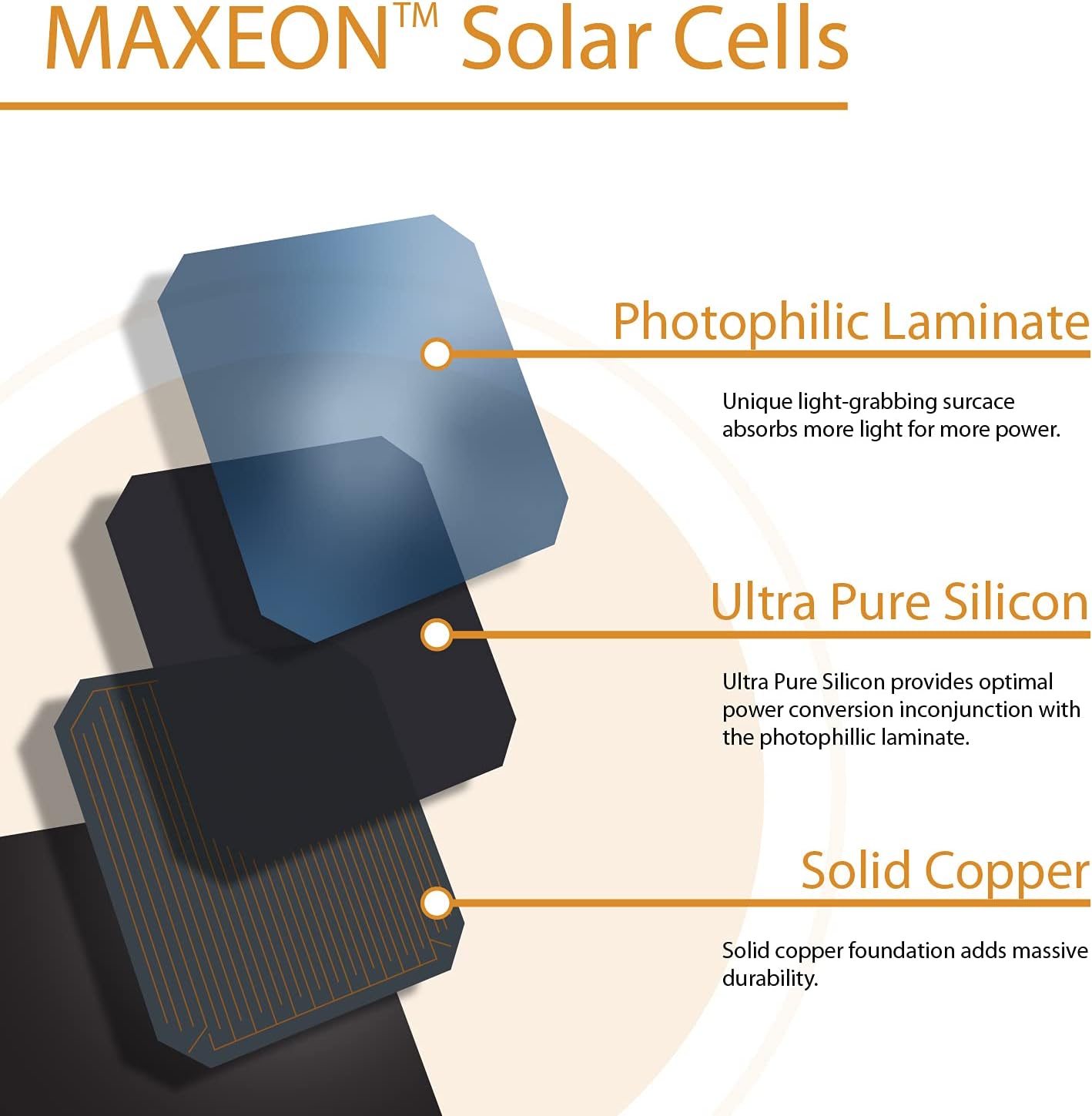

Figure 3: Maxeon Solar Cell Construction
Maxeon cells feature a photophilic laminate for enhanced light absorption, ultra-pure silicon for optimal power conversion, and a solid copper foundation for durability.
3. Sigurnosne informacije
- Severe Electrical Hazard: Solar modules generate electricity when exposed to light. Always treat the panel as a live electrical component.
- Kvalificirana instalacija: Installation should only be performed by a qualified technician to prevent electrical shock or damage to the product.
- Rukovanje: Avoid dropping, bending excessively, or placing heavy objects on the solar panel.
- Ožičenje: Ensure all wiring connections are secure and correctly polarized. Refer to local electrical codes for proper grounding and wiring practices.
- Uslovi okoline: Do not immerse the panel in water. While weather-resistant, extreme conditions may require additional protection.
4. Instalacija
- Raspakujte panel: Carefully remove the solar panel from its packaging. Inspect for any visible damage.
- Odaberite lokaciju: Select a location that receives maximum direct sunlight throughout the day. Consider the panel's flexibility for curved surfaces.
- Montaža: Use the pre-drilled holes on the panel to securely mount it to your desired surface (e.g., RV roof, boat deck). Ensure the mounting is robust enough to withstand environmental factors like wind.
- Connect MC4 Cables: Connect the MC4 connectors from the solar panel to your solar charge controller or compatible solar generator. Ensure correct polarity (positive to positive, negative to negative).
- Sistemska integracija: Integrate the solar panel with your existing solar charging system, ensuring all components (charge controller, battery, inverter) are compatible and correctly connected.
Slika 4: Prample Installation on a Vehicle
The flexible design allows for installation on various surfaces, such as vehicle hoods or roofs, for mobile power generation.
5. Operacija
Once installed and connected, the ExpertPower 100W Flexible Solar Panel will begin generating electricity when exposed to sunlight. The power generated will be regulated by your solar charge controller before being stored in a battery or used directly by connected devices.
- Izloženost sunčevoj svjetlosti: Ensure the panel is positioned to receive maximum direct sunlight. Shading, even partial, can significantly reduce power output.
- Nadgledanje: If your system includes a charge controller with a display, monitor the charging status and battery voltagredovno.
- Podešavanje ugla: For stationary setups, adjusting the panel's angle seasonally can optimize power generation.
6. Održavanje
- čišćenje: Redovno čistite površinu solarnog panela mekom,amp cloth to remove dust, dirt, and debris. Avoid abrasive cleaners or harsh chemicals.
- inspekcija: Periodically inspect the panel for any physical damage, such as cracks, delamination, or loose connections. Check the MC4 connectors for corrosion or wear.
- Sjenčanje: Ensure no new obstructions are casting shadows on the panel. Trim nearby foliage if necessary.
- Razvodna kutija: Verify the Micro Junction box remains securely sealed and free from moisture ingress.
7. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nema izlazne snage | No sunlight; Panel shaded; Loose connections; Faulty charge controller/battery | Move panel to direct sunlight; Remove shading; Check all cable connections; Test charge controller/battery. |
| Niska izlazna snaga | Partial shading; Dirty panel surface; Incorrect panel angle; Overcast weather | Remove shading; Clean panel surface; Adjust panel angle for optimal sun exposure; Output is naturally lower in overcast conditions. |
| Panel not charging battery | Charge controller issue; Battery fully charged; Incorrect wiring polarity | Check charge controller status; Verify battery is not already full; Recheck wiring polarity. |
8. Tehničke specifikacije
Figure 5: Panel Dimensions and Specification Label
The product label provides detailed electrical characteristics and safety warnings. The model shown on the label is SPR-E-Flex-100.
| Specifikacija | Vrijednost |
|---|---|
| Model | Q16SPSFL100 |
| Rated Power (Pmax) | 100 W (+/-3%) |
| Voltage (Vmp) | 17.5 V |
| trenutno (Imp) | 5.80 A |
| Open-Circuit Voltage (glas) | 21.0 V |
| Struja kratkog spoja (Isc) | 6.20 A |
| Maksimalni serijski osigurač | 15 A |
| Dimenzije proizvoda (D x Š x V) | 45.9" x 21.9" x 0.8" (1165 mm x 556 mm x 20 mm) |
| Težina artikla | Pribl. 4.4 lbs (2 kg) |
| Materijal | Monokristalni silicijum |
| Efikasnost | 22-25% (Maxeon cells) |
| Ocjena zaštite | IP67 (Junction Box) |
Note: Standard Test Conditions: 1000 W/m², AM 1.5, 25°C. Suitable for ungrounded, positive, or negative grounded DC systems. Field Wiring: Cu wiring only, min. 12 AWG/4 mm², insulated for 90°C min.
Patent information: Patented as shown at www.sunpower.com/patents (Reference: 524085)
9. Garancija i podrška
ExpertPower provides a 1 godine garancije for this product, covering defects in materials and workmanship under normal use. For warranty claims or technical assistance, please contact ExpertPower customer service.
Our dedicated customer service team is available to assist you with any questions or concerns regarding your solar panel.
For more information about ExpertPower and our products, visit our official store: ExpertPower trgovina na Amazonu.
