LILYGO TTGO T-Echo NRF52840 LoRa Wireless Module User Manual

1. Proizvod je gotovview

The LILYGO TTGO T-Echo is a versatile wireless communication module featuring the NRF52840 microcontroller, LoRa SX1262 transceiver, L76K GPS, and a 1.54-inch E-Paper display. This device is designed for long-range, low-power communication, making it suitable for off-grid messaging, tracking, and various IoT applications. It supports mesh networking protocols like Meshtastic, allowing devices to relay messages to extend communication range.

Figure 1: LILYGO TTGO T-Echo NRF52840 LoRa Wireless Module

2. Ključne karakteristike

• mikrokontroler: NRF52840
• LoRa Transceiver: SX1262 (915MHz) for long-range, low-power communication.
• GPS modul: L76K Multi-System Positioning GNSS (GPS, GLONASS, BeiDou, QZSS) with improved receiving and anti-interference attributes.
• Prikaz: 1.54-inch E-Paper display (200x200 resolution, 2 grey levels, 2s full refresh time).
• Bežična povezanost: Bluetooth 5, Thread, Bluetooth Mesh, ANT, 802.15.4, Zigbee.
• Bus Interfaces: UART, SPI, TWI, PDM, I2S, QSPI.
• Memorija: 2MB Flash, 256KB RAM.
• Optional Sensor: BME280 temperature and pressure sensor (depending on model).

3. Sadržaj paketa

Provjerite da li se sve stavke nalaze u vašem paketu:

Figure 2: T-Echo module and USB cable

• 1 x SoftRF Motherboard
• 1 x GPS antena
• 1 x LORA 915MHz Antenna
• 1 x NFC Antenna
• 1 x Touch Cable
• 1 x Jst 2pin1.25mm Battery Cable
• 1 x TYPE-C USB Cable
• 1 x 850mA Capacity Battery
• 1 x ABS Material Enclosure White

4. Identifikacija komponente

Slika 3: Natrag view sa označenim komponentama

Figure 4: Detailed Pinout Diagram

Figure 5: Button functions and LED indicators

5. Podešavanje

5.1 Sklapanje hardvera

The T-Echo module comes with an ABS enclosure. Follow these steps to assemble the device:

1. Connect the LoRa antenna to the module's SMA connector.
2. Carefully place the main board into the bottom part of the enclosure.
3. Connect the battery to the appropriate JST connector on the board.
4. Secure the battery within the enclosure, often using double-sided adhesive foam for isolation and stability.
5. Attach the top part of the enclosure and secure it with the provided screws.

5.2 Firmware Installation

To utilize the full capabilities of your LILYGO T-Echo, it is recommended to install the Meshtastic firmware. This firmware enables mesh networking capabilities for off-grid communication.

1. Download the Meshtastic firmware for the LILYGO T-Echo from the official Meshtastic website.
2. Connect your T-Echo device to your computer using the provided USB-C cable.
3. Follow the instructions on the Meshtastic website or the provided video to flash the firmware onto your device. This typically involves using a web flasher tool or a command-line interface.

6. Uputstvo za upotrebu

6.1 Basic Device Operation

The T-Echo features two buttons (Button 1 and Button 2) and a touch interface for navigation and control, especially when running the SoftRF program. LED indicators provide visual feedback on device status.

• Dugme 1:
• Press once to reset the device.
• Press twice to enter Programming Development Mode.
• Button 2 (when device is turned on, in button mode):
• Press once to change the display interface.
• Press twice to turn off/on the backlight.
• Dugo pritisnite da isključite uređaj.
• Dodirni interfejs: Changes the display interface (available in SoftRF program).
• LED indikatori:
• Red LED: USB power supply/charge indicator.
• Green LED: Battery power indicator.
• Blue LED: Bluetooth low energy work indicator.

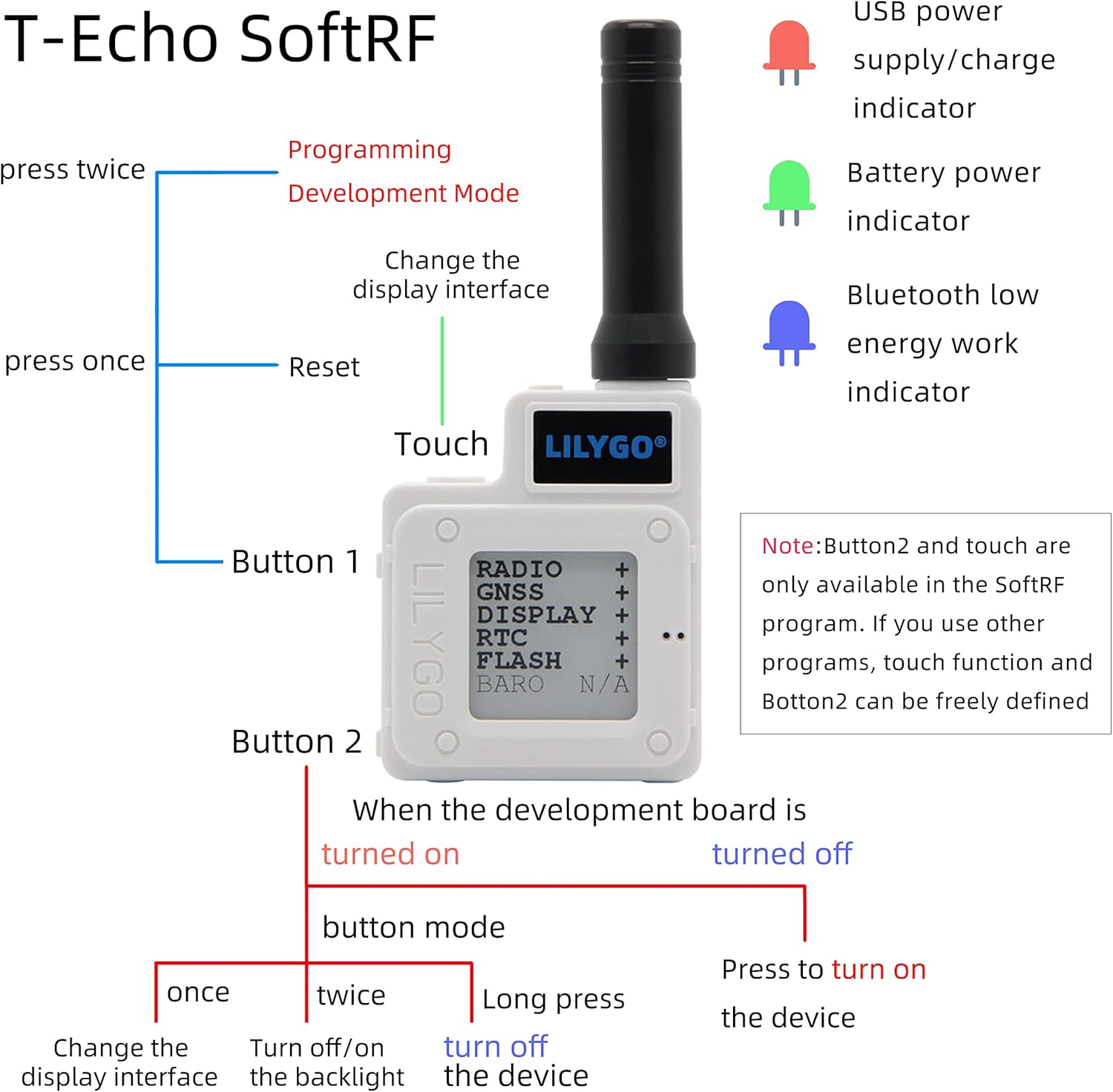

Figure 6: Button functions and LED indicators

6.2 Slanje i primanje poruka

After installing the Meshtastic firmware and connecting your device to a mobile phone via Bluetooth, you can use the Meshtastic app to send and receive text messages.

1. Ensure your T-Echo is powered on and connected to your phone via Bluetooth.
2. Open the Meshtastic application on your smartphone.
3. Select the desired channel or recipient within the app.
4. Type your message and send it. The T-Echo will transmit the message over the LoRa network.
5. Incoming messages will be displayed on the T-Echo's E-Paper screen and within the Meshtastic app.

7. Wiring and Sensor Integration

The LILYGO T-Echo can be integrated with external sensors and relays for various applications, such as door monitoring or remote control. The following diagram illustrates a typical wiring setup for a door monitoring system using a Hall Effect sensor and a relay.

8. Održavanje

• Punjenje baterije: Charge the device using the provided USB-C cable. The red LED indicates charging status, and the green LED indicates battery level.
• Ažuriranja firmvera: Periodically check the official Meshtastic webstranica za ažuriranja firmvera kako bi se osigurale optimalne performanse i pristup novim funkcijama.
• čišćenje: Za čišćenje uređaja koristite meku, suhu krpu. Izbjegavajte upotrebu jakih hemikalija ili abrazivnih materijala.
• Skladištenje: Uređaj čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.

9. Otkrivanje problema

• Uređaj se ne uključuje: Ensure the battery is charged. Connect the device to a power source via USB-C.
• Nema Bluetooth veze: Verify Bluetooth is enabled on your smartphone and the T-Echo. Ensure the blue LED is active. Try restarting both devices.
• Unable to Send/Receive Messages: Check the LoRa antenna connection. Ensure both devices are within range and running compatible Meshtastic firmware. Verify channel settings in the Meshtastic app.
• GPS ne radi: Ensure the GPS antenna is properly connected and the device has a clear view neba.
• E-Paper Display Issues: If the display is unresponsive or shows artifacts, try resetting the device.

10. Specifikacije

11. Garancija i podrška

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official LILYGO webstranica. Specifični uslovi garancije mogu se razlikovati u zavisnosti od regije i prodavca.
