1. Uvod
The PGST PE-519R Wireless Indoor Siren is a versatile security device designed to enhance your alarm system. It can function as a standalone alarm hub or integrate seamlessly as a wireless sound and light siren with any 433MHz wireless alarm system. Its streamlined design and powerful alert capabilities provide effective deterrence against intruders.
2. Značajke proizvoda
- Standalone Alarm Hub: Operates independently as a complete alarm system.
- Proširivo povezivanje: Supports pairing with up to 20 remote controls and 5 detectors.
- Powerful Alert System: Features a 100dB sound alarm combined with 8 bright LED lights to effectively deter intruders.
- Bežična kompatibilnost: Functions as a wireless sound and light siren for any 433MHz wireless alarm system.
- Elegantan dizajn: Boasts a streamlined round shape with a perfect polishing process, offering a simple and fashionable aesthetic.
3. Sadržaj paketa
Prilikom otvaranja paketa, molimo Vas da provjerite da li se nalaze svi sljedeći artikli:
- 1 x PGST PE-519R Wireless Indoor Siren
- 1 x USB kabel za napajanje
- 1 x adapter za napajanje
- 1 x Set montažnih vijaka
- 1 x Uputstvo za upotrebu
Video: Unboxing of the AGSHOME alarm system. This video demonstrates the contents of a typical AGSHOME alarm kit, including the siren, keypad, and various sensors.
4. Postavljanje i instalacija
The PE-519R siren is designed for easy setup and installation. Follow these steps to get your siren operational:
- Powering the Siren: Connect the provided USB power cable to the siren's DC 5V port and plug the power adapter into a standard electrical outlet. The siren has a built-in lithium polymer battery for backup power.
- Montaža: The siren supports wall mounting. Use the included mounting screws to securely attach the siren to your desired location. Ensure it is placed in an area where its sound and light alerts can be effective.
- Početno uključivanje: Flip the ON/OFF switch to the 'ON' position. The siren will emit a sound and flash its LED lights to indicate it is powered on and ready.

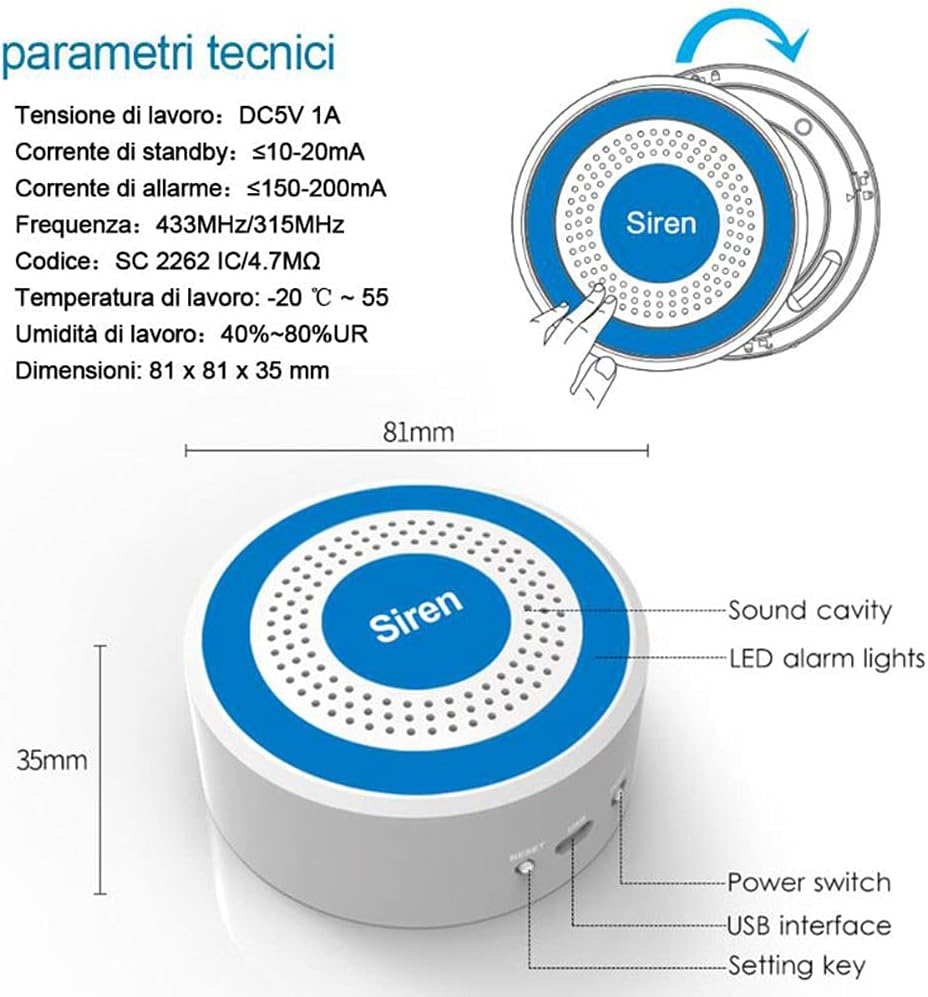

Image: PGST PE-519R Wireless Indoor Siren components. This image highlights the key physical features of the siren, including its power input, control buttons, and alarm indicators.
5. Uputstvo za upotrebu
The PE-519R siren can operate in two main modes: as a standalone alarm hub or as an accessory to a main alarm panel.
5.1 Samostalni rad
When operating as a standalone unit, the siren acts as the central control for paired remote controls and detectors. It will emit sound and light alerts directly upon detection.
5.2 Integrated with a 433MHz Alarm System
The PE-519R can be paired with a compatible 433MHz wireless alarm system to function as an external siren, providing additional sound and light alerts when the main system is triggered.
Image: PGST PE-519R Wireless Indoor Siren in use. This image shows the siren connected to a power outlet, illustrating its wireless connection capability.
6. Uparivanje dodatne opreme
The PE-519R siren supports pairing with various 433MHz wireless accessories. The general pairing process involves putting the siren into learning mode and then triggering the accessory.
6.1 Daljinski upravljači
To pair a remote control, put the siren into learning mode (refer to the user manual for specific steps, usually by pressing a 'SET' button). Then, press any button on the remote control. The siren will emit a confirmation sound/flash if pairing is successful.
6.2 Detectors (Door/Window, PIR)
For door/window sensors or PIR motion detectors, put the siren into learning mode. Then, trigger the detector (e.g., separate the door sensor, wave in front of the PIR). The siren will confirm successful pairing.
Video: PE523 Outdoor Siren Connection. This video demonstrates the connection process for an outdoor siren, which often involves similar pairing steps for remote controls and detectors as the PE-519R.
7. Održavanje
- čišćenje: Use a soft, dry cloth to clean the siren. Avoid using abrasive cleaners or solvents.
- baterija: The built-in lithium polymer battery provides backup power. Ensure the siren is regularly connected to power to keep the battery charged.
- testiranje: Periodically test the siren and its paired accessories to ensure proper functionality.
8. Otkrivanje problema
- Siren not responding: Check if the siren is powered on and the battery is charged. Ensure it's within range of the main alarm panel or remote.
- Accessories not pairing: Ensure the siren is in learning mode and the accessory is triggered correctly. Check battery levels of accessories.
- Lažni alarmi: Verify that detectors are installed correctly and not triggered by environmental factors (e.g., pets for PIR sensors).
9. Specifikacije
| Broj modela | PE-519R |
| Brand | PGST |
| Izvor napajanja | Napajanje baterijama (litijum-polimer) |
| Nivo zvuka | 100 decibela |
| Kontrolni metod | Taktilno |
| Vrsta montaže | Zidni nosač |
| Dimenzije proizvoda (D x Š x V) | 8.1 x 3.5 x 8.1 cm |
| Težina artikla | 100 grama |
| Kompatibilni uređaji | 433 MHz Wireless Alarm Devices |
10. Garancija i podrška
Warranty and support information for the PGST PE-519R Wireless Indoor Siren is not available in the provided product data. Please refer to the product packaging or contact PGST customer service for details regarding warranty coverage and technical support.
