1. Uvod

The Movo WMX-7-SP is a versatile wireless microphone system designed for smartphone audio and video recording. This bundle includes a wireless lavalier microphone, a handheld microphone, and a receiver that also functions as a smartphone holder. It provides a comprehensive solution for capturing clear audio in various recording scenarios.

Image 1.1: Movo WMX-7-SP Wireless Microphone System Overview

This manual provides detailed instructions for setting up, operating, and maintaining your WMX-7-SP system to ensure optimal performance.

2. Sadržaj paketa

Provjerite da li se u vašem paketu nalaze sve dolje navedene stavke:

• 1x Smartphone Receiver (with integrated phone holder)
• 1x Bodypack Transmitter (for lavalier microphone)
• 1x Lavalier Microphone (omnidirectional)
• 1x Handheld Microphone (omnidirectional, acts as a transmitter)
• 1x 3.5mm TRS to TRRS Cable
• 1x Hardshell Carrying Case
• 1x Garantni list

Slika 2.1: Uključene komponente

3. Komponenta je završenaview

3.1 Smartphone Receiver

The receiver unit integrates a smartphone holder and serves as the central hub for your audio. It receives wireless signals from the microphones and connects to your smartphone.

• Držač pametnog telefona: Adjustable to accommodate devices up to 4.3 inches wide.
• 3.5mm TRRS Output: Connects to your smartphone's audio jack.
• Priključak za slušalice: Za praćenje zvuka u realnom vremenu.
• Kontrole jačine zvuka: Podesite nivo audio izlaza.
• Dugme okidača: Wirelessly controls your phone's camera.
• Dugme za napajanje/uparivanje: For turning on/off and initiating pairing.

Image 3.1: Receiver Controls and Ports

3.2 Bodypack Transmitter & Lavalier Microphone

The bodypack transmitter is used with the lavalier microphone. It captures audio and transmits it wirelessly to the receiver.

• Lavalier mikrofon: Small, clip-on microphone with an omnidirectional pickup pattern.
• Dual Mic Ports: The bodypack transmitter features two 3.5mm microphone input ports, allowing for connection of two wired lavalier microphones simultaneously to a single transmitter.
• Dugme za napajanje/uparivanje: For turning on/off and initiating pairing.

Image 3.2: Bodypack Transmitter with Dual Mic Ports

3.3 Ručni mikrofon

The handheld microphone is a standalone wireless unit, ideal for interviews or direct vocal capture. It also features an omnidirectional pickup pattern.

4. Upute za postavljanje

4.1 Punjenje uređaja

Ensure all components (receiver, bodypack transmitter, handheld microphone) are fully charged before use. Use standard USB charging cables (not included) to connect to a power source. Charging indicators will typically show status and turn off or change color when fully charged.

4.2 Connecting the Receiver to Your Smartphone

1. Mount your smartphone securely into the adjustable holder on the receiver.
2. Connect one end of the included 3.5mm TRS to TRRS cable to the 'LINE OUT' port on the receiver.
3. Connect the other end of the cable to your smartphone's 3.5mm audio jack. If your smartphone does not have a 3.5mm jack, you will need a compatible adapter (e.g., USB-C to 3.5mm or Lightning to 3.5mm, not included).

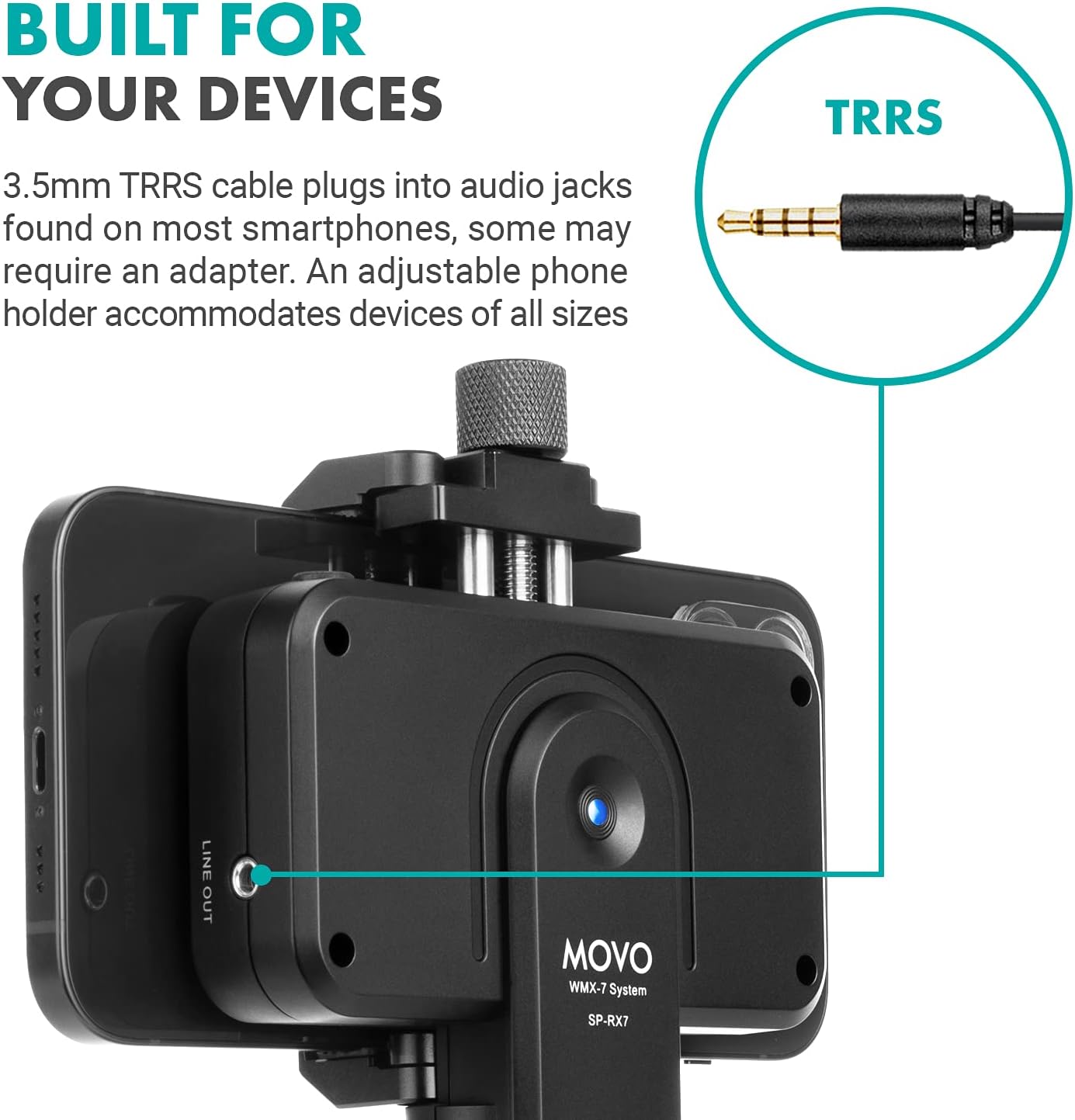

Image 4.1: Connecting Receiver to Smartphone

4.3 Pairing the Microphones with the Receiver

The WMX-7-SP system is designed to operate with one wireless transmitter (either the bodypack transmitter or the handheld microphone) connected to the receiver at a time. Simultaneous use of both wireless transmitters is not supported.

1. Uključeno: Press and hold the power button on the receiver until its indicator light turns on. Do the same for the desired microphone (either the bodypack transmitter or the handheld microphone).
2. Započni uparivanje: The devices should automatically attempt to pair. Look for an RF indicator light on the receiver to confirm a successful connection. If pairing does not occur automatically, consult the troubleshooting section.
3. Veza za Lavalier mikrofon: If using the bodypack transmitter, plug the lavalier microphone into one of the 3.5mm mic input ports on the bodypack. Clip the lavalier microphone to your clothing, approximately 6-8 inches from your mouth, for optimal sound capture.

5. Uputstvo za upotrebu

5.1 Audio nadzor

To ensure your audio is being recorded correctly, use the built-in headphone jack on the receiver.

1. Plug a pair of headphones (not included) into the 3.5mm headphone jack on the receiver.
2. Adjust the volume using the '+' and '-' buttons on the receiver.
3. Monitor the audio in real-time to check for clarity, levels, and any interference.

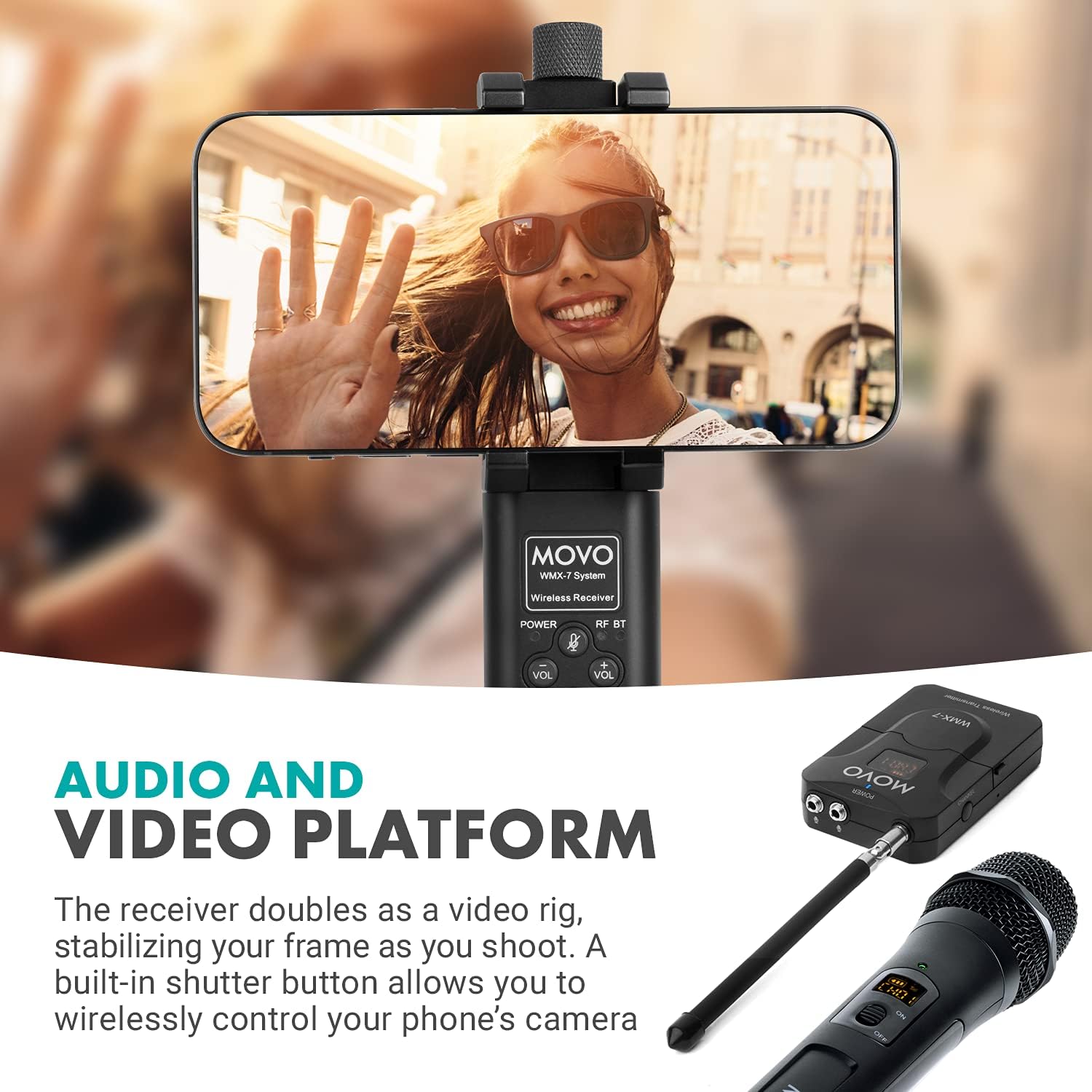

Image 5.1: Receiver as Video Rig with Monitoring Capabilities

5.2 Using the Camera Shutter Button

The receiver features a built-in shutter button that can wirelessly control your smartphone's camera, allowing for convenient start/stop recording or photo capture.

1. Ensure your smartphone's camera app is open and active.
2. Press the shutter button on the receiver to activate your phone's camera function.

5.3 Microphone Usage and Range

Both the lavalier and handheld microphones feature an omnidirectional pickup pattern, meaning they capture sound equally from all directions. This is ideal for interviews, vlogging, and situations where sound may come from multiple angles.

Image 5.2: Omnidirectional Polar Pattern

The system offers a wireless transmission range of up to 98 feet (30 meters) in open, unobstructed environments. Maintain a clear line of sight between the transmitter and receiver for best performance.

Image 5.3: Wireless Transmission Range

6. Održavanje

Proper care and maintenance will extend the life of your Movo WMX-7-SP system.

• čišćenje: Use a soft, dry cloth to clean the exterior of all components. Avoid using harsh chemicals or abrasive materials.
• Skladištenje: Store the system in its hardshell carrying case when not in use to protect it from dust and physical damage.
• Održavanje baterije: For optimal battery life, avoid fully discharging the devices frequently. Recharge them regularly, especially if storing for extended periods.
• Uslovi okoline: Izbjegavajte izlaganje uređaja ekstremnim temperaturama, vlazi ili direktnoj sunčevoj svjetlosti.

7. Otkrivanje problema

If you encounter issues with your Movo WMX-7-SP system, refer to the following common problems and solutions:

8. Specifikacije

9. Garancija i podrška

The Movo WMX-7-SP Wireless Lavalier and Handheld Microphone System is covered by a 1-godišnja garancija od datuma kupovine. Ova garancija pokriva nedostatke u proizvodnji i osigurava da proizvod funkcioniše kako je predviđeno pri normalnoj upotrebi.

For technical assistance, warranty claims, or any questions regarding your product, please contact Movo customer support. Contact information can typically be found on the Movo website or on the warranty card included in your package.

Molimo sačuvajte dokaz o kupovini radi provjere garancije.
