1. Uvod
This manual provides detailed instructions for the installation, operation, and maintenance of your ELEGANT Frameless Bathtub Shower Door. Please read all instructions carefully before beginning installation and retain this manual for future reference. Proper installation and care will ensure the longevity and optimal performance of your shower door.
Image 1.1: ELEGANT Frameless Hinged Tub Door overview, highlighting its walk-in design and safety-certified glass.
2. Sigurnosne informacije
- Uvek nosite zaštitne naočare tokom instalacije.
- Handle glass panels with extreme care. Tempered glass is strong but can shatter if struck at the edges.
- Ensure the installation surface (wall studs) can support the weight of the shower door. Professional installation is recommended.
- Do not overtighten screws, as this can damage components or glass.
- Držite djecu i kućne ljubimce dalje od područja instalacije.
3. Lista dijelova
Verify all components are present and undamaged before beginning installation.
Image 3.1: Key components of the shower door, including glass, hinges, and seals.
- Tempered Glass Panels (5/16" or 8mm thick)
- Hinges (Stainless Steel)
- Support Bar (Stainless Steel)
- Handle (Aluminum Alloy)
- Bottom Seal Strip
- Zidni nosači
- Installation Hardware (screws, anchors, gaskets)
4. Postavljanje i instalacija
This section outlines the general steps for installing the ELEGANT Frameless Bathtub Shower Door. Due to the weight and nature of glass, a minimum of two people is required for safe installation. Ensure all necessary tools are available before starting.
4.1 Razmatranja prije instalacije
- Priprema zida: Ensure the wall where the door will be mounted is structurally sound and capable of supporting the door's weight. Locate wall studs for secure mounting.
- Reverzibilna instalacija: The hinged tub door can be installed to open from either the right or left side to accommodate your bathroom layout. Determine your preferred orientation before marking.
- Mjerenja: Double-check the dimensions of your bathtub area to ensure compatibility with the 48" W x 58" H door.
4.2 Koraci instalacije
- Obeležavanje i bušenje: Carefully mark the positions for the wall mount brackets on your bathroom wall. Use a level to ensure accuracy. Drill pilot holes according to the manufacturer's specifications, ensuring they align with wall studs for maximum stability.
- Montažni nosači: Securely attach the wall mount brackets using the provided hardware. Ensure they are firmly fixed and level.
- Pričvršćivanje šarki: Install the stainless steel hinges to the glass panels. These hinges allow for a 180-degree outward rotation, providing a wide entry.
- Positioning Glass Panels: With assistance, carefully lift and position the glass panels onto the mounted hinges. Ensure the panels are properly aligned and seated.
- Installing Support Bar: Attach the stainless steel support bar between the glass panel and the wall. This bar enhances stability and prevents movement of the glass panels.
- Applying Seal Strips: Install the bottom seal strip along the base of the glass panels to prevent water leakage and ensure a waterproof enclosure.
- Attaching Handle: Secure the aluminum alloy handle to the glass door panel.
- Konačna podešavanja: Check all connections for tightness and ensure the door swings smoothly and closes properly. Make any necessary adjustments.
Video 4.1: Overview of the ELEGANT bathtub shower door, demonstrating its features and potential installation process.
Video 4.2: A demonstration of the ELEGANT Frameless Hinged Tub Shower Door, showcasinnjegov dizajn i funkcionalnost.
4.3 Key Features for Installation and Use
- Quality Hinges: The frameless bathtub shower door features hinges that allow for a 180-degree outward rotation, facilitating easy entry and exit.
- kaljeno staklo: Constructed with ANSI-certified 5/16" (8 mm) thick clear tempered glass, designed for impact resistance.
- Poboljšana stabilnost: A support bar is included to securely fix the glass panels, contributing to the door's overall stability.
- Vodootporan dizajn: The bottom seal strip is engineered to prevent water leakage, maintaining a dry bathroom floor.
- Anti-Collision Design: Features an anti-collision design for smooth and quiet operation.
Image 4.3: Detail of the quality hinge clamps, designed for durability and smooth operation.

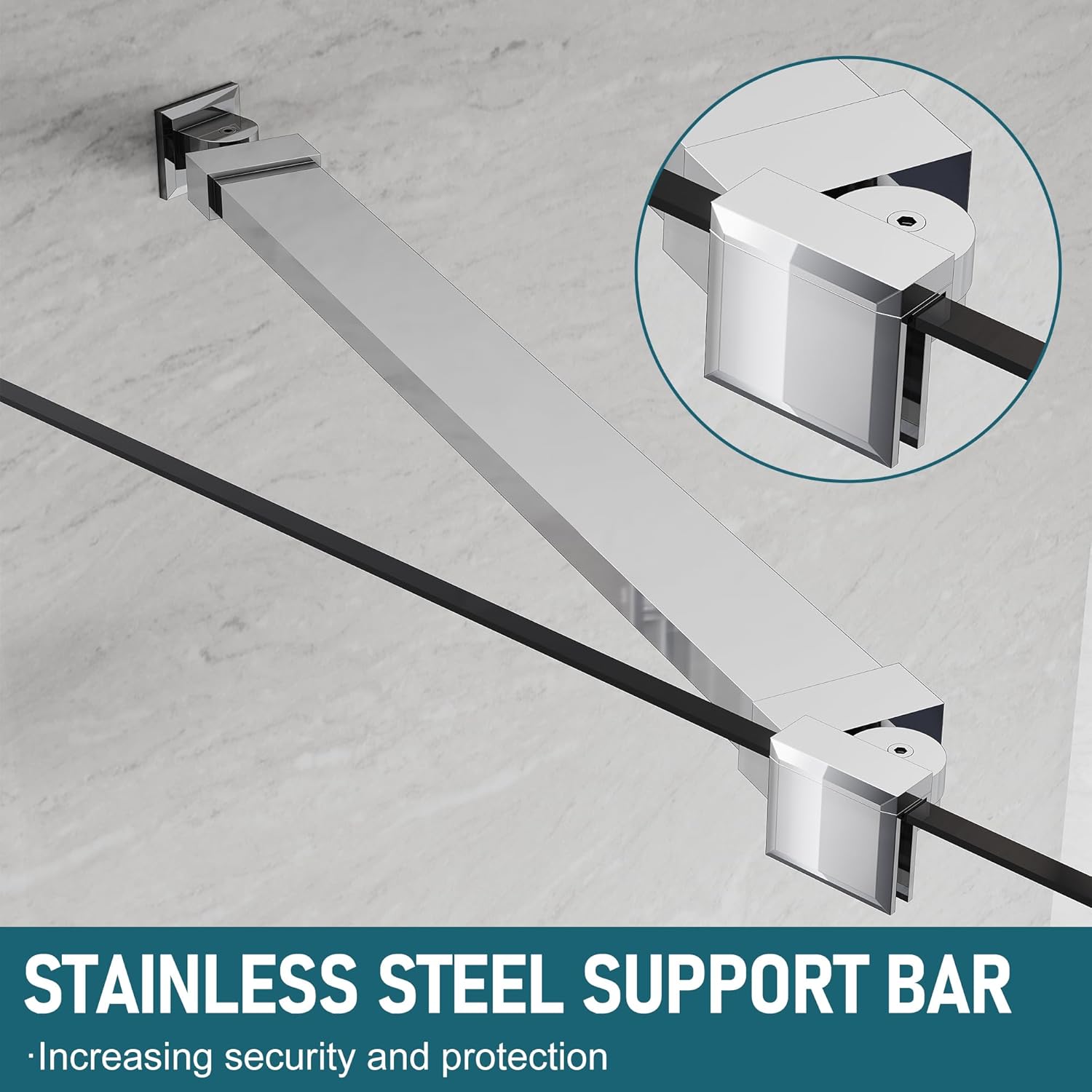

Image 4.4: The stainless steel support bar, providing additional security and structural integrity.
Image 4.5: The bottom seal strip, an integral part of the waterproof design to contain water within the shower area.
Image 4.6: The anti-collision design, contributing to quiet and smooth door movement.
5. Uputstvo za upotrebu
The ELEGANT Frameless Bathtub Shower Door is designed for simple and reliable operation.
- Otvaranje i zatvaranje: Use the aluminum alloy handle to gently push or pull the door open and closed. The hinges allow the door to swing outwards up to 180 degrees.
- Funkcionalnost ručke: The handle is designed for comfortable grip and also serves as a convenient towel bar.
Image 5.1: The aluminum alloy handle, providing a durable and functional grip.
Image 5.2: The handle's design allows for easy operation and can also hold a towel.
6. Održavanje
Regular cleaning and maintenance will preserve the appearance and functionality of your shower door.
- Čišćenje stakla: Clean glass panels regularly with a soft cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that can scratch the glass or damage the finish.
- Čišćenje hardvera: Wipe down chrome-finished hardware with a soft, damp cloth. For stubborn spots, use a mild, non-abrasive cleaner specifically designed for chrome.
- Održavanje zaptivki: Periodically inspect the bottom seal strip for wear or damage. Replace if necessary to maintain water-tightness.
- Pregled šarki: Check hinges periodically for any signs of loosening. Tighten screws gently if needed, but do not overtighten.
7. Otkrivanje problema
If you encounter issues with your shower door, refer to the following common problems and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Vrata se ne zatvaraju pravilno ili su nepravilno poravnata. | Loose hinges or improper installation. | Check and tighten hinge screws. Re-align glass panels if necessary. Ensure wall brackets are level. |
| Water leaks from the bottom of the door. | Damaged or improperly installed bottom seal strip. | Inspect the bottom seal strip. Ensure it is correctly seated and free from damage. Replace if worn. |
| Door feels unstable or wobbly. | Loose wall mounts or support bar. | Verify all wall mount brackets and the support bar are securely fastened. Ensure installation into wall studs. |
| Scratches or streaks on glass after cleaning. | Abrasive cleaning materials or residue. | Use only soft cloths and non-abrasive glass cleaners. Rinse thoroughly and dry with a clean, lint-free cloth. |
8. Specifikacije
- Brand: ELEGANT
- Broj modela: TD2-Q
- Dimenzije proizvoda: 48 inches (Width) x 58 inches (Height) x 0.3 inches (Glass Thickness)
- Debljina stakla: 5/16 inča (8 mm)
- Vrsta stakla: Clear Tempered Glass (ANSI-certified)
- Hardverska završna obrada: Chrome
- Materijal: Stainless Steel (Hinges, Support Bar), Aluminum Alloy (Handle)
- Vrsta instalacije: Screw-In
- Broj vrata: 1
- Broj panela: 2
- Težina artikla: 85.8 funte
- Potrebna montaža: Da
9. Garancija i podrška
ELEGANT is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, ELEGANT offers customer support to assist with any questions or concerns regarding your product.
For assistance, please contact ELEGANT customer service. Our service representatives are available to help answer your questions and provide support.
For more information about ELEGANT products and support, please visit the official ELEGANT store or contact their customer service department.
