SKYSHL SS322T-2G1 Single Mode OTDR Fiber Tester Instruction Manual

1. Proizvod je gotovview

The SKYSHL SS322T-2G1 is a high-performance Single Mode Optical Time Domain Reflectometer (OTDR) designed for comprehensive fiber optic network testing. It integrates multiple essential functions including OTDR, Optical Power Meter (OPM), Optical Light Source (OLS), Visual Fault Locator (VFL), Event Map, and APP Module connectivity. With 1310nm and 1550nm wavelengths and a dynamic range of 49dB, it is capable of testing distances up to 280km (174 miles). The device features a 7-inch touch screen for intuitive operation and supports various connector types, making it a versatile tool for fiber optic professionals.

Slika 1: Prednja strana view of the SKYSHL SS322T-2G1 OTDR Fiber Tester, showcasing its 7-inch touch screen interface.

2. Sigurnosne informacije

Molimo vas da pažljivo pročitate sva sigurnosna uputstva prije upotrebe uređaja. Nepoštivanje ovih uputstava može dovesti do povreda ili oštećenja uređaja.

• Laserska sigurnost: This device uses lasers. Do not look directly into the optical output ports when the device is active. Laser radiation can cause severe eye damage.
• Izvor napajanja: Use only the specified power adapter and battery. Incorrect power sources can damage the device or cause fire.
• Rukovanje: Pažljivo rukujte uređajem. Izbjegavajte ispuštanje ili izlaganje jakim udarcima.
• Okruženje: Ne izlažite uređaj ekstremnim temperaturama, vlazi ili korozivnim okruženjima.
• Održavanje: Refer to the maintenance section for cleaning and care. Do not attempt to disassemble or repair the device yourself.

3. Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

• 1x OTDR Set (main unit)
• 2x Fiber Optic Patch Cords (1*SM FC/UPC-FC/UPC + 1*SM FC/UPC-FC/APC)
• Various Connectors (FC-SC, FC-ST, FC-FC, FC-LC)
• USB kabel
• Adapter za napajanje
• Uputstvo za upotrebu
• Čišćenje
• Torba za nošenje

Figure 2: Included accessories and the main unit of the SKYSHL SS322T-2G1 OTDR Fiber Tester.

4. Ključne karakteristike

• Dual Wavelengths & High Dynamic Range: 1310nm+1550nm with 49dB+49dB dynamic range, supporting test distances up to 280km.
• Multi-Function Integration: Combines OTDR, Optical Power Meter (OPM), Optical Light Source (OLS), and Visual Fault Locator (VFL) in one handheld device.
• Short Dead Zones: Event Dead Zone (EDZ) of 0.5m (typical for SM) and Attenuation Dead Zone (ADZ) of 3.0m (typical for SM) for precise fault detection.
• Inteligentno upravljanje: Features automatic testing, scheduled testing, and event mapping for simplified use.
• Smart APP & PC Software: Supports connectivity to Android phones/tablets and Windows PCs for real-time data viewing, sharing, analysis, and saving.
• Broad Connector Compatibility: Includes adapters for SC/UPC, ST/UPC, FC/UPC, LC/UPC, SC/APC, ST/APC, FC/APC, and LC/APC.
• Upravljanje podacima: Allows saving test traces to SD card and USB flash disk, supports EI&SOR format, one-click screenshot, and one-click PDF generation.

5. Raspored uređaja i interfejsi

Familiarize yourself with the physical components and connection ports of the SS322T-2G1.

Slika 3: Vrh view of the device showing the VFL, OTDR, and OPM ports, along with USB and Ethernet ports.

• Optički portovi: Dedicated ports for OTDR, VFL, and OPM functions. Ensure correct fiber connection to the appropriate port.
• USB portovi: Type A and Type B USB ports for connecting USB disks, external devices, or connecting to a computer.
• Micro SD utor: Za proširenje kapaciteta skladištenja.
• Ethernet priključak: For network connectivity and functions like PING test.
• Dugme za napajanje: Located on the front panel for turning the device on/off.
• Navigacijski gumbi: Arrow keys and OK button for menu navigation and selection.
• 7-inčni ekran osjetljiv na dodir: Primary interface for all operations and data display.

6. Podešavanje

6.1 Početno uključivanje

1. Pritisnite i držite dugme za napajanje dok se uređaj ne uključi.
2. The device will display the boot screen and then the main menu.

6.2 Language and Time Settings

To configure language and time:

1. From the main menu, tap on the Sistem ikona.
2. Navigirajte do Opšte postavke.
3. Odaberite Jezik and choose 'English'.
4. Podesite Vrijeme podešavanja po potrebi.

6.3 Network Settings (Optional)

To connect to a Wi-Fi network for APP module functionality:

1. Od Sistem menu, tap on Mrežne postavke.
2. Enable Wi-Fi and scan for available networks.
3. Select your desired network and enter the password to connect.

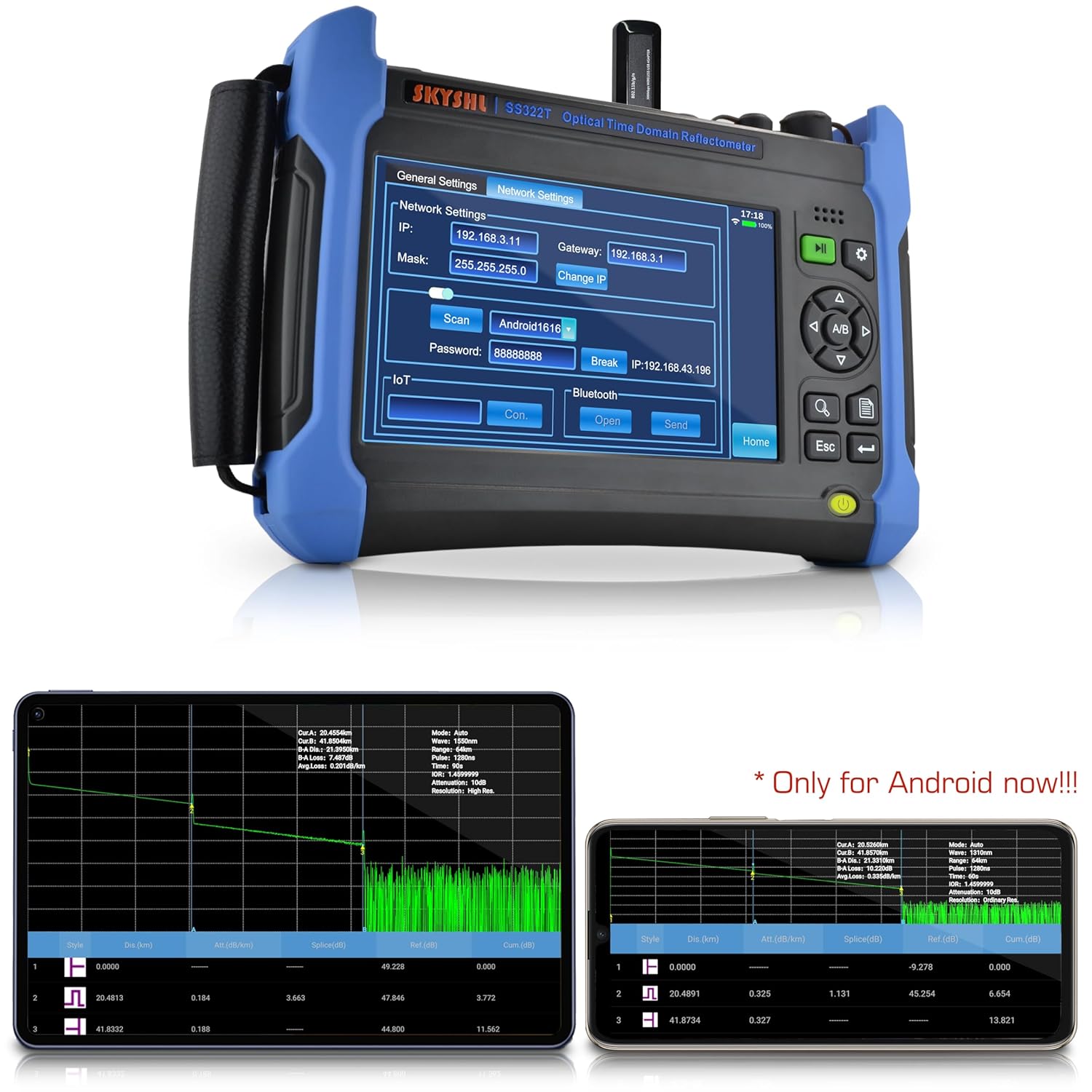

Figure 4: The network settings interface on the SS322T-2G1, showing options for IP, Mask, Gateway, and Wi-Fi connection.

7. Uputstvo za upotrebu

7.1 OTDR Testing

The OTDR function is used to characterize optical fibers. Ensure the fiber under test is clean and properly connected.

1. From the main menu, tap on the OTDR ikona.
2. Connect the fiber to the OTDR port. Ensure the connector type matches (UPC/APC). Use appropriate adapters if necessary.
3. Dodirnite Setup to configure test parameters.
4. Odaberite željeno Talasna dužina (1310nm or 1550nm).
5. Odaberite Mode (Auto-Test for automatic parameter selection or Manual for custom settings).
6. Podesite Avg. Vrijeme (averaging time), Domet, i Pulse Width if in Manual mode.
7. Dodirnite Test or Prosjek da započnete merenje.
8. The OTDR trace will be displayed on the screen, showing events like splices, connectors, and fiber ends.

Slika 5: Prample of 1310nm and 1550nm graphics analysis on the OTDR screen, detailing events and their characteristics.

7.2 Mjerač optičke snage (OPM)

The OPM measures the optical power of a fiber optic signal.

1. From the main menu, tap on the OPM ikona.
2. Connect the fiber to the OPM port.
3. Select the desired wavelength (850nm to 1650nm).
4. The screen will display the measured optical power in dBm or mW.

7.3 Optical Light Source (OLS)

The OLS provides a stable light source for various fiber optic tests.

1. From the main menu, tap on the OLS ikona.
2. Connect the fiber to the OLS port.
3. Select the desired wavelength (1310nm or 1550nm).
4. Choose the output mode (CW, 270Hz, 1kHz, 2kHz).
5. Dodirnite Počni to activate the light source.

7.4 Vizualni lokator kvarova (VFL)

The VFL emits a visible red laser to quickly locate breaks, bends, and faulty connectors in fiber optic cables.

1. From the main menu, tap on the VFL ikona.
2. Connect the fiber to the VFL port.
3. Dodirnite Počni to activate the VFL.
4. Observe the fiber for any visible red light leakage, indicating a fault.

7.5 Mapa događaja

The Event Map function provides a simplified, graphical representation of the fiber link, making it easier to identify and locate events without detailed trace analysis.

1. After performing an OTDR test, tap on the Mapa događaja icon (if available in your UI version) or navigate to the analysis section.
2. The map will display icons representing different events (e.g., splices, connectors, fiber ends) and their distances.

Figure 6: Diagram illustrating various OTDR test event types such as splicing points, adapters, fractures, and fiber ends, as displayed on the test curve.

7.6 Upravljanje podacima

The SS322T-2G1 allows for efficient management of test data.

1. Saving Files: After a test, tap Sačuvaj to store the trace data. You can choose to save to internal memory, SD card, or a connected USB disk.
2. Loading Files: Dodirnite File to browse and load previously saved test files.
3. Transfering Files: Use the USB Type A port to connect a USB flash drive for easy transfer of files between the device and external storage.
4. Generisanje PDF izvještaja: The device supports one-click PDF report generation for professional documentation of test results.

7.7 APP Module Connectivity

The Smart APP module allows for enhanced functionality and remote interaction with the device.

1. Ensure the device is connected to Wi-Fi (refer to Section 6.3).
2. Install the SKYSHL APP on your Android device (currently Android only) or Windows PC.
3. Follow the APP's instructions to connect to the SS322T-2G1.
4. Možeš sada view, share, analyze, and save test data in real-time from your connected device.

8. Održavanje

Proper maintenance ensures the longevity and accuracy of your SS322T-2G1 OTDR.

• Cleaning Optical Ports: Regularly clean the optical ports and fiber connectors using the provided cleaning swabs and appropriate fiber optic cleaning solutions. Dust and debris can significantly affect measurement accuracy.
• Čišćenje ekrana: Use a soft, lint-free cloth to clean the touch screen. Avoid abrasive materials or harsh chemicals.
• Održavanje baterije: Charge the device regularly. For long-term storage, ensure the battery is partially charged (around 50%) and store in a cool, dry place. Avoid fully discharging the battery for extended periods.
• Ažuriranja softvera: Provjerite proizvođača website periodically for software updates to ensure optimal performance and access to new features.
• Skladištenje: When not in use, store the device in its carrying bag to protect it from dust, moisture, and physical damage.

9. Otkrivanje problema

This section addresses common issues you might encounter with your SS322T-2G1 OTDR.

10. Tehničke specifikacije

11. Garancija i podrška

SKYSHL provides a 3-year free replacement warranty for the SS322T-2G1 OTDR Fiber Tester, along with lifetime maintenance. For any technical assistance, troubleshooting, or warranty claims, please contact SKYSHL customer support. A professional technical support team is available 24 hours a day to assist you.

For further information, please visit the official SKYSHL webweb-mjesto ili pogledajte kontakt podatke navedene na pakovanju vašeg proizvoda.
