Cuifati 16-kanalni USB kontrolisani opto-izolovani relejni modul - uputstvo za upotrebu

1. Proizvod je gotovview

This manual provides essential information for the proper setup, operation, and maintenance of the Cuifati 16-Channel USB Controlled Opto-Isolated Relay Module. This device is designed for simple ON/OFF switching of electrical equipment, making it suitable for various applications including robotics and home automation projects.

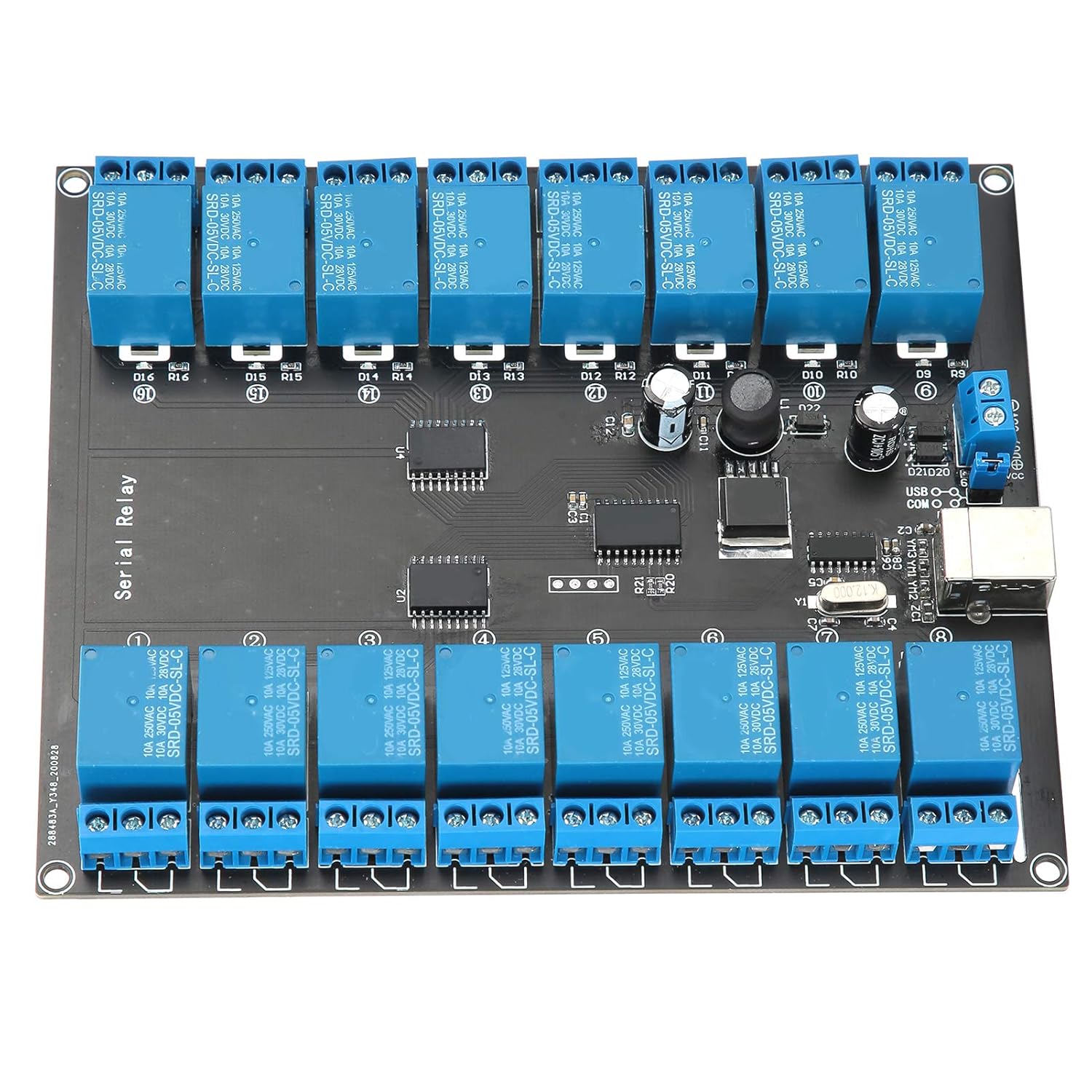

Slika 1: Od vrha prema dolje view of the Cuifati 16-Channel USB Controlled Opto-Isolated Relay Module, showing the 16 blue relays, USB port, and terminal blocks.

2. Ključne karakteristike

The Cuifati 16-Channel USB Controlled Opto-Isolated Relay Module offers the following features:

• 16 SPDT Relays: Equipped with sixteen Single-Pole Double-Throw (SPDT) relays for versatile switching applications.
• USB kontrola: Designed for control via a USB interface, allowing integration with various computer systems.
• Opto-Isolated Design: Features opto-isolation to protect the control circuit from high-voltage relay circuits, enhancing safety and reliability.
• LED indikatori: Includes an LED power indicator and individual LEDs for each relay output, providing clear status feedback.
• Visoka nosivost: Each relay supports a maximum load of 10A at 250V AC or 10A at 30V DC.

Slika 2: Krupni plan view highlighting the USB controlled, opto-isolated nature of the board with its 16 SPDT relays.

3. Upute za postavljanje

Follow these steps to set up your Cuifati Relay Module:

1. Priključak za napajanje: Connect a DC power supply within the range of 7V to 38V to the designated power input terminals on the module. Ensure correct polarity.
2. USB veza: Connect the module to your computer using a standard USB cable. The USB port is located on the side of the board.
3. Instalacija drajvera (ako je potrebno): Depending on your operating system, you may need to install specific drivers for the USB interface. Refer to your operating system's documentation or the manufacturer's website for driver availability.
4. Učitavanje veze: Connect the electrical equipment you wish to control to the relay terminal blocks. Each relay has three terminals: Common (COM), Normally Open (NO), and Normally Closed (NC). Refer to the circuit diagram for your specific application.

Slika 3: Pod uglom view of the module, illustrating the USB port and power input terminals for connection.

4. Upravljanje modulom

Once the module is set up, you can operate it via your computer:

• Softverska kontrola: The module is controlled via USB. You will need to use compatible software or develop custom code to send commands to the module and activate/deactivate the relays. This manual does not provide specific software or programming instructions.
• LED indikatori: Observe the LED indicators for operational status. The power LED indicates that the module is receiving power. Each relay has an associated LED that illuminates when the relay is activated.
• Relay Switching: When a relay is activated, its contacts will switch from their default state (Normally Closed to Common) to the activated state (Normally Open to Common).

Figure 4: Detailed top-down view of the relay module, showing the layout of relays, control chips, and connection points.

5. Održavanje

To ensure the longevity and reliable operation of your relay module, consider the following maintenance guidelines:

• Održavajte čistoću: Regularly clean the module with a soft, dry cloth to remove dust and debris. Avoid using liquid cleaners.
• Izbjegavajte vlagu: Protect the module from moisture and extreme temperatures. Operate it in a dry environment.
• Pravilno rukovanje: Handle the module with care to prevent physical damage to components or connections.
• Pregledajte veze: Periodically check all power and load connections to ensure they are secure.

6. Otkrivanje problema

If you encounter issues with your Cuifati Relay Module, consider the following troubleshooting steps:

• No Power Indicator LED:
  • Check the power supply connection and ensure it is within the 7V-38V DC range.
  • Provjerite funkcionira li napajanje ispravno.
• Relays Not Activating:
  • Ensure the module is properly connected via USB to your computer.
  • Confirm that the necessary drivers are installed and recognized by your operating system.
  • Verify that your control software or code is sending the correct commands to the module.
  • Check the load connections to the relay terminals.
• Module Not Recognized by Computer:
  • Pokušajte s drugim USB portom na svom računaru.
  • Koristite drugi USB kabl.
  • Reinstall or update the USB drivers for the module.
• Opći rad: Note that this manual does not include specific software or programming instructions for controlling the module. Users are expected to source or develop their own control interface.

7. Specifikacije

Slika 5: Dno view of the Printed Circuit Board (PCB) for the relay module.

8. Garancija i podrška

For warranty information and technical support, please refer to the documentation provided at the time of purchase or contact the seller/manufacturer directly. This manual does not include specific warranty terms or support contact details.
