Uvod
Thank you for choosing the ANCHEER Hydraulic Rowing Machine RM-5768. This manual provides essential information for the safe assembly, operation, and maintenance of your rowing machine. Please read this manual thoroughly before use and retain it for future reference.
Važne informacije o sigurnosti
- Konsultujte se sa lekarom pre nego što započnete bilo koji program vežbanja.
- Držite djecu i kućne ljubimce podalje od mašine tokom rada.
- Place the rowing machine on a flat, stable surface. Ensure adequate space around the machine.
- Prije svake upotrebe provjerite mašinu da li ima labavih ili oštećenih dijelova. Ne koristite je ako je oštećena.
- Nosite odgovarajuću odjeću i obuću za vježbanje.
- Ne prekoračujte maksimalnu težinu korisnika od 250 kg (550 lbs).
- Odmah prestanite s vježbanjem ako osjetite bol, vrtoglavicu ili kratak dah.
Product Overview
The ANCHEER Hydraulic Rowing Machine RM-5768 is designed for a full-body cardio workout. It features a unique full-motion arm system and adjustable hydraulic resistance.
Ključne komponente
- Hydraulic Cylinders: Provide resistance for rowing motion.
- Full-Motion Arms: Allow for a 360-degree rotation, simulating realistic rowing.
- Adjustable Foot Pedals: Non-slip design with adjustable straps for secure foot placement.
- Ergonomic Padded Seat: Designed for comfort during extended workouts.
- LCD monitor: Displays workout data such as time, count, calories, and distance.
- Aluminum Rail: Ensures smooth and quiet seat movement.
Postavljanje i montaža
Before assembly, ensure all parts are present and undamaged. Refer to the included hardware pack and assembly diagram.
Koraci montaže:
- Raspakujte komponente: Pažljivo izvadite sve dijelove iz ambalaže i položite ih na čistu, ravnu površinu.
- Pričvrstite stabilizatore: Pričvrstite prednje i zadnje stabilizatore na glavni okvir pomoću priloženih vijaka i podloški.
- Instalirajte sjedište: Slide the ergonomic seat onto the aluminum rail. Ensure it moves smoothly.
- Mount Rowing Arms: Attach the full-motion rowing arms to the main frame. Connect the hydraulic cylinders to the arms and the frame.
- Attach Foot Pedals: Secure the foot pedals to the designated points on the frame.
- Instalacija LCD monitora: Mount the LCD monitor onto its bracket. Insert 2 AAA batteries (not included) into the monitor.
- Konačna provjera: Verify all bolts are tightened and all components are securely in place.
Uputstvo za upotrebu
Podešavanje otpora
The rowing machine features 12 levels of adjustable hydraulic resistance. To adjust the resistance:
- Locate the adjustment knob on the hydraulic cylinders.
- Turn the knob clockwise to increase resistance (levels 9-12 for higher intensity).
- Turn the knob counter-clockwise to decrease resistance (levels 1-4 for lower intensity).
- Ensure both hydraulic cylinders are set to the same resistance level for balanced operation.
Korišćenje LCD monitora
The LCD monitor tracks your workout progress. It displays:
- VRIJEME: Trajanje vašeg treninga.
- COUNT: Broj veslačkih zaveslaja.
- KALORIJE: Procijenjene sagorene kalorije.
- RAZDALJINA: Estimated distance rowed.
Dugmad:
- UPUTE: Pritisnite za kretanje kroz funkcije prikaza ili držite za resetiranje vrijednosti.
- RESETOVATI: Press to reset current values.
Pravilna tehnika veslanja
For an effective and safe workout, follow these steps:
- Početna pozicija: Sit on the seat with knees bent, feet securely strapped into the pedals. Lean slightly forward from the hips, keeping your back straight. Grasp the handles with an overhand grip.
- Pogon: Push off with your legs, extending them fully. As your legs extend, pull the handles towards your abdomen, engaging your core and back muscles. The full-motion arms allow for a natural, wide rowing arc.
- finiš: Your legs should be fully extended, and the handles should be near your abdomen. Your body should be leaning slightly back.
- Oporavak: Extend your arms forward, then bend your knees, allowing the seat to slide forward. Return to the starting position in a controlled manner.
Održavanje
Regular maintenance ensures the longevity and safe operation of your rowing machine.
- čišćenje: Obrišite mašinu oglasomamp krpom nakon svake upotrebe kako biste uklonili znoj i prašinu. Izbjegavajte abrazivna sredstva za čišćenje.
- podmazivanje: Periodically check the moving parts, especially the seat rollers and rail, for smooth operation. Apply a silicone-based lubricant if necessary.
- Zategnite pričvršćivače: Regularly inspect all bolts, nuts, and screws. Tighten any loose fasteners to prevent instability and wear.
- Skladištenje: Store the rowing machine in a cool, dry place away from direct sunlight and extreme temperatures.
- Zamjena baterije: Zamijenite AAA baterije u LCD monitoru kada ekran postane taman ili ne reaguje.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nema prikaza na LCD monitoru | Baterije su prazne ili nepravilno instalirane. | Replace AAA batteries or ensure correct polarity. |
| Resistance feels uneven or too weak/strong | Hydraulic cylinders not set to the same level; cylinder malfunction. | Adjust both cylinders to the same resistance level. If issue persists, contact customer support. |
| Škripanje ili škripanje | Loose fasteners; dry moving parts (seat rollers, rail). | Tighten all bolts and screws. Lubricate the seat rail and rollers with silicone spray. |
| Seat does not slide smoothly | Debris on the rail; dry rail; damaged rollers. | Clean the aluminum rail. Apply silicone lubricant. Inspect rollers for damage. |
Specifikacije
| Feature | Detalj |
|---|---|
| Naziv modela | RM-5768 |
| Brand | ANCHEER |
| Mehanizam otpora | Hidraulični |
| Nivoi otpora | 12 (podesivo) |
| Materijal okvira | legirani čelik |
| Rail Material | Aluminijum |
| Display Type | LCD |
| Funkcije monitora | Time, Count, Calories, Distance |

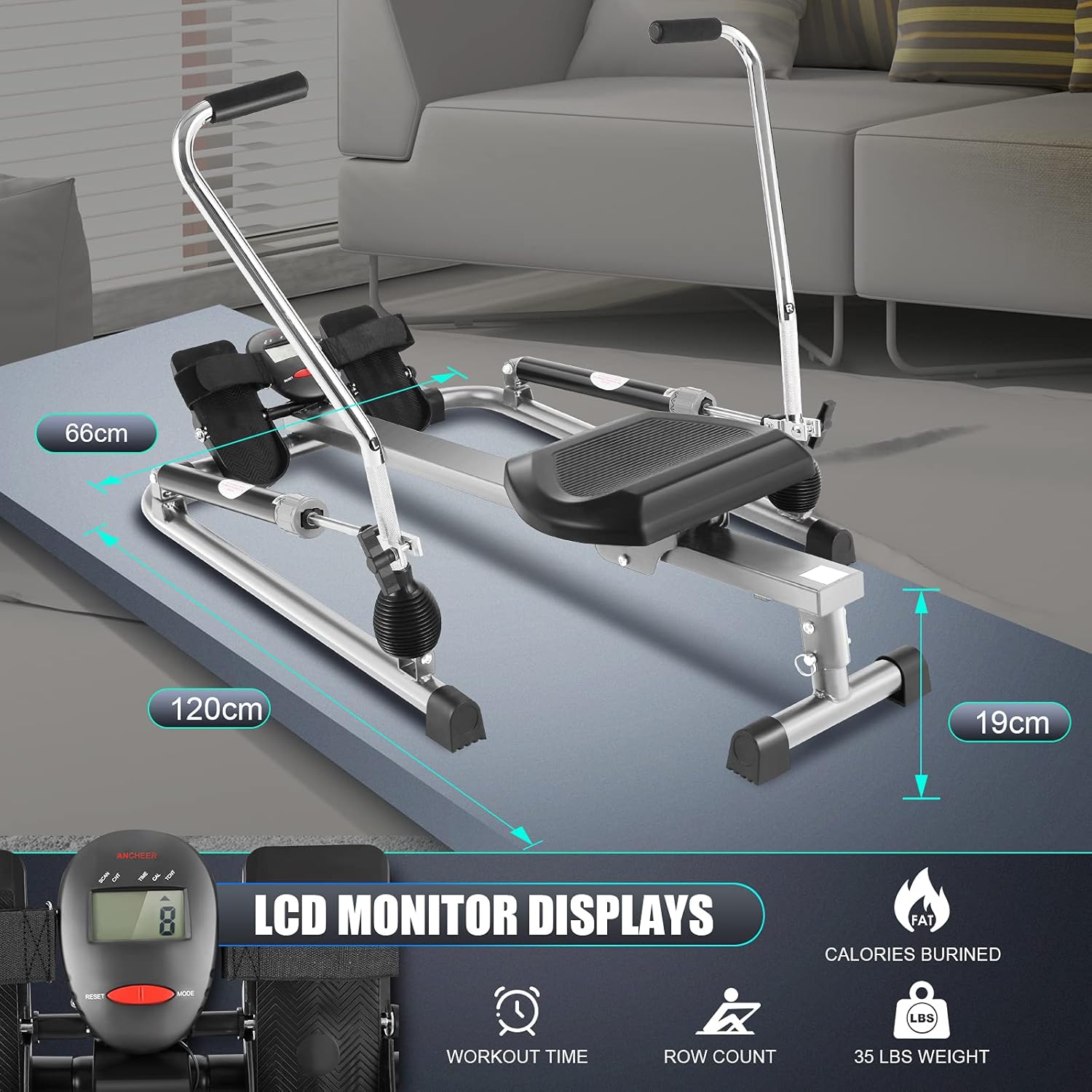

| Dimenzije proizvoda (D x Š x V) | 120 x 66 x 19 cm (47.2 x 26 x 7.5 inča) |
| Težina proizvoda | 18.12 kg (39.9 lbs) |
| Maksimalna težina korisnika | 250 kg (550 lbs) |
| Baterije su potrebne | 2 x AAA (nije uključeno) |
| Posebne karakteristike | Digital display, Adjustable resistance, Compact, Contoured seat, Lightweight, Full-motion arms |
Garancija i podrška
ANCHEER products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or contact ANCHEER customer support directly.
If you have any questions, require assistance with assembly, operation, or maintenance, or need to report a missing or damaged part, please contact ANCHEER customer service. Contact details can typically be found on the product packaging or the official ANCHEER website.
