Uvod
The INNOVV K5 is a state-of-the-art motorcycle dash camera system designed for riders who demand high-quality recording and robust performance. This manual provides comprehensive instructions for the installation, operation, and maintenance of your INNOVV K5 system, ensuring optimal performance and longevity.
Key features include 4K Ultra HD front recording, 1080P Full HD rear recording, dual-band Wi-Fi connectivity (2.4Ghz/5.0Ghz), a smart remote control, a full-featured INNOVV App, IP67 waterproof rating, and an industry-leading 5Hz GPS receiver.
Šta je u kutiji
Carefully unpack your INNOVV K5 system and ensure all components listed below are present:
- 1 x Front Camera (Integrated with DVR)
- 1 x Rear Camera (3.0 meter long video cable)
- 1 x daljinski upravljač
- 1 x GPS modul
- 1 x vanjski mikrofon
- 1 x 12V/5V Converter
- 1 x Rear Camera Mount
- 1 x DVR/Remote Control Mount
- 1 x Uputstvo za upotrebu
- 1 x Spare Part Package (3M double-sided tape, waterproof rings, and thumb screws)
Image: All components included in the INNOVV K5 package. This includes the front camera (integrated with DVR), rear camera, remote control, GPS module, external microphone, 12V/5V converter, various mounts, and spare parts.
Product Overview
Familiarize yourself with the main components of your INNOVV K5 system:
DVR and Front Camera
The main unit integrates the Digital Video Recorder (DVR) with the front-facing camera. It is the central processing unit for the system.
Slika: Detaljna view of the INNOVV K5 DVR unit with the integrated front camera. The unit features a textured top surface with the INNOVV logo.
Dimenzije: 52 mm (D) x 48 mm (Š) x 25 mm (V)
Zadnja kamera
The compact rear camera provides a 1080P Full HD view of the road behind you. It connects to the DVR via a 3.0-meter cable.

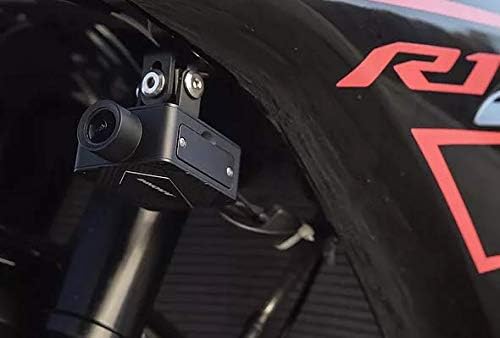

Image: The INNOVV K5 rear camera discreetly mounted on the rear fender of a motorcycle, showing its compact size and placement.
Dimenzije: Diameter 25mm x 53.3mm (L)
Daljinski upravljač
The smart remote control allows for easy operation of key functions without needing to access the DVR directly.

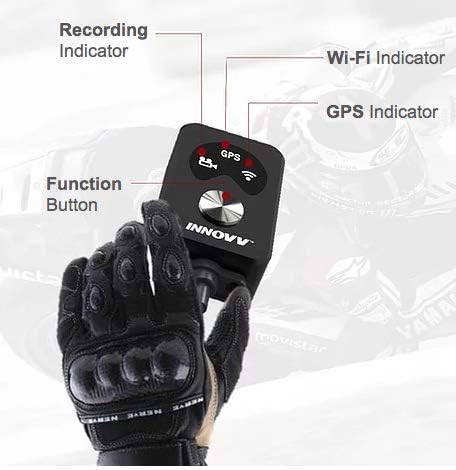

Image: The INNOVV K5 remote control, showing its recording, Wi-Fi, and GPS indicators, along with the central function button. It is designed for easy access while riding.
- Indikator snimanja: Prikazuje status snimanja.
- Wi-Fi indikator: Označava status Wi-Fi veze.
- GPS indikator: Shows GPS signal status.
- Funkcijska tipka: Used for various operations like locking files or taking snapshots.
Eksterni mikrofon
For clear audio recording, the system includes an external microphone with good noise reduction capabilities.
Image: The INNOVV K5 external microphone, designed to capture clear audio while minimizing wind noise.
Postavljanje i instalacija
Installation of the INNOVV K5 system requires careful routing of cables and secure mounting of components. It is recommended to have this installed by a professional if you are not comfortable with motorcycle electrical systems.
- Mounting the DVR/Front Camera: Choose a secure location on your motorcycle, typically near the front, that provides a clear view of the road ahead. Use the provided DVR/Remote Control Mount.
- Mounting the Rear Camera: Install the rear camera using its dedicated mount, ensuring it has an unobstructed view of the rear. Route the 3.0-meter cable carefully to the DVR unit.
- Connecting the GPS Module: Connect the GPS module to the designated port on the DVR. Position the module where it has a clear line of sight to the sky for optimal signal reception.
- Connecting the External Microphone: Plug the external microphone into the DVR. Position it in a location that minimizes wind noise but still captures desired audio.
- Power Connection (12V/5V Converter): Connect the 12V/5V converter to a switched 12V power source on your motorcycle. This ensures the dash cam powers on and off with your ignition. Route the cables securely, avoiding moving parts or heat sources.
- Umetnite TF karticu: Insert a high-speed TF (microSD) card (up to 512GB supported) into the DVR's card slot. Ensure it is properly formatted before first use (refer to Operating Instructions for formatting).
Image: An infographic illustrating the various features and components of the INNOVV K5 system, including camera views, Wi-Fi, G-sensor, GPS, and storage capabilities.
Uputstvo za upotrebu
Automatski rad
The INNOVV K5 features automatic on/off recording technology. Once properly installed and connected to a switched power source:
- The system will automatically power on and begin recording when your motorcycle's ignition is turned on.
- Recording will automatically stop and the system will power off when the ignition is turned off.
Image: A motorcyclist in motion, demonstrating the automatic on/off recording feature of the INNOVV K5, which activates with the motorcycle's ignition.
Using the INNOVV App
The full-featured INNOVV App (available for iOS and Android) allows you to control settings, view live footage, download recordings, and manage your device via dual-band Wi-Fi (2.4Ghz/5.0Ghz).
- Preuzmite aplikaciju: Traži "INNOVV" in your device's app store and install it.
- Povežite se na Wi-Fi: Turn on your K5 system. On your smartphone, go to Wi-Fi settings and connect to the INNOVV K5's Wi-Fi network (e.g., "INNOVV_K5_XXXX"). The default password is usually "12345678".
- Funkcije pristupa: Once connected, open the INNOVV App. You can:
- View live streaming from both front and rear cameras.
- Adjust camera settings (resolution, loop recording duration, G-sensor sensitivity, etc.).
- Pregledajte i preuzmite snimljene videozapise i fotografije na svoj pametni telefon.
- Formatirajte TF karticu.
Korištenje daljinskog upravljača
The remote control provides quick access to essential functions:
- Pojedinačna štampa: Press the function button once to manually lock the current recording file, preventing it from being overwritten during loop recording.
- Dugi pritisak: Press and hold the function button to take a snapshot (photo).
Održavanje
- čišćenje: Koristite meku, damp cloth to clean the camera lenses and DVR unit. Avoid abrasive cleaners or solvents. Ensure all components are dry before operation.
- Upravljanje TF karticama: Regularly format your TF card (monthly recommended) via the INNOVV App to maintain optimal recording performance and prevent data corruption. Back up important files prije formatiranja.
- Ažuriranja firmvera: Check the official INNOVV website or app periodically for firmware updates. Keeping your firmware updated ensures the best performance and access to new features.
- Inspekcija kablova: Periodically inspect all cables for signs of wear, fraying, or damage. Ensure connections are secure and waterproof seals are intact.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Uređaj se ne uključuje. | No power from motorcycle; loose power connection; faulty 12V/5V converter. | Check motorcycle's power source (e.g., ignition switch); ensure all power cables are securely connected; test the 12V/5V converter. |
| Snimanje se neočekivano prekida. | TF card full or corrupted; low power; faulty TF card. | Format the TF card via the app; ensure stable power supply; try a different, high-quality TF card (UHS-I, V30 A2 recommended). |
| Problemi s Wi-Fi vezom. | Incorrect Wi-Fi password; too far from device; interference. | Verify Wi-Fi password (default: 12345678); ensure smartphone is close to the DVR; try connecting in an area with less wireless interference. |
| Loš kvalitet videa. | Dirty camera lens; incorrect resolution settings; vibration. | Clean camera lenses; check video resolution settings in the app (ensure 4K/1080P is selected); ensure cameras are securely mounted to minimize vibration. |
| GPS signal nije primljen. | GPS module obstructed; faulty GPS module. | Osigurajte da GPS modul ima čist view of the sky; check GPS module connection to DVR. |
Specifikacije
- DVR Dimension: 52 mm (D) x 48 mm (Š) x 25 mm (V)
- Front Camera Dimension: 52mm (L) x 48mm (W) x 22mm (H) (Integrated with DVR)
- Rear Camera Dimension: Diameter 25mm x 53.3mm (L)
- Length of Rear Video Cable: 3.0 Meter / 9.84 Feet
- Polje of View (FOV): 120°
- Skladištenje: TF card (Supports up to 512GB)
- Maksimalna rezolucija: 4K (Front) and 1080P (Rear)
- Video format: MP4/TS
- Povezivanje: Dual-band Wi-Fi (2.4Ghz/5.0Ghz)
- GPS: Industry-leading 5Hz GPS Receiver
- Ocjena vodootpornosti: IP67
- Radna temperatura: -30°C do 70°C (-22°F do 158°F)
- Ulazna snaga: 12V/5V Converter
Garancija i podrška
INNOVV products come with a manufacturer's warranty. Please refer to the official INNOVV website or your purchase documentation for specific warranty terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact INNOVV customer service through their official channels.
Za više informacija posjetite INNOVV trgovina na Amazonu.
