BOIFUN DD202 2K Wi-Fi vanjska sigurnosna kamera - uputstvo za upotrebu

1. Uvod

This manual provides detailed instructions for the installation, operation, and maintenance of your BOIFUN DD202 2K Wi-Fi Outdoor Security Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety. The BOIFUN DD202 is a battery-powered outdoor camera designed for reliable surveillance, featuring 2K Full HD resolution, color night vision, and intelligent motion detection.

Image 1.1: BOIFUN DD202 2K Wi-Fi Outdoor Security Camera

2. Sadržaj paketa

Molimo Vas da provjerite sadržaj paketa prilikom prijema. Ako bilo koji artikl nedostaje ili je oštećen, obratite se korisničkoj podršci.

• 1 × BOIFUN DD202 Battery Camera
• 1 × Fixed Mounting Bracket
• 4 × Vijci za montažu
• 4 × Wall Plugs (Nuts)
• 1 × USB kabel za punjenje
• 1 × Uputstvo za upotrebu

Image 2.1: Included components for the BOIFUN DD202 camera.

3. Proizvod je gotovview

The BOIFUN DD202 camera is designed for outdoor security with several key features:

• 2K Full HD Resolution: Snima jasne i detaljne video zapisetage.
• Noćni vid u boji: Provides full-color video even in low-light conditions up to 20 meters.
• PIR detekcija pokreta: Advanced AI algorithm for accurate human motion detection, reducing false alarms.
• Acoustic Alarm & Spotlight: Deters intruders with a 110 dB siren and bright spotlight.
• Trajanje baterije od 120 dana: Long-lasting 10400 mAh battery (based on 10 wake-ups/day).
• Dvosmjerni zvuk: Communicate with visitors or deter unwanted guests remotely.
• IP66 Otporan na vremenske uslove: Dizajniran da izdrži različite vanjske vremenske uvjete.
• 2.4 GHz Wi-Fi Connectivity: Ensures stable wireless connection.

Image 3.1: The camera continues to function and record even if the main power supply is interrupted, thanks to its internal battery.

4. Podešavanje

4.1 Punjenje kamere

Before initial use, fully charge the camera using the provided USB cable. Connect the cable to the camera's charging port and a standard USB power adapter (not included).

4.2 Instalacija aplikacije i kreiranje računa

1. Download the official BOIFUN app from your smartphone's app store (iOS or Android).
2. Otvorite aplikaciju i slijedite upute na ekranu da biste kreirali novi račun ili se prijavite ako ga već imate.

4.3 Wi-Fi veza

The camera supports 2.4 GHz Wi-Fi networks only. Ensure your smartphone is connected to a 2.4 GHz Wi-Fi network during the setup process.

1. In the app, select 'Add Device' and choose your camera model.
2. Follow the app's instructions to connect the camera to your Wi-Fi network. This typically involves scanning a QR code displayed on your phone with the camera.

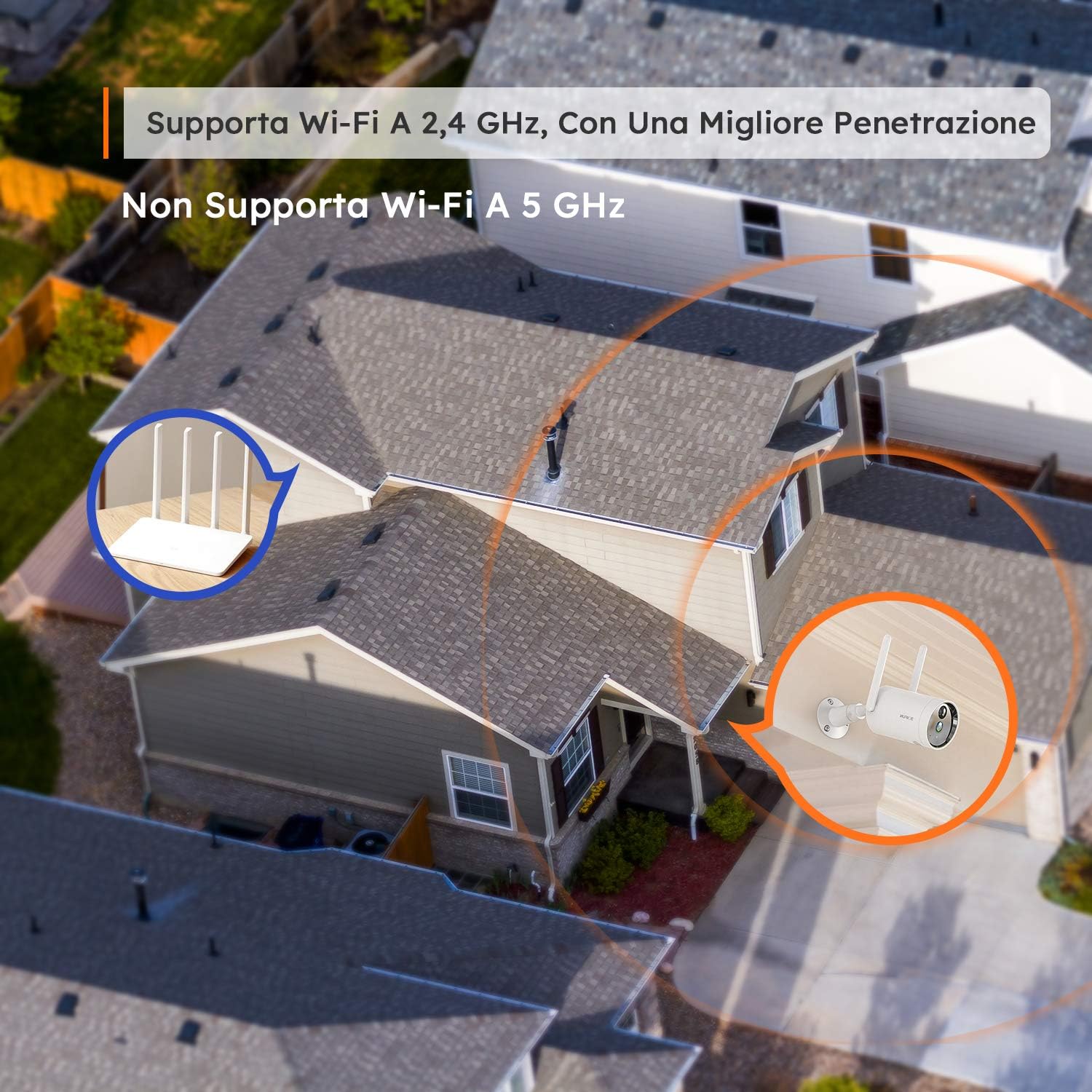

Image 4.1: The camera supports 2.4 GHz Wi-Fi, offering better penetration and range compared to 5 GHz networks.

4.4 Fizička instalacija

Kamera je dizajnirana za montažu na zid. Odaberite lokaciju koja pruža željeni viewing angle and is within range of your 2.4 GHz Wi-Fi network.

1. Označite tačke za bušenje na zidu koristeći nosač za montažu kao šablon.
2. Izbušite rupe i umetnite tiple u zid.
3. Pričvrstite držač za montažu na zid pomoću vijaka.
4. Pričvrstite kameru na nosač. Podesite ugao po potrebi.

5. Uputstvo za upotrebu

5.1 Uživo View i Snimanje

Access the live feed of your camera through the BOIFUN app. You can manually record video or take screenshots from the live view.

Image 5.1: Monitor multiple camera feeds simultaneously through the BOIFUN app on your smartphone.

5.2 Detekcija pokreta

The camera features PIR (Passive Infrared) motion detection combined with an advanced AI algorithm to distinguish between humans and other moving objects, minimizing false alarms.

• Ljudska detekcija: Configure the camera to only alert you when a human figure is detected.
• Podesiva osjetljivost: Customize the detection sensitivity (levels 1-10) to suit your environment.
• Custom Alarm Zone: Definišite specifična područja unutar kamere view where motion detection should be active.

Image 5.2: The camera's PIR human detection accurately identifies people while ignoring other movements like pets or falling leaves, reducing unnecessary alerts.

5.3 Noćni vid

The BOIFUN DD202 offers 2K Full HD color night vision, allowing you to see clear, detailed, and color images even in complete darkness up to 20 meters. When a human is detected at night, the fill lights automatically activate to provide color footage.

Slika 5.3: Primjerample of the camera's color night vision capability, providing clear visibility in low-light conditions.

5.4 funkcija alarma

Upon detecting motion, the camera can trigger an acoustic alarm (up to 110 dB) and activate its spotlight to deter intruders. You will also receive real-time notifications on your smartphone.

Image 5.4: The camera's real-time alert system, featuring a siren and spotlight to deter potential threats.

5.5 Dvosmjerni audio

The integrated microphone and speaker allow for two-way communication. You can speak through the camera to interact with visitors or warn off unwanted individuals.

Image 5.5: Use the two-way audio feature to communicate with people near your camera.

5.6 Opcije skladištenja

• Micro SD kartica: Supports up to 128GB Micro SD card (not included) for local storage. When the card is full, older footage will be overwritten automatically.
• Cloud Storage: Offers a 7-day free trial for cloud storage. Subsequent cloud storage requires a subscription. All video files are encrypted for privacy.

6. Održavanje

• čišćenje: Regularly wipe the camera lens and body with a soft, dry cloth to ensure clear image quality. Avoid using harsh chemicals.
• Punjenje baterije: Monitor the battery level via the app and recharge the camera when necessary to ensure continuous operation.
• Ažuriranja firmvera: Check the app periodically for firmware updates to ensure optimal performance and security.

7. Otkrivanje problema

7.1 Kamera se ne povezuje na Wi-Fi

• Ensure your Wi-Fi network is 2.4 GHz. The camera does not support 5 GHz Wi-Fi.
• Provjerite je li kamera unutar dometa vašeg Wi-Fi rutera.
• Provjerite da li je vaša lozinka za Wi-Fi ispravno unesena u aplikaciju.
• Ponovo pokrenite ruter i kameru, a zatim pokušajte ponovo da se povežete.

7.2 Frequent False Alarms

• Adjust the motion detection sensitivity in the app to a lower level.
• Utilize the 'Human Detection' feature to filter out non-human movements.
• Set up a 'Custom Alarm Zone' to exclude areas with frequent irrelevant motion (e.g., busy roads, swaying trees).

7.3 Loš kvalitet slike

• Provjerite je li objektiv kamere čist i bez prašine ili mrlja.
• Provjerite jačinu Wi-Fi signala. Slab signal može uticati na kvalitet video strimovanja.
• Verify the video resolution setting in the app is set to 2K (HD).

Image 7.1: Comparison illustrating the enhanced detail provided by 2K resolution compared to 1080p.

8. Specifikacije

9. Garancija i podrška

BOIFUN is committed to providing advanced intelligent protection solutions and excellent customer service.

• garancija: Ovaj proizvod dolazi sa 3 godine garancije.
• Politika povrata: Iskoristite 30-dnevnu besplatnu politiku povrata.
• Korisnička podrška: 24/7 after-sales support is available.

For any questions or assistance, please contact us at: admin@boifun.net

Image 9.1: BOIFUN offers 9 years of focus, a 3-year warranty, and timely support within 24 hours.
