Cuisinart Premium Single-Serve Brewer

Važne mjere zaštite

Prilikom korištenja električnih uređaja uvijek se treba pridržavati osnovnih sigurnosnih mjera opreza kako bi se smanjio rizik od požara, električnog udara i/ili ozljeda osoba, uključujući sljedeće:

• Pročitajte sva uputstva.
• Ne dodirujte vruće površine. Koristite ručke ili dugmad.
• Da biste se zaštitili od električnih opasnosti, nemojte uranjati kabel, utikače ili uređaj u vodu ili drugu tekućinu.
• Neophodan je strogi nadzor kada bilo koji uređaj koriste djeca ili u blizini djece.
• Isključite iz utičnice kada nije u upotrebi i prije čišćenja. Ostavite da se ohladi prije stavljanja ili skidanja dijelova i prije čišćenja uređaja.
• Nemojte koristiti uređaj s oštećenim kablom ili utikačem, ili nakon što uređaj pokvari rad ili je pao ili oštećen na bilo koji način.
• Ne koristiti na otvorenom.
• Nemojte dozvoliti da kabl visi preko ivice stola ili pulta, niti da dodiruje vruće površine.
• Ne stavljajte na ili blizu vrućeg plinskog ili električnog gorionika, ili u zagrijanu pećnicu.
• Uvijek prvo priključite utikač na uređaj, a zatim utaknite kabel u zidnu utičnicu. Za isključivanje, okrenite bilo koju kontrolu na OFF, a zatim izvucite utikač iz zidne utičnice.
• Nemojte koristiti uređaj za drugu upotrebu osim za predviđenu.

Product Overview

The Cuisinart Premium Single-Serve Brewer is a versatile and programmable home-brewing unit designed for both personal use and entertaining. It is compatible with any brand of single-cup pod, including Keurig K-Cup pods, and includes a HomeBarista Reusable Filter Cup for ground coffee or tea. This brewer offers various beverage sizes and temperature controls for a customized experience.

Figure 1: Cuisinart Premium Single-Serve Brewer (Robins Egg Blue)

Delovi i karakteristike

• 1. Water Reservoir (72-ounce capacity)

  The large, removable water reservoir minimizes the need for frequent refills. It features clear 'MIN FILL' and 'MAX FILL' lines for easy monitoring. A charcoal water filter is included to ensure fresh-tasting water for every brew.



  Figure 2: Water Reservoir with Fill Lines

• 2. Brew Head & Pod Holder

  The brew head accommodates all single-cup pods, including K-Cup pods. It features a simple lift-and-close mechanism for easy pod insertion. The unit also includes a dedicated storage compartment for the HomeBarista Reusable Filter Cup.

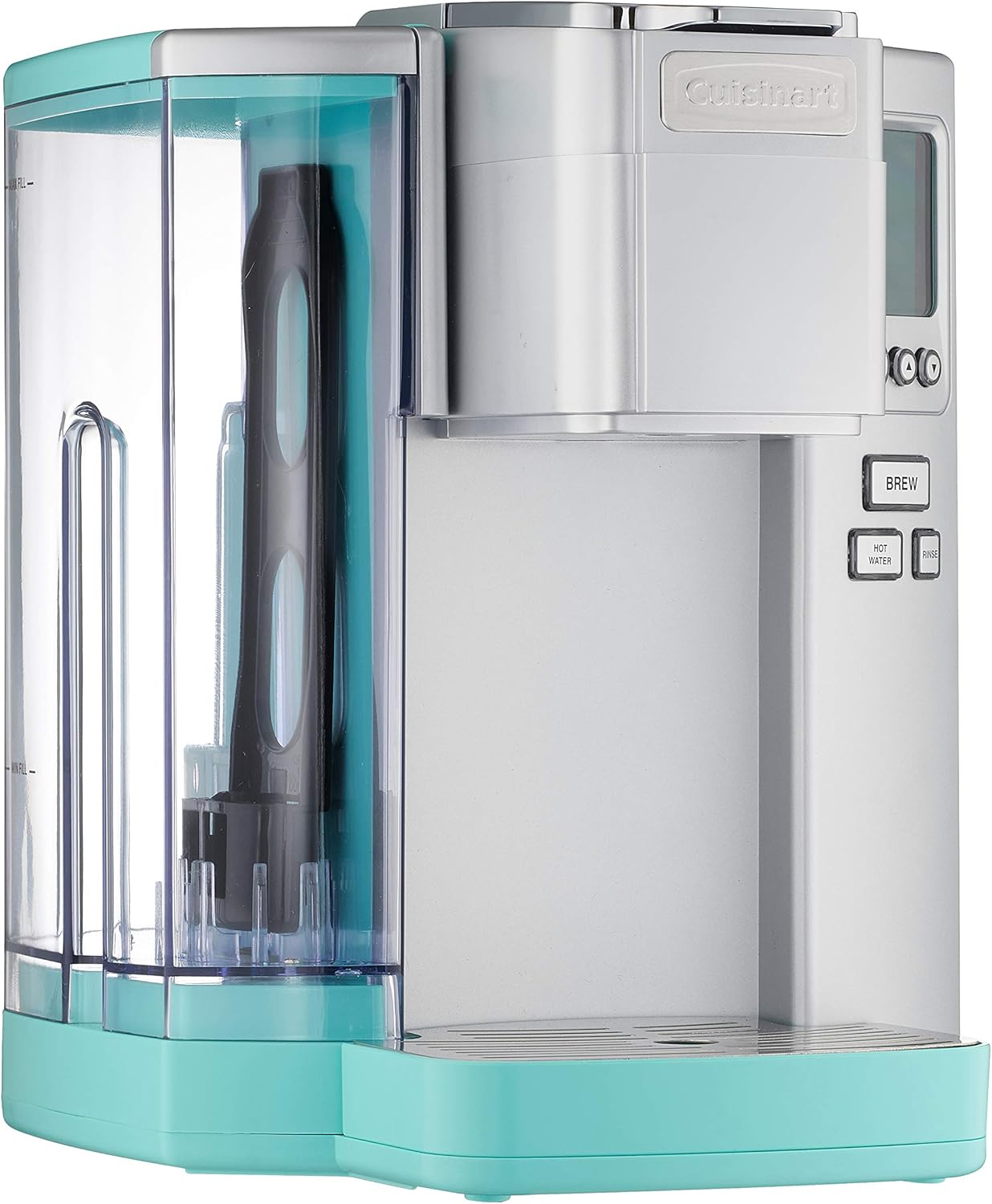

  Slika 3: Prednja strana View with Brew Head

• 3. Control Panel with Backlit LCD

  The control panel features a backlit blue LCD that displays settings such as time, brew temperature, and brew size. Buttons for Menu, Up/Down arrows, Brew, Hot Water, and Rinse are clearly labeled for intuitive operation.



  Slika 4: Kontrolna tabla

• 4. Uklonjiva posuda za kapanje

  The drip tray is removable to accommodate taller travel mugs and for easy cleaning. It collects any drips or overflows, keeping your counter clean.

• 5. HomeBarista Reusable Filter Cup

  This reusable filter cup allows you to use your own ground coffee or loose leaf tea, offering flexibility and reducing waste from single-use pods. It stores conveniently within the unit.

Setup

1. 1. Početno čišćenje

   Before first use, wash the water reservoir, drip tray, and HomeBarista Reusable Filter Cup in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the brewer with a clean, damp tkanina.

2. 2. Instalacija filtera za vodu

   Insert the charcoal water filter into its holder within the water reservoir. Ensure it is securely placed. Fill the reservoir with fresh, cold water up to the 'MAX FILL' line.

3. 3. First Brew Cycle (Rinse)

   Place a large mug on the drip tray. Do not insert a coffee pod. Turn on the brewer using the power switch located on the side. Once the unit is ready, press the 'Rinse' button to run a hot water cycle. This cleans the internal components and primes the system. Discard the hot water.

Uputstvo za upotrebu

Uključivanje/isključivanje

Locate the power switch on the side of the brewer. Flip the switch to the 'ON' position to power on the unit. The backlit LCD will illuminate. To turn off, flip the switch to the 'OFF' position.

Punjenje rezervoara za vodu

The 72-ounce water reservoir can be filled by lifting its lid or by removing the entire reservoir from the unit. Fill with fresh, cold water up to the 'MAX FILL' line. Ensure the reservoir is properly seated after refilling.

Brewing Coffee with K-Cup Pods

1. Ensure the brewer is powered on and the water reservoir is filled.
2. Lift the handle of the brew head to open the pod holder.
3. Umetnite K-Cup kapsulu u držač.
4. Čvrsto zatvorite ručku glave za kuhanje dok ne klikne.
5. Stavite šolju na posudu za kapanje.
6. Use the Up/Down arrows on the control panel to select your desired brew size (4, 6, 8, 10, or 12 ounces).
7. Press the 'Brew' button to start brewing.

Brewing with Ground Coffee (HomeBarista Reusable Filter Cup)

1. Open the side compartment to retrieve the HomeBarista Reusable Filter Cup.
2. Fill the reusable filter cup with your preferred ground coffee (do not overfill).
3. Place the filled reusable filter cup into the pod holder in the brew head.
4. Close the brew head handle firmly.
5. Stavite šolju na posudu za kapanje.
6. Select your desired brew size using the Up/Down arrows.
7. Pritisnite dugme 'Kuhanje'.

Using the Hot Water Dispenser

To dispense hot water for tea, soup, or hot cocoa, ensure no coffee pod is in the brew head. Place your cup on the drip tray and press the 'Hot Water' button. Select your desired water volume using the Up/Down arrows, then press 'Brew'.

Karakteristike programiranja

Press the 'Menu' button to access programmable settings:

• sat: Postavite trenutno vrijeme.
• Automatsko uključivanje/isključivanje: Program the brewer to automatically turn on or off at specific times.
• Temperatura kuhanja: Adjust the water temperature for brewing (e.g., Hot, Extra Hot).
• Brew Size: Set a default brew size.

Održavanje i čišćenje

Dnevno čišćenje

• Remove and empty the drip tray after each use. Wash with warm, soapy water.
• Wipe the exterior of the brewer with a damp tkanina.
• If using the HomeBarista Reusable Filter Cup, empty and rinse it after each use.

Rinse Function

The 'Rinse' button provides a quick cleaning cycle for the brew chamber. This is particularly useful when switching between different beverage types (e.g., coffee to tea) to prevent flavor transfer. Place an empty mug under the dispenser and press 'Rinse'.

Procedura uklanjanja kamenca

Over time, mineral deposits (scale) can build up in your brewer, affecting performance. The brewer will indicate when descaling is needed. Follow these steps:

1. Fill the water reservoir with 16 ounces of white vinegar and 16 ounces of water.
2. Stavite veliku šolju na poslužavnik za kapanje.
3. Press the 'Rinse' button to run a cycle. Repeat until the 'Add Water' indicator illuminates.
4. Let the brewer stand for at least 30 minutes to allow the vinegar to work.
5. Empty and rinse the water reservoir. Fill with fresh water.
6. Run several 'Rinse' cycles with fresh water to remove any remaining vinegar taste.

Zamjena filtera za vodu

The charcoal water filter should be replaced approximately every 2 months or after 60 uses, whichever comes first, to maintain optimal water quality.

Rješavanje problema

• Kava se ne uključuje: Ensure the power cord is securely plugged into a grounded outlet and the power switch on the side of the unit is in the 'ON' position.
• 'Add Water' Indicator On: The water reservoir needs to be refilled. Ensure water is filled above the 'MIN FILL' line.
• Slow Brew or No Water Dispensed: This often indicates mineral buildup. Perform a descaling procedure as outlined in the Maintenance section.
• Talog kafe u šoljici: Ensure the K-Cup pod is properly seated or, if using the HomeBarista filter, that it is not overfilled and its lid is securely closed.
• 'EEO' Error Code: This error typically indicates a pump issue or blockage. Try unplugging the unit for an hour to reset it. If the error persists, contact customer support.

Specifikacije

• Brand: Cuisinart
• Naziv modela: JAD-10TBP1
• Dimenzije proizvoda: 11.03"D x 9.33"Š x 12.13"H
• Kapacitet rezervoara za vodu: 72 unci (otprilike 4.5 funti)
• Beverage Sizes: 4, 6, 8, 10, 12 ounces
• Vrsta unosa za kafu: Ground coffee, single-serve pods (K-Cup compatible)
• Posebne karakteristike: Programmable (Auto On/Off, adjustable temperature), Hot Water Dispenser, Rinse Feature, Backlit Blue LCD, HomeBarista Reusable Filter Cup, Charcoal Water Filter, Removable Drip Tray, BPA Free
• Težina artikla: 9.48 funte

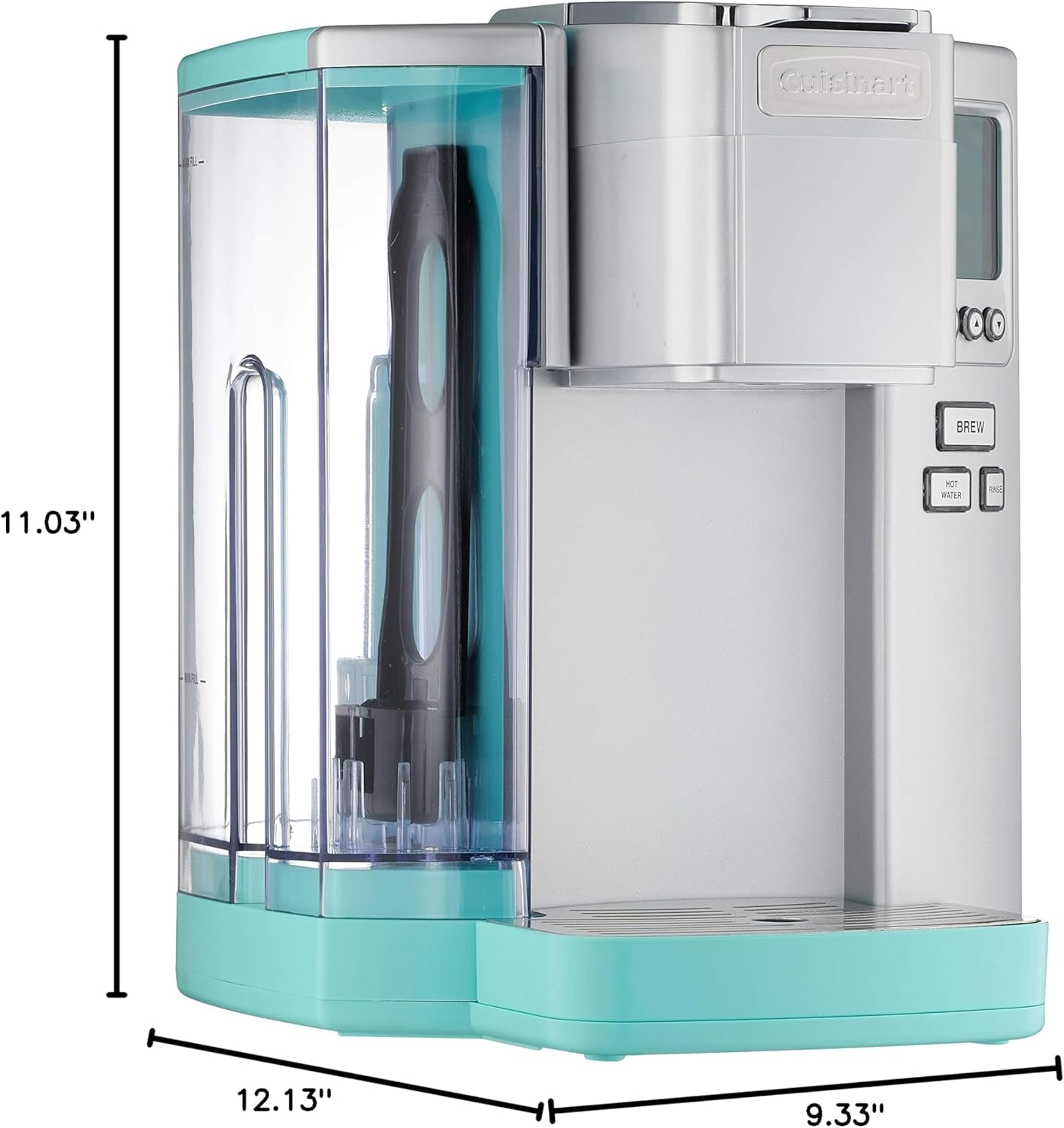

Slika 5: Dimenzije proizvoda

Garancija i podrška

The Cuisinart Premium Single-Serve Brewer comes with a Limited 3-Year Warranty. For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official Cuisinart website.

Za dodatne resurse i informacije o proizvodu, možete posjetiti Cuisinart trgovina na Amazonu.
