1. Uvod
Thank you for choosing the Cecotec GrandHeat 2350 Digital Built-in Microwave Oven. This appliance is designed for convenient and efficient cooking, reheating, and defrosting. With a 23-liter capacity and 900 W microwave power, it offers versatile cooking options, including a 1000 W grill and 9 pre-configured functions. This manual provides essential information for safe operation, installation, maintenance, and troubleshooting to ensure optimal performance and longevity of your microwave oven.
2. Važna sigurnosna uputstva
Molimo vas da pažljivo pročitate sva uputstva prije upotrebe uređaja i sačuvate ih za buduću upotrebu. Nepoštivanje ovih uputstava može dovesti do strujnog udara, požara ili povrede.
- Opća sigurnost: Ensure the microwave is properly grounded. Do not operate the appliance if it is damaged or malfunctioning.
- plasman: Install the microwave in a location with adequate ventilation. Do not block ventilation openings.
- Materijali: Do not use metal containers or foil in the microwave, as this can cause arcing and damage the appliance.
- Nadzor: Close supervision is necessary when the appliance is used by or near children. This microwave includes a child safety lock feature to prevent unsupervised operation.
- tečnosti: Liquids heated in the microwave can boil over unexpectedly. Always stir liquids before and halfway through heating. Use caution when removing containers.
- Sigurnost hrane: Do not overcook food. Do not heat sealed containers or whole eggs, as they may explode.
- čišćenje: Always unplug the appliance before cleaning. Refer to the maintenance section for proper cleaning procedures.
3. Proizvod je gotovview
The Cecotec GrandHeat 2350 is a sleek, built-in microwave oven designed to seamlessly integrate into your kitchen cabinetry. It features a digital display and intuitive controls for ease of use.
Slika 3.1: Prednja strana view of the Cecotec GrandHeat 2350 Digital Built-in Microwave Oven.
Figure 3.2: The microwave oven seamlessly integrated into a modern kitchen cabinet.
3.1 Komponente
- Kontrolna tabla: Features digital display, buttons, and a rotary dial for setting time and power.
- Unutrašnjost pećnice: Interior cooking space with ceramic coating.
- Stakleni gramofon: A 27 cm diameter rotating plate for even cooking.
- Stalak za roštilj: Uključeno za korištenje s funkcijom roštilja.
- vrata: Opens easily by pressing a button.

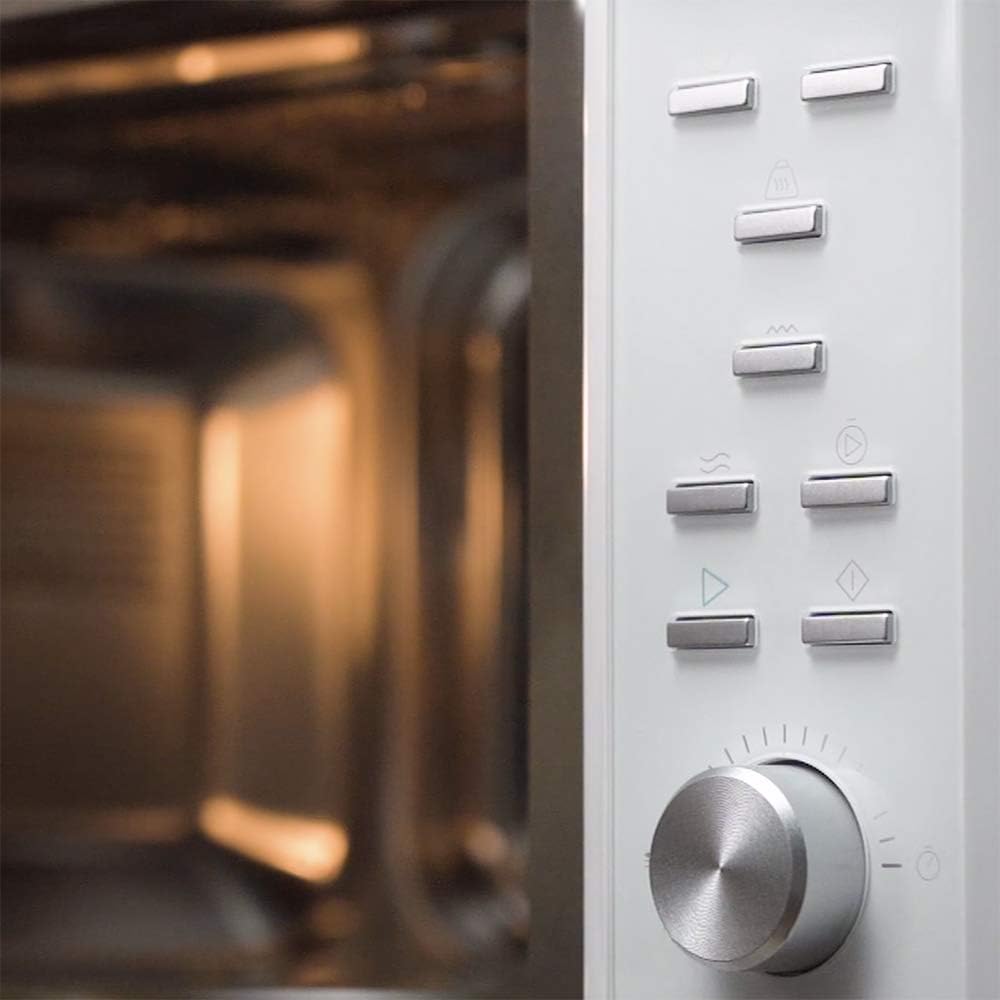

Figure 3.3: Detail of the control panel with buttons and rotary dial, and the interior cavity.

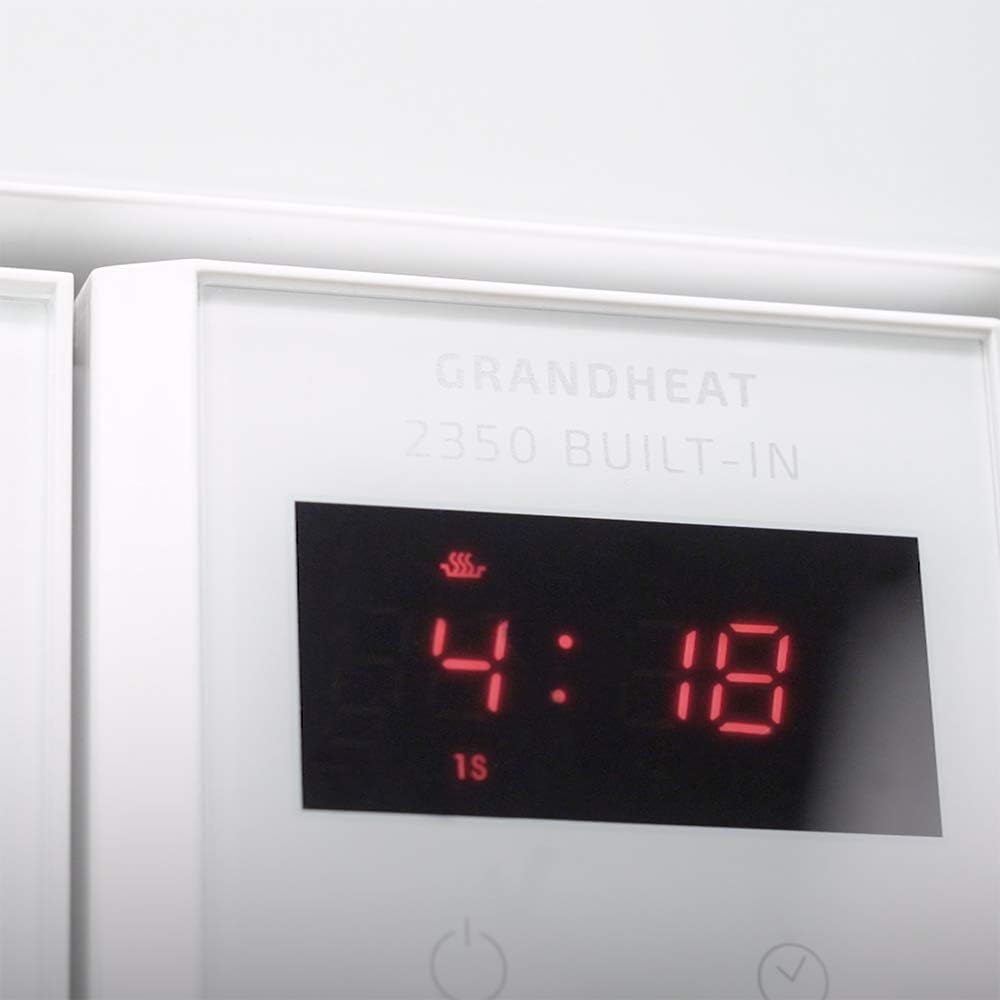

Slika 3.4: Krupni plan view of the digital display, showing a time setting.
4. Postavljanje i instalacija
The Cecotec GrandHeat 2350 is designed for built-in installation. Proper installation is crucial for safety and optimal performance.
4.1 Raspakivanje
- Pažljivo izvadite mikrovalnu pećnicu i sav materijal za pakovanje iz kartonske kutije.
- Check the appliance for any signs of damage. Do not operate if damaged.
- Ensure all components are present: microwave oven, grill rack, turntable, and instruction manual.
4.2 Zahtjevi za instalaciju
- The microwave must be installed in a cabinet opening that meets the specified dimensions. Refer to the dimensions diagrams below.
- Ensure adequate ventilation space around the appliance as per installation guidelines provided in the full manual (not included here).
- The electrical outlet should be easily accessible and properly grounded.
Figure 4.1: External dimensions of the microwave oven (approx. 61.5 cm width, 45.5 cm depth, 41 cm height).
Figure 4.2: Schematic diagram illustrating the required cabinet opening dimensions for built-in installation.
4.3 Početno čišćenje
Prije prve upotrebe, obrišite unutrašnjost i vanjštinu mikrovalne pećnice sredstvom za čišćenje.amp cloth. Ensure the turntable and turntable support are clean and correctly placed.
5. Uputstvo za upotrebu
The GrandHeat 2350 offers various cooking modes and features for diverse culinary needs.
5.1 Osnovni rad mikrovalne pećnice
- Stavite hranu u posudu pogodnu za mikrovalnu pećnicu na okretni tanjir.
- Čvrsto zatvorite vrata.
- Select the desired microwave power level (6 levels available, up to 900 W).
- Set the cooking time using the rotary dial or appropriate buttons.
- Pritisnite dugme Start za početak kuvanja.
5.2 Funkcija roštilja
Use the 1000 W grill function for browning and crisping food. Place food on the grill rack provided.
5.3 Combined Functions
The microwave allows combining microwave and grill functions for continuous operation, providing faster cooking with browning results.
5.4 Unaprijed konfigurirane funkcije
The appliance features 9 pre-configured functions for common food types:
- Mlijeko/kafa
- Rice
- Pasta
- Meso
- Krompir
- Riba
- Piletina
- Skewers
- Automatic Reheating
Select the desired function and the microwave will automatically set the optimal cooking time and power.
5.5 Odmrzavanje prema težini
This mode allows for quick and uniform defrosting of food while preserving its original texture and freshness. Simply input the weight of the food.
5.6 Brzi početak
The Quick Start function allows the microwave to begin immediately at maximum power for a set duration, up to a maximum of 10 minutes. Ideal for quick reheating.
5.7 Automatic Start (Delayed Start)
You can program the microwave to start a cooking program at a specific time, offering convenience for meal preparation.
5.8 Funkcija tajmera
The built-in timer can be set for up to 95 minutes, providing flexibility for various cooking tasks.
6. Održavanje i čišćenje
Redovno čišćenje i održavanje osigurat će dugotrajnost i efikasan rad vaše mikrovalne pećnice.
6.1 Čišćenje unutrašnjosti
The interior of the GrandHeat 2350 features a ceramic coating for easy cleaning. Wipe the interior with a soft, damp cloth after each use. For stubborn stains, use a mild detergent solution. Do not use abrasive cleaners or scouring pads.
6.2 Čišćenje eksterijera
Obrišite vanjske površine mekom krpom, damp cloth. Avoid getting water into the ventilation openings. The control panel can be wiped with a slightly damp cloth, then dried immediately.
6.3 Gramofon i nosač
The glass turntable and its support can be removed for cleaning. Wash them in warm, soapy water or in a dishwasher. Ensure they are completely dry before placing them back in the microwave.
Važno: Uvijek isključite mikrovalnu pećnicu iz električne utičnice prije čišćenja.
7. Otkrivanje problema
Ako imate problema s mikrovalnom pećnicom, pogledajte sljedeće uobičajene probleme i rješenja:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Mikrovalna pećnica se ne uključuje | Door not closed properly; Power cord unplugged; Fuse blown/circuit breaker tripped. | Ensure door is firmly closed; Check power connection; Check household fuse/circuit breaker. |
| Hrana se ne grije | Incorrect power level or time set; Door not closed properly. | Adjust power and time settings; Ensure door is firmly closed. |
| Gramofon se ne rotira | Okretni tanjir nije pravilno postavljen; Otpad ispod okretnog tanjira. | Ensure turntable and support are correctly seated; Clean under the turntable. |
| Neobična buka tokom rada | Food container touching cavity walls; Turntable not properly seated. | Adjust food container position; Re-seat turntable correctly. |
| Child safety lock engaged | Aktivirana brava za djecu. | Refer to the control panel section for instructions on deactivating the child safety lock. |
Ako problem i dalje postoji nakon isprobavanja ovih rješenja, obratite se korisničkoj podršci Cecoteca.
8. Specifikacije
Technical specifications for the Cecotec GrandHeat 2350 Digital Built-in Microwave Oven:
| Feature | Detalj |
|---|---|
| Brand | Cecotec |
| Broj modela | 01388 |
| Tip | Ugradna digitalna mikrovalna pećnica s roštiljem |
| Kapacitet | 23 litara |
| Snaga mikrovalne pećnice | 900 W (6 nivoa snage) |
| Snaga roštilja | 1000 Watts |
| Dimenzije (D x Š x V) | 61.5 x 41 x 45.5 cm |
| Težina | 14.9 kilograma |
| Voltage | 220 Volts |
| Nivo buke | 44 dB |
| Materijal enterijera | Nehrđajući čelik s keramičkim premazom |
| Posebne karakteristike | Defrost, Timer, Turntable, Control Panel Safety Lock (Child Lock) |
| Uključene komponente | 1 Microwave Oven, 1 Grill Rack, 1 Rotary Turntable, 1 Instruction Manual |
9. Garancija i podrška
Cecotec je posvećen pružanju visokokvalitetnih proizvoda i zadovoljstvu kupaca.
9.1 Garancija proizvođača
This Cecotec GrandHeat 2350 Digital Built-in Microwave Oven comes with a trogodišnja garancija proizvođačaOva garancija pokriva nedostatke u materijalu i izradi pri normalnoj upotrebi. Molimo sačuvajte dokaz o kupovini za potrebe reklamacije.
9.2 Dostupnost rezervnih dijelova
Rezervni dijelovi za ovaj model dostupni su u periodu od 10 godine from the date of purchase, ensuring long-term usability and repairability of your appliance.
9.3 Korisnička podrška
Za tehničku pomoć, reklamacije ili upite o rezervnim dijelovima, obratite se korisničkoj podršci Cecotec-a putem njihovog službenog servisa. website or the contact information provided with your purchase documentation. When contacting support, please have your model number (01388) and purchase date ready.
