AODELAN Camera Shooting Grip with BR-E1B Wireless Remote Shutter User Manual

Uvod

The AODELAN Camera Shooting Grip with BR-E1B Wireless Remote Shutter is a versatile accessory designed to enhance your photography and videography experience. It functions as both a comfortable handheld grip and a stable mini tripod, offering flexible camera positioning and remote control capabilities. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance.

Product Overview

The AODELAN Shooting Grip integrates a detachable wireless remote commander and features a flexible tilt function for various shooting angles. Its compact design makes it ideal for vlogging, live streaming, and self-portraits.

Figure 1: AODELAN Camera Shooting Grip with BR-E1B Wireless Remote Shutter.

Komponente

• Zahvat za pucanje: Main body that converts between handheld and tripod modes.
• BR-E1B Wireless Remote Commander: Detachable remote for controlling camera functions.
• Vijak za montažu kamere: Standard 1/4-inch screw for attaching cameras.
• Tilt Function Button: Allows adjustment of the camera's vertical angle.
• noge: Integrated into the grip, deployable for tripod use.

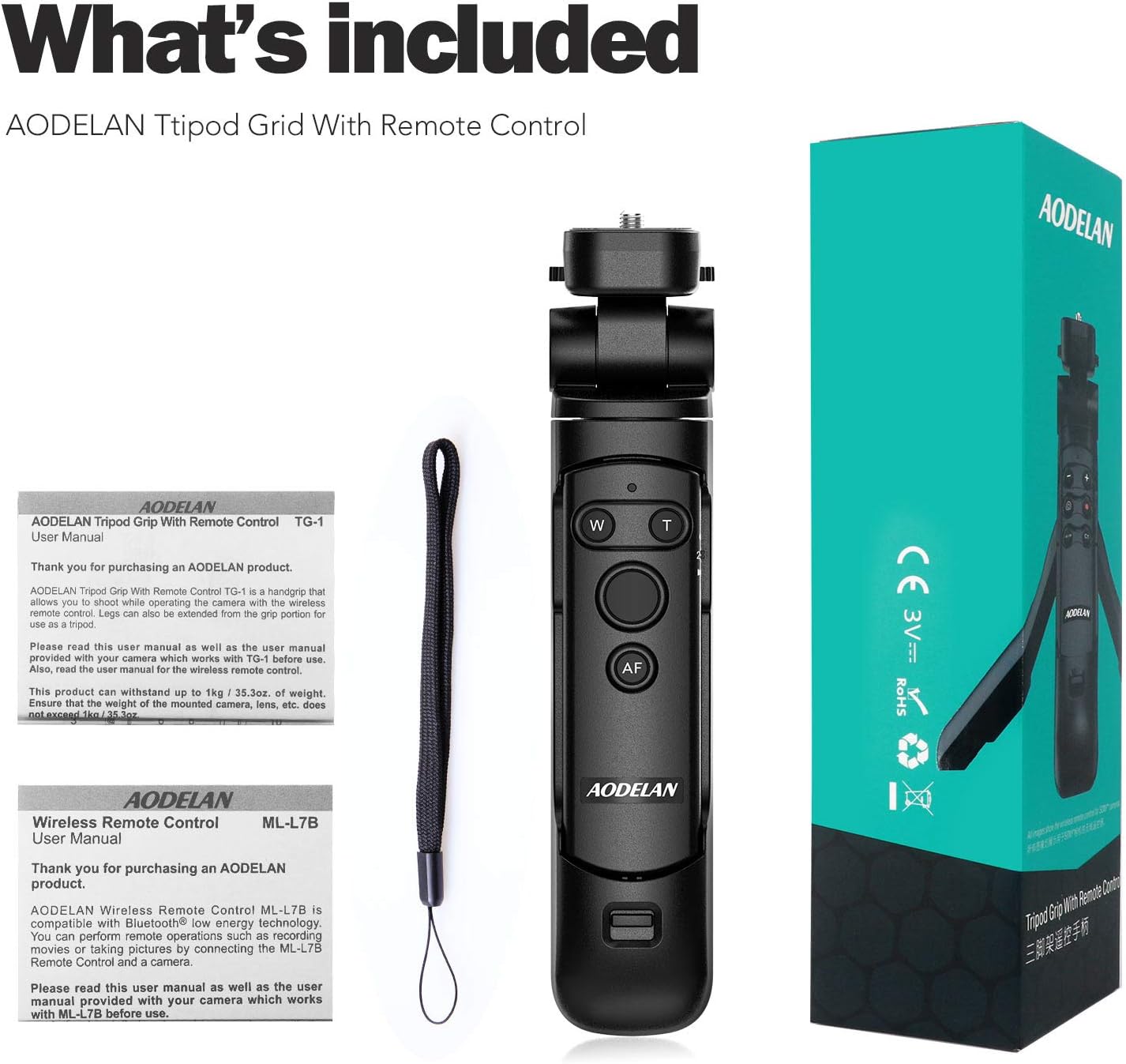

Slika 2: Detaljno view of AODELAN Shooting Grip components and controls.

Setup

1. Attaching Your Camera

1. Locate the 1/4-inch mounting screw on top of the grip.
2. Align your compatible Canon camera's tripod socket with the screw.
3. Rotate the camera clockwise onto the screw until securely fastened. Use the camera mounting wheel to tighten.

2. Instalacija baterije daljinskog upravljača

The BR-E1B Wireless Remote Commander requires 1 CR2 battery (included). To install:

1. Pronađite odeljak za baterije na poleđini daljinskog upravljača.
2. Otvorite poklopac odjeljka.
3. Umetnite CR2 bateriju, pazeći na ispravan polaritet.
4. Čvrsto zatvorite poklopac odeljka za baterije.

3. Pairing the Wireless Remote

The remote uses Bluetooth Low Energy technology for connection.

1. Ensure your Canon camera's Bluetooth function is enabled. Refer to your camera's manual for specific instructions.
2. On the BR-E1B remote, press and hold the W and T buttons simultaneously for a few seconds until the indicator light flashes.
3. On your camera, navigate to the Bluetooth settings and select to pair with the remote.
4. Once paired, the indicator light on the remote will stop flashing and remain solid.

Uputstvo za upotrebu

1. Handheld Grip Mode

Hold the grip firmly for stable handheld shooting. The ergonomic design provides a comfortable and secure hold.

Figure 3: The AODELAN Shooting Grip used in handheld mode.

2. Tripod Mode

To convert to tripod mode:

1. Locate the leg release button on the side of the grip.
2. Press the button and gently spread the integrated legs outwards until they lock into a stable tripod position.
3. Postavite tronožac na ravnu, stabilnu površinu.

Figure 4: The AODELAN Shooting Grip deployed as a mini tripod.

3. Podešavanje ugla kamere

The grip allows for flexible camera positioning:

• Funkcija nagiba: Press the front/back lock release button to tilt the camera up to 90 degrees for vertical shooting or adjust the forward/backward angle.
• Rotacija za 360 stepeni: The camera can be rotated 360 degrees horizontally for quick adjustments without repositioning the tripod.

Figure 5: Demonstrating the flexible tilt and 360-degree rotation capabilities of the grip.

4. Wireless Remote Control Functions

The BR-E1B remote provides the following controls:

• Dugme za otpuštanje okidača: Za snimanje fotografija.
• Video Recording Button: To start and stop video recording.
• Zoom (W/T) Buttons: Controls the zoom function of compatible lenses (requires Canon PZ-E1 Power Zoom Adapter for EF-S 18-135mm f/3.5-5.6 IS USM lens).
• Dugme za uključivanje automatskog fokusiranja: Activates autofocus.
• Prekidač načina rada: Selects between Immediate Release, 2-second Delay Release, and Movie Shooting modes.

Figure 6: Close-up of the AODELAN Wireless Remote Control buttons.

5. Extending the Grip

The grip can be extended for increased reach, functioning as a short selfie stick. Simply pull the top section upwards to extend. Push down to retract.

Kompatibilnost

The AODELAN Camera Shooting Grip with BR-E1B Wireless Remote Shutter is compatible with the following Canon camera models:

• Canon EOS R3, EOS RP, EOS R, EOS R5, EOS R6
• Canon 6D Mark II, 77D, 800D (EOS Rebel T7i), T8i
• Canon 200D (EOS Rebel SL2), 200D II, 250D (EOS Rebel SL3), 850D
• Canon M50, M50 Mark II, M200, M6 Mark II
• Canon PowerShot SX70 HS, PowerShot G7 X Mark III, PowerShot G5 X Mark II

Napomena: The zoom function on the remote only works with compatible lenses and may require the Canon PZ-E1 Power Zoom Adapter for specific lenses like the EF-S 18-135mm f/3.5-5.6 IS USM lens.

Specifikacije

Održavanje

• Clean the grip and remote with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Čuvajte proizvod na hladnom i suvom mestu dalje od direktne sunčeve svetlosti i ekstremnih temperatura.
• Ensure the remote's battery is removed if storing for extended periods to prevent leakage.

Rješavanje problema

Remote Control Not Connecting/Responding:

• Ensure the remote has fresh batteries and is correctly inserted.
• Verify that your camera's Bluetooth is enabled and the remote is paired. Try re-pairing if necessary.
• Check the remote's mode switch (Immediate Release, 2-sec Delay, Movie) and ensure it's not in a locked or incorrect position.
• Provjerite da li je firmver kamere ažuriran.

Grip/Tripod Instability:

• Ensure the camera is securely mounted to the 1/4-inch screw.
• When in tripod mode, ensure the legs are fully extended and locked into position on a flat surface.
• Do not exceed the maximum load capacity of 1 kg (35.3 oz).

Garancija i podrška

For warranty information and customer support, please refer to the documentation included with your product or visit the official AODELAN webSačuvajte račun kao dokaz o kupovini.
