ROCCAT Vulcan TKL Mechanical PC Gaming Keyboard

1. Uvod

This manual provides instructions for the setup, operation, maintenance, and troubleshooting of your ROCCAT Vulcan TKL Mechanical PC Gaming Keyboard. The Vulcan TKL is a tenkeyless mechanical keyboard designed for PC gaming, featuring Linear Titan Switches, per-key AIMO RGB lighting, an anodized aluminum top plate, and a detachable USB-C cable.

Ključne karakteristike uključuju:

• Tenkeyless form factor for increased desk space and mouse movement.
• Titan Switch Mechanical with linear actuation for responsive keystrokes.
• Durable construction with a 50 million keystroke lifecycle.
• Izuzetno nizak profesionalacfile design to reduce wrist strain.
• Key stabilizer technology for solid and sturdy keys.
• AIMO intelligent lighting engine for customizable RGB effects.
• Mixer-style volume dial and dedicated media controls.

2. Šta se nalazi u kutiji

Provjerite da li su sve komponente prisutne u pakovanju:

• ROCCAT Vulcan TKL Mechanical PC Gaming Keyboard
• Odvojivi USB-C kabl
• Kratki vodič (nije uključen u ovaj priručnik)

3. Podešavanje

Follow these steps to set up your ROCCAT Vulcan TKL keyboard:

1. Spojite USB-C kabel: Locate the USB-C port on the back of the keyboard. Connect the smaller end of the provided USB-C cable to this port.
2. Povežite se na PC: Uključite standardni USB-A kraj kabla u dostupan USB port na računaru.

Slika 3.1: Spajanje odvojivog USB-C kabla na tastaturu.

Image 3.2: Close-up of the USB-C port on the keyboard.

3. Instalacija drajvera: Vaš operativni sistem bi trebao automatski prepoznati i instalirati potrebne upravljačke programe.
4. Install ROCCAT Swarm Software: For full customization of lighting, key assignments, and macros, download and install the ROCCAT Swarm software from the official ROCCAT website. This software allows you to configure advanced features and update firmware.

4. Uputstvo za upotrebu

The ROCCAT Vulcan TKL keyboard offers a range of functions for gaming and general use.

4.1 Key Layout and Functions

The keyboard features a UK layout with standard alphanumeric keys, function keys (F1-F12), and dedicated media controls.

Slika 4.1: Gotovoview of the ROCCAT Vulcan TKL keyboard layout.

• Funkcijske tipke (F1-F12): These keys can have secondary functions when pressed in combination with the FN key. Refer to the keycaps for specific secondary functions (e.g., media playback, volume, lighting adjustments).
• Birač jačine zvuka: Located in the upper right corner, this dial allows for quick adjustment of system volume. Rotate clockwise to increase volume, counter-clockwise to decrease.

Image 4.2: The mixer-style volume dial for audio control.

4.2 AIMO RGB Lighting

The keyboard features per-key AIMO intelligent RGB lighting. This lighting system can be customized extensively using the ROCCAT Swarm software. AIMO reacts to your input and other compatible ROCCAT devices to create dynamic lighting effects.

• Prilagodba: Use the ROCCAT Swarm software to select from various lighting effects, adjust brightness, and create custom lighting profiles.
• Pohrana na brodu: The keyboard supports on-board profile storage, allowing you to save your preferred settings directly to the keyboard for use on different systems without the Swarm software.

4.3 Titan Switch Mechanical

The Vulcan TKL utilizes ROCCAT's Titan Switch Mechanical with linear actuation. This design provides a smooth and consistent keystroke, optimized for speed and responsiveness in gaming scenarios.

Slika 4.3: Detaljno view of the Titan Switch Mechanical.

4.4 Ergonomski dizajn

The keyboard features an ultra-low profile design, which helps to reduce wrist strain during extended use by allowing a more natural hand position.

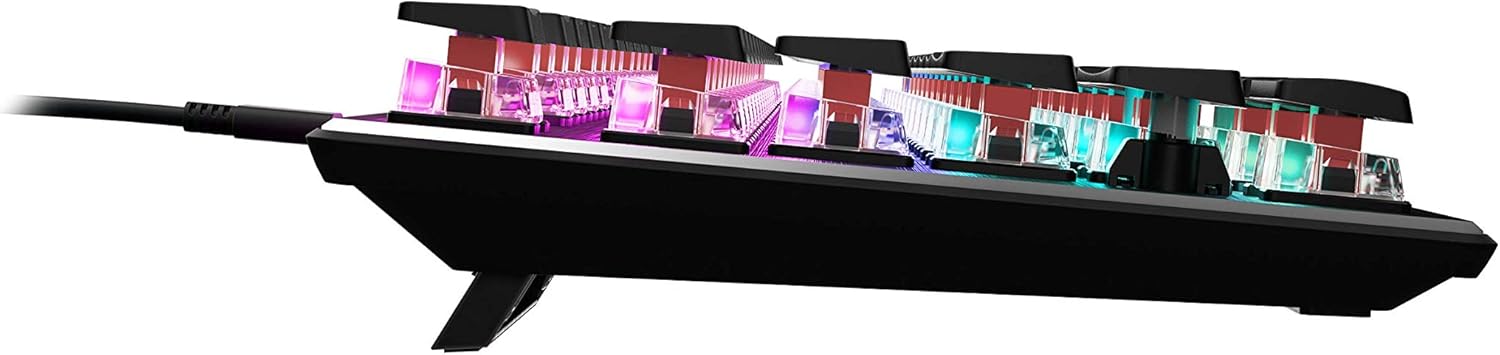

Slika 4.4: Bočni profesionalacfile of the keyboard demonstrating its low-profile dizajn.

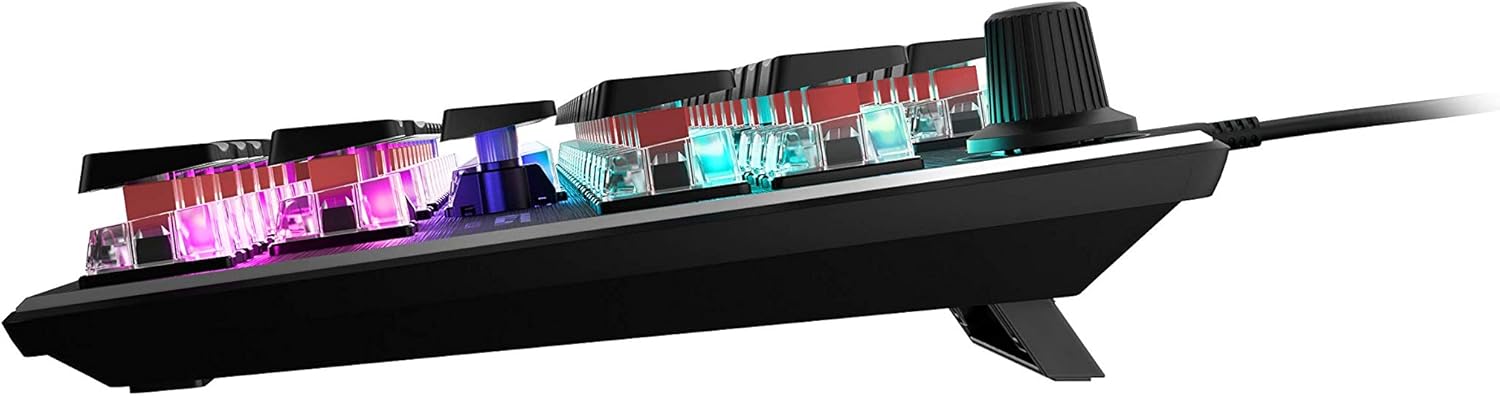

Slika 4.5: Bočna strana view showing the keyboard's adjustable feet for ergonomic tilt.

5. Održavanje

Pravilno održavanje osigurava dugotrajnost i optimalne performanse vaše tastature.

• Čišćenje tastature: Regularly clean the keyboard surface and between keycaps to prevent dust and debris buildup. Use a soft, lint-free cloth, slightly dampened with water or a mild cleaning solution. For deeper cleaning, you may carefully remove keycaps (refer to online guides for safe keycap removal for your specific switch type) and use compressed air to clear debris. Ensure the keyboard is disconnected from your PC before cleaning.
• Održavanje kablova: The detachable USB-C cable should be handled with care. Avoid sharp bends or excessive pulling to prevent damage to the cable or the keyboard's port.
• Skladištenje: Kada se tastatura ne koristi duži period, čuvajte je na čistom i suhom mjestu, dalje od ekstremnih temperatura.

6. Otkrivanje problema

If you encounter issues with your ROCCAT Vulcan TKL keyboard, try the following troubleshooting steps:

• Tastatura ne reaguje:
  • Ensure the USB-C cable is securely connected to both the keyboard and your PC.
  • Pokušajte spojiti tastaturu na drugi USB priključak na računaru.
  • Test the keyboard on another computer to determine if the issue is with the keyboard or your PC.
  • Ponovo pokrenite računar.
• Dvostruko kucanje ili neregistracija tipki:
  • Ensure the keyboard firmware is up to date via the ROCCAT Swarm software.
  • Clean the affected key switches using compressed air to remove any debris.
  • If the issue persists, it may indicate a hardware fault. Refer to the Warranty and Support section.
• Problemi sa RGB osvetljenjem:
  • Verify that the ROCCAT Swarm software is running and the keyboard is detected.
  • Check lighting settings within Swarm to ensure desired effects are enabled.
  • Update the keyboard's firmware through Swarm.
• ROCCAT Swarm Software Not Detecting Keyboard:
  • Ensure the keyboard is properly connected to your PC.
  • Restart the Swarm software.
  • Reinstall the ROCCAT Swarm software.
  • Check for any conflicting software or drivers.

7. Specifikacije

8. Informacije o garanciji

ROCCAT products are covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of your warranty may vary by region and product. Please retain your proof of purchase for warranty claims.

For detailed warranty information, please visit the official ROCCAT support website.

9. Podrška

For further assistance, technical support, or to download the latest drivers and software, please visit the official ROCCAT support webstranica:

www.roccat.com/support

You can also find FAQs and community forums on the support page.
