Moen Weymouth M-CORE 3-Series 1-Handle Shower Trim Kit Instruction Manual (Model UTS33102BG)

Product Overview

The Moen Weymouth M-CORE 3-Series 1-Handle Shower Trim Kit (Model UTS33102BG) is designed to provide a superior showering experience with simplified installation and versatile design options. This trim kit requires the M-CORE Mixing Valve U140 (sold separately) for complete installation. It features pressure-balancing capabilities to maintain consistent water temperature and volume control for adjusting water flow.

Ključne karakteristike uključuju:

• Brushed Gold Finish: A blend of classic gold tones and modern brushed texture for a sophisticated look.
• Pressure-Balancing Capability: M-CORE valves with 3-Series trim control temperature fluctuations due to water pressure changes.
• Kontrola jačine zvuka: Adjust water flow for enhanced functionality.
• Svestrani dizajn: M-CORE's adaptability allows for functionality and style changes without removing or altering the valve.
• Pojednostavljena instalacija: Integrated mounting bracket secures the valve directly to a brace, simplifying the process.
• Integrated Test Cap: Allows for precise temperature limit stop adjustment and easy flushing/testing without cartridge removal.

Vodič za instalaciju

This section provides a step-by-step guide for installing your Moen Weymouth M-CORE 3-Series 1-Handle Shower Trim Kit. Please review sve upute i prikupite potreban alat prije početka. Napomena: This is an advanced project. Moen recommends installation by a professional plumber.

1. Priprema

Before starting any plumbing project, ensure the home's main water supply is shut off. If you are unsure where the main shutoff is located, contact your local water company for assistance. Once the water supply is off, turn on a faucet at the lowest point in the home to drain the water lines.

For remodel projects, locate the plumbing access panel. If an access panel is not present, an opening will need to be created on the wall behind the valve.

Preporučeni alati: Phillips screwdriver, adjustable pliers, needle nose pliers, adjustable wrench, Allen wrench, tube cutter, thread seal tape, plumber's putty, caulk, tape measure, thermometer, torch, and safety glasses.

Additional Materials (may be needed): 1/2" copper couplings, 1/2" copper slip couplings, 1/2" copper tubing, lead-free solder kit.

Važno: Soldering may be necessary. Ensure you are skilled in using a soldering torch before you begin.

2. Installing the M-CORE Tub/Shower Valve

The M-CORE valve is designed for threaded and soldered connections, making it adaptable to various plumbing types (CC/IPS, Cold PEX, Crimp PEX, CPVC 4-Port). This guide demonstrates a copper-to-copper installation.

You will connect the new tub/shower valve to four existing tubes: the shower riser outlet, hot water inlet, cold water inlet, and the tub drop outlet. The plaster ground (4 inches in diameter) is pre-attached and used to position the valve in your finished tub wall.

For proper placement, the center of the tub/shower valve should be positioned 32 inches from the floor of the tub. Measure the distance between the top of the tub drop outlet's threads on the valve and the existing tub drop outlet. Cut the appropriate length of 1/2" copper tubing. Insert the new copper tubing into the tub drop outlet on the valve. Repeat this process for the hot and cold water inlets and the shower riser outlet. Use 1/2" copper slip couplings for added flexibility when connecting the remaining tubes.

Once all connections are in place, each joint will need to be soldered. After soldering, screw the valve to the cross member from the front of the wall for added support using the integrated mounting bracket.

3. Flushing the System & Checking for Leaks

M-CORE valves come pre-installed with a flush plug. To begin, turn on the main water supply. Let the water run from the tub outlet for 15 seconds to remove any debris. Next, check for any leaks at all connections. If no leaks are present, turn the water off.

4. Installing the M-CORE 3-Series Cartridge

First, remove the plug nut and pull out the flush plug by hand. Align the tab on the check adapter with the hole inside the valve body. Using the provided installation sleeve, install the adapter and pressure balancing puck assembly. Once complete, align the two posts on the back of the cartridge assembly with the pressure balancing assembly. Then, thread on the cartridge nut (included with the trim kit) by hand, and snug it with a wrench.

5. Installing the 3-Series Trim: Shower Device & Tub Spout

Begin by wrapping thread seal tape clockwise around both ends of the shower arm. Determine which end of the shower arm will thread into the wall and slide the flange onto that end. Thread the shower arm through the wall opening and push the flange flush to the wall. To complete, screw on the showerhead and tighten it with an adjustable wrench.

For the tub spout, ensure the pipe extends a minimum of 2 inches and a maximum of 2.5 inches from the wall. Slide the inverted tub spout onto the pipe. Lightly tighten the screw with a 5/32 inch hex wrench. Rotate the tub spout into the upright position, then fully tighten the spout with the 5/32 inch hex wrench.

6. Setting Adjustable Temperature Limit Stop

The Moen M-CORE valve includes an adjustable temperature limit stop to meet applicable temperature code requirements. To test the temperature, hold the lever handle in the 6 o'clock position. Lift and turn the handle clockwise until it stops. Turn on the water supply. If the desired water temperature has been met, no further adjustment is needed. If the water temperature exceeds 120°F, you must reset the temperature limit stop.

To reset, turn the handle to lower the water temperature to 120°F, then remove the handle. Remove the temperature limit stop ring located on the outer rim of the cartridge stem. Turn the limit stop ring counter-clockwise until the tab on the ring lines up with the corresponding tab on the cartridge. Reinsert the limit stop at the desired hot position. Place the handle back on, close the handle, and rotate it to the 6 o'clock position. You can now remove the handle.

7. Installing 3-Series Trim

To complete the installation, you will install the valve trim. Begin by installing the decorative sleeve. Align the mounting plate and snap ring in the proper position. Once the snap ring is centered on the sleeve, secure it to the valve using the two included screws. Snap on the escutcheon plate. Then, place the handle on the cartridge stem and secure it with the set screw.

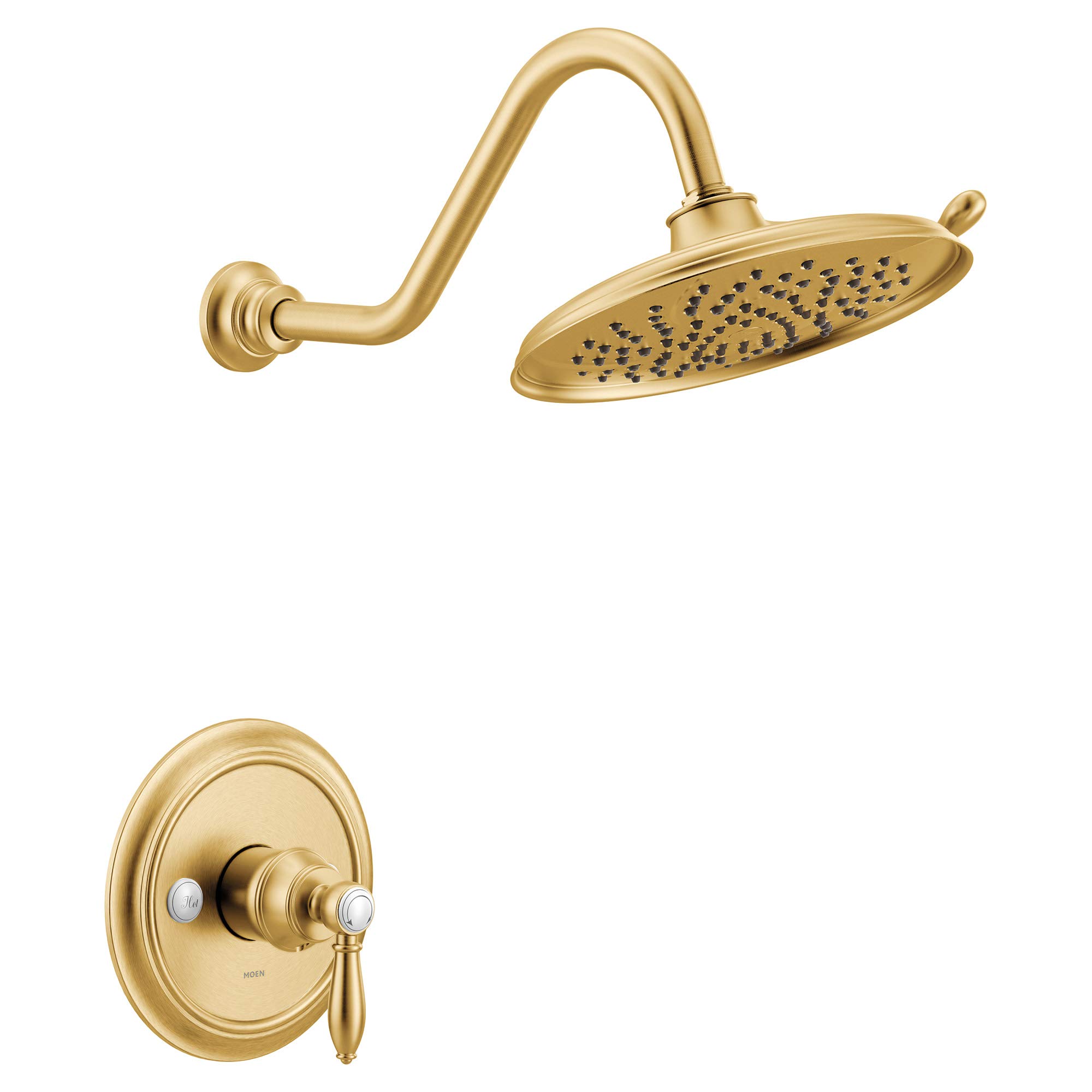

slika: The Moen Weymouth M-CORE 3-Series 1-Handle Shower Trim Kit in Brushed Gold, fully installed.

Uputstvo za upotrebu

Your Moen M-CORE 3-Series Shower Trim Kit is designed for ease of use and precise control.

• Kontrola temperature: The single handle allows for easy adjustment of water temperature. The M-CORE valve's pressure-balancing feature helps maintain your selected temperature, even with household water pressure changes.
• Kontrola jačine zvuka: The handle also provides volume control, allowing you to adjust the flow of water to your preference.
• Diverter (if applicable): If your system includes a diverter, rotate it to switch water flow between the showerhead and tub spout.

Održavanje

To maintain the beauty and performance of your Moen shower trim kit, follow these guidelines:

• čišćenje: Očistite mekom, damp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scrub brushes, as these can damage the finish.
• Redovne provjere: Periodically check for any signs of leaks or drips. Address any issues promptly to prevent further damage.
• Održavanje patrona: The M-CORE cartridge is designed for durability. If you experience issues with water flow or temperature control, refer to the troubleshooting section or contact customer support.

Rješavanje problema

If you encounter any issues with your Moen Weymouth M-CORE 3-Series Shower Trim Kit, please refer to the following common troubleshooting tips:

• Nema protoka vode ili nizak pritisak: Ensure the main water supply is fully open. Check for any blockages in the showerhead or tub spout.
• Nedosljedna temperatura vode: Verify that the temperature limit stop is correctly set (refer to Section 6). Ensure both hot and cold water supplies are active.
• Curenje ili kaplje: Check all connections for tightness. If leaks persist, the cartridge may need inspection or replacement.

For persistent problems or issues not covered here, please contact Moen Consumer Services.

Specifikacije

Garancija i podrška

Your Moen Weymouth M-CORE 3-Series 1-Handle Shower Trim Kit is backed by Moen’s Ograničena doživotna garancija. This warranty covers defects in material and manufacturing workmanship for the original consumer purchaser.

For further information, detailed instructions, or assistance with installation and troubleshooting, please refer to the printed instruction sheets included with your product or contact Moen Consumer Services:

1-800-KUPI-MOEN

Remember, existing conditions, design, and construction of a project site may require different removal/installation techniques and attention. Product selection and determining the appropriate removal/installation method are the responsibility of the building owner, and his/her plumber or other construction professional.
