Scheppach HS110 Uputstvo za upotrebu za stolnu pilu

Uvod

This manual provides essential information for the safe and efficient operation, maintenance, and setup of your Scheppach HS110 Table Saw. Please read these instructions carefully before using the machine to ensure your safety and prolong the life of the product. Keep this manual in a safe place for future reference.

Opća sigurnosna uputstva

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Power tools can be dangerous if not used correctly. Familiarize yourself with the controls and proper use of the machine.

Sigurnost radnog područja

• Održavajte radni prostor čistim i dobro osvijetljenim. Zatrpana ili mračna područja izazivaju nesreće.
• Nemojte koristiti električne alate u eksplozivnoj atmosferi, kao što je prisustvo zapaljivih tečnosti, gasova ili prašine.
• Držite djecu i osobe u blizini dok koristite električni alat. Ometanje može uzrokovati da izgubite kontrolu.

Električna sigurnost

• Utikači za električni alat moraju odgovarati utičnici. Nikada nemojte modificirati utikač ni na koji način.
• Izbjegavajte kontakt tijela sa uzemljenim ili uzemljenim površinama kao što su cijevi, radijatori, peći i hladnjaci.
• Ne izlažite električne alate kiši ili mokrim uslovima. Ulazak vode u električni alat povećava rizik od strujnog udara.
• Nemojte zloupotrebljavati kabl. Nikada nemojte koristiti kabel za nošenje, povlačenje ili isključivanje električnog alata. Držite kabl dalje od toplote, ulja, oštrih ivica ili pokretnih delova.

Lična sigurnost

• Always wear eye protection. Use a dust mask in dusty conditions.
• Obucite se kako treba. Ne nosite široku odjeću ili nakit. Držite kosu i odjeću dalje od pokretnih dijelova.
• Budite oprezni, pazite šta radite i koristite zdrav razum kada rukujete električnim alatom.
• Use safety equipment such as push sticks and blade guards.

Table Saw Specific Safety

• Uvijek koristite štitnik za oštricu i razdjelnik prilikom rada s pilom.
• Never reach over the saw blade.
• Osigurajte da je radni komad čvrsto poduprt i vođen.
• Do not cut freehand. Always use the rip fence or miter gauge.
• Before starting, ensure the blade is clear of the workpiece.
• Never remove cut-off pieces or other parts of the workpiece from the cutting area while the saw is running.

Product Overview

The Scheppach HS110 is a powerful table saw designed for cutting wood. It features a 2000W motor, a 254mm diameter blade, and adjustable cutting capabilities.

Slika 1: Sveukupno view of the Scheppach HS110 Table Saw.

Ključne komponente i karakteristike

• 2000W / 230V Motor: Obezbeđuje ampmala snaga za različite zadatke rezanja.
• Proširenja tabela: Extendable work surface to the left and right for supporting larger workpieces.
• Integrisana baza: Sturdy base for stable operation.
• 254mm HW Blade: High-quality blade for precise cuts.
• Zaštita oštrice: Essential safety feature to protect against accidental contact with the blade.
• Cross-cut Gauge and Rip Fence: Included for accurate longitudinal and transverse cuts.
• Podesiva visina košnje: Maximum cutting height of 87mm.

Setup

Before initial use, the table saw requires assembly and proper positioning.

Assembly of the Base and Table Extensions

Carefully unpack all components. Assemble the base according to the diagrams provided in the separate assembly guide. Attach the table extensions to the main table, ensuring they are level and securely fastened. The design allows for processing large workpieces due to these extensions.

Figure 2: The table saw with its extensions, allowing for processing of larger workpieces.

Figure 3: The stable underframe and non-slip rubber feet ensure high stability during operation.

Positioning the Saw

Place the table saw on a firm, level surface. The ergonomic table height of 870 mm promotes a comfortable working posture. Ensure adequate space around the saw for safe operation and material handling.

Figure 4: The 870 mm table height supports an ergonomic working posture.

Uputstvo za upotrebu

Understand the controls and adjustments before making any cuts.

Uključivanje/isključivanje

Connect the saw to a 230V power supply. Use the designated ON/OFF switch to start and stop the machine. Always ensure the blade has come to a complete stop before leaving the machine or performing any adjustments.

Adjusting Blade Height and Angle

The saw blade can be adjusted for both height and angle. The maximum cutting height is 87 mm at 90 degrees and 55 mm at 45 degrees. The blade can swivel from 0 to 45 degrees for bevel cuts.

Figure 5: Adjusting the saw blade angle for bevel cuts (0-45 degrees).

Figure 6: Diagram illustrating maximum cutting heights (87mm at 90°, 55mm at 45°) and table extensions.

Figure 7: Diagram showing saw blade dimensions (254 mm x 30 mm x 2.8 mm) and swivel range (0-45 degrees).

Techniques

The HS110 is suitable for various wood cutting applications, including beams, profile boards, and planks. It can perform both rip cuts (longitudinal cuts) and miter cuts (angled cuts).

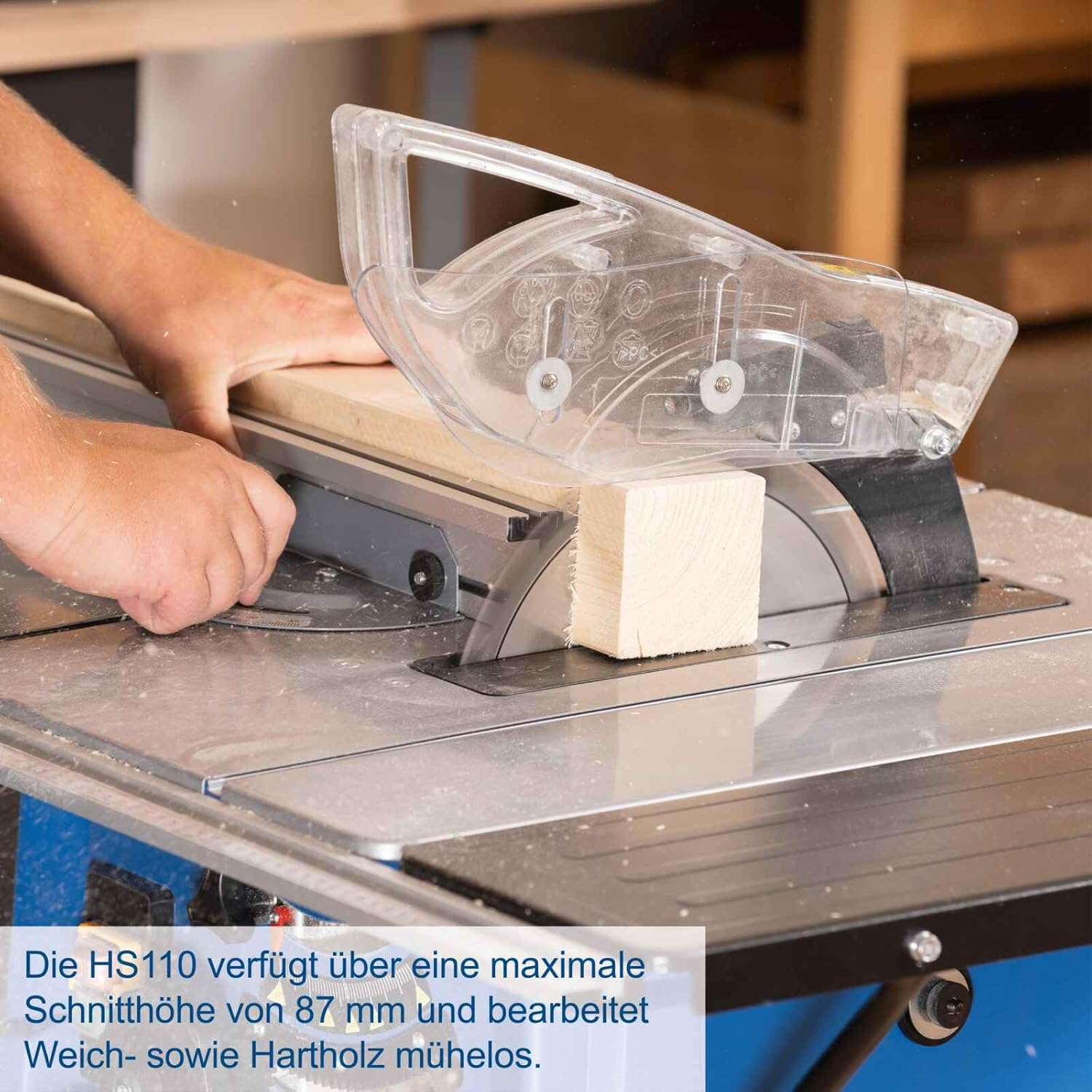

Figure 8: The HS110 effortlessly processes soft and hard wood with a maximum cutting height of 87 mm.

Slika 9: Pramples of applications including cutting beams, profile boards, planks, rip cuts, and miter cuts.

Održavanje

Regular maintenance ensures optimal performance and extends the lifespan of your table saw.

Čišćenje

• Uvijek isključite napajanje prije čišćenja.
• Remove sawdust and debris from the motor vents, blade guard, and table surface after each use.
• Use a brush or compressed air for cleaning. Do not use water or harsh chemicals.

Zamjena oštrice

When replacing the saw blade, ensure the machine is unplugged. Follow the instructions in the detailed manual for safe blade removal and installation. Always use a 254mm diameter blade with a 30mm bore and appropriate tooth count (e.g., 80 teeth for fine cuts).

Njega motora

The motor is designed for durability. Ensure proper ventilation and avoid overloading the saw, which can lead to overheating. If the motor shows signs of reduced performance or unusual noise, consult a qualified technician.

Rješavanje problema

Ovaj odjeljak se bavi uobičajenim problemima s kojima se možete susresti pri korištenju stolne pile.

Saw Does Not Start

• Check if the power cord is securely plugged into a functioning outlet.
• Provjerite je li prekidač za uključivanje/isključivanje u položaju 'UKLJUČENO'.
• Provjerite ima li isključenih prekidača ili pregorjelih osigurača.

Loš kvalitet rezanja

• Ensure the saw blade is sharp and clean. A dull or dirty blade can cause rough cuts.
• Check if the blade is installed correctly and securely tightened.
• Verify that the rip fence or miter gauge is properly aligned and locked.
• Ensure the workpiece is adequately supported and fed at a consistent rate.

Prekomjerne vibracije ili buka

• Check for loose components, especially the blade and its mounting hardware.
• Ensure the saw is placed on a stable, level surface.
• Inspect the blade for damage or warping. Replace if necessary.

For issues not covered here, or if troubleshooting steps do not resolve the problem, contact qualified service personnel.

Specifikacije

Garancija i podrška

Specific warranty details and support contact information are typically provided with your purchase documentation. Please refer to the warranty card or contact your retailer for information regarding warranty coverage and technical support for your Scheppach HS110 Table Saw.
