majatag Digital Smart Fill Steam Iron & Vertical Steamer User Manual

Product Overview

The Maytag Smartfill Digital Iron with Removable Water Tank combines advanced technology with user-friendly features for comprehensive ironing. It heats to full temperature in approximately 55 seconds, and its unique removable water tank allows for refilling even while the iron is hot, saving valuable time. The digital interface offers four distinct heat settings, accommodating a wide range of fabrics from heavy cotton to delicate silk. This iron provides versatile steaming options including adjustable continuous steam, steam burst, vertical steam, and water spray functions to effectively smooth out wrinkles. Enhanced safety is provided by a 3-way auto-shutoff feature, and the pearl ceramic soleplate ensures smooth gliding for wrinkle-free results.

Podešavanje i početna upotreba

Raspakivanje i pregled

• Pažljivo izvadite peglu i sav pribor iz ambalaže.
• Pregledajte peglu na bilo kakve znakove oštećenja. Ne koristite je ako je oštećena.
• Provjerite da li su prisutne sve komponente navedene u pakovanju.

Punjenje rezervoara za vodu

The Maytag M1400 iron features a removable water tank for convenient filling. It is recommended to use tap water for this iron, as it is designed to function optimally with the minerals present in tap water. Avoid using distilled water unless specified otherwise in future updates, as it may affect performance.

1. Ensure the iron is unplugged before filling.
2. Remove the water tank from the iron.
3. Fill the tank with tap water up to the MAX fill line.
4. Securely reinsert the water tank into the iron.

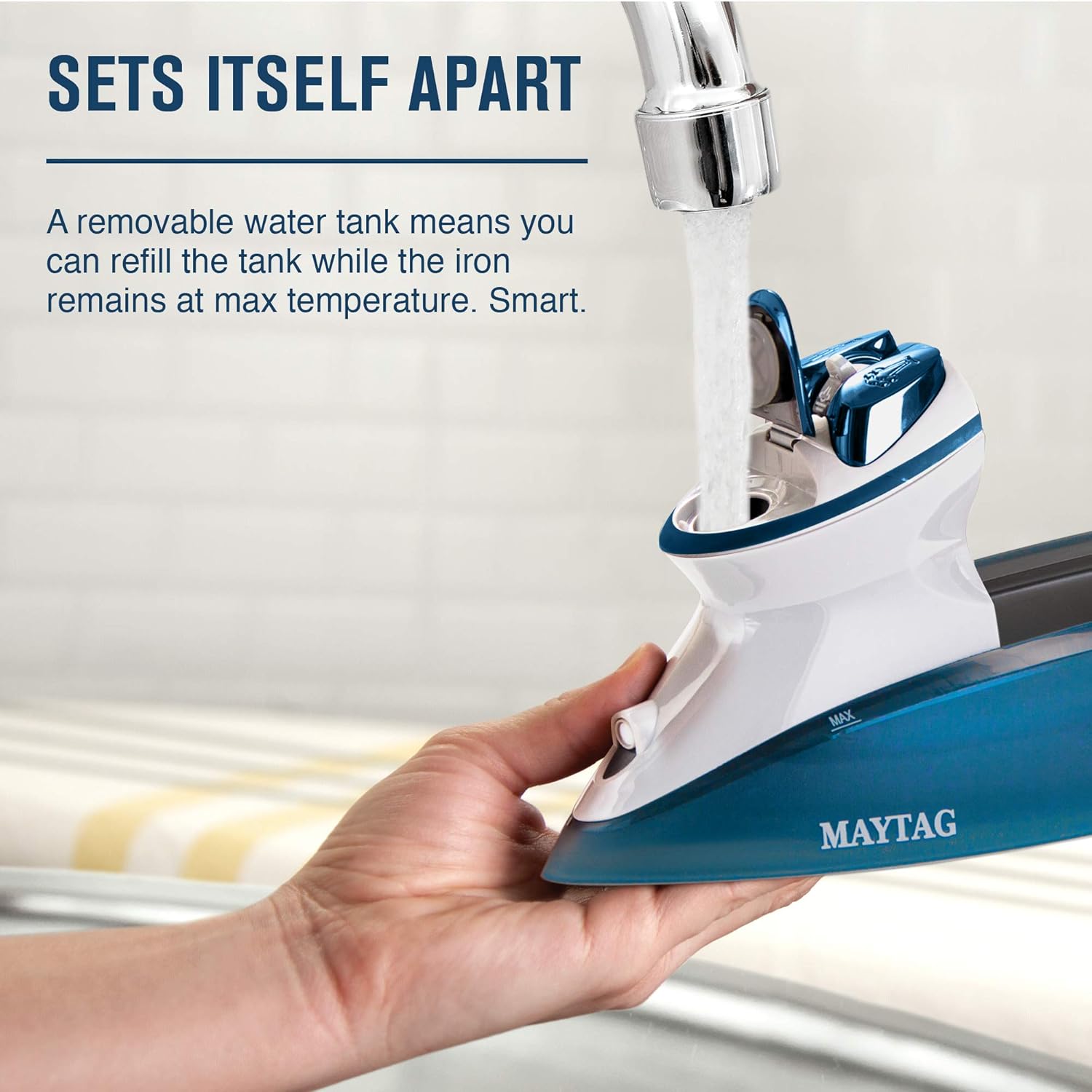

This image illustrates the removable water tank feature, showing it being filled directly from a faucet. This design allows for easy and quick refilling, even when the iron is hot, enhancing user convenience.

Power Connection

Plug the iron into a standard electrical outlet. The iron is designed to heat up quickly, reaching maximum temperature in less than a minute.

Uputstvo za upotrebu

Kontrola temperature

The iron features a digital interface for precise temperature selection. Choose from four temperature settings suitable for various fabrics, from heavy cottons to delicate silks. Adjust the thermostat dial to the desired setting based on the fabric type.

Krupni plan view of the iron's digital interface, showing the temperature settings indicated by illuminated bars. This interface allows users to precisely select the heat level required for different fabric types.

Steam funkcije

The Maytag M1400 offers multiple steam options for effective wrinkle removal:

• Adjustable Continuous Steam: Control the level of steam from low to high for consistent wrinkle removal.
• Steam Burst: Press the steam burst button for an extra powerful shot of steam to tackle stubborn wrinkles. Steam regenerates in just 3 seconds.
• Vertikalna para: Use the iron in an upright position to steam hanging garments, curtains, or upholstery.
• vodeni sprej: Utilize the water spray function to moisten fabrics, aiding in the removal of tough creases.

This composite image demonstrates the iron's versatile steam capabilities: variable steam control for different fabric needs, vertical steaming for hanging items like drapes, and a water spray function to moisten and smooth out tough wrinkles.

The image shows the iron gliding over fabric with visible steam, emphasizing its even steam distribution feature. This ensures consistent and effective wrinkle removal across the entire garment.

Pearl Ceramic Soleplate

The durable pearl ceramic soleplate is designed for smooth gliding over all fabric types, ensuring effortless ironing and wrinkle-free results.

Detaljno view of the iron's pearl ceramic soleplate, highlighting its smooth surface and steam holes designed for efficient heat and steam distribution, allowing for effortless gliding over fabrics.

Sigurnosne karakteristike

For enhanced safety, the Maytag M1400 iron is equipped with a 3-way auto-shutoff feature. This function automatically turns off the iron if it is left unattended for a period of time, whether resting horizontally or vertically, preventing potential hazards.

This image shows the iron in a resting position on an ironing board, illustrating the auto shut-off feature that activates when the iron is not in use, ensuring safety for clothes and surfaces.

Održavanje

Čišćenje grejne ploče

To maintain optimal performance of the pearl ceramic soleplate, clean it regularly. Ensure the iron is unplugged and completely cool before cleaning. Use a damp cloth with a mild detergent to wipe the soleplate. For stubborn residue, a non-abrasive cleaner specifically designed for iron soleplates can be used. Do not use abrasive scouring pads or harsh chemicals.

Funkcija samočišćenja

The iron includes a self-clean feature to prevent mineral buildup. It is recommended to use this function approximately once a month, or more frequently if you use the steam function often or live in an area with hard water. Refer to the full user manual for detailed instructions on performing the self-clean cycle.

Water Tank Care

Always empty the water tank after each use to prevent mineral buildup and prolong the life of your iron. Store the iron with an empty water tank.

Rješavanje problema

If you encounter issues with your Maytag M1400 iron, please refer to the following common troubleshooting tips:

• Iron not heating: Ensure the iron is securely plugged into a working electrical outlet. Check the temperature setting on the digital interface.
• Nema pare ili nedovoljna para: Verify that the water tank is filled with tap water. Ensure the iron has reached the appropriate temperature setting for steam generation. Check if the steam control is set to the desired level.
• Water leaking from soleplate: This can occur if the temperature setting is too low for steam generation, causing water to drip instead of vaporize. Increase the temperature setting. Ensure the water tank is not overfilled.
• Iron not gliding smoothly: Clean the soleplate as described in the Maintenance section to remove any residue that might be causing friction.
• Auto-shutoff activating too frequently: Ensure the iron is being used actively. The auto-shutoff is a safety feature designed to activate when the iron is stationary for a period.

For more detailed troubleshooting or issues not listed here, please consult the full user manual or contact Maytag korisnička podrška.

Specifikacije

Garancija i podrška

Garancija proizvođača

The Maytag Digital Smart Fill Steam Iron & Vertical Steamer is backed by a manufacturer's 2-year warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Korisnička podrška

For product inquiries, technical assistance, or warranty service, please contact Maytag customer support. Refer to the contact information provided in your product packaging or visit the official Maytag website.

Kompletno uputstvo za upotrebu

A comprehensive user manual in PDF format is available for detailed instructions and information:

Preuzmite korisnički priručnik (PDF)
