TecTake Racing Office Chair Instruction Manual

1. Uvod

Thank you for choosing the TecTake Racing Office Chair, Model 800774. This manual provides essential information for the safe assembly, operation, and maintenance of your new chair. Please read these instructions carefully before use and retain them for future reference.

2. Sigurnosne informacije

UPOZORENJE:

• Always follow the assembly instructions carefully to ensure the chair is correctly assembled and stable.
• Exercise caution when adjusting the chair's height using the safety gas spring to prevent injuries.
• Do not exceed the maximum weight capacity of 120 kg (264 lbs) to maintain the chair's stability and safety.
• Ensure all screws are tightened securely after assembly and periodically check for any loosening.

3. Značajke proizvoda

The TecTake Racing Office Chair is designed for comfort and functionality, featuring:

• Moderan i ergonomski dizajn.
• Robust and resistant structure.
• Thick padding for comfortable seating.
• Upholstered in soft synthetic leather with breathable mesh inserts.
• Continuously adjustable height with safety gas lift.
• Adjustable tilt mechanism.
• Rotacija za 360 stepeni.
• Stable base with 5 floor-friendly double castors.
• Curved and resistant armrests.

Figure 1: Key features of the TecTake Racing Office Chair.

Slika 2: Detaljno view of upholstery, armrests, mesh, and control lever.

4. Upute za sastavljanje

The TecTake Racing Office Chair is designed for quick and straightforward assembly. Please ensure all components are present before beginning.

4.1 Raspakivanje

1. Pažljivo izvadite sve komponente iz pakovanja.
2. Verify that all parts listed in the included assembly guide are present and undamaged.

4.2 Sastavljanje korak po korak

Refer to the detailed assembly instructions provided in the box. General steps typically include:

1. Attach the castors to the chair base.
2. Umetnite cilindar za podizanje plina u bazu.
3. Secure the seat mechanism to the underside of the seat cushion.
4. Attach the armrests to the seat. Note that armrests may be side-specific; ensure correct orientation.
5. Connect the backrest to the seat and armrests. This step may require some force to align holes due to the curved design.
6. Postavite sastavljeno sjedište i naslon na cilindar za podizanje plina.

Savjet: For attaching the backrest to the seat, it may be easier with two people or by positioning the seat on a stable surface with the backrest hanging to apply necessary pressure for screw alignment.

5. Uputstvo za upotrebu

Your TecTake Racing Office Chair offers several adjustable features to customize your seating experience.

5.1 Podešavanje visine

To adjust the chair's height:

1. To raise the chair: Lift the lever located under the right side of the seat while taking your weight off the seat. The chair will rise automatically.
2. To lower the chair: Lift the lever located under the right side of the seat while seated. The chair will lower under your weight.
3. Release the lever to lock the chair at the desired height.

5.2 Mehanizam nagiba

The chair features an adjustable tilt mechanism for reclining:

1. To enable tilt: Pull the same lever used for height adjustment outwards.
2. Da biste fiksirali stolicu u uspravnom položaju: Gurnite polugu prema unutra.

The tension of the tilt mechanism can often be adjusted by a knob located under the front of the seat. Turn clockwise to increase tension (making it harder to tilt) and counter-clockwise to decrease tension (making it easier to tilt).

Figure 3: Chair recline range and adjustment points.

5.3 360-Degree Rotation

The chair is designed to rotate 360 degrees freely on its base, allowing for easy movement and access within your workspace.

6. Održavanje

Proper care and maintenance will extend the life of your TecTake Racing Office Chair.

6.1 Čišćenje

• For general cleaning, wipe the chair with a damp tkanina.
• Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the synthetic leather and mesh fabric.
• U slučaju prolijevanja, odmah obrišite čistom, suhom krpom.

6.2 Periodične provjere

• Povremeno provjeravajte sve vijke i šrafove kako biste bili sigurni da su zategnuti. Po potrebi ih ponovo zategnite kako biste održali stabilnost i sigurnost.
• Inspect the castors for any debris (hair, lint) that might hinder smooth movement. Clean as needed.
• Ensure the gas lift operates smoothly. If it becomes stiff or inconsistent, contact customer support.

7. Otkrivanje problema

If you encounter any issues with your chair, refer to the following common problems and solutions.

7.1 Chair Sinks or Does Not Hold Height

• Uzrok: Gas lift cylinder malfunction or lever not fully engaged.
• Rješenje: Ensure the height adjustment lever is fully released after setting the height. If the issue persists, the gas lift cylinder may need replacement. Contact customer support.

7.2 Chair Wobbles

• Uzrok: Labavi vijci ili neravnomjerna montaža.
• Rješenje: Check and tighten all assembly screws, especially those connecting the seat to the mechanism and the backrest to the seat/armrests. Ensure the chair is on a flat, even surface.

7.3 Castors Not Rolling Smoothly

• Uzrok: Debris caught in castors or damaged castors.
• Rješenje: Turn the chair over and carefully remove any hair, lint, or other debris from the castor wheels. If a castor is damaged, it may need replacement.

8. Specifikacije

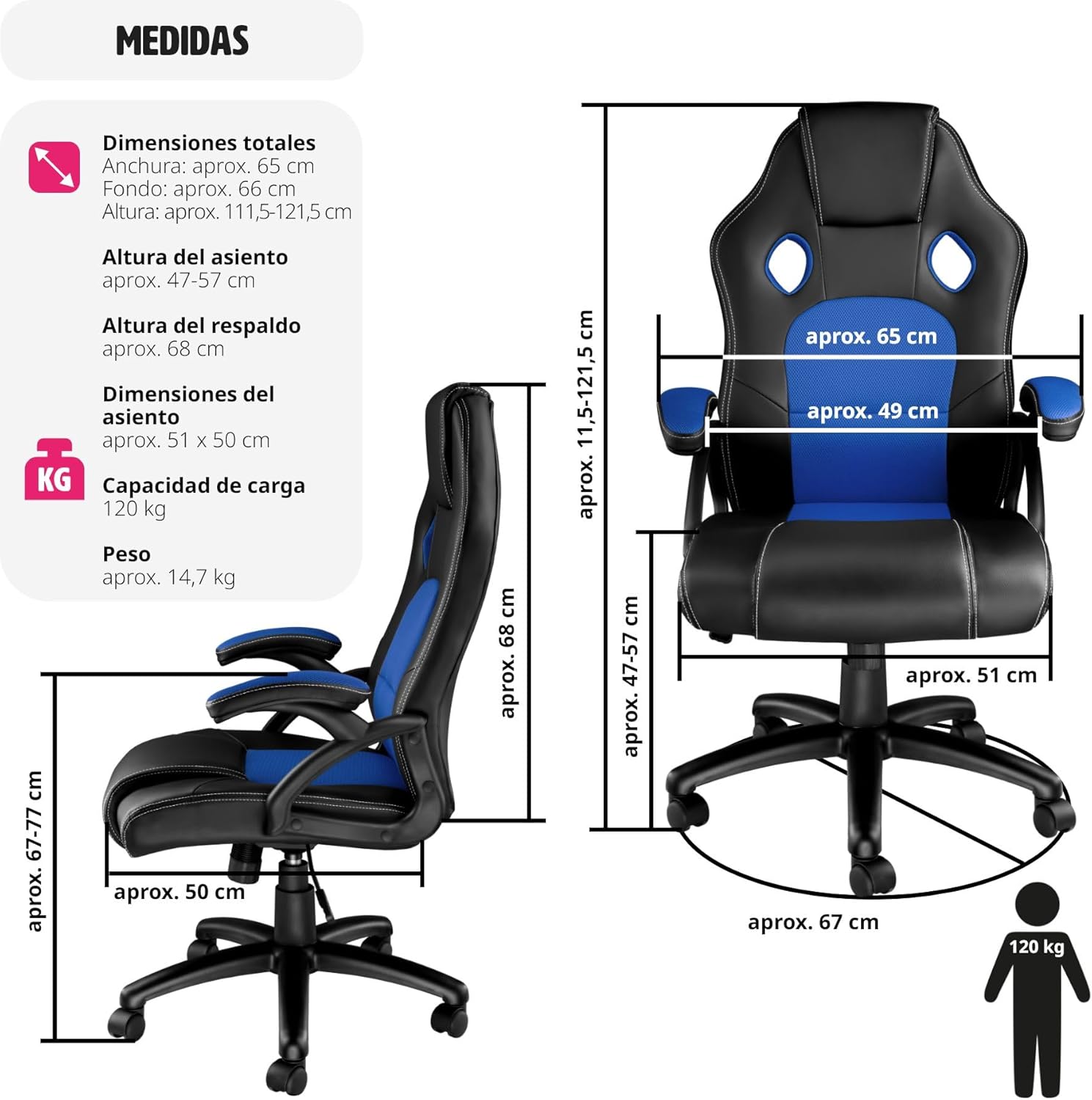

Slika 4: Detaljne dimenzije proizvoda i nosivost.

9. Garancija i podrška

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official TecTake webSačuvajte dokaz o kupovini za eventualne reklamacije.
