Uvod
This manual provides essential information for the safe assembly, operation, and maintenance of your HAPPYGRILL GO-HG0439 Patio Heater. Please read all instructions carefully before use and retain this manual for future reference.
Važne informacije o sigurnosti
UPOZORENJE: Samo za vanjsku upotrebu. Ne skladištite niti koristite benzin ili druge zapaljive pare i tekućine u blizini ovog ili bilo kojeg drugog uređaja.
Always ensure proper ventilation. Keep children and pets away from the heater. Maintain clear distances from combustible materials.
- Uvjerite se da je grijač postavljen na stabilnu, ravnu površinu.
- Do not operate the heater in windy conditions without proper anchoring.
- Keep the area around the heater clear of combustible materials, gasoline, and other flammable vapors and liquids.
- Nikada ne ostavljajte grijač bez nadzora dok radi.
- Always turn off the gas supply at the cylinder when the heater is not in use.
- Do not attempt to repair or alter the heater. Contact qualified service personnel.

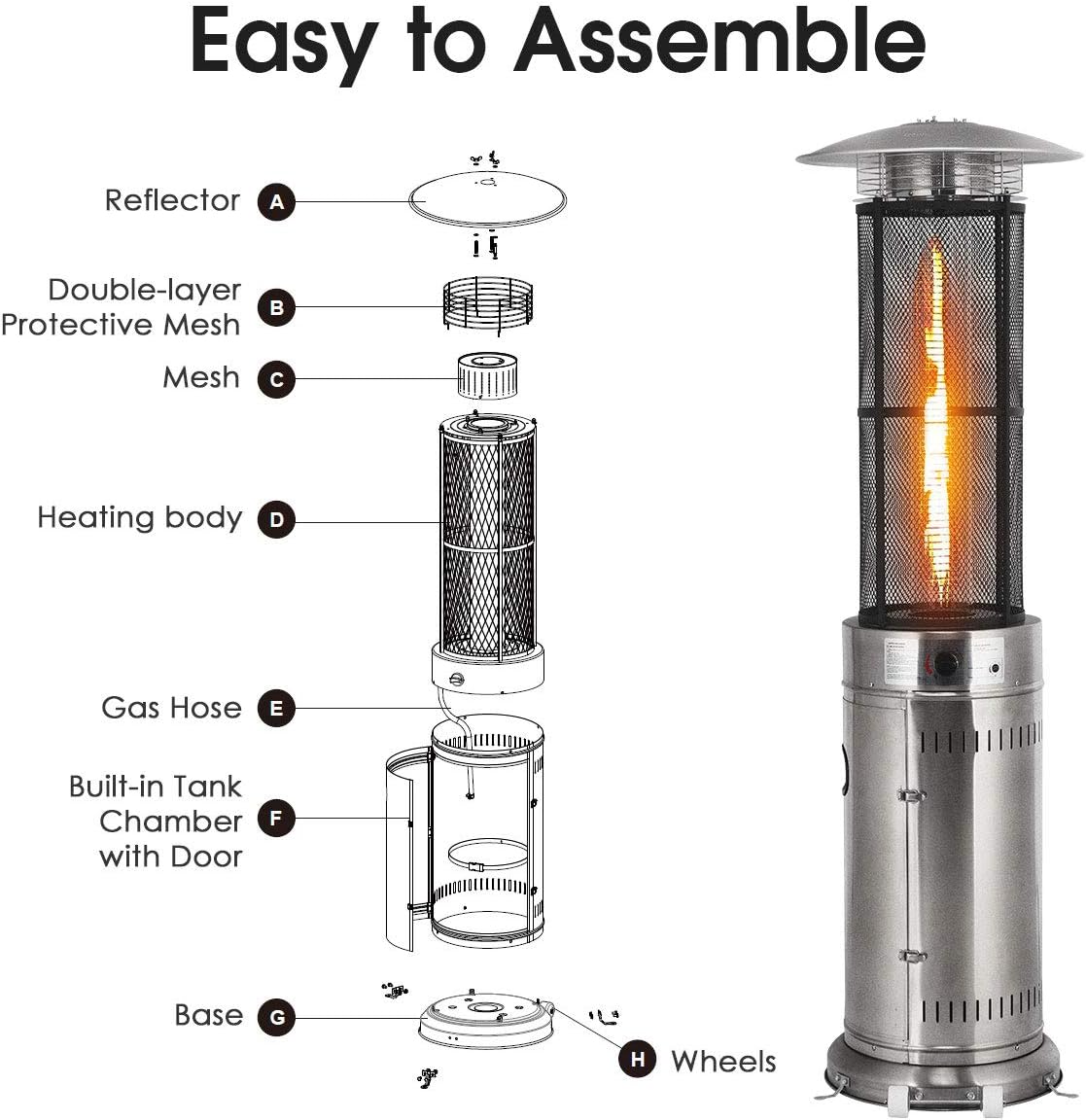

Sadržaj paketa
Verify that all components are present before beginning assembly. If any parts are missing or damaged, do not attempt to assemble the product. Contact customer service for assistance.
- Reflektor
- Double-layer Protective Mesh
- Mesh
- Grejno telo
- Gas Hose
- Built-in Tank Chamber with Door
- Baza
- Wheels (pre-attached or to be attached)
- Hardverski paket
- Uputstvo za upotrebu
Postavljanje i montaža
Follow these steps to correctly assemble your patio heater. It is recommended to have two people for assembly.
- Raspakujte komponente: Pažljivo uklonite sve dijelove iz ambalaže.
- Pričvrstite kotače (ako nisu prethodno pričvršćeni): Secure the flexible wheels to the base for easy transport.
- Assemble Base and Tank Chamber: Connect the tank chamber to the base. The built-in space behind the door is designed to hold a standard 20lb propane tank.
- Install Propane Tank:
- Open the door of the tank chamber.
- Place a standard 20lb liquid propane gas tank (not included) into the chamber.
- Secure the tank with the elastic strap provided.
- Connect the gas hose and regulator to the propane tank. Ensure all connections are tight.
Opis slike: A view of the lower section of the patio heater with its door open, showing a red 20lb propane cylinder being placed inside. An inset image highlights the excess flow valve connection to the tank. This demonstrates the correct method for installing the fuel source. - Assemble Heating Body and Mesh: Attach the heating body and the double-layer protective mesh around the glass heating column.
- Attach Reflector: Secure the top reflector to the heater.
- Ground Fixers: Utilize the provided ground fixers to attach the heater to the ground for enhanced stability, especially in outdoor environments.
Uputstvo za upotrebu
Always follow these steps for safe ignition and operation of your HAPPYGRILL GO-HG0439 Patio Heater.
- Otvoreni plinski ventil: Fully open the gas valve on the propane tank.
- Prepare Control Knob: Depress the control knob and turn it clockwise to the "OFF" position.
- Ignite Pilot: Depress the control knob and turn it counter-clockwise to the "IGNITE" position, then to the "PILOT" position.
- Hold Pilot: Keep the control knob depressed for 60 seconds to allow the pilot light to establish.
- Ponovite ako je potrebno: If the pilot light does not ignite, repeat step 3 several times until it lights.
- Podesite plamen: Once the pilot is lit, release the control knob and turn it to the desired heat setting. The adjustable knob allows you to control the height and intensity of the flame.

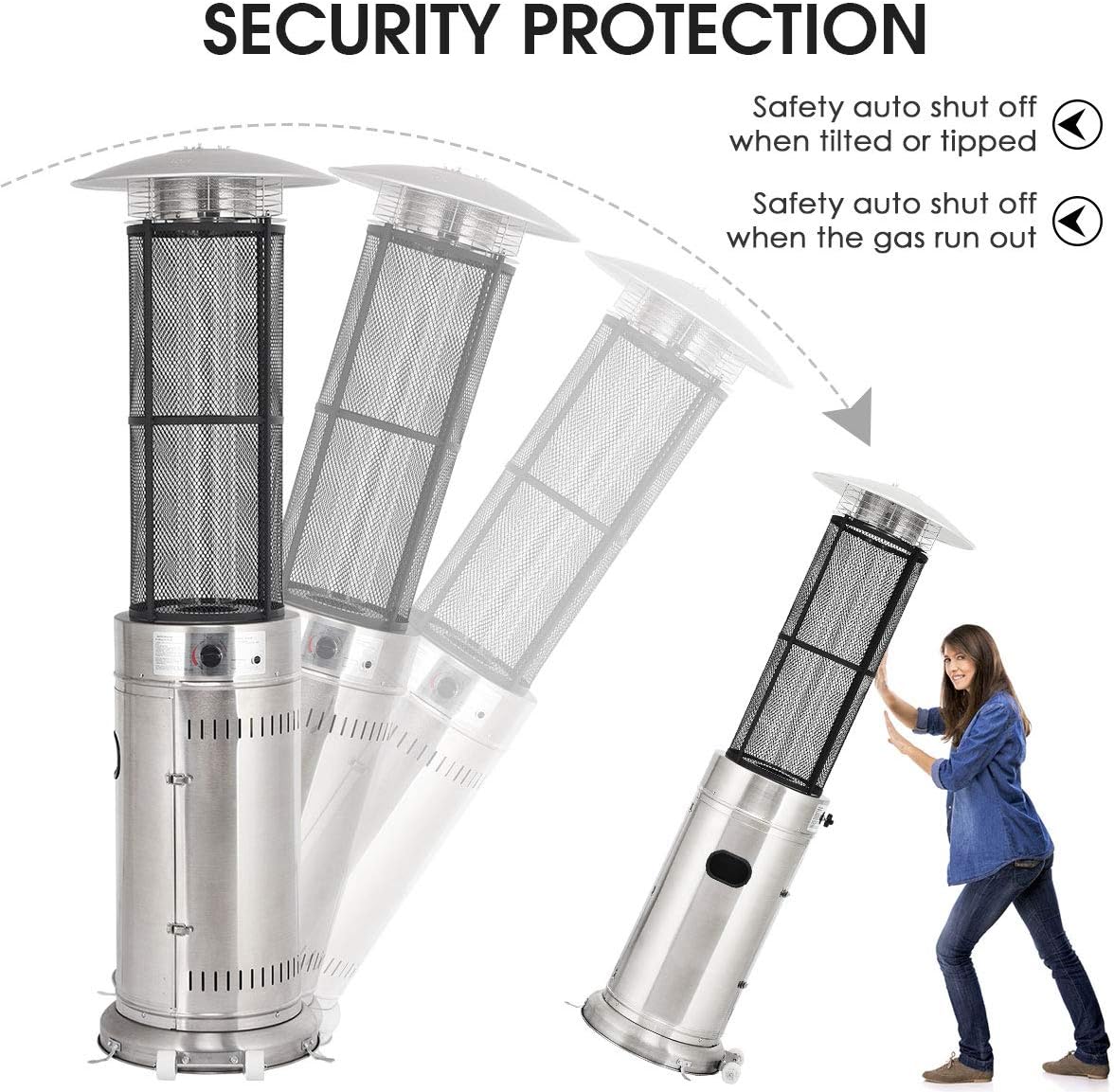

CAUTION: Always ensure the heater is stable and upright during operation. The heater features a safety auto shut-off tilt valve and will automatically turn off if tilted or if the gas supply runs out.
Održavanje
Regular maintenance ensures optimal performance and longevity of your patio heater.
- čišćenje: Očistite vanjske površine mekom,amp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.
- Reflektor: Periodically inspect the top reflector for debris and clean as needed to ensure efficient heat distribution.
- Plinski priključci: Redovno provjeravajte sve plinske spojeve na curenje koristeći otopinu sapuna. Mjehurići ukazuju na curenje.
- Skladištenje: When not in use, especially during off-season, disconnect the propane tank and store the heater in a dry, protected area. Consider using a weather-resistant cover.
- Glass Tube: Inspect the glass heating column for cracks or damage. Replace if necessary.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Grijač se ne pali. | No gas supply, low gas pressure, igniter issue. | Ensure propane tank valve is fully open. Check for gas in the tank. Verify igniter spark. |
| Plamen je slab ili nekonzistentan. | Low gas pressure, partially closed tank valve, clogged burner. | Ensure tank valve is fully open. Check for obstructions in the burner. Replace propane tank if empty. |
| Grijač se neočekivano isključuje. | Heater tilted, gas supply ran out, safety sensor activated. | Ensure heater is upright. Check propane tank level. Allow heater to cool before restarting. |
Specifikacije
| Feature | Detalj |
|---|---|
| Brand | HAPPYGRILL |
| Broj modela | GO-HG0439 |
| Izlaz toplote | 40,000 BTU |
| Vrsta goriva | propan (LP plin) |
| Preporučena veličina rezervoara | Standard 20lb Propane Tank |
| Materijal | Vrhunski nerđajući čelik |
| Dimenzije proizvoda | 21"D x 21"Š x 72"H |
| Težina artikla | 36 funte |
| Posebne karakteristike | Adjustable Heat, Wheels, True Flame, Safety Auto Shut-off (Tilt/Gas Out) |
| Upotreba | Samo za vanjsku upotrebu |
Informacije o garanciji
For specific warranty details, please refer to the warranty card included with your product or visit the official HAPPYGRILL webSačuvajte račun kao dokaz o kupovini u slučaju bilo kakvih reklamacija.
Korisnička podrška
If you have any questions, require assistance with assembly, operation, or troubleshooting that is not covered in this manual, please contact HAPPYGRILL customer service.
- Online podrška: Posjetite HAPPYGRILL Store on Amazon za često postavljana pitanja i informacije o proizvodu.
- Kontakt informacije: Pogledajte pakovanje proizvoda ili službene webstranica za metode direktnog kontakta.
