PERLESMITH PSFS02 Swivel Floor TV Stand Instruction Manual

1. Proizvod je gotovview

The PERLESMITH PSFS02 Swivel Floor TV Stand is designed to provide a stable and versatile mounting solution for most 32-75 inch flat-panel, plasma, and curved LCD/LED TVs. It features a sturdy steel pillar and tempered glass base, offering both durability and a modern aesthetic. The stand includes a swivel function for optimal viewing angles, height adjustment for the TV brackets and a media shelf, and integrated cable management to maintain a tidy appearance.

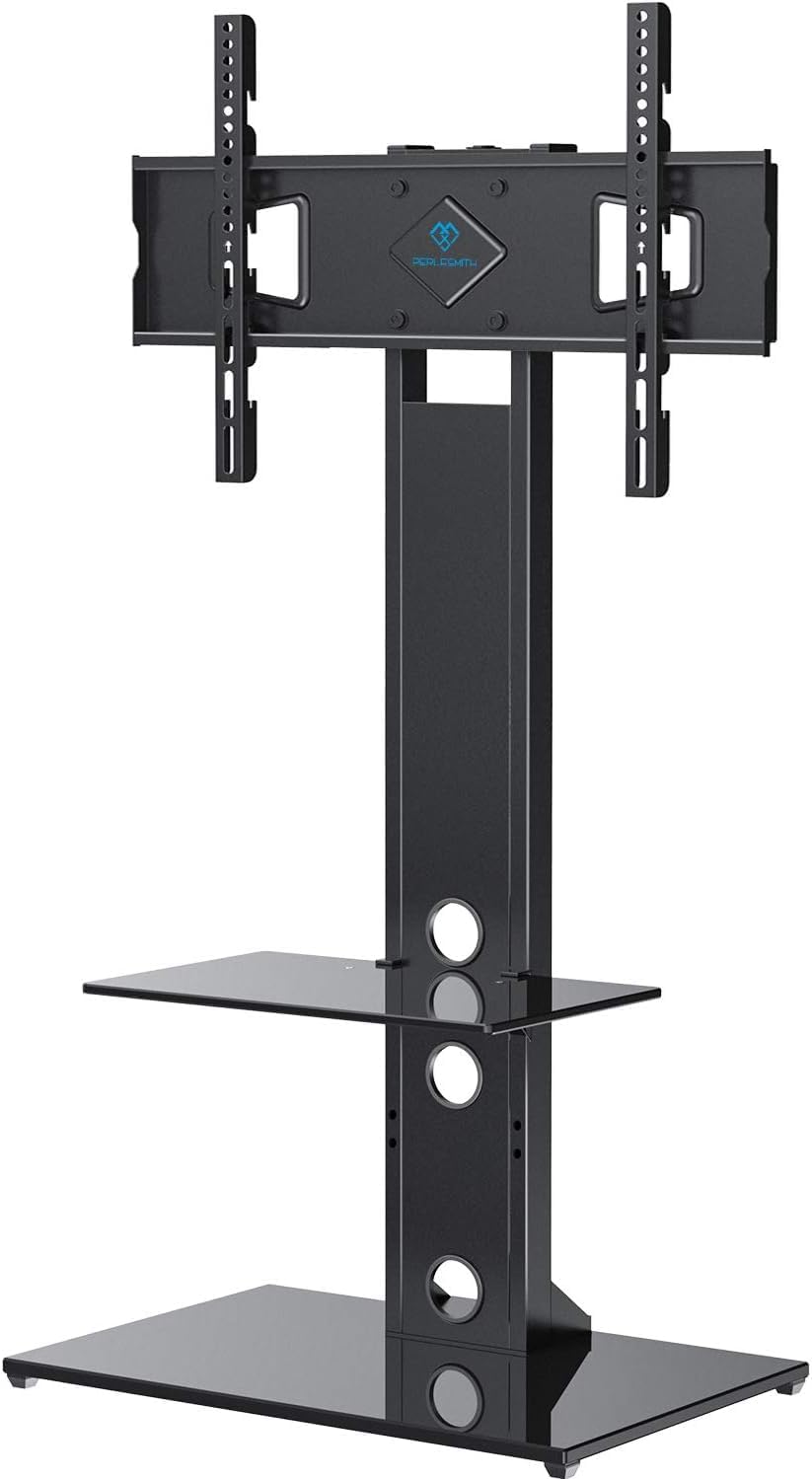

Image 1.1: The PERLESMITH PSFS02 Swivel Floor TV Stand in a typical living room setup, showcasinnjegov dizajn i funkcionalnost.

Ključne karakteristike:

• Široka kompatibilnost: Supports TVs from 32" to 75" with VESA patterns from 100x100mm to 600x400mm.
• Funkcionalnost okretanja: Allows for 25° left or right swivel (total 50°), providing flexible viewing angles.
• Podešavanje visine: TV brackets offer 3 mounting height options, and the media shelf has 2 height adjustment settings.
• Integrisano upravljanje kablovima: Cable holders on the back of the pillar help organize and conceal wires.
• Čvrsta konstrukcija: Features a solid tempered glass base and steel pillar, supporting TVs up to 99 lbs and the shelf up to 22 lbs.

2. Sadržaj paketa

Molimo Vas da prije početka montaže provjerite da li su sve komponente prisutne i neoštećene. Ako bilo koji dio nedostaje ili je oštećen, obratite se korisničkoj podršci.

• 1 x Floor TV Stand Main Unit
• 1 x Mounting Hardware Kit (various screws, washers, spacers)
• 1 x Uputstvo za upotrebu

Slika 2.1: Primjerample of mounting hardware components.

3. Postavljanje i montaža

Follow these steps carefully to assemble your PERLESMITH PSFS02 TV Stand. It is recommended to have a second person assist with lifting the TV.

Step 3.1: Assemble the Base and Pillar

1. Attach the main pillar to the tempered glass base using the provided screws and tools. Ensure all connections are secure.
2. Install the media shelf onto the pillar at your desired height. The shelf has two adjustable height settings.

Image 3.1: Illustration of attaching the pillar to the base.

Step 3.2: Attach TV Brackets to Your TV

1. Identify the correct screws and spacers for your TV's VESA mounting holes.
2. Attach the vertical TV brackets to the back of your television. Ensure they are securely fastened and level.

Image 3.2: Attaching the TV brackets to the television's VESA holes.

Step 3.3: Mount the TV to the Stand

1. With assistance, carefully lift the TV and hook the attached brackets onto the main mounting plate of the stand.
2. Secure the TV to the stand using the safety screws or clips provided.

Image 3.3: The fully assembled TV stand with a television mounted.

Video vodič za montažu:

4. Uputstvo za upotrebu

4.1 Funkcija okretanja

The TV stand allows for a 25° swivel to the left or right, providing a total of 50° of rotation. Gently push the sides of the TV to adjust its angle to your preferred viewing position.

Image 4.1: Visual representation of the TV stand's swivel range.

4.2 Podešavanje visine

The TV brackets offer three different height settings to position your television at an optimal viewing level. The media shelf can also be adjusted to two different heights to accommodate your audio/video components.

Image 4.2: Details on how to adjust the height of the TV and the media shelf.

4.3 Upravljanje kablovima

Utilize the integrated cable holders located on the back of the stand's pillar to route and conceal your TV and device cables. This helps maintain a clean and organized entertainment area.

Slika 4.3: Primjerample of cable management in use, keeping wires tidy.

5. Održavanje

To ensure the longevity and proper function of your TV stand, follow these maintenance guidelines:

• čišćenje: Koristite meku, damp cloth to clean the glass and metal surfaces. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Provjerite veze: Periodically inspect all screws and bolts to ensure they remain tight and secure. Loose connections can affect stability.
• Ograničenja težine: Do not exceed the maximum weight capacities for the TV (99 lbs) and the media shelf (22 lbs).

6. Otkrivanje problema

Ako naiđete na bilo kakve probleme sa postoljem za TV, pogledajte sljedeće uobičajene probleme i rješenja:

• TV nije ravan: Ensure the TV brackets are installed evenly on the back of the TV and that the stand's base is on a flat surface. Re-check all connections.
• Stalak se čini nestabilnim: Verify that all assembly screws are tightened securely. Ensure the stand is placed on a firm, level floor. Do not exceed weight limits.
• Difficulty swiveling: Check for any obstructions behind the TV or around the stand's pillar. Ensure the TV is properly centered on the mount.

For further assistance, please contact PERLESMITH customer support.

7. Specifikacije

Image 7.1: Dimensional drawing of the PERLESMITH PSFS02 TV Stand.

8. Garancija i podrška

PERLESMITH stands behind the quality of its products. This TV stand is constructed with high-quality steel to ensure safety and stability. For any questions, concerns, or assistance with your product, please reach out to our US-based product support team. Contact information can typically be found on the product packaging or the official PERLESMITH website.

Molimo sačuvajte svoj dokaz o kupovini za zahtjeve u vezi s garancijom.
