MaximalPower 2-Wire Surveillance Earpiece Headset Instruction Manual

Uvod

This manual provides comprehensive instructions for the MaximalPower 2-Wire Surveillance Earpiece Headset. Designed for professional and industrial use, this headset offers clear and discreet communication. Please read this manual thoroughly before using the product to ensure proper setup, operation, and maintenance.

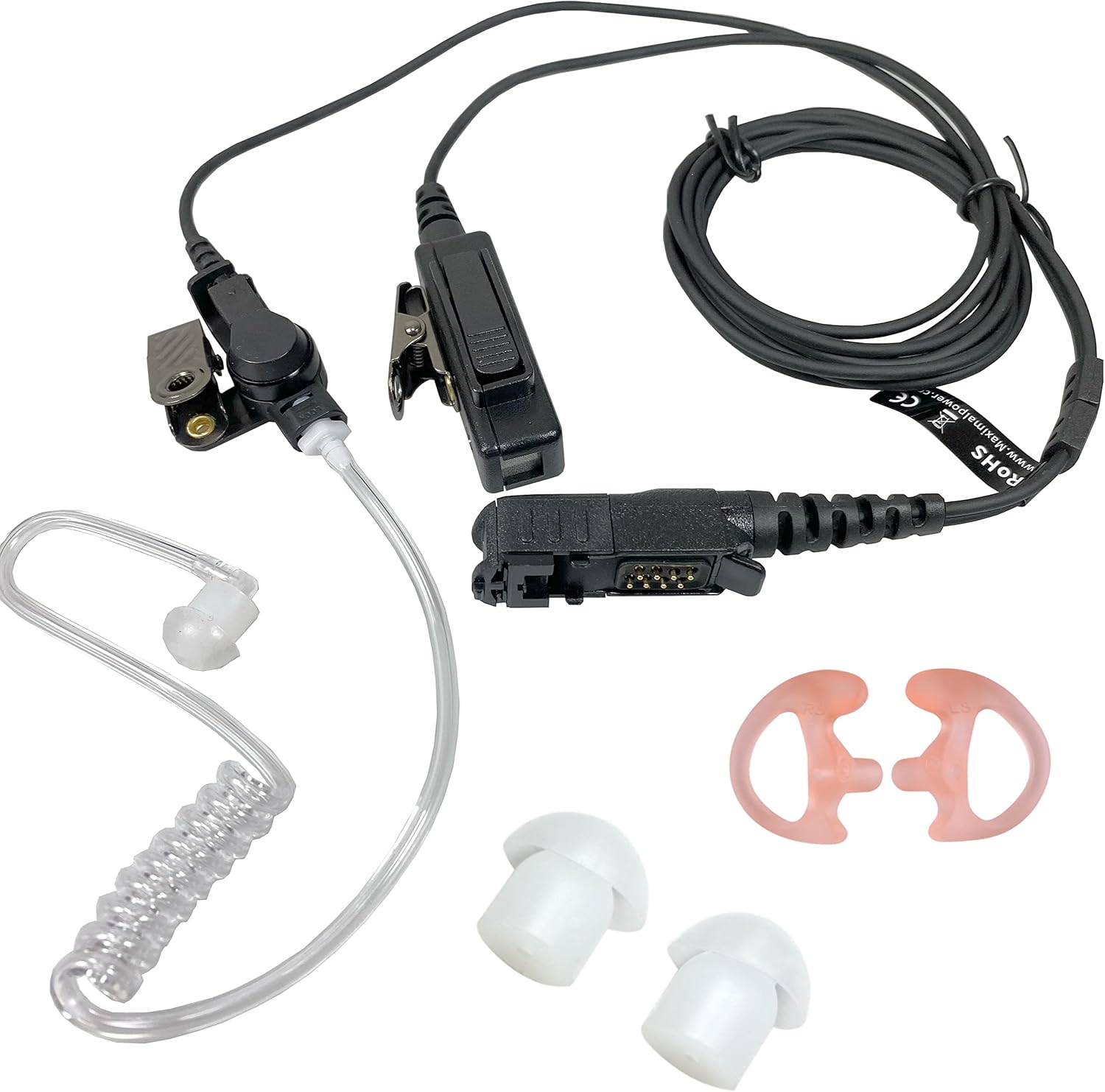

Slika 1: Gotovoview of the MaximalPower 2-Wire Surveillance Earpiece Headset components.

Šta je u kutiji

Your MaximalPower 2-Wire Surveillance Earpiece Headset package includes the following items:

• 1x 2-Wire Surveillance Earpiece Headset with PTT Mic and Acoustic Tube
• 2x Ear Tips (additional sizes for comfort)

Setup

Follow these steps to properly connect your earpiece headset to your compatible two-way radio:

1. Identify the Radio Port: Locate the audio accessory port on your Motorola XPR/DEP series radio. This is typically covered by a protective flap.
2. Align the Connector: The earpiece features a multi-pin connector. Carefully align the connector with the radio's port. Ensure the notch on the earpiece connector aligns with the corresponding lock symbol or notch on your radio.
3. Umetnite i osigurajte: Gently push the connector into the radio port until it is fully seated and clicks into place. A proper connection will ensure reliable transmission and prevent the earpiece from becoming loose.
4. Position the PTT Mic: Use the metal clip on the Push-To-Talk (PTT) microphone to attach it securely to your lapel or collar. Position it conveniently for easy access during communication.
5. Nosite slušalicu: Place the acoustic tube earpiece into your ear. Adjust the clear coil tube for a comfortable and discreet fit.

Video 1: Demonstrates how to properly lock the earpiece pin into a compatible radio, ensuring a secure connection for optimal performance.

Slika 2: Detaljno view of the multi-pin connector designed for compatible Motorola two-way radios.

Uputstvo za upotrebu

Once the headset is properly connected, operating it is straightforward:

• Receiving Communications: Audio will be transmitted directly to your ear via the clear acoustic tube. The low-profile design ensures discreet reception.
• Transmitting Communications (PTT): To speak, press and hold the Push-To-Talk (PTT) button located on the microphone unit. Speak clearly into the microphone. Release the PTT button when you are finished speaking to return to receive mode.

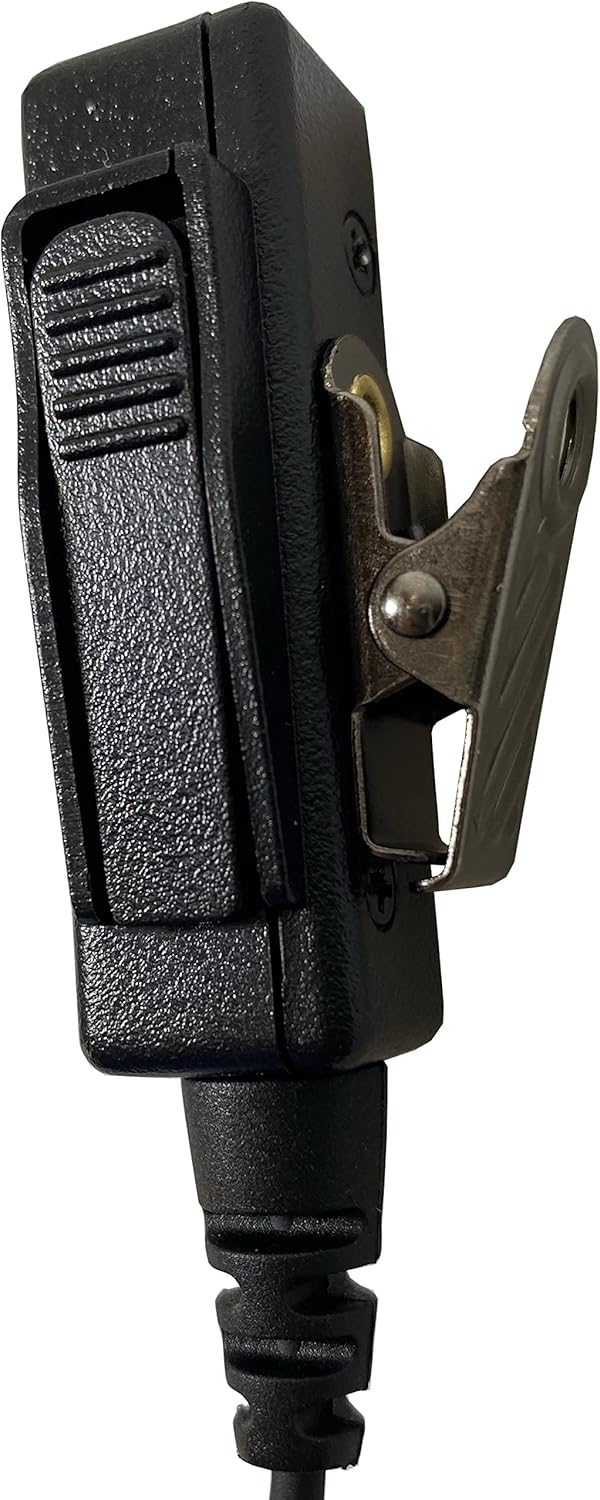

Figure 3: The Push-To-Talk (PTT) microphone unit with its integrated metal clip for easy attachment.

Video 2: Shows the assembly and usage of a flexible stretch cable walkie-talkie earpiece with a microphone, demonstrating how to connect the acoustic tube and use the PTT button.

Održavanje

Da biste osigurali dugotrajnost i optimalne performanse svojih slušalica, slijedite ove smjernice za održavanje:

• čišćenje: Regularly wipe down the earpiece, acoustic tube, and PTT mic with a soft, damp tkanina. Izbjegavajte korištenje jakih kemikalija ili abrazivnih materijala.
• Održavanje akustičnih cijevi: The clear acoustic tube can be detached for cleaning or replacement. Gently twist and pull to remove. Clean with mild soap and water, then rinse thoroughly and allow to air dry completely before reattaching.
• Skladištenje: When not in use, store the headset in a clean, dry place away from direct sunlight and extreme temperatures. Avoid tangling the wires.
• inspekcija: Periodically inspect the cables for any signs of wear, fraying, or damage. Ensure the connectors are clean and free of debris.

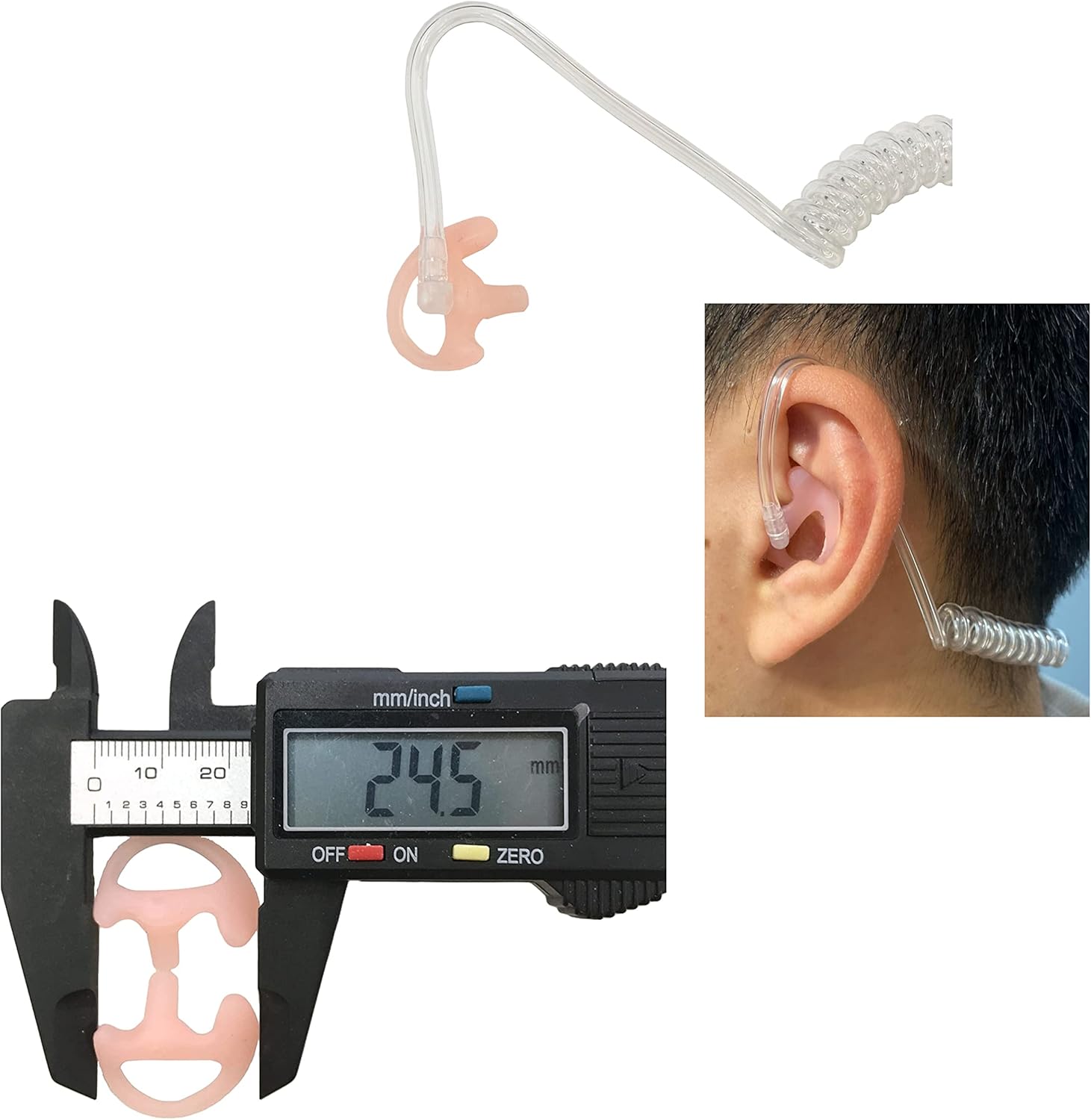

Figure 4: Various ear tips and the acoustic tube, highlighting replaceable components for hygiene and comfort.

Rješavanje problema

Ako imate problema sa slušalicama, pogledajte sljedeće uobičajene probleme i rješenja:

• No Audio / Intermittent Audio:
  • Ensure the connector is fully and securely inserted into the radio port.
  • Check the radio's volume settings.
  • Inspect the acoustic tube for kinks or blockages.
  • Verify the earpiece is compatible with your specific radio model.
• Unclear or Distorted Audio:
  • Clean the acoustic tube and ear tip.
  • Ensure the microphone is not obstructed and is positioned correctly.
  • Check for any damage to the cables or connectors.
• PTT Button Not Responding:
  • Confirm the connector is firmly seated in the radio.
  • Ensure the PTT button is not stuck or damaged.

Specifikacije

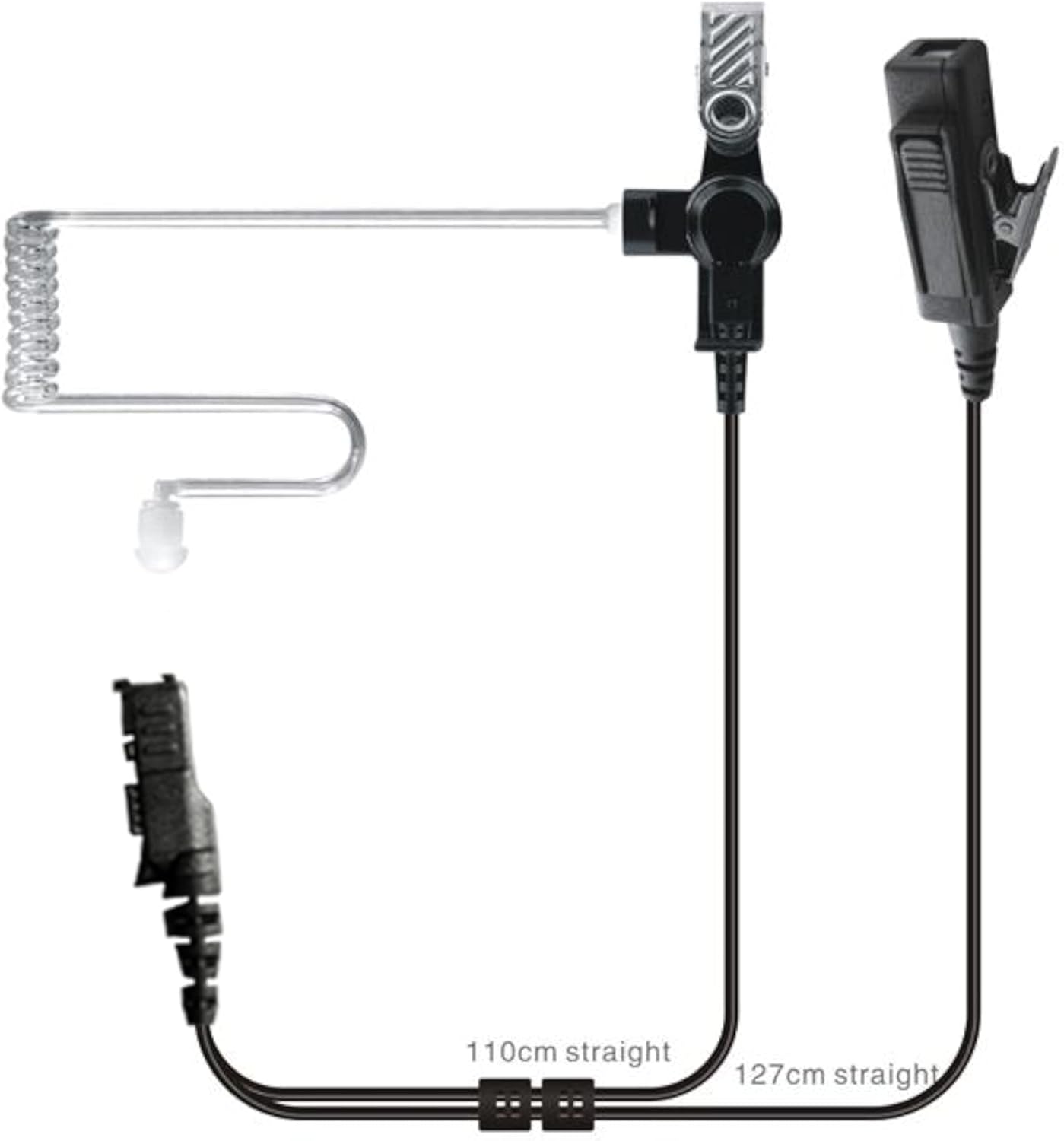

Figure 5: Cable length diagram for the 2-wire surveillance earpiece headset.

Garancija i podrška

MaximalPower is a USA-based brand committed to providing quality products and excellent customer service. This product comes with a manufacturer's warranty. For warranty claims, technical support, or any inquiries, please contact MaximalPower customer service directly.
