myTouchSmart digitalni zidni tajmer s tipkom (model 40953) - Korisnički priručnik

1. Uvod

The myTouchSmart In-Wall Push-Button Countdown Timer Switch (Model 40953) is designed to simplify your routine by providing convenient automation for indoor or outdoor lighting and various appliances. This timer replaces any standard single-pole light switch and offers preset countdown times to automatically turn off connected devices. It is compatible with LED, CFL, incandescent, and halogen bulbs.

The product packaging displays the in-wall digital countdown timer switch, highlighting its key features such as preset countdown times and compatibility with various bulb types.

2. Sigurnosne informacije

Before beginning installation, read all instructions carefully. Improper installation can result in electrical shock or fire. Always consult a qualified electrician if you are unsure about any part of the installation process.

• ISKLJUČITE NAPAJANJE at the circuit breaker or fuse box before wiring.
• Ovaj uređaj je namijenjen za instalaciju u skladu s nacionalnim električnim kodeksom i lokalnim propisima.
• Koristite samo bakrenu žicu.
• NEUTRAL WIRE REQUIRED za rad.

3. Instalacija

3.1 Potreban alat

• Odvijač (Phillips i Flathead)
• Skidači žice
• Električna traka
• Voltage Tester (preporučeno)

3.2 Upute za ožičenje

1. Isključite napajanje to the switch location at the circuit breaker or fuse box. Verify power is off using a voltage tester.
2. Remove the existing wall plate and switch from the wall box.
3. Carefully disconnect the wires from the old switch. Identify and label the LINE (hot), LOAD, NEUTRAL, and GROUND wires. The timer requires a neutral wire for proper operation.
4. Connect the wires to the myTouchSmart timer using the screw terminals:
   • Povežite LINE (hot) wire to the terminal labeled 'LINE'.
   • Povežite LOAD wire (to the light/appliance) to the terminal labeled 'LOAD'.
   • Povežite NEUTRALNO wire (typically white) to the terminal labeled 'NEUTRAL'.
   • Povežite GROUND wire (typically bare copper or green) to the terminal labeled 'GROUND'.
5. Uvjerite se da su sve žičane veze sigurne.
6. Carefully push the wired timer into the wall box.
7. Mount the timer to the wall box using the provided screws.
8. Attach the desired color faceplate (White or Light Almond included, wallplate not included).
9. Vratite napajanje na prekidač.

Pozadi view of the timer, displaying the screw terminals for Line, Load, Neutral, and Ground connections, essential for proper installation.

Sporedni profesionalacfile of the timer, showing its depth and how it fits into a standard electrical wall box, with wiring connections visible.

4. Uputstvo za upotrebu

The myTouchSmart timer features an ON/OFF door panel that conceals preset buttons and LEDs when closed. Opening the door provides access to all countdown options.

4.1 Activating a Countdown

1. Open the front door panel to reveal the preset buttons.
2. Press the desired countdown button: 5 Min, 10 Min, 30 Min, 60 Min, 2 Hour, or 4 sat.
3. A blue LED indicator light next to the selected button will illuminate, confirming the countdown is active. The connected device will turn on and remain on for the selected duration, then automatically turn off.

Krupni plan view of the timer with its front door panel open, exposing the six preset countdown buttons (5, 10, 30, 60 minutes, 2, and 4 hours) and the manual ON/OFF button.

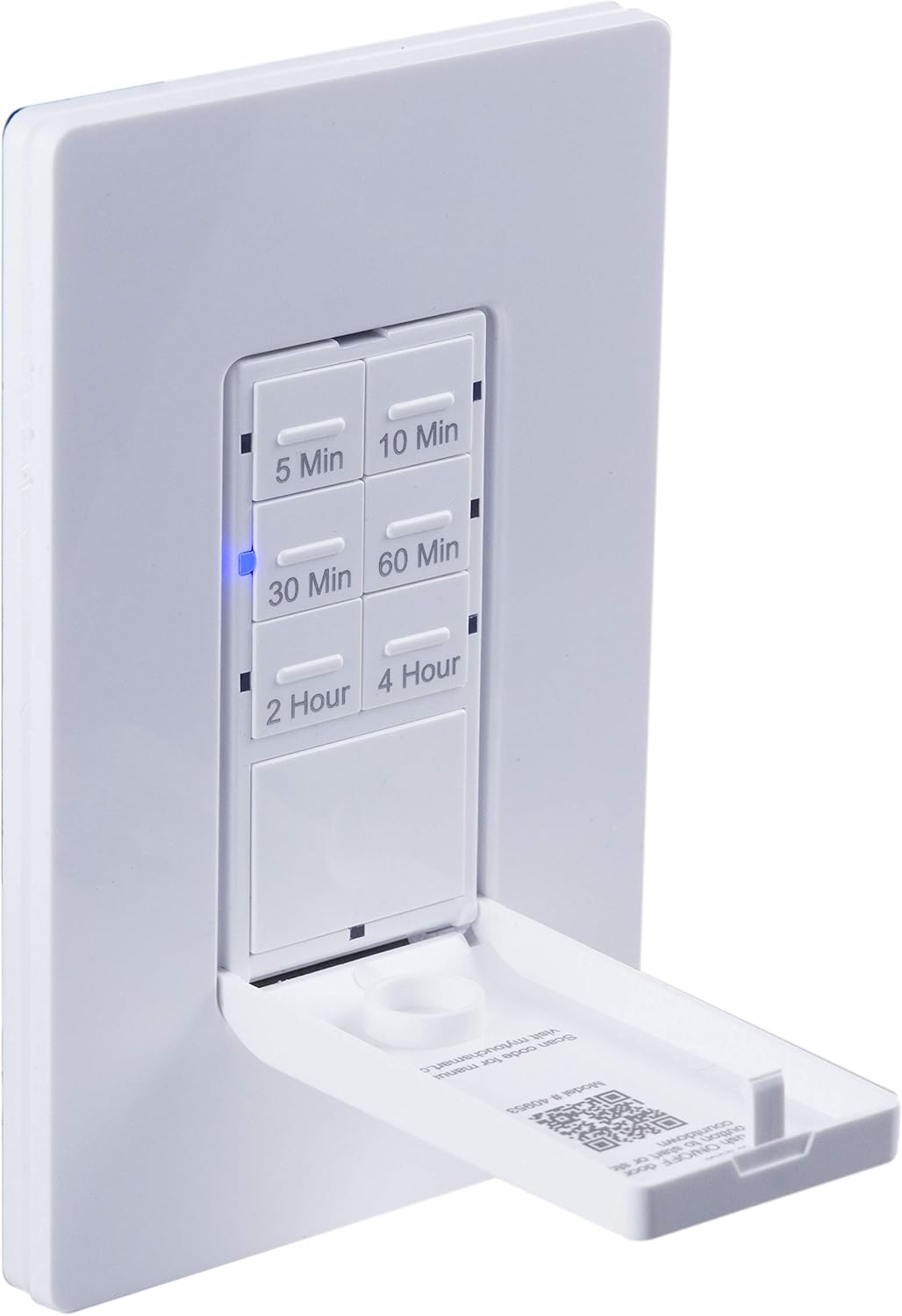

The in-wall timer with its door open, showing the preset buttons and a blue LED illuminated next to the '30 Min' button, indicating an active countdown.

A hand pressing one of the preset countdown buttons on the timer, demonstrating user interaction.

4.2 Manual ON/OFF Override

• To manually turn the connected device ON or OFF at any time, press the large ON/OFF button located at the bottom of the timer (this button is also the door panel when closed).
• Pressing this button will override any active countdown. If no countdown is active, it functions as a standard ON/OFF switch.

4.3 Aplikacije

This timer is suitable for a variety of applications, including:

• Unutrašnja i vanjska rasvjeta
• Izduvni ventilatori
• Grijači
• Other compatible appliances

An image illustrating various applications for the timer, including controlling indoor/outdoor lights, ceiling fans, and exhaust fans.

5. Održavanje

The myTouchSmart timer requires minimal maintenance. Follow these guidelines:

• čišćenje: Disconnect power at the circuit breaker before cleaning. Wipe the surface with a soft, damp tkanina. Nemojte koristiti jake hemikalije ili abrazivna sredstva za čišćenje.
• inspekcija: Periodically check for any loose connections or damage to the switch. If any damage is observed, discontinue use and consult a qualified electrician.

6. Otkrivanje problema

If you experience issues with your myTouchSmart timer, refer to the following common problems and solutions:

Ako koraci za rješavanje problema ne riješe problem, obratite se korisničkoj podršci.

7. Specifikacije

8. Garancija i podrška

Za informacije o garanciji i tehničkoj podršci, obratite se službenom servisu proizvođača webweb-mjesto ili kontaktirajte njihovu službu za korisnike. Sačuvajte račun kao dokaz o kupovini.

Proizvođač: myTouchSmart

UPC: 030878409537

Webstranica: www.mytouchsmart.com (Molimo provjerite službenu website for the most current support information.)
