Ipega PG-9033 Bluetooth Gamepad - uputstvo za upotrebu

Uvod

Welcome to the Ipega PG-9033 Bluetooth Gamepad user manual. This guide provides detailed instructions for setting up, operating, maintaining, and troubleshooting your new wireless controller. Please read this manual carefully before use to ensure optimal performance and longevity of your device.

Product Overview

The Ipega PG-9033 is a versatile Bluetooth gamepad designed for an enhanced gaming experience across multiple platforms, including Android, iOS, and PC. It features an adjustable phone holder, dual analog sticks, a D-pad, and action buttons.

Figure 1: The Ipega PG-9033 Bluetooth Gamepad with a smartphone securely mounted in its adjustable holder, actively displaying a racing game. This illustrates the controller's primary use for mobile gaming.

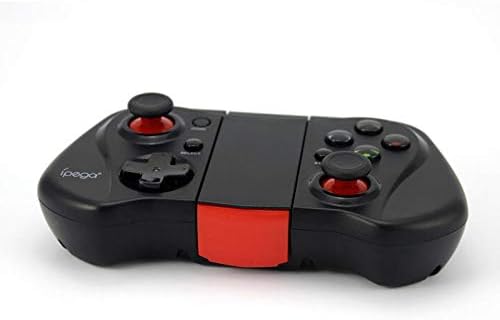

Slika 2: Strana A view of the Ipega PG-9033 Bluetooth Gamepad, showcasing its ergonomic design and compact form factor when not in use. The red accent on the central hinge is visible.

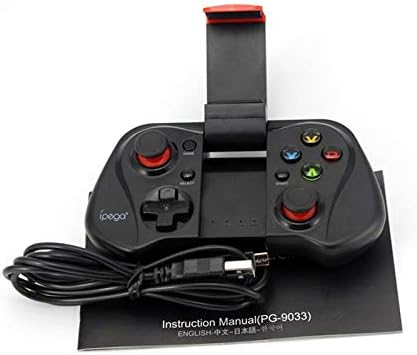

Figure 3: The Ipega PG-9033 Bluetooth Gamepad displayed alongside its USB charging cable and the included instruction manual, which clearly indicates the model number PG-9033.

Slika 4: Zadnji dio view of the Ipega PG-9033 Bluetooth Gamepad, featuring a label with technical details such as "BLUETOOTH CONTROLLER," working voltage, working current, and input specifications.

Setup

Punjenje Gamepad-a

Before first use, fully charge the gamepad using the provided USB cable.

1. Connect the micro-USB end of the charging cable to the gamepad's charging port.
2. Connect the USB-A end to a USB power source (e.g., computer, USB wall adapter).
3. The charging indicator light will illuminate. It will typically turn off or change color when fully charged.

Uparivanje s uređajem

The PG-9033 supports different pairing modes for various operating systems.

Android uparivanje

1. Ensure the gamepad is off.
2. Pritisnite i držite HOME dugme i X button simultaneously until the indicator light flashes rapidly. This puts the gamepad into Android pairing mode.
3. On your Android device, go to Bluetooth settings and search for available devices.
4. Select "PG-9033" from the list to pair. The indicator light will become solid when connected.

iOS Pairing (iCade Mode)

1. Ensure the gamepad is off.
2. Pritisnite i držite HOME dugme i B button simultaneously until the indicator light flashes rapidly. This puts the gamepad into iOS iCade pairing mode.
3. On your iOS device, go to Bluetooth settings and search for available devices.
4. Select "PG-9033" from the list to pair. The indicator light will become solid when connected.

5. Note: iCade mode has limited game compatibility. For broader iOS compatibility, check specific game requirements.

PC Pairing

1. Ensure the gamepad is off.
2. Pritisnite i držite HOME dugme i A button simultaneously until the indicator light flashes rapidly. This puts the gamepad into PC pairing mode.
3. On your PC, go to Bluetooth settings and search for available devices.
4. Select "PG-9033" from the list to pair. The indicator light will become solid when connected.

5. Note: A Bluetooth adapter may be required for PCs without built-in Bluetooth.

Uputstvo za upotrebu

Priključivanje pametnog telefona

1. Gently extend the adjustable phone holder located on the top of the gamepad.
2. Carefully place your smartphone into the holder, ensuring it is securely gripped and centered.
3. Podesite ugao za optimalan viewing.

Game Mode Selection

The gamepad automatically enters the last used mode upon reconnection. To switch modes, disconnect the gamepad and re-pair using the desired mode's button combination (HOME + X for Android, HOME + B for iOS, HOME + A for PC).

Uključivanje/isključivanje

Za uključivanje pritisnite HOME dugme. Za isključivanje, pritisnite i držite HOME button for approximately 5 seconds until the indicator light turns off. The gamepad will automatically power off after a period of inactivity.

Održavanje

To ensure the longevity and proper functioning of your Ipega PG-9033 gamepad, follow these maintenance guidelines:

• Uređaj držite suhim. Izbjegavajte izlaganje vlazi ili tekućinama.
• Očistite Gamepad mekom, suhom krpom. Nemojte koristiti jake hemikalije ili abrazivna sredstva za čišćenje.
• Gamepad čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.
• Izbjegavajte ispuštanje ili izlaganje gamepad-a jakim udarcima.
• Redovno punite bateriju, čak i ako je ne koristite, kako biste održali njeno zdravlje.

Do not attempt to disassemble the gamepad. This will void the warranty and may cause damage.

Rješavanje problema

Gamepad not connecting or pairing:

• Provjerite je li gamepad potpuno napunjen.
• Provjerite je li Bluetooth omogućen na vašem uređaju.
• Make sure the gamepad is in the correct pairing mode for your device (Android, iOS, or PC).
• Try forgetting the device in your Bluetooth settings and re-pairing.
• Ponovo pokrenite i gamepad i uređaj.

Dugmad ili džojstici ne reaguju:

• Provjerite je li gamepad ispravno povezan.
• Provjerite da li igra koju igrate podržava eksterne kontrolere.
• Some games may require specific controller mapping or settings adjustments within the game.
• If the issue persists, try resetting the gamepad (if a reset button is available, typically a small pinhole).

Kašnjenje ili ulazno kašnjenje:

• Ensure your device is not too far from the gamepad. Maintain a clear line of sight.
• Smanjite smetnje od drugih bežičnih uređaja.
• Zatvorite nepotrebne pozadinske aplikacije na svom uređaju.

Telefon ne stane u držač:

• The holder is designed for most smartphones. Ensure your phone's dimensions are within the supported range.
• Remove any bulky phone cases that might prevent a secure fit.

Specifikacije

Garancija i podrška

Za informacije o garanciji i tehničkoj podršci, molimo vas da se obratite službenom Ipega servisu. webweb-mjesto ili kontaktirajte prodavača. Sačuvajte račun kao dokaz o kupovini.

Ovaj priručnik je samo u informativne svrhe. Specifikacije se mogu promijeniti bez prethodne najave.
