AIRAM K2-142 GR Ceiling Lamp Uputstvo za upotrebu

1. Uvod

Thank you for choosing the AIRAM K2-142 GR Ceiling Lamp. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read this manual thoroughly before installation and retain it for future reference.

The K2-142 chandelier features a colored glass shade surrounding the classic WIR lamp by Tapio Wirkkala. The elegant WIR lamp's shape and light beautifully shine through the lampshade. The slender K2-142 chandelier is beautiful on its own, but multiple units can be used in various configurations to create a spectacular lighting group. The product includes a dimmable WIR-85 LED lamp, alamp holder, a black metal ceiling rose, and a 3.1-meter cable. The lampshades are made of mouth-blown clear glass, each lampshade is handmade and unique.

2. Sigurnosne informacije

Uvijek slijedite osnovne sigurnosne mjere prilikom instaliranja ili korištenja električnih proizvoda kako biste smanjili rizik od požara, strujnog udara i tjelesnih ozljeda.

• UPOZORENJE: To avoid electric shock, ensure power is turned off at the circuit breaker or fuse box before installation or servicing.
• Installation must be performed by a qualified electrician in accordance with all local electrical codes.
• Ne spajajte ovaj uređaj na neuzemljeni električni sistem.
• Ne modificirajte uređaj ili njegove komponente.
• Osigurajte da površina za montažu može podnijeti težinu uređaja.
• Koristite samo navedenu vrstu i snagu sijalicetage. This fixture includes a dimmable WIR-85 LED lamp.
• Držite zapaljive materijale dalje od lamp tokom rada.
• Ne gledajte direktno u LED izvor svjetlosti kada je upaljen.

3. Sadržaj paketa

Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, do not attempt to install the fixture. Contact customer support for assistance.

• K2-142 GR Lamp Shade (Mouth-blown clear glass)
• WIR-85 Dimmable LED Lamp
• Lamp Holder (E27 fitting)
• Crna metalna stropna ruža
• 3.1-meter Electrical Cable
• Mounting Hardware (screws, anchors, etc. - specifics may vary)

Slika: Prekoview of the Airam K2-142 GR lamp components, showing the glass shade, the WIR-85 LED lamp, and the black metal ceiling rose with cable.

4. Postavljanje i instalacija

This section provides step-by-step instructions for installing your AIRAM K2-142 GR Ceiling Lamp. Preporučuje se profesionalna instalacija.

1. Pripremite se za instalaciju:
   • Turn off power at the main circuit breaker or fuse box.
   • Provjerite je li napajanje isključeno testiranjem strujnog kruga pomoću regulatora glasnoće.tage tester.
   • Gather necessary tools: screwdriver, wire strippers, electrical tape, ladder, safety glasses.
2. Mount the Ceiling Rose:
   • Attach the mounting bracket (if separate) to the junction box in the ceiling using the provided screws.
   • Connect the fixture's ground wire (usually green or bare copper) to the ground wire from the junction box.
   • Connect the fixture's live wire (usually black or brown) to the live wire from the junction box.
   • Connect the fixture's neutral wire (usually white or blue) to the neutral wire from the junction box.
   • Secure all wire connections with wire nuts and electrical tape.
   • Pažljivo ugurajte sve žice u razvodnu kutiju.
   • Attach the black metal ceiling rose to the mounting bracket, securing it with the provided screws.
3. Sastavite Lamp:
   • Carefully unpackage the mouth-blown glass shade.
   • Screw the WIR-85 dimmable LED lamp u E27 lamp držač.
   • Pričvrstite staklo na lamp holder assembly according to the specific design (e.g., by screwing it on or securing with retaining rings).
4. Konačna provjera:
   • Ensure all connections are secure and the fixture is firmly mounted.
   • Vratite napajanje na prekidač.
   • Testirajte lampfunkcionalnost.

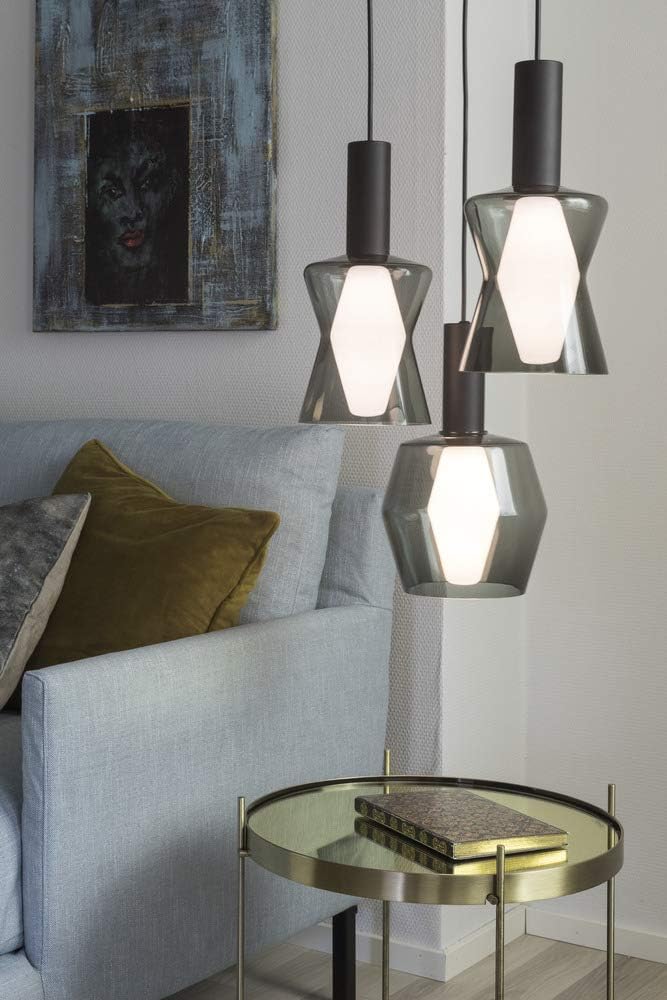

Image: The Airam K2-142 GR ceiling lamp installed and hanging, showcasinnjegov dizajn.

Image: Technical diagram illustrating the dimensions of the Airam K2-142 GR lamp, including total height, cable length, and shade diameter.

5. Uputstvo za upotrebu

The AIRAM K2-142 GR Ceiling Lamp dizajniran je za jednostavno rukovanje.

• Uključivanje/isključivanje: Upravljajte lamp using a standard wall switch connected to the fixture's circuit.
• Funkcija zatamnjivanja: The included WIR-85 LED lamp is dimmable. To utilize this feature, ensure your wall switch is compatible with LED dimmers. Follow the dimmer manufacturer's instructions for operation.

Image: The Airam K2-142 GR lamp illuminated, demonstrating the light distribution and the appearance of the WIR-85 LED bulb through the glass shade.

6. Održavanje

Regular maintenance will help prolong the life and maintain the appearance of your AIRAM K2-142 GR Ceiling Lamp.

• čišćenje:
  • Always turn off power and allow the lamp ohladiti prije čišćenja.
  • Wipe the glass shade and metal parts with a soft, dry, or slightly damp tkanina.
  • Ne koristite abrazivna sredstva za čišćenje, rastvarače ili sredstva za poliranje jer mogu oštetiti završnu obradu.
• Zamjena žarulje:
  • Ensure power is off and the bulb has cooled completely.
  • Carefully unscrew the old bulb from the E27 lamp držač.
  • Screw in a new E27 base LED bulb, ensuring it is dimmable if you wish to retain the dimming functionality.
  • Odložite stare sijalice u skladu s lokalnim propisima.
• inspekcija: Periodically inspect the wiring and connections for any signs of wear or damage. If any issues are found, consult a qualified electrician.

7. Otkrivanje problema

If you encounter issues with your AIRAM K2-142 GR Ceiling Lamp, pogledajte sljedeće uobičajene probleme i rješenja:

If the problem persists after attempting these solutions, please contact customer support or a qualified electrician.

8. Specifikacije

9. Garancija i podrška

For warranty information or technical support, please refer to the product packaging or contact AIRAM customer service directly. Keep your purchase receipt as proof of purchase.

Note: Specific warranty terms and contact details may vary by region and purchase location.
