Browin 353005 Automatic Siphon Kit

1. Proizvod je gotovview

The Browin 353005 Automatic Siphon Kit is an essential tool for both beginner and advanced home brewers and winemakers. This innovative kit is designed for precise bottling of wine or beer, significantly reducing operation time and minimizing oxygenation of the decanted liquid. Its simple yet effective design, featuring a gravity valve and a special handle, ensures a smooth and stable transfer process.

Image: The complete Browin 353005 Automatic Siphon Kit, showing the siphon tube, hose, gravity valve, and handle.

Ključne karakteristike:

• Precise Bottling: Designed for accurate and efficient transfer of beer and wine.
• Innovative Gravity Valve: Opens only when resting against the bottom of the bottle, preventing premature flow and reducing oxygen exposure.
• Reduced Oxygenation: Minimizes oxygen contact with the liquid compared to traditional methods, preserving flavor and quality.
• Special Stabilizing Handle: Ensures the siphon remains stable during liquid decantation.

2. Sadržaj paketa

The Browin 353005 Automatic Siphon Kit includes the following components:

• 1 x Automatic Siphon Tube
• 1 x 1.5 meter long Hose
• 1 x Gravity Valve
• 1 x Siphon Handle/Holder

Image: Visual representation of the kit's contents and key features.

3. Sigurnosna uputstva

• Always handle brewing equipment with care to prevent breakage or injury.
• Ensure all components are clean and sanitized before and after each use to prevent contamination of your brew.
• Čuvati van domašaja djece.
• Do not use with hot liquids that exceed the temperature resistance of the plastic components.
• Avoid bending or kinking the hose excessively, as this can impede flow or damage the material.

4. Podešavanje

Before first use, thoroughly wash all components with warm water. No assembly tools are required.

1. Attach the 1.5-meter hose securely to the outlet of the automatic siphon tube. Ensure a snug fit to prevent leaks.
2. Attach the gravity valve to the end of the siphon tube that will be submerged in the liquid.
3. If desired, attach the siphon handle/holder to the siphon tube. This holder can be used to secure the siphon to the edge of your fermentation vessel.

Image: An illustration detailing the attachment of the siphon holder and the gravity valve to the main siphon tube. The image also shows the siphon tube placed into a fermentation bucket and the hose leading to a bottle.

5. Uputstvo za upotrebu

The automatic siphon simplifies the transfer of liquids from one vessel to another, especially for bottling.

1. Positioning Vessels: Place the source vessel (e.g., fermentation bucket, carboy) on a higher surface than the receiving vessel (e.g., bottles, secondary fermenter). This utilizes gravity for efficient siphoning.
2. Initiating Flow (Pumping Action):
   • Submerge the gravity valve end of the siphon tube into the liquid in the source vessel. Ensure it is not touching the sediment at the bottom.
   • With the hose end positioned lower than the liquid level in the source vessel, gently pump the inner rod of the siphon up and down a few times. This action will draw liquid into the siphon tube and initiate the flow.
   • Once the liquid starts flowing continuously through the hose, the siphoning action has begun.
3. Bottling with Gravity Valve:
   • Insert the gravity valve end of the hose into an empty bottle.
   • Push the valve down against the bottom of the bottle. This action opens the valve and allows liquid to flow into the bottle.
   • Fill the bottle to the desired level.
   • Lift the valve off the bottom of the bottle to stop the flow. The valve will automatically close, preventing drips and spills.
   • Move to the next bottle and repeat the process.

Image: A multi-panel diagram showing the steps for initiating siphon flow and using the gravity valve for bottling. Panel 1 shows pulling the inner tube, Panel 2 shows pushing it back to start flow, and Panel 3 shows pushing the valve against the bottle bottom to fill.

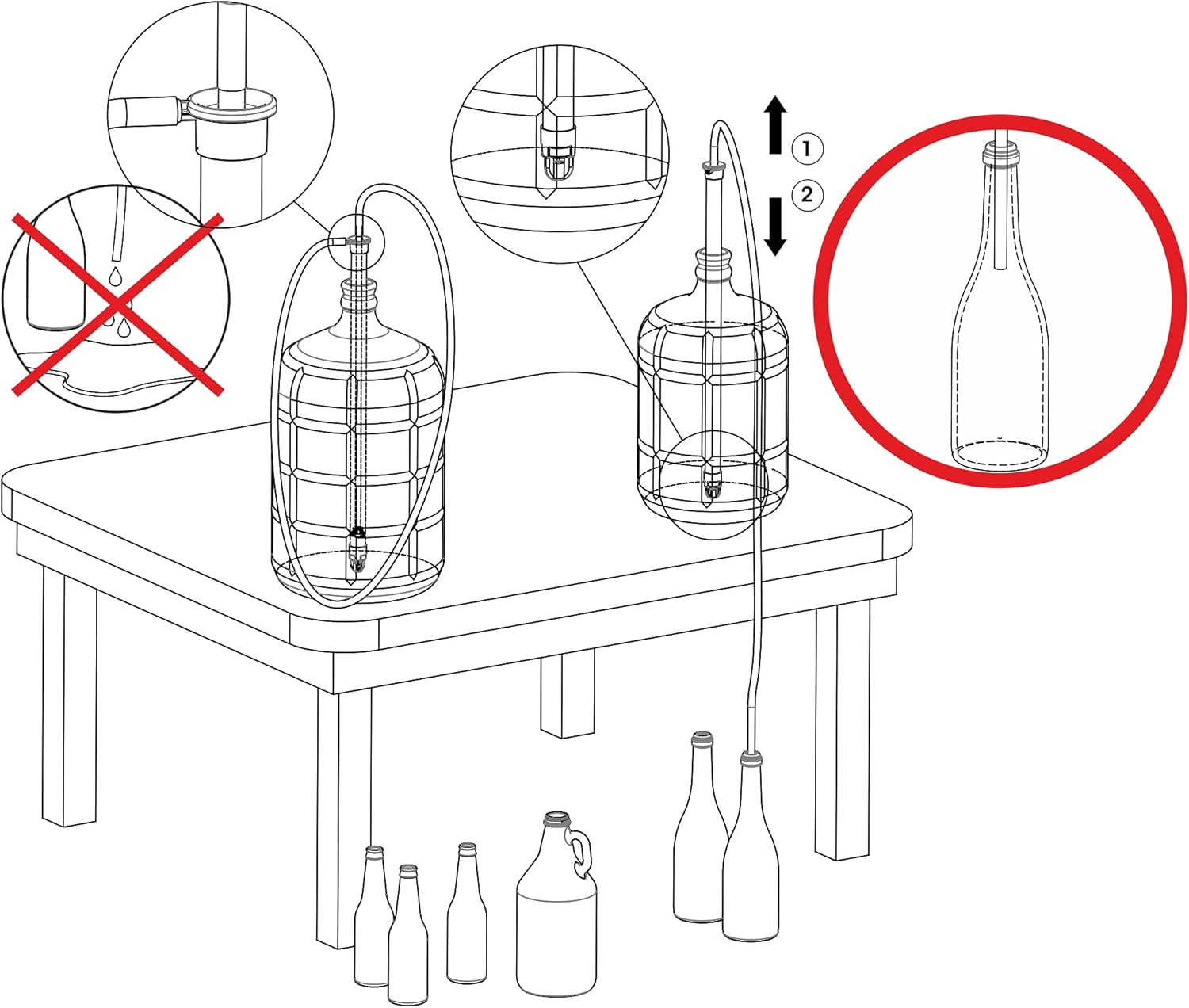

Image: An illustration demonstrating the siphoning process from a large carboy to multiple smaller bottles, highlighting the importance of elevation for gravity flow and proper valve usage. It also shows an incorrect method where the valve is not fully engaged, leading to drips.

6. Održavanje i čišćenje

Proper cleaning and maintenance are crucial for the longevity and hygienic use of your siphon kit.

• Nakon svake upotrebe: Immediately after use, disassemble the siphon kit. Thoroughly rinse all components (siphon tube, hose, gravity valve, handle) with warm water to remove any liquid residue.
• Sanitizacija: For brewing and winemaking, sanitization is critical. After cleaning, sanitize all components using a food-grade sanitizer solution according to the sanitizer's instructions.
• Sušenje: Allow all components to air dry completely before storing to prevent mold or bacterial growth.
• Skladištenje: Store the clean and dry siphon kit in a clean, dry place away from direct sunlight and extreme temperatures.
• inspekcija: Periodically inspect the hose and siphon components for any signs of wear, cracks, or damage. Replace any damaged parts to ensure proper function and hygiene.

7. Otkrivanje problema

8. Specifikacije

9. Garancija i podrška

Information regarding specific warranty terms or availability of spare parts for the Browin 353005 Automatic Siphon Kit is not provided in the product details. For any support inquiries or questions about your product, please contact the retailer or manufacturer directly.

You may visit the official Browin brand store for more products and information: Browin Brand Store
