1. Postavljanje i instalacija
1.1 Prije nego počnete
Ensure all necessary components are present and that you have the required tools. Turn off the main water supply to the kitchen sink area before starting installation. Clear the workspace under the sink.
1.2 Potrebni alati (nisu uključeni)
- Podesivi ključ
- Phillips odvijač
- Vodoinstalaterski kit ili silikonski zaptivač
- Lampica
- Zaštitne naočare
1.3 Koraci instalacije
- Pripremite sudoper: If installing on a new sink, ensure the mounting holes are correctly sized. For existing sinks, remove the old faucet. Clean the sink surface thoroughly.
- Ugradnja ploče palube (opcionalno): If your sink has multiple holes and you are using the deck plate, apply plumber's putty or silicone sealant to the underside of the deck plate. Position it over the sink holes.
- Montirajte slavinu: Insert the faucet body through the center hole of the deck plate (if used) and the sink. From underneath the sink, secure the faucet with the provided washer and mounting nut. Tighten firmly but do not overtighten.
- Priključite vodovodne cijevi: Attach the hot and cold water supply lines from the faucet to your home's water supply valves. Ensure connections are hand-tight, then use a wrench for a quarter turn. Do not overtighten.
- Install Sprayer Hose: Connect the pull-down sprayer hose to the quick-connect fitting under the faucet. Ensure it clicks securely into place. Attach the weight to the sprayer hose at the indicated position to ensure proper retraction.
- Instalirajte dozator sapuna: Insert the soap dispenser body into its designated hole on the sink or deck plate. Secure it from underneath with the provided nut. Fill the dispenser from the top.
- Test na curenje: Turn on the main water supply. Check all connections for leaks. Operate the faucet and sprayer to ensure proper function and check for any drips.
Slika: Prekoview of the Moen Arlo kitchen faucet and soap dispenser components, showing the main faucet body, pull-down sprayer, and separate soap dispenser unit.
2. Uputstvo za upotrebu
2.1 Regulacija protoka i temperature vode
- Uključi/isključi: Podignite ručku da biste uključili vodu. Pritisnite ručku prema dolje da biste isključili vodu.
- Podesite protok: Što više podignete ručku, to je veći protok vode.
- Podesite temperaturu: Pomaknite ručicu ulijevo za vruću vodu, a udesno za hladnu vodu.
2.2 Korištenje raspršivača s izvlačenjem
- Extend Sprayer: Grasp the sprayer head and pull it down from the faucet spout. The hose allows for extended reach.
- Change Spray Mode: Press the button on the sprayer head to switch between aerated stream and powerful rinse spray.
- Retract Sprayer: When finished, guide the sprayer head back into the spout. The hose weight will assist in smooth retraction.

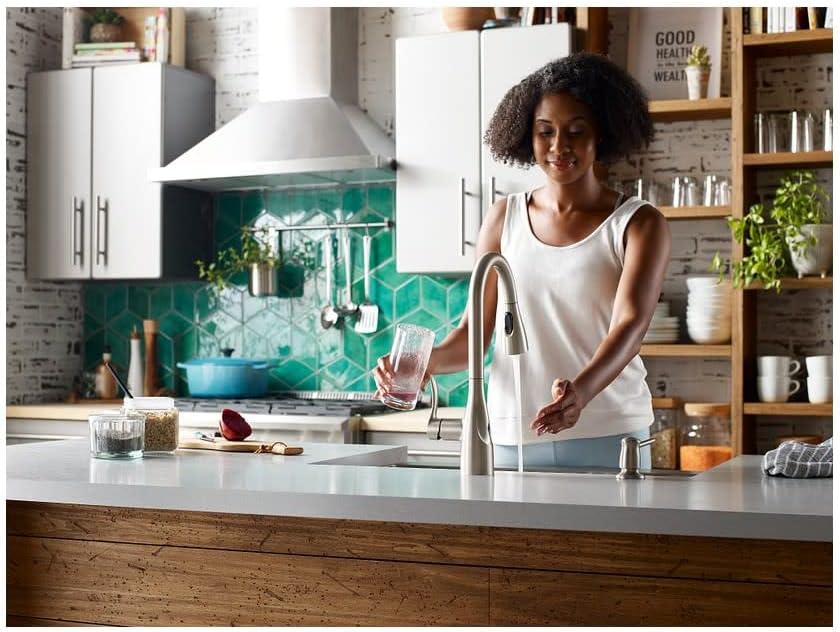

Image: A person using the Moen Arlo kitchen faucet, demonstrating the ease of operation and the pull-down sprayer functionality in a kitchen setting.
3. Održavanje i njega
3.1 Čišćenje završne obrade slavine
To maintain the Spot Resist Stainless finish, clean regularly with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish and void the warranty. For stubborn spots, use a mild soap and water solution, then rinse and dry thoroughly.
3.2 Čišćenje aeratora
If water flow becomes restricted, the aerator may be clogged. Unscrew the aerator from the tip of the sprayer head. Rinse any debris from the screen under running water. Reattach the aerator, ensuring it is securely tightened.
3.3 Sprayer Hose Maintenance
Periodically check the pull-down hose for kinks or obstructions that might impede its movement or water flow. Ensure the hose weight is positioned correctly to allow for smooth retraction.
4. Vodič za rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nizak protok vode | Clogged aerator; partially closed shut-off valves; kinked supply line. | Očistite aerator. Provjerite jesu li zaporne slavine potpuno otvorene. Provjerite ima li savijenih dovodnih cijevi. |
| Slavina curi iz izljeva | Istrošeni uložak. | Contact Moen customer service for a replacement cartridge. |
| Leaks from base of faucet | Loose mounting nut; improper sealant. | Tighten mounting nut. Reapply plumber's putty or silicone sealant if necessary. |
| Prskalica se ne uvlači u potpunosti | Hose obstruction; incorrect weight placement. | Clear any obstructions under the sink. Adjust the position of the hose weight. |
| Difficulty changing spray mode | Mineral buildup in sprayer head. | Remove sprayer head and soak in a vinegar solution to dissolve mineral deposits. |
5. Specifikacije proizvoda
- Naziv modela: Moen Faucet KTN P-DWN SS 15.33IN 87087EWSRS
- Brand: Moen
- Vrsta završetka: Polished, Spot Resist Stainless
- Materijal: nerđajući čelik
- Vrsta montaže: Montaža na palubu, jedna rupa
- Broj ručki: 1
- Broj rupa: 4 (for faucet, deck plate, and soap dispenser)
- Posebna karakteristika: Pull Down raspršivač
- Maksimalni protok: 1.5 galona u minuti
- Visina izljeva: 15.33 inča
- Doseg izljeva: 7.87 inča
- Težina artikla: 7.1 funti
- Dimenzije proizvoda: 10"D x 10"Š x 10"H
- Uključene komponente: Moen Faucet KTN P-DWN SS 15.33IN 87087EWSRS (includes faucet, deck plate, and soap dispenser)
6. Informacije o garanciji
This Moen product is covered by a limited warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the official warranty documentation included with your purchase or visit the official Moen webSačuvajte dokaz o kupovini za slučaj reklamacije.
7. Korisnička podrška
For further assistance, technical support, or to order replacement parts, please contact Moen customer service. You can typically find contact information on the Moen website or in the packaging materials that came with your faucet.
When contacting support, please have your product model number (87087EWSRS) and date of purchase available.
