Uvod
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your PROFLO PF4830G Bartlett Tub and Shower Trim Package. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Sigurnosne informacije
UPOZORENJE: Nepridržavanje ovih uputa može dovesti do ozljeda ili oštećenja imovine.
- Always turn off the main water supply before installing or servicing the product.
- Nosite odgovarajuću ličnu zaštitnu opremu (LZO) kao što su zaštitne naočale i rukavice tokom instalacije.
- Ako niste sigurni u vezi bilo kojeg dijela procesa instalacije, obratite se kvalificiranom vodoinstalateru.
- Osigurajte da su ispunjeni svi lokalni vodovodni i građevinski propisi.
- Do not use harsh chemicals or abrasive cleaners on the finish, as this may cause damage.
Lista komponenti
The PROFLO PF4830G Bartlett Tub and Shower Trim Package includes the following components:
- Single Function Shower Head (1.8 GPM)
- Ručica za tuširanje i prirubnica
- Tub Spout
- Pressure Balancing Valve Trim (includes escutcheon, handle, and necessary mounting hardware)

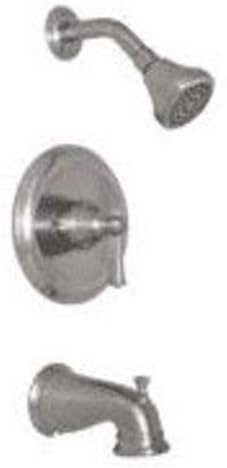

Image: Individual components of the PROFLO PF4830G Bartlett Tub and Shower Trim Package, including the shower head, control handle with escutcheon, and tub spout.
Postavljanje i instalacija
Professional installation is recommended for this product. Refer to the rough-in valve manufacturer's instructions for specific valve body installation details, as this trim package is designed to fit a compatible PROFLO pressure balancing valve (sold separately or as part of a complete system).
Opći koraci instalacije:
- Pripremite prostor: Ensure the rough-in valve is correctly installed and secured within the wall according to its specific instructions. Turn off the main water supply.
- Ugradnja izljeva za kadu: Apply plumber's tape to the threads of the tub spout nipple extending from the wall. Thread the tub spout onto the nipple and tighten securely. Ensure the spout is properly aligned.
- Ugradnja tuš ručke i glave: Apply plumber's tape to the threads of the shower arm. Thread the shower arm into the fitting in the wall. Position the shower arm so it extends horizontally from the wall. Thread the shower head onto the shower arm and tighten by hand, then a quarter turn with a wrench.
- Install Valve Trim: Slide the escutcheon (cover plate) over the valve body. Secure it to the wall using the provided screws. Install the handle onto the valve stem, ensuring it operates smoothly. Secure the handle with its retaining screw or cap.
- Test na curenje: Turn on the main water supply slowly and check all connections for leaks. Operate the shower and tub functions to ensure proper water flow and temperature control.
Image: A PROFLO Bartlett Tub and Shower Trim Package, similar to the PF4830G, installed in a modern bathroom setting, showcasing the shower head, control, and tub spout.
Uputstvo za upotrebu
The PROFLO PF4830G Bartlett Tub and Shower Trim Package features a single handle for controlling both water temperature and flow.
- Uključivanje/isključivanje: Rotate the handle to turn the water on or off.
- Kontrola temperature: Rotate the handle counter-clockwise for warmer water and clockwise for cooler water. The pressure balancing valve maintains a consistent temperature to prevent scalding.
- Funkcija preusmjerivača: To switch water flow between the tub spout and the shower head, pull up the diverter knob located on the tub spout. Push it down to return water flow to the tub spout.
Održavanje
Regular cleaning and maintenance will help preserve the finish and functionality of your PROFLO tub and shower trim package.
Čišćenje završne obrade:
- Očistite brušeni niklni završni sloj mekom,amp krpom i blagim sapunom.
- Temeljno isperite čistom vodom i osušite mekom krpom kako biste spriječili mrlje od vode.
- Avoid using abrasive cleaners, harsh chemicals, ammonia-based products, or scouring pads, as these can damage the finish and void the warranty.
Shower Head Maintenance:
- Periodically clean the spray nozzles of the shower head to remove mineral buildup. Many shower heads feature flexible rubber nozzles that can be wiped clean with your finger.
- For stubborn mineral deposits, soak the shower head in a solution of white vinegar and water.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nizak pritisak vode | Clogged shower head nozzles; partially closed shut-off valves; issues with main water supply. | Clean shower head nozzles. Ensure shut-off valves are fully open. Check main water supply. |
| Curenje vode iz priključaka | Labavi spojevi; istrošeni O-prstenovi ili zaptivke. | Tighten connections. Replace O-rings or gaskets if necessary. Ensure plumber's tape was used. |
| Nedosljedna temperatura vode | Pressure balancing valve issue; water heater settings. | Consult a qualified plumber to inspect the pressure balancing valve. Check water heater settings. |
| Preusmjerivač ne radi | Nakupljanje minerala; neispravan mehanizam preusmjeravanja. | Clean the diverter mechanism. If the issue persists, the tub spout may need replacement. |
Specifikacije
- Brand: PROFLO
- Model: PF4830G
- Boja: Brushed Nickel
- Materijal: Acrylonitrile Butadiene Styrene (ABS) for shower head, Brass for handle and tub spout components
- Vrsta završetka: Brushed
- Broj ručki: 1
- Brzina protoka: 1.8 galona u minuti (GPM)
- Težina artikla: Otprilike 3.63 funti
- Dimenzije proizvoda: 1 x 1 x 1 inches (Note: These dimensions typically refer to packaging or a specific component, not the full installed system.)
- UPC: 781889336809
Video o proizvodu
Pogledajte ovaj video za krajview of PROFLO's product collections, demonstrating the brand's commitment to quality and design, which is reflected in the Bartlett series.
Video: An official PROFLO video showcasing the Spiers Collection, highlighting various bathroom fixtures and finishes. This provides insight into PROFLO's design philosophy and product range.
Garancija i podrška
The PROFLO PF4830G Bartlett Tub and Shower Trim Package is covered under PROFLO's limited warranty for residential use and a 5-year commercial warranty. For specific warranty details, claims, or technical support, please contact PROFLO customer service directly or visit their official website.
When contacting support, please have your product model number (PF4830G) and proof of purchase available.
