Korisnički priručnik za razvojnu ploču KeeYees ESP8266 ESP-12E

Uvod

The KeeYees ESP8266 ESP-12E Development Board is a versatile WiFi WLAN wireless module designed for Internet of Things (IoT) projects. It integrates GPIO, PWM, IIC, 1-Wire, and ADC capabilities, making it suitable for a wide range of applications. This board is compatible with NodeMCU firmware and Arduino IDE, offering a flexible platform for rapid prototyping and development.

The integrated CP2102-USB interface simplifies programming, eliminating the need to manually press flash and reset buttons for each upload. This manual provides essential information for setting up, operating, and maintaining your development board.

Karakteristike proizvoda

• Lako programiranje: Features a CP2102-USB interface for straightforward programming without manual button presses.
• Integrisana funkcionalnost: Combines GPIO, PWM, IIC, 1-Wire, and ADC on a single board.
• Smart Networking Support: Supports smart link smart networking for seamless integration.
• WiFi konekcija: Provides fast and affordable WiFi technology for IoT development.
• Lua Technology: Utilizes modern Lua technology, offering an integrated unit with all necessary resources for Arduino and other I/O pin-based projects.
• Rapid Development: Enables quick prototyping and development of IoT applications using its built-in API.

Image: Three KeeYees ESP8266 ESP-12E Development Boards, showcasing their compact design and pin headers.

Vodič za postavljanje

1. Driver Installation (CP2102)

Before connecting your ESP8266 ESP-12E Development Board to your computer, you may need to install the CP2102 USB to UART Bridge VCP Drivers. These drivers enable your computer to recognize the board as a serial port.

• Download the appropriate CP2102 driver for your operating system (Windows, macOS, Linux) from the official Silicon Labs website.
• Follow the installation instructions provided with the driver package.
• After installation, connect the board to your computer using a Micro USB cable. Verify that a new COM port appears in your device manager (Windows) or system information (macOS/Linux).

2. Podešavanje Arduino IDE-a

The ESP8266 ESP-12E can be programmed using the Arduino IDE. Follow these steps to prepare your IDE:

• Download and install the latest version of the Arduino IDE.
• Open the Arduino IDE and go to File > Preferences.
• U 'Dodatnom upravitelju ploča' URLs' polje, dodajte sljedeće URL: http://arduino.esp8266.com/stable/package_esp8266com_index.json
• Idi na Alati > Ploča > Upravitelj ploča.... Traži 'ESP8266' and install the 'esp8266 by ESP8266 Community' package.
• Nakon instalacije, idite na Alati > Ploča and select 'NodeMCU 1.0 (ESP-12E Module)'.
• Select the correct COM port for your board under Alati > Port.

3. Pinout dijagram

Understanding the pinout is crucial for connecting external components and programming. Refer to the diagram below for the pin assignments of the ESP8266 ESP-12E Development Board.

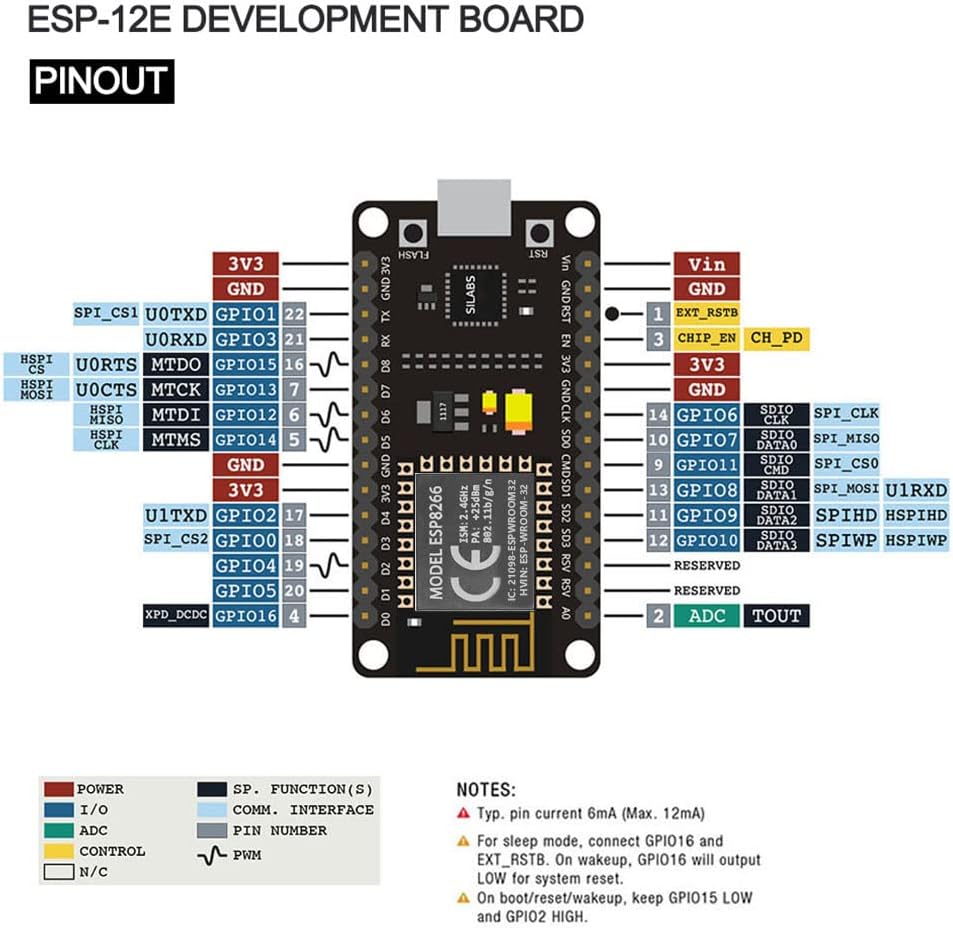

Image: Detailed pinout diagram for the ESP-12E Development Board, showing GPIO, power, and communication pins.

Note on Digital Pins: The labels D0-D8 on the board correspond to specific GPIO numbers. Always refer to the official NodeMCU ESP-12E pinout documentation for accurate GPIO mapping to avoid confusion, as the silkscreen labels may not directly reflect the underlying GPIO numbers in some programming environments.

Slika: Krupni plan view of the ESP8266 ESP-12E Development Board, highlighting the Micro USB port for power and data, and the ESP8266MOD WiFi module.

Uputstvo za upotrebu

1. Osnovno programiranje

Once the Arduino IDE is set up, you can write and upload your code. The board functions similarly to other Arduino-compatible boards:

• Code placed in the setup() function runs once at startup.
• Code in the loop() function executes repeatedly after setup() dovršava.
• To upload code, click the 'Upload' button in the Arduino IDE. The CP2102 interface will handle the flashing process automatically.

2. WiFi povezivanje

The ESP8266 is designed for WiFi applications. You can connect it to your local network and use it to send or receive data, host web servers, or interact with cloud services. Libraries like the ESP8266WiFi library in Arduino IDE simplify network operations.

Image: Conceptual diagram illustrating the ESP8266 ESP-12E acting as a server, connecting to the internet through an access point, and facilitating communication with client devices such as a PC and a mobile phone.

3. GPIO and Peripheral Usage

The board provides various General Purpose Input/Output (GPIO) pins, along with support for Pulse Width Modulation (PWM), Inter-Integrated Circuit (IIC), 1-Wire, and Analog-to-Digital Converter (ADC). These can be used to interface with sensors, actuators, and other electronic components.

Za detaljne npramples and code snippets, refer to the NodeMCU documentation and the extensive community resources available online for ESP8266 development.

Održavanje

To ensure the longevity and optimal performance of your KeeYees ESP8266 ESP-12E Development Board, follow these maintenance guidelines:

• Pažljivo rukujte: Izbjegavajte ispuštanje ploče ili njeno izlaganje prekomjernom fizičkom naprezanju.
• statičko pražnjenje: Always handle the board in an anti-static environment or take precautions to prevent electrostatic discharge, which can damage electronic components.
• čistoća: Keep the board free from dust, dirt, and moisture. Use a soft, dry brush or compressed air for cleaning. Avoid using liquids or harsh chemicals.
• Skladištenje: Ploču čuvajte na suhom i hladnom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura. Koristite antistatičke vrećice ako je skladištite duži period.
• Napajanje: Ensure you use a stable 5V power supply. Incorrect voltagmože oštetiti ploču.

Rješavanje problema

1. Board Not Recognized / No COM Port

If your computer does not detect the board or a COM port is not available in the Arduino IDE:

• Check CP2102 Driver: Ensure the CP2102 driver is correctly installed. Reinstall it if necessary.
• USB kabel: Try a different Micro USB cable. Some cables are for charging only and do not support data transfer.
• USB port: Connect the board to a different USB port on your computer.
• Restart IDE/Computer: Close and reopen the Arduino IDE, or restart your computer.

2. Incorrect Digital Pin Behavior

If digital pins are not behaving as expected (e.g., D0-D8 labels not matching GPIO in code):

• Consult Pinout: Always refer to the detailed pinout diagram (provided in the Setup Guide) and official NodeMCU ESP-12E documentation to confirm the actual GPIO numbers corresponding to the D-labels.
• Test igle: Use simple blink sketches to test individual pins and verify their functionality.

3. Board Stuck in Boot Loop / Upload Errors

If the board continuously reboots or you encounter errors during code upload:

• Correct Board Selection: Ensure 'NodeMCU 1.0 (ESP-12E Module)' is selected under Alati > Ploča u Arduino IDE-u.
• Erase Flash: Sometimes, corrupted firmware can cause issues. Use the 'ESP8266 Sketch Data Upload' tool or a dedicated flash tool to erase the board's flash memory before uploading new code.
• Add Delay: When developing, consider adding a short delay (e.g., delay(1000);) at the beginning of your setup() function. This can provide a window to upload new code if the board enters a rapid boot loop.
• Napajanje: Ensure your power supply is stable and provides sufficient current, especially when connecting multiple peripherals.

Specifikacije

Image: Technical drawing illustrating the dimensions of the ESP8266 ESP-12E Development Board in millimeters.

Informacije o garanciji

For detailed warranty information regarding your KeeYees ESP8266 ESP-12E Development Board, please refer to the manufacturer's official webweb-mjestu ili pakovanju proizvoda. Uslovi garancije mogu se razlikovati.

Podrška

Should you require further assistance, technical support, or have questions about your KeeYees ESP8266 ESP-12E Development Board, please utilize the following resources:

• KeeYees Official Webstranica: Visit the official KeeYees website for product documentation, FAQs, and community forums.
• Korisnička podrška: Contact KeeYees customer support directly through their webstranica za personaliziranu pomoć.
• Online zajednice: Engage with the broader ESP8266 and NodeMCU developer communities for shared knowledge and project ideas.
