SINOX 12V DC BLDC Ceiling Fan (1200mm) User Manual

1. Proizvod je gotovview

The SINOX 12V DC BLDC Ceiling Fan is an energy-efficient ceiling fan designed for operation with a 12-volt DC power source, such as a battery or solar panel. It features a Brushless Direct Current (BLDC) motor, remote control functionality, and a 1200mm blade sweep, providing high airflow and quiet operation.

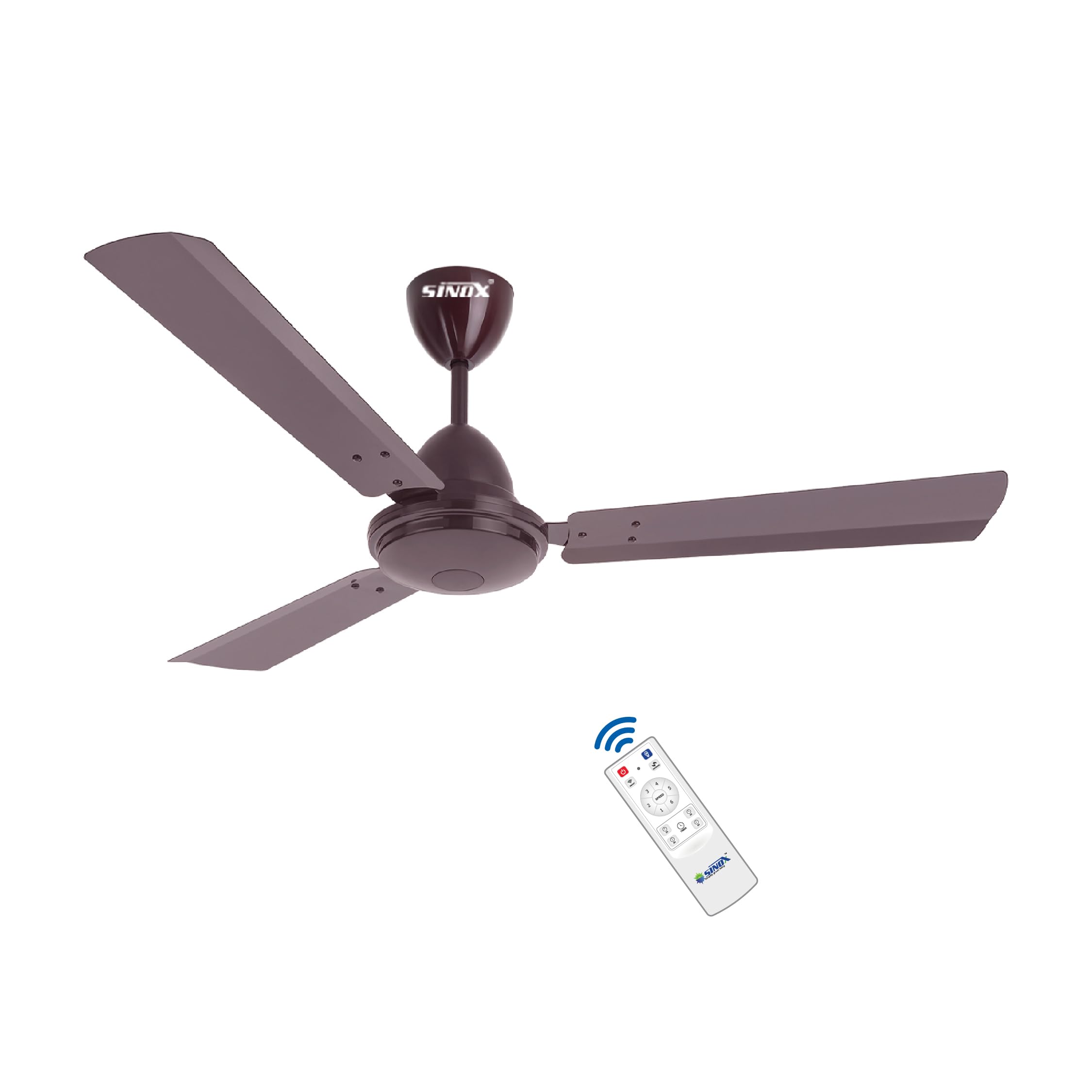

Image 1.1: SINOX 12V DC BLDC Ceiling Fan (Brown)

2. Sigurnosne informacije

Please read all safety instructions before installation and use. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.

• Izvor napajanja: This fan is designed for 12V DC operation only. Do not connect directly to AC mains (230 Volt) or any power source outside the 10V-19V DC range. Connecting to an incorrect power source will void the warranty and can cause severe damage.
• Ožičenje: Use 2.5 square mm wire for DC side connections to ensure optimal performance and safety.
• Instalacija: Installation should be performed by a qualified electrician in accordance with local electrical codes. Ensure the mounting structure can support the fan's weight.
• Motor Integrity: Do not open the motor housing. Opening the motor will void the warranty.
• Razmak od oštrice: Ensure adequate clearance between the fan blades and any surrounding objects or walls.
• Djeca i kućni ljubimci: Držite djecu i kućne ljubimce dalje od ventilatora tokom rada i instalacije.

3. Sadržaj paketa

Prije nego što nastavite s instalacijom, provjerite jesu li sve komponente prisutne i neoštećene.

• 1 x Motor Box
• 1 x Blade Set (3 blades)
• 1 x daljinski upravljač
• 2 x Canopies
• 1 x Down Rod
• 1 x Shackle Kit
• 1 x Garantni list

4. Specifikacije

5. Postavljanje i instalacija

This section provides general guidelines for installing your SINOX BLDC Ceiling Fan. Professional installation is recommended.

5.1. Provjere prije instalacije

• Ensure the power source is disconnected before starting installation.
• Confirm that the ceiling junction box or mounting bracket is securely fastened and can support the fan's weight (approx. 4.8 kg).
• Verify that you have all components listed in Section 3.

5.2. Wiring Diagram (Example for Solar/Battery Connection)

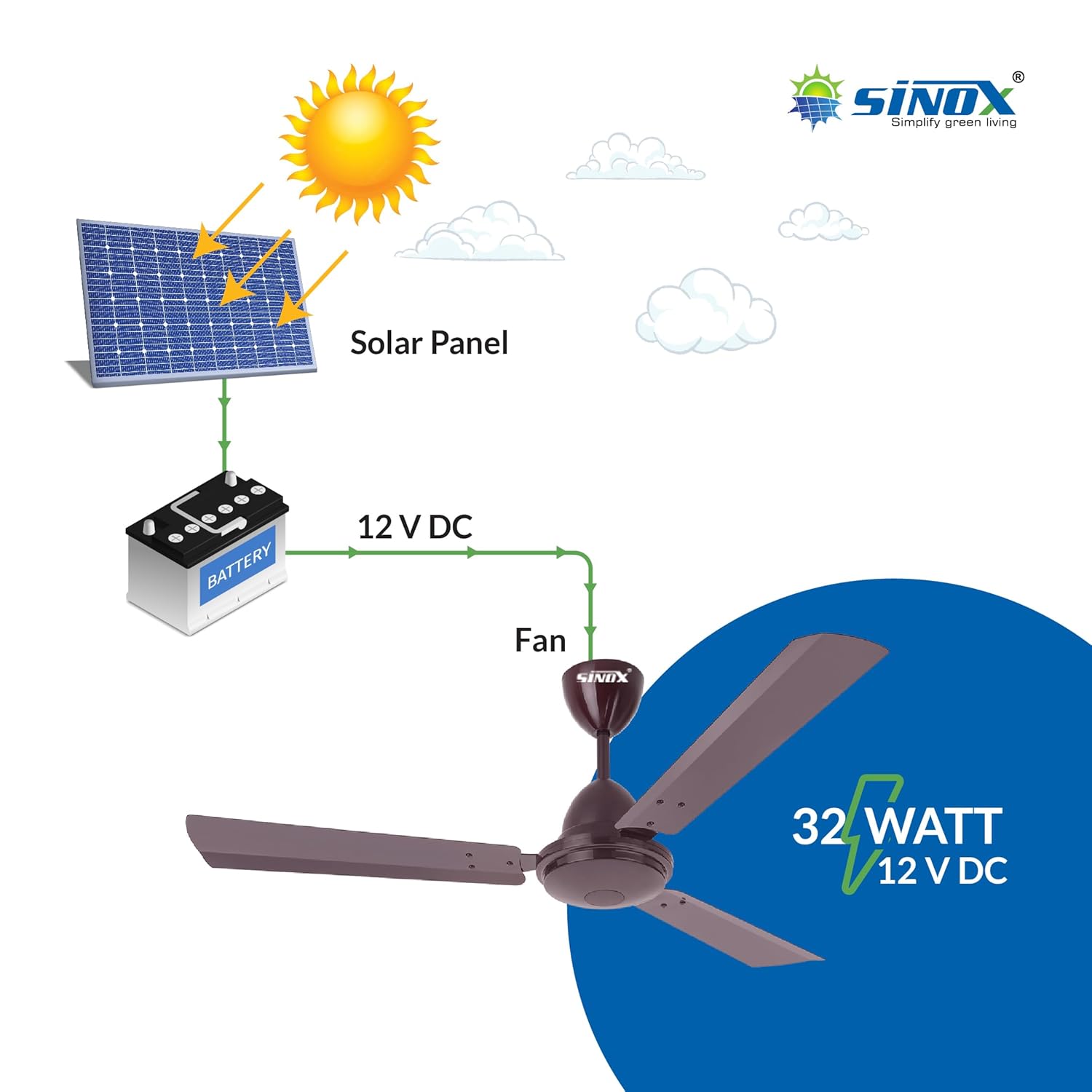

Slika 5.1: Primjerample wiring for 12V DC BLDC fan with solar panel and battery.

The fan operates on 12V DC. It can be connected to a 12V battery or directly to a 12V solar panel (60 Watts to 100 Watts recommended). Ensure correct polarity when connecting to the DC power source. Use 2.5 square mm wire for the DC side for optimal performance.

5.3. Montiranje ventilatora

1. Čvrsto pričvrstite nosač za montažu na razvodnu kutiju na plafonu.
2. Assemble the downrod and canopy components.
3. Carefully lift the motor assembly and attach it to the downrod.
4. Connect the fan's electrical wires to the 12V DC power supply, ensuring correct polarity (positive to positive, negative to negative). The fan includes reverse polarity protection.
5. Osigurajte nadstrešnicu kako biste prekrili spojeve ožičenja.
6. Attach the fan blades to the motor housing using the provided screws. Ensure all blades are securely fastened.

Image 5.2: BLDC motor technology components.

6. Uputstvo za upotrebu

Your SINOX BLDC Ceiling Fan is operated using the included remote control.

Image 6.1: Remote Control Functions.

6.1. Funkcije daljinskog upravljača

1. Uključivanje/isključivanje: Pritisnite red power button (01) da biste uključili ili isključili ventilator.
2. LED svjetlo uključeno/isključeno: Pritisnite light bulb button (02) to turn the integrated 0.5 Watt LED light on or off.
3. Kontrola brzine: Koristite speed buttons (03) (numbered 1 to 6) to adjust the fan speed. Speed 1 is the lowest, and Speed 6 is the highest.
4. Obrnuta rotacija: Pritisnite reverse button (04) to change the direction of blade rotation. This feature is useful for circulating hot air in winter or enhancing cooling in summer.
5. Tajmer način rada: Koristite timer buttons (05) (2H, 4H, 6H, 8H) to set the fan to automatically turn off after 2, 4, 6, or 8 hours.
6. Smart Režim: Pritisnite Smart button (06) to activate Smart Mode. In this mode, the fan automatically reduces its speed over a period of up to 12 hours, from fast to low.

Image 6.2: Fan with integrated 0.5 Watt LED light.

7. Održavanje

Regular maintenance ensures optimal performance and longevity of your SINOX BLDC Ceiling Fan.

• čišćenje: Redovno brišite prašinu s lopatica ventilatora i kućišta motora mekom krpom.amp krpu. Ne koristite abrazivna sredstva za čišćenje ili rastvarače. Prije čišćenja provjerite je li ventilator isključen i napajanje isključeno.
• Pričvršćivači oštrice: Povremeno provjeravajte da li su svi vijci oštrice zategnuti. Labavi vijci mogu uzrokovati klimanje i buku.
• motor: The BLDC motor is designed for maintenance-free operation. Do not attempt to lubricate or open the motor housing.
• Ožičenje: Inspect wiring connections periodically for any signs of wear or damage.

8. Otkrivanje problema

Ako naiđete na probleme s ventilatorom, pogledajte sljedeće uobičajene probleme i rješenja.

9. Garancija i podrška

9.1. Ograničena garancija

This SINOX BLDC Ceiling Fan comes with a 2-godišnja ograničena garancija. The warranty is void if the product is connected directly to AC Mains (230 Volt) or if the motor is opened. This warranty covers manufacturing defects only.

Image 9.1: Key features including 2-year motor warranty.

9.2. Korisnička podrška

For technical assistance, warranty claims, or any other inquiries, please contact SINOX customer support:

• Proizvođač: SINOX POWER PVT.LTD.
• Kontakt broj: 8000061200
