SportPlus SP-TM-1006 Kompaktna traka za trčanje - uputstvo za upotrebu

Model: SP-TM-1006

1. Uvod

Thank you for choosing the SportPlus SP-TM-1006 Compact Treadmill. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read all instructions carefully before use and retain this manual for future reference.

The SportPlus SP-TM-1006 is designed for home use, offering a compact solution for walking and light jogging, suitable for various environments including home offices and under standing desks.

2. Sigurnosna uputstva

To reduce the risk of serious injury, read the following important safety instructions before using the treadmill:

  • Traku za trčanje uvijek postavite na ravnu, stabilnu površinu.
  • Osigurajte dovoljno slobodnog prostora oko trake za trčanje (najmanje 2 metra iza i 0.6 metara sa svake strane).
  • Držite djecu i kućne ljubimce podalje od trake za trčanje tokom rada.
  • Do not use the treadmill if you weigh more than 120 kg (264 lbs).
  • Nosite odgovarajuću sportsku obuću i odjeću.
  • Ako osjetite bol, vrtoglavicu ili kratak dah, odmah prekinite vježbanje.
  • Isključite traku za trčanje iz utičnice kada je ne koristite ili prije čišćenja/održavanja.
  • Nemojte koristiti traku za trčanje ako su kabl za napajanje ili utikač oštećeni.
  • This treadmill is not compatible with external applications.

3. Sadržaj paketa

Provjerite da li su sve komponente prisutne u paketu:

  • SportPlus SP-TM-1006 Walking Pad
  • Daljinski upravljač
  • Power Supply Cable (European and UK plugs may be included)
  • Silicone Oil for Lubrication
  • Uputstvo za upotrebu

4. Podešavanje

The SportPlus SP-TM-1006 treadmill requires minimal setup. It arrives largely pre-assembled.

  1. Raspakivanje: Pažljivo izvadite traku za trčanje iz ambalaže.
  2. plasman: Postavite traku za trčanje na čvrstu, ravnu površinu. Osigurajte dovoljno prostora oko uređaja za siguran rad.
  3. Priključak za napajanje: Connect the power cable to the treadmill and then to a suitable electrical outlet.
  4. daljinski upravljač: Umetnite priloženu bateriju u daljinski upravljač.
SportPlus SP-TM-1006 Compact Treadmill
Figure 1: SportPlus SP-TM-1006 Compact Treadmill. This image shows the overall design of the treadmill, highlighting its compact and sleek form factor, ready for use.

5. Uputstvo za upotrebu

5.1 Osnovni rad

Traka za trčanje se upravlja pomoću priloženog daljinskog upravljača.

  1. Uključeno: Press the power button on the remote control to turn on the treadmill. The LED display will illuminate.
  2. Start/Stop: Press the 'Start' button on the remote to begin the walking belt movement. Press 'Stop' to halt the belt.
  3. Podešavanje brzine: Use the '+' and '-' buttons on the remote control to adjust the speed. The speed can be adjusted in increments of 0.1 km/h, ranging from 0.8 km/h to a maximum of 6 km/h.
  4. Iskljuciti: Press and hold the power button on the remote control to turn off the treadmill.

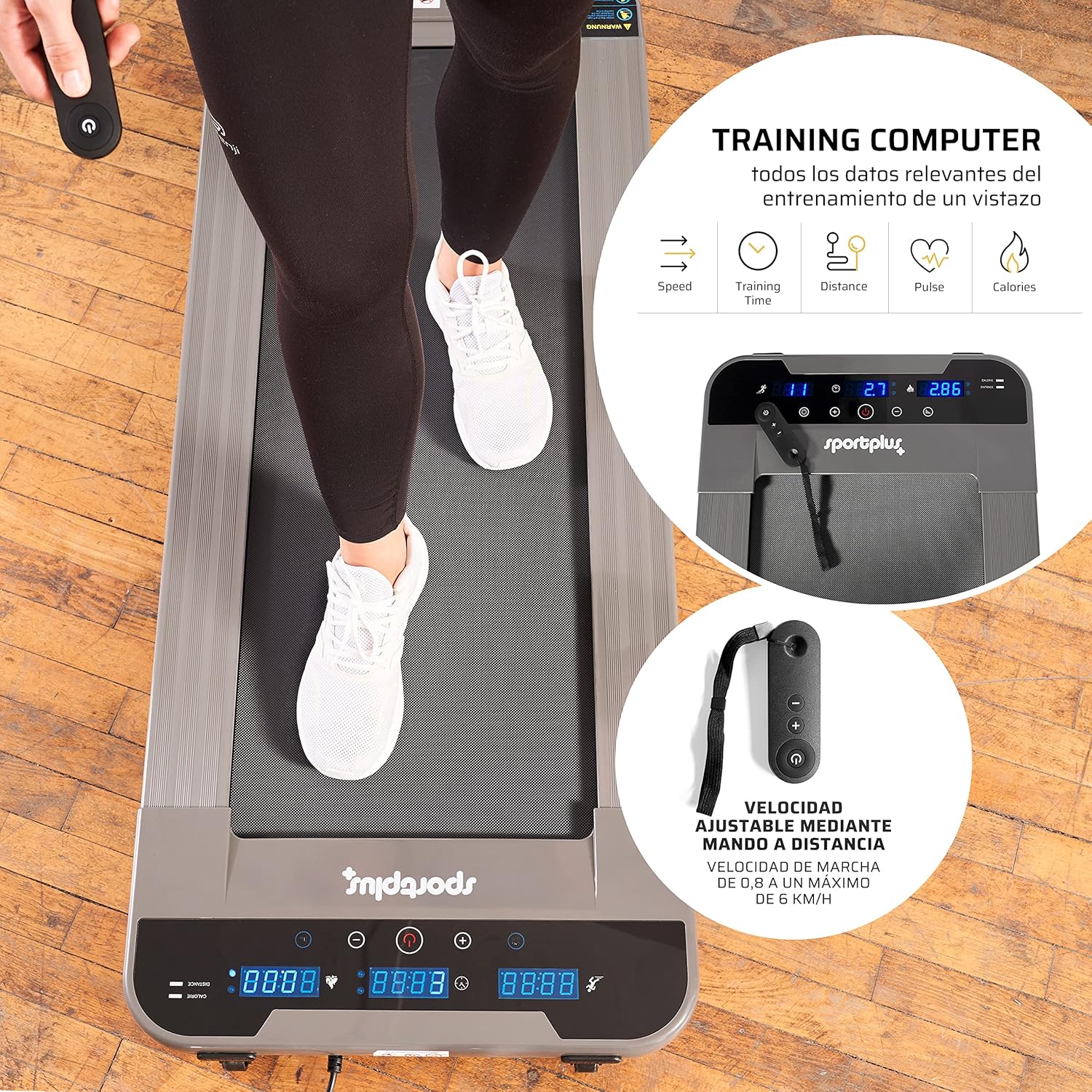

Treadmill Display and Remote Control
Figure 2: Treadmill Display and Remote Control. This image provides an overhead view of the treadmill's control panel with its LED display and the handheld remote control used for operation, including speed adjustment and start/stop functions.

5.2 Funkcije ekrana

The illuminated LED display provides real-time workout data:

  • vrijeme: Trajanje vašeg treninga.
  • brzina: Current walking speed in km/h.
  • Udaljenost: Ukupna pređena udaljenost tokom treninga.
  • Kalorije: Procijenjene sagorene kalorije.
  • Koraci: Broj napravljenih koraka.

5.3 Načini upotrebe

The treadmill supports various walking modes to suit your activity level:

  • Promenade Mode: 0.8 to 2.5 km/h (up to 6000 steps/hour) - Ideal for light activity.
  • Normal Walk Mode: 2.5 to 4.5 km/h (up to 7500 steps/hour) - Suitable for a brisk walk.
  • Late Walk Mode: 4.5 to 6 km/h (up to 10000 steps/hour) - For faster walking or light jogging.
Man using treadmill under standing desk
Figure 3: Treadmill in use under a standing desk. This image illustrates the treadmill's suitability for home office environments, allowing users to walk while working at a height-adjustable desk.

6. Održavanje

Redovno održavanje osigurava dugotrajnost i optimalne performanse vaše trake za trčanje.

6.1 Podmazivanje

The walking belt requires periodic lubrication with the provided silicone oil to reduce friction and wear.

  1. Isključite i isključite traku za trčanje.
  2. Lift the edge of the walking belt and apply a small amount of silicone oil directly onto the running deck, underneath the belt.
  3. Repeat on both sides of the belt.
  4. Plug in the treadmill and run it at a low speed (e.g., 1 km/h) for a few minutes to distribute the lubricant evenly.
  5. Frequency of lubrication depends on usage; generally, every 30-50 hours of use.

6.2 Čišćenje

Clean the treadmill regularly to prevent dust and debris buildup.

  • Turn off and unplug the treadmill before cleaning.
  • Obrišite površine oglasomamp tkanina. Nemojte koristiti abrazivna sredstva za čišćenje ili rastvarače.
  • Vacuum underneath the treadmill periodically to remove dust and lint.

6.3 Podešavanje pojasa

If the walking belt becomes off-center or slips, it may require adjustment. Refer to the detailed instructions in the full manual for specific steps, which typically involve using an Allen key to adjust tension bolts at the rear of the treadmill.

7. Otkrivanje problema

Ovaj odjeljak se bavi uobičajenim problemima s kojima se možete susresti prilikom korištenja trake za trčanje.

ProblemMogući uzrokRješenje
Traka za trčanje se ne uključuje.Power cable not connected, power outlet issue, main power switch off.Check power cable connection. Ensure the power outlet is functional.
Daljinski upravljač ne radi.Battery depleted, remote out of range, sensor obstruction.Replace remote control battery. Ensure remote is pointed towards the treadmill's sensor (typically at the front display). Maintain close proximity (within 30 cm).
Walking belt slips or is off-center.Belt tension too loose, belt alignment issue.Adjust belt tension and alignment according to the detailed instructions in the full manual.
Neobična buka tokom rada.Lack of lubrication, loose components, foreign object.Lubricate the walking belt. Check for and tighten any loose screws. Inspect for foreign objects. If the noise persists, contact customer support.

8. Specifikacije

FeatureSpecifikacija
Broj modelaSP-TM-1006
Dimenzije (D x Š x V)134 x 54 x 12 cm (52.4 x 20.9 x 3.9 inča)
Trkaća površina (D x Š)101 x 36 cm
Težina proizvoda25 kg (55 lbs)
Maksimalna težina korisnika120 kg (264 lbs)
Materijalčelična legura
Maksimalna brzina6 km/h
Posebne karakteristikeElectric with cable, LED indicator, Remote Control
Preporučena upotrebaWalking, light jogging
Ciljna publikaOdrasli
Compact Treadmill Dimensions and Storage
Figure 4: Compact Treadmill Dimensions and Storage. This image illustrates the compact dimensions of the treadmill (134x54x12cm) and its ability to be stored vertically, making it suitable for small spaces.

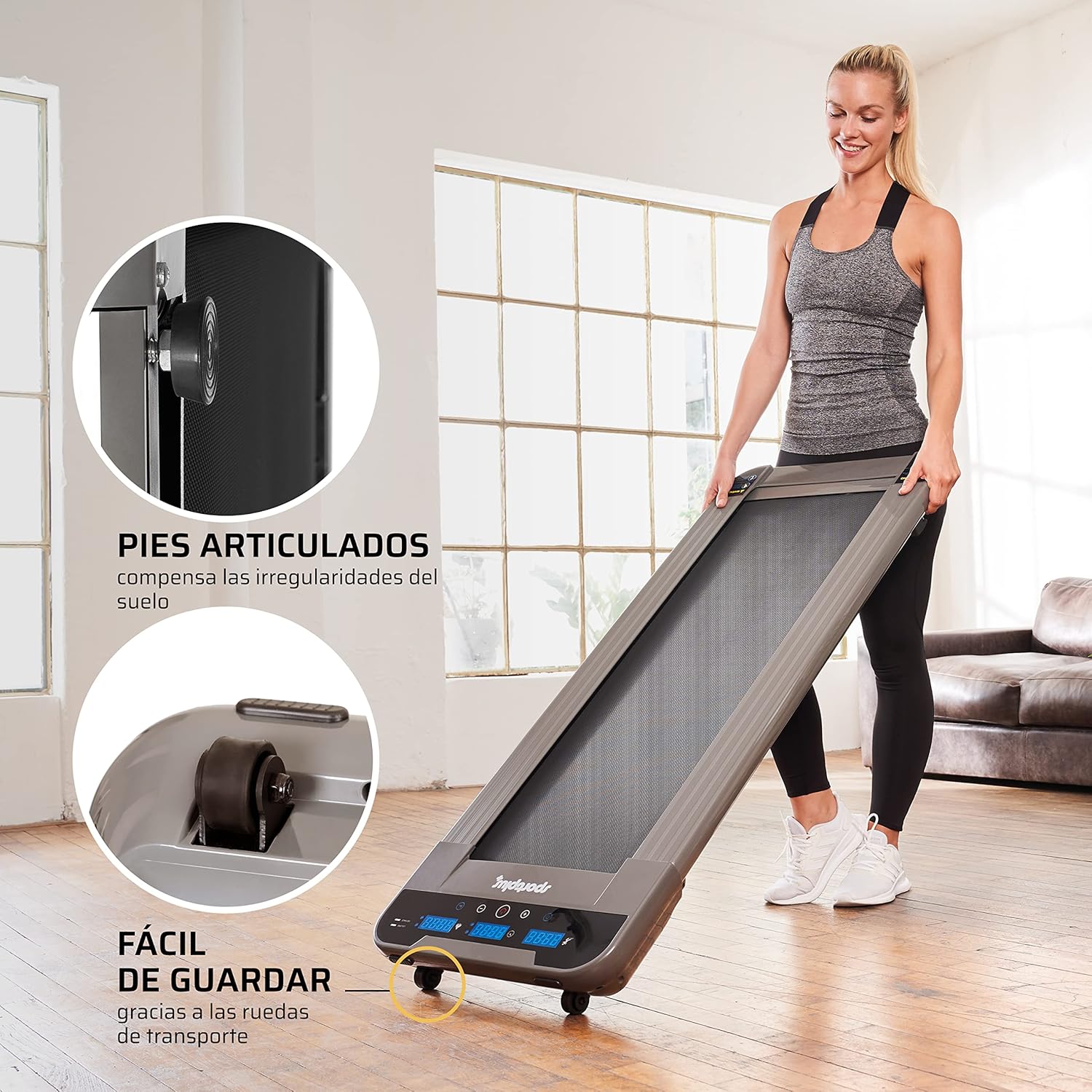

Treadmill with Transport Wheels and Articulated Feet
Figure 5: Treadmill with Transport Wheels and Articulated Feet. This image highlights the integrated transport wheels for easy movement and articulated feet that help compensate for uneven floor surfaces.

9. Garancija i podrška

SportPlus has been producing high-quality sports equipment for 20 years. We are committed to providing durable products and excellent customer service.

If you have any questions or require assistance, our customer service department in Hamburg will be happy to help. We maintain a stock of spare and wear parts to ensure the long-term usability and sustainability of your equipment.

For support, please visit the official SportPlus webweb stranicu ili kontaktirajte svog prodavca.

Kontakt informacije:

  • Webstranica: www.sportplus.de (Nprample, please refer to your product documentation for exact contact details)
  • Email: service@sportplus.org
