1. Uvod

This manual provides detailed instructions for the installation, operation, and maintenance of your Kolink Observatory RGB Midi-Tower Computer Case. Designed for enthusiasts and gamers, this case features a stylish aesthetic with tempered glass panels and vibrant RGB lighting, offering ample space and cooling capabilities for high-performance components.

2. Ključne karakteristike

• Prostrani enterijer: Accommodates motherboards up to E-ATX form factor, graphics cards up to 38 centimeters in length, CPU coolers up to 16 centimeters in height, and power supplies up to 20 centimeters in length.
• Svestrane opcije skladištenja: Features two dedicated 3.5-inch/2.5-inch drive bays, with additional mounting points for up to two 2.5-inch SSDs behind the motherboard tray.
• Napredni sistem hlađenja: Equipped with four pre-installed 120mm fans (three at the front, one at the rear). Supports up to two additional fans and allows for the installation of up to two 240mm radiators for liquid cooling.
• Adresabilno RGB osvjetljenje: The pre-installed fans feature 16 individually addressable RGB LEDs, offering over 300 dynamic lighting effects. Control is managed via the included RGB controller, fan hub, and infrared remote control.
• Premium dizajn: Features tinted 4mm thick tempered glass panels on both the side and front, providing a clear view of your internal components and RGB lighting.
• Praktičan prednji I/O: The top-mounted I/O panel includes power and reset buttons, two USB 2.0 ports, one USB 3.0 port, and HD audio connections.
• Effective Dust Filtration: Includes a magnetic dust filter on the top panel and a removable slide-out filter beneath the power supply for easy cleaning.

3. Vodič za instalaciju

3.1 Opća priprema

Before beginning installation, ensure you have a clean, static-free workspace. Unpack the case carefully and remove all internal packaging materials. It is recommended to wear an anti-static wrist strap to prevent damage to components.

3.2 Instalacija matične ploče

1. Carefully remove the tempered glass side panel by unscrewing the four thumb screws.
2. Instalirajte I/O štitnik koji je došao s vašom matičnom pločom u stražnji otvor kućišta.
3. Ensure the motherboard standoffs are correctly aligned for your motherboard's form factor (ATX, Micro-ATX, E-ATX). Adjust or install additional standoffs as needed.
4. Gently place your motherboard onto the standoffs, aligning the screw holes.
5. Secure the motherboard with the appropriate screws. Do not overtighten.

3.3 Instalacija diska za pohranu podataka

The case supports both 3.5-inch HDDs and 2.5-inch SSDs.

• 3.5-inčni diskovi: Locate the drive cage beneath the PSU shroud. Slide the 3.5-inch drives into the trays and secure them with screws if necessary.
• 2.5-inčni diskovi: Two 2.5-inch drive mounting plates are located on the back of the motherboard tray. Secure your SSDs to these plates and then attach the plates to the case.

3.4 Instalacija napajanja

The power supply unit (PSU) is mounted at the bottom rear of the case.

1. Slide your PSU into the designated compartment from the rear of the case.
2. Align the screw holes and secure the PSU with screws from the outside rear of the case.

3.5 Instalacija sistema za hlađenje

The case comes with four pre-installed 120mm RGB fans. Additional fans or liquid cooling radiators can be installed.

• Dodatni ventilatori: The case supports two additional 120mm fans on the top panel.
• radijatori: Up to two 240mm radiators can be installed, typically at the front or top, depending on component clearance.

3.6 Instalacija grafičke kartice

1. Uklonite potrebne poklopce PCIe utora sa stražnje strane kućišta.
2. Umetnite grafičku karticu u odgovarajući PCIe slot na matičnoj ploči.
3. Pričvrstite grafičku karticu na kućište vijcima.

3.7 Upravljanje kablovima

The Kolink Observatory RGB case offers ample space behind the motherboard tray and within the PSU shroud for effective cable management. Utilize the various cutouts and tie-down points to route and secure cables, ensuring optimal airflow and a clean interior aesthetic.

Slika: Stražnja strana view of the Kolink Observatory RGB case, highlighting the space behind the motherboard tray for cable routing and drive mounting.

4. Kontrola RGB osvjetljenja

The pre-installed RGB fans are connected to a dedicated fan hub and RGB controller. This system allows for extensive customization of lighting effects.

• Priključci ventilatora: The fans use proprietary 6-pin connectors that connect to the included fan hub. Ensure all fans are securely connected to the hub.
• Napajanje čvorišta: The fan hub requires power, typically via a 4-pin Molex connector from your power supply.
• RGB kontrola: The RGB lighting is controlled using the provided infrared (IR) remote control. Point the remote towards the IR receiver connected to the fan hub.
• Front Panel RGB Button: The case's front I/O panel includes a button (often labeled as 'Reset SW' or similar) that can be connected to the fan hub's 'Power LED' cable. This allows you to cycle through RGB effects directly from the front panel without the remote.

Slika: Prednja i bočna view of the Kolink Observatory RGB case, showcasing the vibrant illumination of the RGB fans through the tempered glass panels.

5. Održavanje

Redovno održavanje pomaže u osiguravanju optimalnih performansi i dugotrajnosti komponenti vašeg računara.

• Filteri za prašinu: Periodically remove and clean the magnetic dust filter on the top panel and the slide-out filter beneath the PSU. Use compressed air or a soft brush to remove accumulated dust.
• Paneli od kaljenog stakla: Clean the tempered glass panels with a soft, lint-free cloth and a non-abrasive glass cleaner. Avoid harsh chemicals that could damage the glass or tint.
• Čišćenje unutrašnjosti: Use compressed air to clear dust from internal components such as fans, heatsinks, and circuit boards. Ensure the system is powered off and unplugged before cleaning.

6. Otkrivanje problema

6.1 Kontrola brzine ventilatora

The pre-installed fans operate at a fixed speed via the included fan hub. They are not directly controllable via motherboard fan headers due to their proprietary 6-pin connectors. If variable fan speed control is desired, an aftermarket fan controller compatible with these fans or replacement fans may be required.

6.2 RGB osvjetljenje ne radi

• Ensure the fan hub is correctly powered via its Molex connector from the PSU.
• Verify that all fan 6-pin connectors are securely plugged into the fan hub.
• Check that the IR receiver is properly connected to the fan hub and is not obstructed.
• Ensure the remote control has working batteries and is pointed directly at the IR receiver.

6.3 Front Panel Ports Not Functioning

• Verify that the USB 2.0, USB 3.0, and HD Audio cables from the front panel are correctly connected to the corresponding headers on your motherboard.
• Ensure the power and reset switch cables are correctly connected to the motherboard's front panel headers.

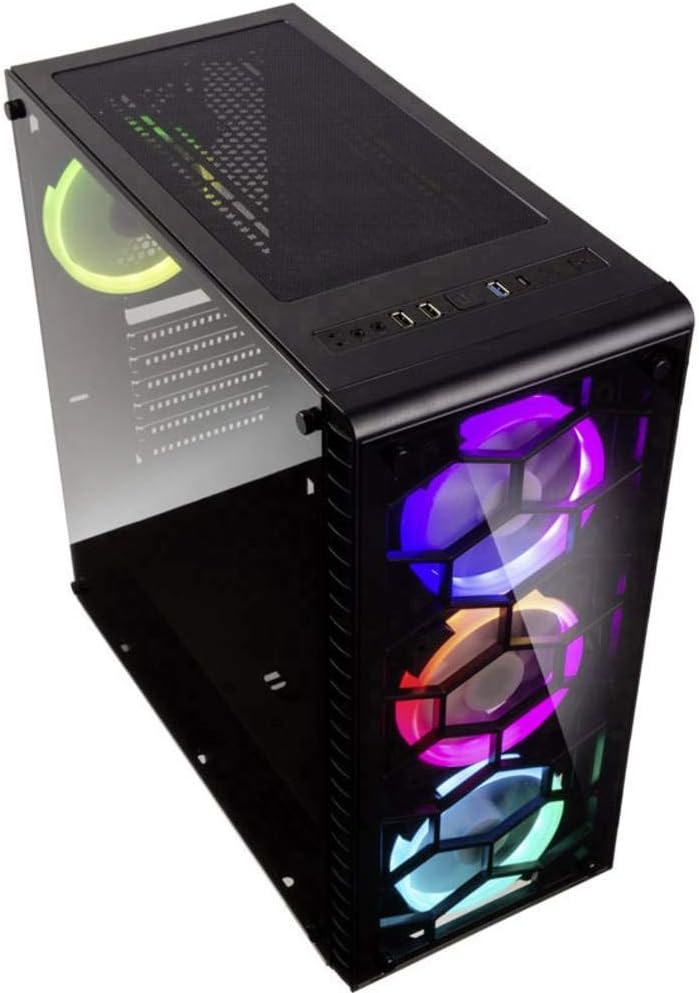

Slika: Vrh view of the Kolink Observatory RGB case, detailing the front I/O panel with USB ports, audio jacks, and power/reset buttons.
