1. Uvod
Thank you for choosing the Fitfiu Fitness BEST-100 Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before use and retain it for future reference.
The Fitfiu Fitness BEST-100 is designed for moderate home exercise, featuring a 5kg inertia flywheel and 8 resistance levels. Its compact design makes it suitable for various indoor spaces.
Image 1.1: The Fitfiu Fitness BEST-100 Exercise Bike, showcasing svojim kompaktnim dizajnom i crveno-crnom shemom boja.
2. Sigurnosne informacije
Before using this exercise bike, please observe the following safety precautions:
- Posavjetujte se sa svojim ljekarom prije početka bilo kojeg programa vježbanja.
- Držite djecu i kućne ljubimce podalje od opreme tokom upotrebe.
- Place the exercise bike on a flat, stable surface. Ensure adequate space around the equipment.
- Inspect the bike for loose or damaged parts before each use. Do not use if any components are compromised.
- Nosite odgovarajuću odjeću i obuću za vježbanje. Izbjegavajte široku odjeću koja bi se mogla zaplesti u pokretne dijelove.
- Ne prekoračujte maksimalnu težinu korisnika od 100 kg (220 lbs).
- Odmah prestanite s vježbanjem ako osjetite nesvjesticu, vrtoglavicu ili bol.
- This product is intended for home use only, not for commercial or institutional settings.
3. Sadržaj paketa
Molimo Vas da provjerite da li su sve komponente prisutne u paketu:
- 1x Fitfiu Fitness BEST-100 Exercise Bike (Red)
- 1x Uputstvo za upotrebu
- 1x Assembly Kit (includes necessary tools and fasteners)
Ako bilo koji dio nedostaje ili je oštećen, odmah se obratite korisničkoj podršci.
4. Postavljanje i montaža
Follow these steps to assemble your Fitfiu Fitness BEST-100 Exercise Bike:
- Raspakujte komponente: Pažljivo izvadite sve dijelove iz ambalaže i položite ih na čistu, ravnu površinu. Provjerite sadržaj pakovanja.
- Pričvrstite stabilizatore: Secure the front and rear stabilizer bars to the main frame using the provided bolts and washers. Ensure they are tightened firmly for stability.
- Instalirajte pedale: Identify the left (L) and right (R) pedals. Thread the left pedal counter-clockwise and the right pedal clockwise into their respective crank arms. Tighten securely with a wrench.
- Montirajte šipku sjedišta i sjedište: Insert the seat post into the main frame and adjust to your desired height. Secure it with the quick-release lever or knob. Attach the seat to the seat post.
- Sastavite nosač volana i volan: Connect the handlebar post to the main frame. Attach the handlebars to the handlebar post, ensuring all cables (if any) are properly routed and not pinched.
- Poveži konzolu: If applicable, connect the wires from the main frame to the LCD console. Mount the console onto the handlebar assembly.
- Konačna provjera: Prije prve upotrebe, dvaput provjerite sve vijke, matice i spojeve kako biste bili sigurni da su čvrsto pričvršćeni i sigurni.

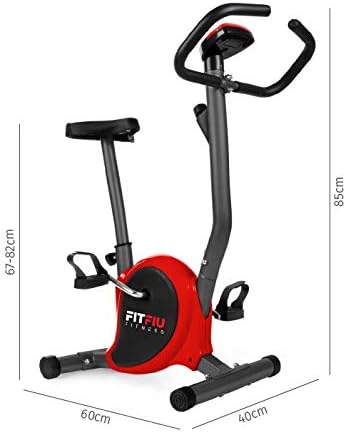

Image 4.1: Dimensions of the Fitfiu Fitness BEST-100 Exercise Bike (60 x 40 x 85 cm), useful for planning placement and assembly.
5. Uputstvo za upotrebu
5.1 Podešavanje sjedišta
To adjust the seat height, loosen the quick-release lever or knob on the seat post. Raise or lower the seat to a comfortable position where your leg is slightly bent at the knee when the pedal is at its lowest point. Securely tighten the lever or knob.
Image 5.1: The comfortable seat of the exercise bike, designed for extended use.
5.2 Podešavanje otpora
The Fitfiu Fitness BEST-100 features 8 levels of magnetic resistance. To increase resistance, turn the resistance knob clockwise. To decrease resistance, turn the knob counter-clockwise. Start with a low resistance level and gradually increase as your fitness improves.

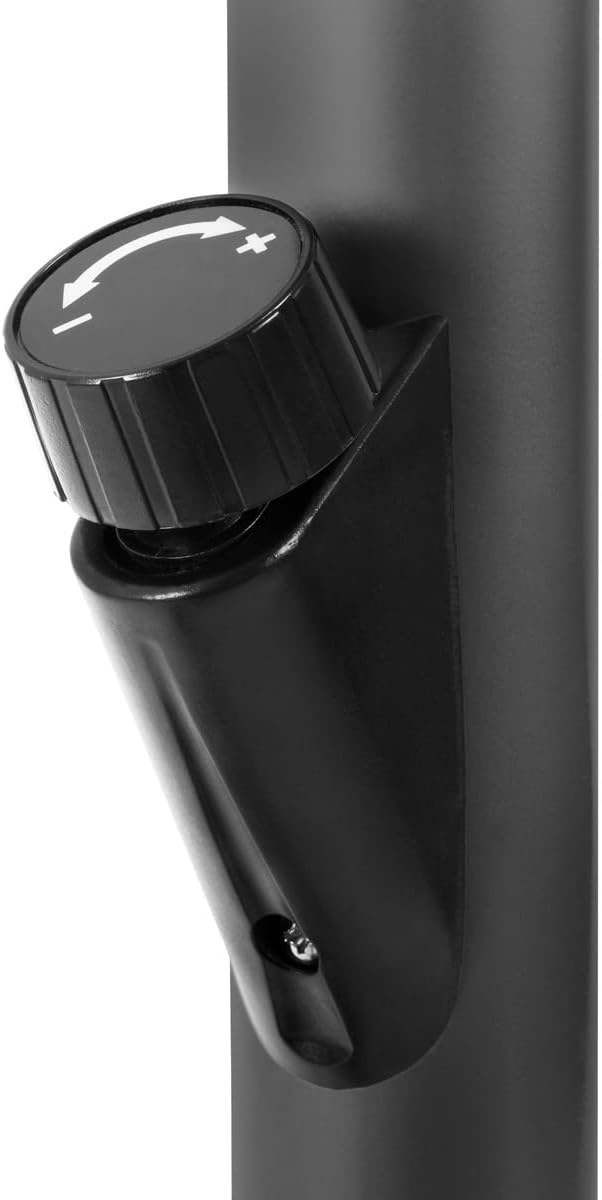

Image 5.2: The resistance knob, allowing users to select from 8 levels of magnetic resistance.
5.3 Korištenje LCD ekrana
The multi-functional LCD display tracks your workout data. It typically shows:
- brzina: Trenutna brzina bicikliranja.
- vrijeme: Trajanje vašeg treninga.
- Udaljenost: Ukupna pređena udaljenost tokom sesije.
- Kalorije: Procijenjene sagorene kalorije.
Refer to the specific console manual (if provided separately) for detailed instructions on mode selection and resetting values.
Image 5.3: The pedals with adjustable straps and the protective cover for the flywheel mechanism.
6. Održavanje
Redovno održavanje osigurava dugotrajnost i siguran rad vašeg sobnog bicikla:
- čišćenje: Obrišite bicikl oglasomamp krpom nakon svake upotrebe kako biste uklonili znoj i prašinu. Izbjegavajte abrazivna sredstva za čišćenje.
- inspekcija: Povremeno provjeravajte zategnutost svih vijaka, matica i pokretnih dijelova. Zategnite sve labave pričvršćivače.
- podmazivanje: Moving parts generally do not require lubrication. If you notice any squeaking or friction, consult customer support.
- Skladištenje: Bicikl čuvajte na suhom i hladnom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.
7. Otkrivanje problema
Evo nekih uobičajenih problema i njihovih potencijalnih rješenja:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Bicikl je nestabilan ili se ljulja. | Uneven surface; loose stabilizer bolts. | Ensure bike is on a flat surface. Tighten all stabilizer bolts. Adjust leveling caps if present. |
| Pedals are difficult to turn or make noise. | Resistance set too high; loose pedal or crank arm. | Decrease resistance. Check and tighten pedals and crank arms. |
| LCD display is not working. | Baterije su prazne ili nepravilno instalirane; labav kontakt. | Replace batteries. Check all cable connections to the console. |
| Škripa ili škripanje. | Loose parts; friction in moving components. | Inspect and tighten all bolts and nuts. If noise persists, contact customer support. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact Fitfiu Fitness customer support.
8. Specifikacije
| Feature | Detalj |
|---|---|
| Naziv modela | BEST-100 |
| Brand | Fitfiu Fitness |
| Boja | Crveni |
| Materijal | legirani čelik |
| Inertia Flywheel | 5 kg |
| Mehanizam otpora | Magnetic |
| Nivoi otpora | 8 |
| Drive System | Pojas |
| Funkcije prikaza | Brzina, vrijeme, udaljenost, kalorije |
| Maksimalna težina korisnika | 100 kg |
| Dimenzije proizvoda (D x Š x V) | 60 x 40 x 85 cm |
| Težina proizvoda | 9 kg |
| Izvor napajanja (Ekran) | Napajanje baterijama (baterije nisu uključene) |
9. Garancija i podrška
Fitfiu Fitness products are manufactured to high-quality standards and are covered by a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical assistance, missing parts, or warranty claims, please contact Fitfiu Fitness customer support through their official website or the retailer where the product was purchased. Please have your model number (BEST-100) and proof of purchase ready.
Kontakt informacije:
- Webstranica: www.fitfiufitness.com (Nprample, stvarni URL može varirati)
- Email: support@fitfiufitness.com (Nprample)
