Greenworks Pro 60V Backpack Leaf Blower

1. Uvod

Thank you for choosing the Greenworks Pro 60-Volt Max Lithium Ion 550-CFM 150-MPH Heavy-Duty Brushless Cordless Electric Backpack Leaf Blower. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your new leaf blower. Please read this manual thoroughly before first use and keep it for future reference.

This powerful cordless leaf blower is designed for efficient clearing of leaves and debris from various outdoor surfaces. Its backpack design offers comfort during extended use, and the 60V brushless motor delivers strong performance comparable to gas-powered models.

Slika: Front view of the Greenworks Pro 60V Backpack Leaf Blower, showcasing its green and black design with the 'Greenworks Pro' logo and 'ULTRAPOWER 60V 550CFM BRUSHLESS' branding.

2. Sigurnosne informacije

UPOZORENJE: Pročitajte sva sigurnosna upozorenja i upute. Nepoštivanje upozorenja i uputa može dovesti do strujnog udara, požara i/ili teških ozljeda.

• Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and sturdy footwear, when operating the leaf blower.
• Držite prolaznike, djecu i kućne ljubimce najmanje 15 metara (50 stopa) od radnog područja.
• Ne koristite duvač po vlažnim uslovima ili kiši.
• Ensure the battery pack is securely installed before operation and removed before performing any maintenance or cleaning.
• Use only Greenworks 60V battery packs and chargers with this tool.
• Inspect the blower for damaged parts before each use. Do not operate if any part is damaged.

3. Opis proizvoda

The Greenworks Pro 60V Backpack Leaf Blower is engineered for powerful and efficient outdoor cleaning. Key features include:

• 60-Volt Max Lithium-Ion System: Provides fade-free power and extended run time. (Battery and charger sold separately).
• Motor bez četkica: Delivers increased torque, quiet operation, and longer tool life.
• High Air Volume and Speed: Up to 550 CFM (Cubic Feet Per Minute) and 150 MPH (Miles Per Hour) for effective clearing of wet and dry leaves and debris.
• Backpack Design: Ergonomic and comfortable for prolonged use, distributing weight evenly.
• Okidač s promjenjivom brzinom i Turbo tipkom: Allows for precise control over airflow and provides an extra burst of power when needed.

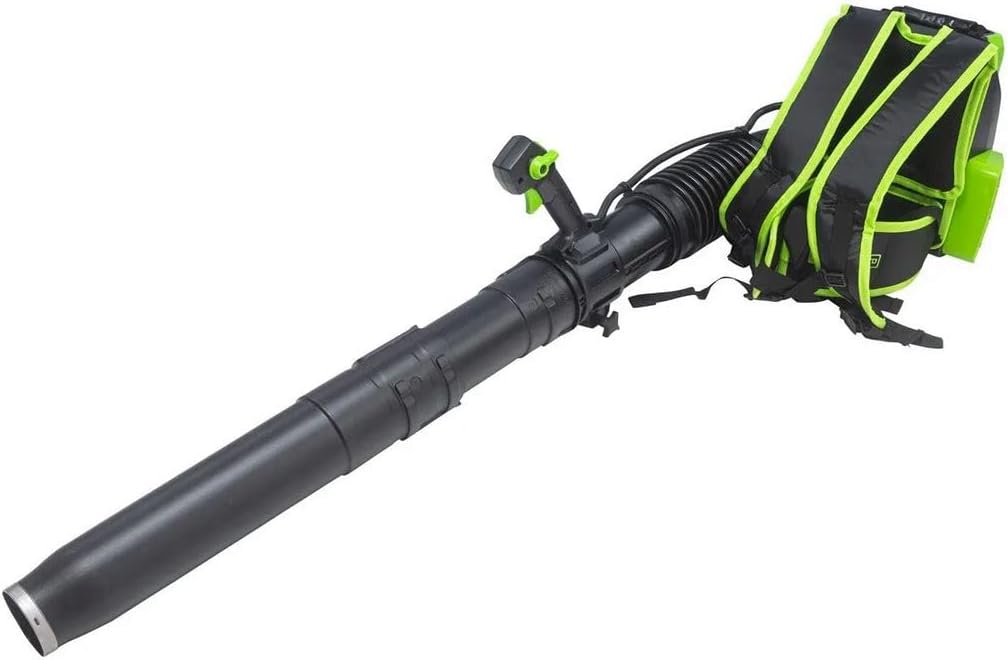

Slika: Ugaona view of the Greenworks Pro 60V Backpack Leaf Blower, highlighting the comfortable backpack straps and the main unit.

4. Sadržaj paketa

Your Greenworks Pro 60V Backpack Leaf Blower package should contain the following items:

• Greenworks Pro 60V Backpack Leaf Blower Unit (Tool Only)
• Sklop cijevi ventilatora
• Uputstvo za upotrebu

Note: The 60-Volt battery and charger are sold separately and are not included with this 'tool only' purchase.

5. Podešavanje

5.1 Pričvršćivanje cijevi za puhanje

1. Ensure the battery is removed from the blower unit.
2. Poravnajte cijev puhala s izlazom na glavnoj jedinici.
3. Push the tube firmly onto the outlet until it clicks into place or is securely seated. Some models may require twisting to lock.

Slika: Sa strane view of the Greenworks Pro 60V Backpack Leaf Blower with the long blower tube attached, illustrating the full assembly.

5.2 Instaliranje baterije

1. Ensure the battery pack is fully charged using a Greenworks 60V charger.
2. Locate the battery compartment on the blower unit.
3. Slide the battery pack into the compartment until it locks securely into place. You should hear a 'click'.
4. Da biste uklonili bateriju, pritisnite dugme za otpuštanje baterije i izvucite baterijski paket.

5.3 Adjusting Backpack Straps

1. Put on the backpack blower.
2. Adjust the shoulder straps and waist belt (if present) for a snug and comfortable fit. The weight should be evenly distributed across your shoulders and hips.
3. Ensure the blower tube and control handle are easily accessible and comfortable to hold.

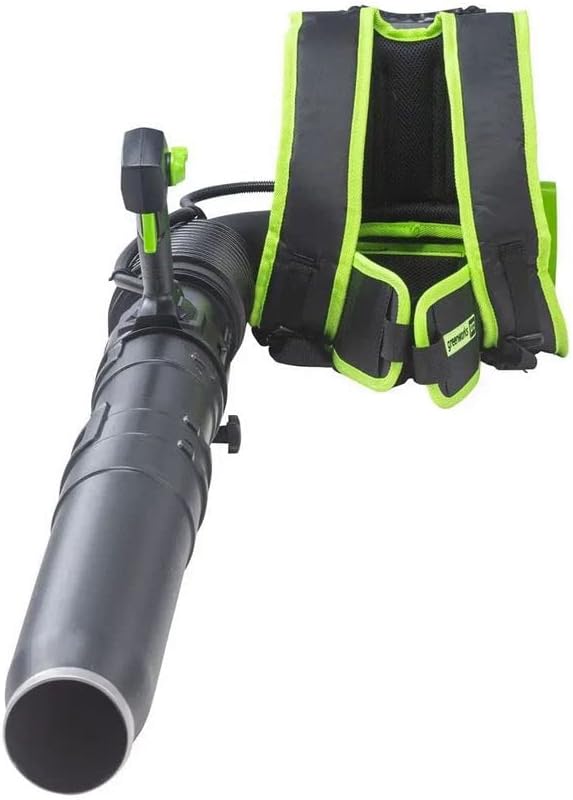

Slika: Nazad view of the Greenworks Pro 60V Backpack Leaf Blower, showing the padded backpack straps and the overall ergonomic design.

6. Uputstvo za upotrebu

6.1 Provjera prije rada

• Verify the blower tube is securely attached.
• Confirm the battery pack is fully charged and properly installed.
• Check the work area for any objects that could be thrown or entangled in the blower.
• Uvjerite se da je sva sigurnosna oprema nošena.

6.2 Starting and Using the Blower

1. Hold the control handle firmly.
2. Pritisnite okidač za promjenjivu brzinu da biste pokrenuli ventilator. Brzina protoka zraka će se povećavati kako dalje pritiskate okidač.
3. For maximum power, press the 'Turbo' button located on the control handle. This will provide a temporary boost in airflow.
4. Use a sweeping motion to move leaves and debris. For stubborn or wet debris, use the turbo function or concentrate the airflow.

Slika: Krupni plan view of the control handle of the Greenworks Pro 60V Backpack Leaf Blower, showing the variable speed trigger and the green turbo button.

6.3 Stopping the Blower

Release the variable speed trigger to turn off the blower. Always remove the battery pack when not in use or before making adjustments.

7. Održavanje

Redovno održavanje osigurava optimalne performanse i produžava vijek trajanja vašeg duvača lišća.

7.1 Čišćenje

• Prije čišćenja uvijek uklonite bateriju.
• Obrišite vanjski dio puhala čistom krpomamp tkanina. Nemojte koristiti jake deterdžente ili rastvarače.
• Clear any debris from the air intake vents to prevent overheating. Use a soft brush or compressed air if necessary.
• Inspect the blower tube for any blockages and clear them.

7.2 Skladištenje

• Prije skladištenja, izvadite bateriju iz duvača.
• Čuvajte duvač na suhom, dobro prozračenom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura.
• Store the battery pack separately in a cool, dry place, partially charged (around 50%) for long-term storage.
• Keep the blower out of reach of children.

Image: Compact side view of the Greenworks Pro 60V Backpack Leaf Blower, showing its profile when ready for storage or transport.

8. Otkrivanje problema

9. Specifikacije

10. Garancija i podrška

Greenworks products are built to the highest quality standards. For warranty information, product registration, or technical support, please refer to the warranty card included with your product or visit the official Greenworks webSačuvajte dokaz o kupovini za slučaj reklamacije.

For further assistance, you may contact Greenworks customer service directly. Contact details are typically available on the manufacturer's websajtu ili u pakovanju proizvoda.
