RASTAR Ferrari La Ferrari RC Car Instruction Manual

1. Podešavanje

1.1 Raspakivanje

Pažljivo izvadite sve komponente iz ambalaže. Provjerite da li su prisutne sve stavke navedene u odjeljku "Šta se nalazi u kutiji".

• Ferrari La Ferrari RC Car (Model AC-50100)
• Daljinski upravljač
• Punjiva baterija (7.4V)
• USB kabl za punjenje
• Mali odvijač

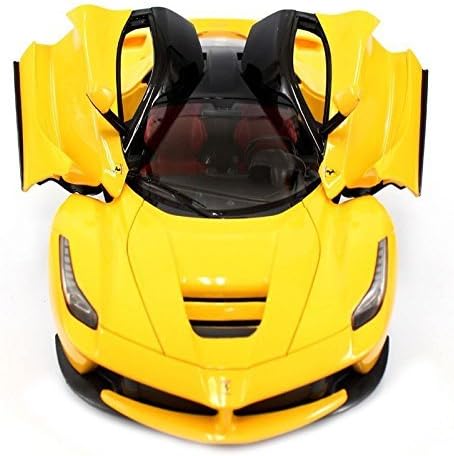

Slika: Od vrha prema dolje view of the RASTAR Ferrari La Ferrari RC Car, highlighting its sleek design.

1.2 Ugradnja baterije (RC automobil)

1. Pronađite odjeljak za bateriju na donjoj strani RC automobila.
2. Koristite priloženi odvijač da biste otvorili poklopac pretinca za baterije.
3. Connect the rechargeable 7.4V battery to the car's battery connector.
4. Pažljivo stavite bateriju u odjeljak i pričvrstite poklopac odvijačem.
5. Ensure the car's power switch (located near the battery compartment) is in the "OFF" position before installation.

Image: The bottom of the RC car, indicating the battery compartment and power switch.

1.3 Ugradnja baterija (daljinski upravljač)

1. Pronađite odeljak za baterije na poleđini daljinskog upravljača.
2. Otvorite poklopac odeljka za baterije.
3. Umetnite 4 AA baterije (nisu uključene) u odjeljak, pazeći na ispravan polaritet (+/-).
4. Zatvorite poklopac odeljka za baterije.

Image: The remote control unit, featuring a steering wheel design.

1.4 Remote Control Wheel Assembly

The steering wheel for the remote control may need to be attached. Simply align the wheel with the designated slot on the side of the remote control and push it firmly into place until it clicks securely.

2. Uputstvo za upotrebu

2.1 Power On and Syncing

1. Provjerite da li i RC automobil i daljinski upravljač imaju nove ili potpuno napunjene baterije.
2. Uključite RC automobil pomoću prekidača na njegovoj donjoj strani.
3. Uključite daljinski upravljač pomoću njegovog prekidača za napajanje.
4. The car and remote should automatically sync. If not, turn both off and on again.

2.2 Osnovne kontrole

• Naprijed/nazad: Use the trigger on the remote control. Pull the trigger towards you for forward motion, and push it away from you for reverse. The remote offers variable speed control.
• upravljanje: Rotate the steering wheel on the side of the remote control left or right to steer the car in the desired direction.

The RC car has a control range of up to 30 meters, allowing for ample space during operation.

2.3 Proizvod završenview and Features (Video)

3. Održavanje

3.1 Punjenje baterije

To charge the RC car's rechargeable battery:

1. Spojite punjivu bateriju na priloženi USB kabel za punjenje.
2. Plug the USB cable into a compatible USB power source (e.g., computer, USB wall adapter).
3. The charging indicator on the USB cable will show the charging status (e.g., red light for charging, green light for fully charged).
4. A full charge typically takes approximately 2 hours. Do not leave batteries unattended while charging.
5. Always disconnect the battery from the charger once fully charged.

3.2 Čišćenje

Da biste održali izgled i funkcionalnost vašeg RC automobila:

• Wipe the car's body with a soft, dry cloth to remove dust and dirt.
• Izbjegavajte upotrebu jakih hemikalija ili abrazivnih sredstava za čišćenje, jer mogu oštetiti završnu obradu.
• Keep the car and remote control away from water and moisture.

4. Otkrivanje problema

4.1 Car Not Responding to Remote Control

• Provjerite da li su i automobil i daljinski upravljač uključeni.
• Ensure batteries in both devices are fully charged and correctly installed.
• Turn both devices off and then on again to re-establish the connection.
• Make sure you are within the operating range (up to 30 meters).
• Avoid operating multiple RC cars with the same frequency in close proximity, as this can cause interference.

4.2 Car Moving Slowly or Not at All

• The rechargeable battery in the car may be low. Recharge it fully.
• Check the AA batteries in the remote control and replace them if necessary.
• Ensure the car is being operated on a smooth, flat surface for optimal performance.

5. Specifikacije

6. Jamstvo i podrška

Za informacije o garanciji ili tehničkoj podršci, obratite se službenom servisu proizvođača webweb-mjesto ili direktno kontaktirajte njihovu korisničku službu. Sačuvajte račun kao dokaz o kupovini.
