1. Uvod
This manual provides essential information for the installation, operation, and maintenance of your Swann 1080p Full HD DVR Add-on Dome Security Camera. This camera is designed to enhance your existing DVR security system with high-definition video surveillance, featuring advanced True Detect heat and motion detection for reliable monitoring both indoors and outdoors.
Image 1: Swann 1080p Full HD Dome Security Camera.
2. Sadržaj paketa
Before beginning installation, please verify that all components are present:
- 1 x PRO-1080PMSD Camera
- 1 x BNC Cable (60ft / 18m)
- 1 x adapter za napajanje
- Montažni vijci i utikači
- Uputstvo za upotrebu (ovaj dokument)
- Naljepnice za sprječavanje krađe
Image 2: Contents of the Swann 1080p DVR Add-on Camera package.
3. Postavljanje i instalacija
The Swann 1080p Full HD Dome Security Camera is designed for surface mounting and is suitable for both indoor and outdoor environments due to its weather-resistant casing (IP65 rated).
3.1 Montiranje kamere
- Odaberite lokaciju: Odaberite lokaciju koja pruža željeno viewing angle and is within reach of the included BNC cable and power adapter. Consider areas where heat and motion detection will be most effective.
- Osigurajte nosač: Use the provided mounting screws and plugs to securely attach the camera's base to a flat surface. Ensure the camera is firmly fixed to prevent movement.
- Podesite Viewugao ugla: Once mounted, adjust the camera's position to achieve the optimal viewing area. The camera offers a wide 90-degree field of view.
3.2 Povezivanje kamere
- Connect BNC Cable: Connect one end of the 60ft (18m) BNC cable to the camera's BNC port and the other end to an available BNC input on your compatible DVR system.
- Povežite adapter za napajanje: Plug the power adapter into the camera's power input and then into a standard electrical outlet.
- Uključeno: Ensure your DVR system is powered on. The camera should automatically connect and display video feed on your DVR monitor.

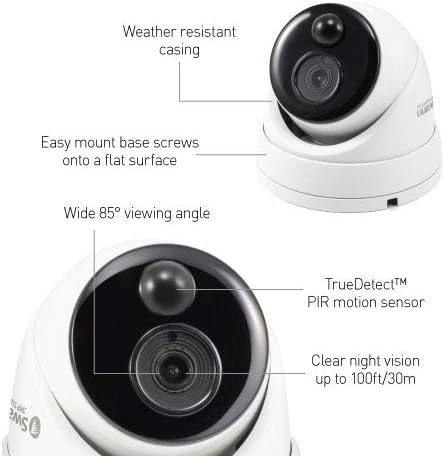

Slika 3: Detaljno view of the camera's features and mounting points.
4. Uputstvo za upotrebu
Your Swann 1080p Full HD Dome Security Camera integrates seamlessly with your DVR system, offering advanced surveillance capabilities.
4.1 Kvalitet videa i noćni vid
The camera provides 1080p Full HD video resolution, capturing clear and detailed footage. It features automatic night vision with a range of up to 100 feet (30 meters), ensuring continuous monitoring even in complete darkness. The camera automatically switches between day and night modes based on ambient light conditions.
Slika 4: Primjerample of 1080p Full HD wide-angle view with night vision capabilities.
Video 1: Demonstrates 1080p Full HD camera footage, showing clear details like license plates and faces, and automatic night vision.
4.2 True Detect Heat and Motion Detection
The camera incorporates Swann's True Detect technology, utilizing a Passive Infrared (PIR) sensor to detect heat signatures from moving objects such as people and cars. This intelligent detection minimizes false alarms triggered by non-relevant motion (e.g., swaying branches), ensuring you receive more accurate and meaningful alerts.
Image 5: True Detect system showing detection of a person and car, with app push and email alert notifications.
Video 2: Explains Swann's True Detect heat sensing technology, showing how it differentiates between warm objects (people, cars) and other motion to reduce false alarms.
4.3 Remote Access and App Control
Manage and monitor your security system remotely using the Swann Security App on your smartphone or tablet. The app allows for live streaming, receiving push notifications for detected activity, and customizing controls. The system is compatible with Digital Video Recorders, Smartphones, and Tablets, and can be controlled via Amazon Alexa and Google Assistant.
Image 6: Remote access to your Swann security system via smartphone, tablet, and laptop.
Image 7: The Swann Security App interface for comprehensive control and monitoring.
5. Održavanje
To ensure optimal performance and longevity of your Swann security camera, regular maintenance is recommended:
- čišćenje: Povremeno čistite objektiv kamere mekom,amp cloth to remove dust, dirt, or smudges that may affect image clarity. Avoid abrasive cleaners.
- Inspekcija kablova: Regularly check the BNC cable and power adapter for any signs of wear, damage, or loose connections. Secure or replace as necessary.
- Ažuriranja firmvera: Provjerite Swanna website or your DVR system's settings for any available firmware updates to ensure your camera operates with the latest features and security enhancements.
- Zaštita od vremenskih prilika: Although the camera is weather-resistant (IP65), ensure it is installed in a location that minimizes direct exposure to extreme weather conditions where possible, to prolong its lifespan.
Image 8: The camera's durable design withstands various weather conditions.
6. Otkrivanje problema
If you encounter issues with your Swann security camera, refer to the following common troubleshooting steps:
- Nema video feeda:
- Provjerite je li adapter za napajanje sigurno spojen i na kameru i na ispravnu utičnicu.
- Verify the BNC cable is properly connected to both the camera and the DVR input.
- Check if the DVR channel for the camera is enabled and configured correctly.
- Loš kvalitet slike:
- Clean the camera lens to remove any obstructions or smudges.
- Ensure the camera is within its optimal operating range and not experiencing signal interference.
- Check your DVR's display settings for resolution and clarity.
- Detekcija pokreta ne radi:
- Verify that True Detect (PIR motion detection) is enabled in your DVR settings for the specific camera channel.
- Osigurajte da je kamera view is not obstructed and that the area of interest is within the detection zone.
- Adjust sensitivity settings in your DVR if necessary.
- Lažni alarmi:
- While True Detect minimizes false alarms, extreme weather conditions or direct sunlight on the PIR sensor can sometimes trigger alerts.
- Adjust the camera's angle or detection zones to exclude areas with frequent non-relevant motion.
For further assistance, please refer to the support section or contact Swann customer service.
7. Specifikacije
| Broj modela | SWPRO-1080MSD-US |
| Rezolucija video snimanja | 1080p (Full HD) |
| Efektivna video rezolucija | 1080 Pixels (2 MP) |
| Unutrašnja/vanjska upotreba | Unutarnji, vanjski |
| Tehnologija povezivanja | BNC (Wired camera system) |
| Izvor napajanja | DC |
| Viewing Angle | 90 stepeni (Polje View) / 85 Degrees |
| Noćni vid | 100 stopa |
| Low Light Technology | Noćna boja |
| Vrsta upozorenja | Motion Only (True Detect Heat & Motion) |
| Međunarodna ocjena zaštite | IP65 |
| Kompatibilni uređaji | Digital Video Recorder, Smartphone, Tablet |
| Tip kontrolera | Amazon Alexa, Google Assistant |
| Kontrolni metod | App |
| Materijal | Polikarbonat (PC) |
| Boja | Bijelo |
| Dimenzije artikla (D x Š x V) | 4.4 x 4.4 x 3.2 inča |
| Težina artikla | 14.1 unce (0.88 funte) |
8. Garancija i podrška
Your Swann 1080p Full HD DVR Add-on Dome Security Camera comes with a 1-godišnja ograničena garancija. This warranty covers protection against factory defects and includes technical support.
Should you experience any challenges with your product, please reach out to Swann's dedicated customer care support team. You can contact them via Amazon Message or email at any time. Swann is committed to providing reliable security solutions and will assist with item replacement within one year of purchase for covered issues.
