1. Uvod
Thank you for choosing the Cecotec Conga EcoExtreme 3000 Bagless Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your appliance. Please read these instructions carefully before first use and keep them for future reference.
2. Sigurnosna uputstva
Uvijek se pridržavajte osnovnih sigurnosnih mjera opreza prilikom korištenja električnih uređaja kako biste smanjili rizik od požara, strujnog udara ili ozljeda.
- Osigurajte napajanje voltage matches the rating label on the vacuum cleaner.
- Ne koristite usisivač na mokrim površinama ili za usisavanje tekućina.
- Ne usisavajte zapaljive ili eksplozivne materijale, vrući pepeo ili oštre predmete.
- Držite kosu, široku odjeću, prste i sve dijelove tijela dalje od otvora i pokretnih dijelova.
- Unplug from the electrical outlet when not in use and before cleaning or servicing.
- Ne koristite usisivač sa oštećenim kablom ili utikačem.
- Ovaj aparat je samo za upotrebu u domaćinstvu.
3. Komponente proizvoda
Familiarize yourself with the main parts of your Cecotec Conga EcoExtreme 3000 vacuum cleaner and its accessories.
- Glavna jedinica: Sadrži motor, posudu za prašinu i filtere.
- Fleksibilno crijevo: Connects the main unit to the telescopic tube.
- Telescopic Metallic Tube: Podesiva dužina za udobno čišćenje.
- Podna mlaznica: Za opšte čišćenje podova (tepiha i tvrdih podova).
- AirBrush: High-speed rotating brush for deep cleaning carpets and removing pet hair.
- Alat za pukotine: Za uske prostore i uglove.
- Upholstery Tool/Small Brush: For furniture, curtains, and delicate surfaces.
- Kabl za napajanje: With automatic cable collector.
4. Podešavanje
Slijedite ove korake da biste sastavili usisivač prije prve upotrebe.
- Raspakivanje: Pažljivo izvadite sve komponente iz ambalaže. Sačuvajte ambalažu za buduće skladištenje ili transport.
- Pričvrstite fleksibilno crijevo: Umetnite fleksibilno crijevo u usisni otvor na glavnoj jedinici dok ne klikne sigurno na svoje mjesto.
- Sastavljanje teleskopske cijevi: Connect the telescopic metallic tube to the handle of the flexible hose. Adjust the length by pressing the release button and sliding the tube to your desired height.
- Pričvrstite podnu mlaznicu: Connect the desired floor nozzle (e.g., main floor nozzle or AirBrush) to the end of the telescopic tube. Ensure it is firmly attached.
- Priključak za napajanje: Extend the power cord from the automatic cable collector and plug it into a suitable electrical outlet.
5. Uputstvo za upotrebu
Learn how to effectively use your vacuum cleaner for various cleaning tasks.
5.1 Power On/Off and Suction Control
- Uključeno: Press the power button located on the main unit to turn on the vacuum cleaner.
- Podesite usisavanje: The vacuum features Smart Power Regulation with two modes:
ECO način rada: For hard floors and energy saving.
TURBO način rada: For carpets, rugs, and maximum suction power. Select the appropriate mode using the control buttons on the unit. - Iskljuciti: Ponovo pritisnite dugme za napajanje da isključite usisivač.
5.2 Korištenje priloga
- Podna mlaznica: Ideal for daily cleaning of various floor types.
- AirBrush: Attach this rotating brush for effective removal of embedded dirt and pet hair from carpets and upholstery.
- Alat za pukotine: Use for cleaning tight corners, edges, and narrow gaps.
- Tapetarski alat: Suitable for cleaning sofas, chairs, and other fabric surfaces.
5.3 Parking položaj
The vacuum cleaner features a Parking Position, allowing you to vertically secure the metallic tube to the main unit for convenient storage or temporary breaks during cleaning.
6. Održavanje
Redovno održavanje osigurava optimalne performanse i produžava vijek trajanja vašeg usisivača.

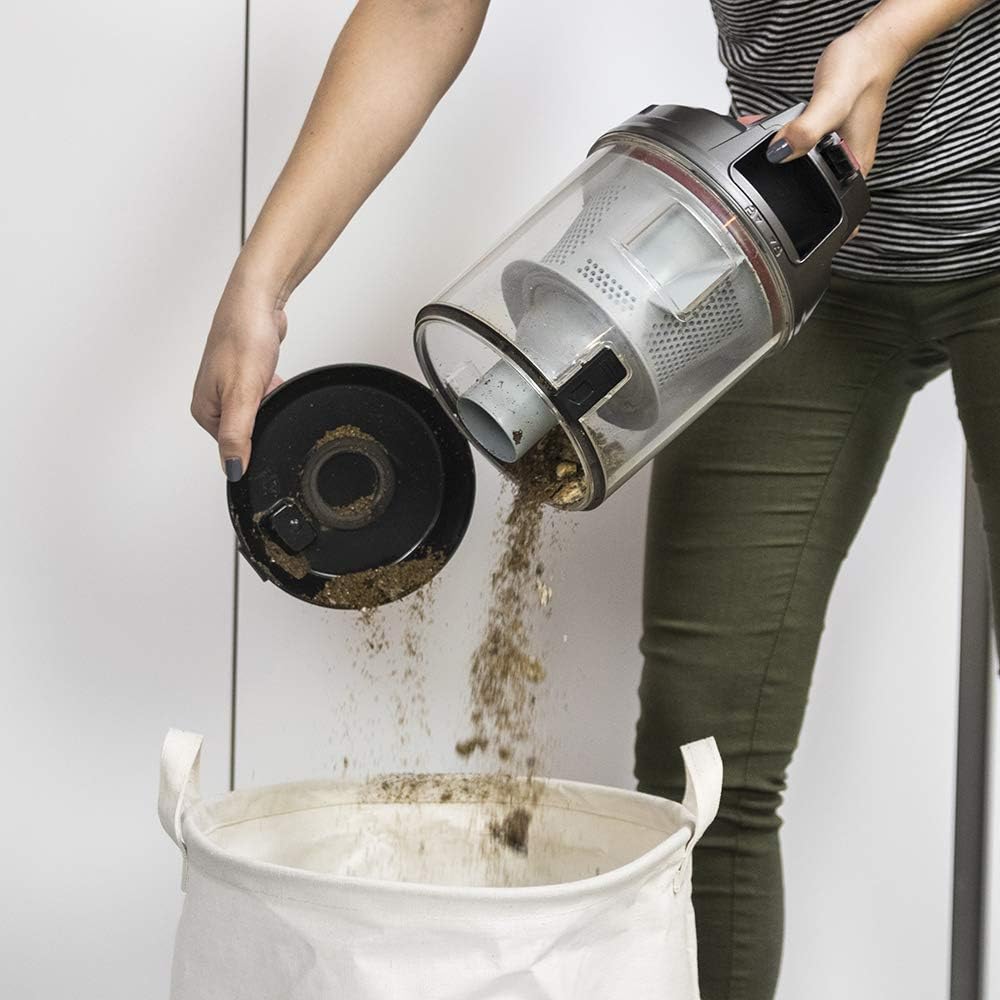

6.1 Pražnjenje kante za prašinu
The 3.5 L dust container should be emptied regularly, especially when the 'MAX' indicator is reached, to maintain suction power.
- Uvjerite se da je usisivač isključen.
- Press the dustbin release button and carefully remove the dust container from the main unit.
- Position the dustbin over a waste bin. Open the bottom lid of the dustbin and shake out the contents.
- Close the lid securely and reattach the dust container to the vacuum cleaner until it clicks into place.
6.2 Čišćenje filtera
The vacuum cleaner is equipped with a 5-phase professional air filter system, including a HEPA filter, which captures 99.98% of dirt. Regular cleaning of filters is crucial.
- Predfiltri: These can usually be rinsed with water. Ensure they are completely dry before reinserting.
- HEPA filter: Tap gently to remove dust. Do not wash the HEPA filter unless specified in the product documentation. Replace the HEPA filter periodically as recommended (typically every 6-12 months depending on usage).
6.3 Cleaning Brushes and Attachments
Remove any tangled hair, threads, or debris from the floor nozzle and AirBrush. Wipe attachments with a damp krpom ako je potrebno.
7. Otkrivanje problema
Ako imate problema s usisivačem, pogledajte sljedeće uobičajene probleme i rješenja.
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nema struje | Not plugged in; power outlet fault; damaged cord/plug. | Check plug connection; test outlet with another appliance; contact service if cord/plug is damaged. |
| Gubitak usisavanja | Full dustbin; clogged filters; blocked hose/attachments. | Empty dustbin; clean/replace filters; check hose and attachments for blockages. |
| Neobična buka | Blockage in brush roll or hose; foreign object in fan; motor issue. | Clear blockages; inspect for foreign objects; contact service if motor noise persists. |
| Rola četke se ne okreće | Tangled debris; belt broken (if applicable); brush roll motor issue. | Remove tangled debris; check for belt damage; contact service. |
8. Specifikacije
| Feature | Detalj |
|---|---|
| Brand | Cecotec |
| Naziv modela | Conga EcoExtreme 3000 |
| Broj modela | 14540887 / 05068 |
| Boja | Crna |
| Dimenzije proizvoda (D x Š x V) | 28.5 x 32.5 x 45.7 cm |
| Težina | 7.12 kilograma |
| Kapacitet posude za prašinu | 3.5 litara |
| Snaga | 700 Watts |
| Materijal | Plastika |
| Broj brzina | 2 (ECO, TURBO) |
| Energetska klasa | A+++ |
| Nivo buke | 78 dB |
| Posebne karakteristike | HEPA Filter, Lightweight, Bagless, Multi-cyclonic, Animal Care |
| Filter Type | Fabric (HEPA) |
| Izvor napajanja | Corded Electric |
| Bežični | br |
| Uključene komponente | Vacuum cleaner, Brushes, Filter, User Manual |
| Dostupnost rezervnih dijelova | 10 godina |
9. Garancija i podrška
Cecotec products are manufactured to high-quality standards. In the unlikely event of a defect arising from faulty materials or workmanship, your product is covered by a warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
Za tehničku pomoć, rezervne dijelove ili reklamacije, obratite se korisničkoj podršci Cecotec-a putem njihovog službenog servisa. website or the contact information provided in your product packaging. When contacting support, please have your model name (Conga EcoExtreme 3000) and model number (14540887 or 05068) ready.
