myTouchSmart Utičnica za unutrašnju upotrebu Jednostavan digitalni tajmer (Model 26892-T5) Korisnički priručnik

1. Uvod

This manual provides detailed instructions for the setup, operation, and maintenance of your myTouchSmart Indoor Plug-in Simple Set Digital Timer, Model 26892-T5. Please read this manual thoroughly before using the device to ensure proper function and safety.

The myTouchSmart Digital Timer is designed to automate indoor lighting and electronics, allowing you to schedule their operation for convenience and energy efficiency.

2. Proizvod je gotovview

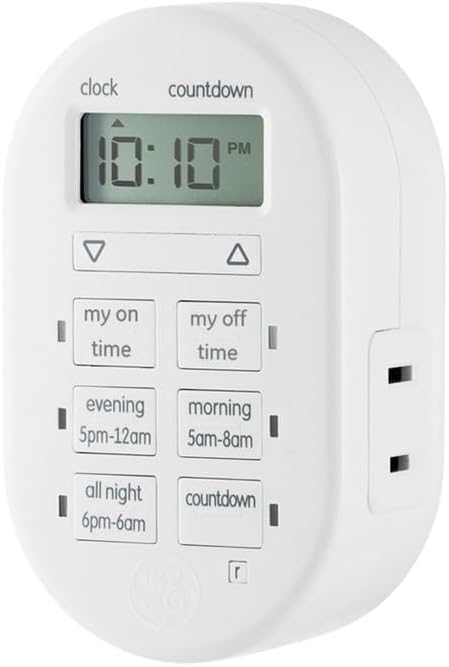

Slika 1: Front view of the myTouchSmart Indoor Plug-in Simple Set Digital Timer. The device is white, oval-shaped, with a digital display at the top showing "10:10 PM". Below the display are two arrow buttons (up and down). Further down are six rectangular buttons arranged in two columns: "my on time", "my off time", "evening 5pm-12am", "morning 5am-8am", "all night 6pm-6am", and "countdown". A polarized outlet is visible on the right side.

The myTouchSmart Digital Timer features a compact design with a clear digital display and intuitive control buttons. It includes a single polarized outlet for connecting your device.

Ključne komponente:

• Digitalni prikaz: Shows current time, program settings, and countdown status.
• Strelice gore/dolje: Used to adjust time and program settings.
• "My On Time" Button: Sets a custom turn-on time.
• "My Off Time" Button: Sets a custom turn-off time.
• Unaprijed postavljena dugmad: "Evening (5pm-12am)", "Morning (5am-8am)", "All Night (6pm-6am)" for quick scheduling.
• "Countdown" Button: Activates a countdown timer.
• Polarized Outlet: For connecting the appliance or light to be controlled.
• Plavi LED indikatori: Show active programs.

3. Karakteristike

• Easy-to-set digital timer for indoor lighting and electronics.
• Flexible scheduling options including custom daily On/Off times.
• Three available daily presets: Evening (5pm-12am), Morning (5am-8am), or All Night (6pm-6am).
• Customizable countdown feature (up to 24 hours in 1-minute intervals).
• Blue LED indicators show active programs.
• Large LCD screen for effortless viewing.
• One (1) polarized outlet.
• Compatible with LED, CFL, Incandescent, and Halogen bulbs, including dimmable LED and CFL bulbs.
• Backup battery saves timer settings during power outages or disconnections.

4. Podešavanje

4.1 Početno napajanje

1. Unpack the timer from its packaging.
2. Plug the timer into a standard 125V wall outlet. The display will illuminate.
3. Allow the timer to charge its internal backup battery for approximately 15 minutes before programming. This ensures settings are retained during power interruptions.

4.2 Podešavanje trenutnog vremena

1. Pritisnite i držite CLOCK button (located above the display) until the time digits begin to flash.
2. Koristite UP (▲) i DOLJE (▼) arrow buttons to adjust the hour. Pay attention to the AM/PM indicator.
3. Pritisnite CLOCK button again to move to the minutes setting.
4. Koristite UP (▲) i DOLJE (▼) arrow buttons to adjust the minutes.
5. Pritisnite CLOCK button one more time to save the current time and exit the setting mode.

5. Uputstvo za upotrebu

Connect the appliance or light you wish to control into the polarized outlet on the right side of the timer.

5.1 Setting Custom On/Off Times ("My On Time" / "My Off Time")

1. Pritisnite MOJE VRIJEME button. The display will show "ON" and the time will flash.
2. Koristite UP (▲) i DOLJE (▼) arrow buttons to set the desired turn-on hour, then press MOJE VRIJEME again to set minutes.
3. Once the desired ON time is set, press MOJE VRIJEME to confirm. A blue LED indicator next to the button will light up, indicating the program is active.
4. Repeat the process for the MOJE SLOBODNO VRIJEME button to set the desired turn-off time. A blue LED indicator next to the button will light up.
5. To deactivate a custom program, press the corresponding MOJE VRIJEME or MOJE SLOBODNO VRIJEME button until the blue LED indicator turns off.

5.2 Korištenje unaprijed postavljenih programa

The timer offers three convenient preset programs:

• EVENING (5pm-12am): Turns on at 5:00 PM and off at 12:00 AM.
• MORNING (5am-8am): Turns on at 5:00 AM and off at 8:00 AM.
• ALL NIGHT (6pm-6am): Turns on at 6:00 PM and off at 6:00 AM.

To activate a preset program, simply press the corresponding button (VEČE, JUTRO, ili ALL NIGHT). A blue LED indicator next to the button will light up, confirming the program is active. To deactivate, press the button again until the LED turns off.

5.3 Korištenje tajmera za odbrojavanje

1. Pritisnite COUNTDOWN button. The display will show "CD" and the time will flash.
2. Koristite UP (▲) i DOLJE (▼) arrow buttons to set the desired countdown duration (up to 24 hours, in 1-minute intervals).
3. Pritisnite COUNTDOWN again to start the countdown. The blue LED indicator will light up.
4. The connected device will turn ON (if currently OFF) or OFF (if currently ON) after the countdown duration expires.
5. Da poništite odbrojavanje, pritisnite COUNTDOWN button again until the blue LED indicator turns off.

Note: Only one program (custom or preset) can be active at a time. Activating a new program will deactivate any previously active program. The countdown timer operates independently but will override other programs for its duration.

6. Održavanje

6.1 Čišćenje

To clean the timer, unplug it from the wall outlet. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials, as these may damage the device.

6.2 Rezervna baterija

The timer includes an internal backup battery to retain settings during power outages. This battery is not user-replaceable and is designed to last the lifetime of the product. Ensure the timer is plugged in for at least 15 minutes initially to charge this battery.

7. Otkrivanje problema

8. Specifikacije

• Broj modela: 26892-T5
• Brand: myTouchSmart
• Boja: Bijelo
• Električne ocjene: 125V, 50/60 Hz, 15A 1875W General Purpose / Resistive, 10A 1250W Tungsten, ½ HP
• Dimenzije proizvoda: 2.55 x 5.92 x 7.3 inča
• Težina artikla: 4 unce
• Vrsta izlaza: 1 Polarized Outlet
• Kompatibilnost: LED, CFL, žarulje sa žarnom niti, halogene žarulje (uključujući LED/CFL žarulje sa mogućnošću prigušivanja)
• Certifikati: UL Listed

9. Garancija i podrška

9.1 Ograničena garancija

This myTouchSmart Digital Timer is backed by a jednogodišnja ograničena garancija. For details regarding warranty coverage and claims, please refer to the warranty card included with your product or visit the manufacturer's official website.

9.2 Korisnička podrška

For technical assistance, troubleshooting not covered in this manual, or general inquiries, please contact myTouchSmart customer support. Contact information can typically be found on the product packaging or the official myTouchSmart website.

Please have your model number (26892-T5) and purchase date available when contacting support.
