CONCEPT SM3050 Fresh & Nutri Smoothie Blender User Manual

1. Uvod

Thank you for choosing the CONCEPT SM3050 Fresh & Nutri Smoothie Blender. This powerful appliance is designed to help you prepare a wide variety of healthy and delicious recipes with ease. Featuring a robust 1500W motor, 33,000 revolutions per minute, and a durable 2-liter BPA-free Tritan pitcher, it offers efficient blending for smoothies, soups, purees, and more. Please read this manual carefully to ensure safe and optimal use of your blender.

Image 1: The CONCEPT SM3050 Fresh & Nutri Smoothie Blender.

2. Sigurnosna uputstva

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. Keep this manual for future reference.

• Prije čišćenja ili kada se ne koristi, provjerite je li uređaj isključen iz struje.
• Ne uranjajte bazu motora u vodu ili bilo koju drugu tečnost.
• Keep hands and utensils out of the pitcher while blending to prevent severe injury and damage to the blender.
• Never operate the blender without the lid properly secured.
• Izbjegavajte kontakt s pokretnim dijelovima. Oštrice su oštre; rukujte s njima s izuzetnim oprezom.
• Ovaj uređaj nije namijenjen za upotrebu osobama sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima ili osobama bez iskustva i znanja, osim ako nisu pod nadzorom ili im nije data uputstva o korištenju uređaja od strane osobe odgovorne za njihovu sigurnost.
• Nemojte koristiti uređaj ako su kabl za napajanje ili utikač oštećeni.
• The blender is equipped with a thermal fuse to protect against overheating. If the appliance overheats, it will automatically shut off. Allow it to cool down before resuming operation.
• If the pitcher is removed from the motor base during operation, the blender will automatically stop for safety.

3. Komponente proizvoda

The CONCEPT SM3050 blender consists of the following main parts:

1. Baza motora s kontrolnom pločom
2. 2-Liter Tritan Pitcher with Integrated Blades
3. Lid with Triple Watertight Seal
4. Removable Measuring Cup/Ingredient Opening Cap

4. Podešavanje

Before first use, wash all removable parts (pitcher, lid, measuring cup) with warm soapy water, rinse thoroughly, and dry. Wipe the motor base with a damp tkanina.

1. Postavite bazu motora na stabilnu, ravnu i suhu površinu.
2. Ensure the blender is unplugged before placing the pitcher.
3. Place the pitcher onto the motor base. The pitcher is designed for flexible placement, allowing you to position it comfortably. Ensure it is securely seated.
4. Dodajte sastojke u vrč. Ne prekoračujte liniju za maksimalno punjenje.
5. Securely place the lid onto the pitcher, ensuring the triple seal is properly engaged. Insert the measuring cup into the lid opening.
6. Uključite kabl za napajanje u odgovarajuću električnu utičnicu.

Image 6: Securely placing the pitcher on the motor base.

5. Uputstvo za upotrebu

The SM3050 blender features intuitive slider controls and 6 pre-defined programs for various blending tasks.

5.1. Control Panel Overview

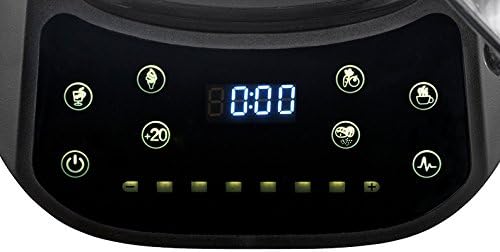

Image 7: The digital control panel with slider and program buttons.

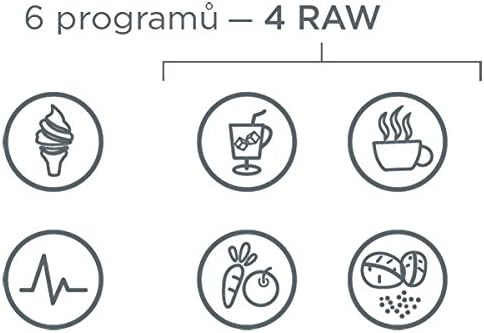

Image 8: Icons for the 6 pre-defined programs.

5.2. Using the Slider Control

The slider control allows for easy adjustment of blending speed. Simply slide your finger across the illuminated bar to increase or decrease the speed. The digital display will show the current speed setting.

5.3. Pre-defined Programs

The blender offers 6 pre-defined programs, including 4 optimized for raw food preparation. Select a program by touching its corresponding icon on the control panel. The blender will automatically adjust speed and duration for optimal results.

• Smoothie: Idealno za smoothieje od voća i povrća.
• povrće: Perfect for blending raw vegetables.
• supe: For preparing creamy soups. The blender can heat ingredients up to 40°C during this program.
• orasi: For grinding nuts or making homemade flour.
• led: Za drobljenje kockica leda.
• sladoled: For preparing homemade ice cream without additives.
• puls: Use this program for short bursts of high-speed blending, ideal for crushing ice or achieving specific textures.

5.4. Adding Ingredients During Blending

You can add ingredients or taste your preparation without interrupting the blending cycle by removing the small measuring cup from the lid opening.

5.5. Video demonstracije proizvoda

Watch this video for a visual guide on how to use your CONCEPT SM3050 blender, demonstrating its features and various blending capabilities.

6. Održavanje i čišćenje

Redovno čišćenje osigurava dugotrajnost i higijenu vašeg blendera.

• Baza motora: Always unplug the blender before cleaning. Wipe the motor base with a soft, damp tkanina. Ne uranjajte ga u vodu.
• Pitcher and Lid: After each use, rinse the pitcher and lid immediately. For thorough cleaning, fill the pitcher with warm water and a drop of dish soap, then run the blender on a low setting for a few seconds. Rinse thoroughly. The Tritan material is durable and resistant to scratches.

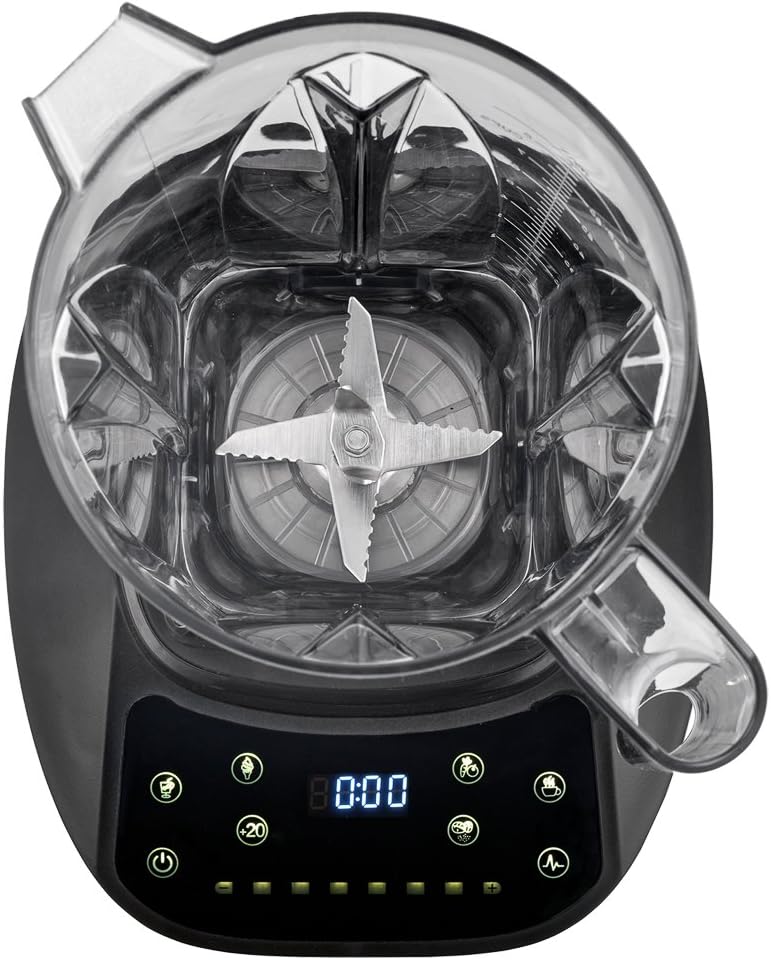

• Oštrice: The blades are integrated into the pitcher. Exercise extreme caution when cleaning around the blades due to their sharpness.
• All removable parts are dishwasher safe on the top rack.
• Blender čuvajte na čistom i suhom mjestu.

7. Otkrivanje problema

Ako imate problema s blenderom, pogledajte sljedeće uobičajene probleme i rješenja:

8. Specifikacije

Technical details for the CONCEPT SM3050 Smoothie Blender:

9. Garancija i podrška

For warranty information, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official Concept webSačuvajte dokaz o kupovini za eventualne reklamacije.
