1. Uvod
This manual provides essential information for the safe and effective operation of your Haswing GPS 50736-120W Trolling Motor. Please read all instructions carefully before use to ensure proper setup, functionality, and longevity of your product.
The Haswing GPS Trolling Motor is designed for both freshwater and saltwater use, offering advanced navigation features and precise control for an enhanced boating experience.
2. Postavljanje i instalacija
2.1 Montiranje pomoćnog motora
The Haswing GPS Trolling Motor is a bow-mount unit. Ensure your boat's bow has a suitable, reinforced area for installation. Use appropriate marine-grade fasteners (not included) to secure the mounting bracket firmly to the boat's deck. The motor should be positioned to allow for full deployment and retraction without obstruction.
2.2 Priključak za napajanje
Connect the motor to a 12V deep cycle battery (1 x 105AH recommended). Ensure all connections are secure and properly insulated to prevent short circuits. Observe correct polarity: red to positive (+), black to negative (-).
2.3 Deploying and Retracting the Motor
To deploy the motor, release the locking mechanism and gently lower the motor into the water. To retract, lift the motor until it locks securely in the stowed position. The shaft length is 48 inches, providing ample depth adjustment.
Slika 2.3.1: Gotovoview of the Haswing Cayman B with GPS Trolling Motor, highlighting key specifications and included accessories like the wireless remote control and optional wireless foot controller.
Figure 2.3.2: The depth adjustment collar allows users to set the desired motor depth in the water.
3. Uputstvo za upotrebu
3.1 Uključivanje/isključivanje
Ensure the motor is properly connected to the battery. Use the wireless remote control or the Helmsman APP to power the motor on or off.
3.2 Kontrola brzine
The motor features variable speed control. Adjust the speed using the wireless remote's Speed Up/Down buttons or through the Helmsman APP. The maximum power is 660W with a maximum current of 55A.
3.3 Upravljanje
Steering is controlled via the wireless remote or the Helmsman APP, offering 360-degree control. The motor is designed to run quietly, with a decibel level of approximately 50db.

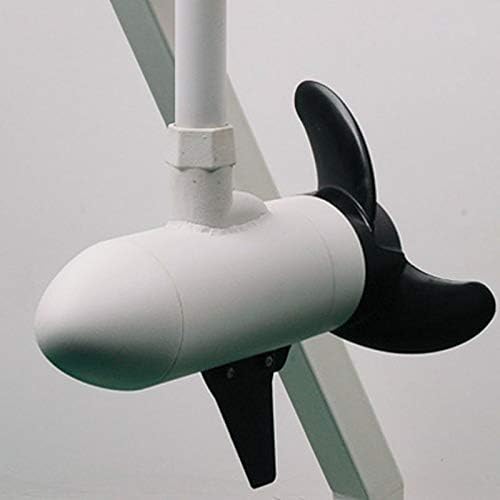

Figure 3.3.1: The 3-blade propeller, with a 9.3-inch diameter, provides efficient thrust for propulsion.
4. GPS Smart Navigation System
The Haswing GPS Trolling Motor integrates a smart navigation system with several key features:
- Zabilježi rute: Create, modify, or delete fishing spots and routes using the Helmsman APP.
- GPS navigacija: Utilize the high-sensitivity GPS for precise positioning and navigation.
- Anchor Position: Electronically hold your boat in a specific fishing spot. If the boat drifts more than 6 feet, the motor automatically adjusts to return to the anchor point. Unlimited anchor points can be saved.
- tempomat: Maintain a constant speed and follow a set course, even with wind and current adjustments.
Figure 4.1: The core functionalities of the integrated GPS Smart Navigation System.
5. Smartphone Operating System (Helmsman APP)
Download the free Helmsman APP to operate all functions of your trolling motor from your smartphone. The app provides a user-friendly interface with a live map for route management and control.
- Route Record: More convenient and accurate to create, modify, or delete unique fishing spots & routes from your live map using your touchscreen smart device. The Helmsman routes feature will keep your boat on course so that you can focus on fishing.
- Auto-Nave: The Helmsman will keep the boat following along the shoreline or other structures and maintain a constant speed. It even makes precise adjustments for wind and current.
- Save & Share: With the Helmsman, you can save unlimited fishing spots & routes on smart devices. Any of your saved information can easily be shared with your friends on the Helmsman App or Facebook.
Figure 5.1: The Helmsman APP allows full control and management of the trolling motor's features.

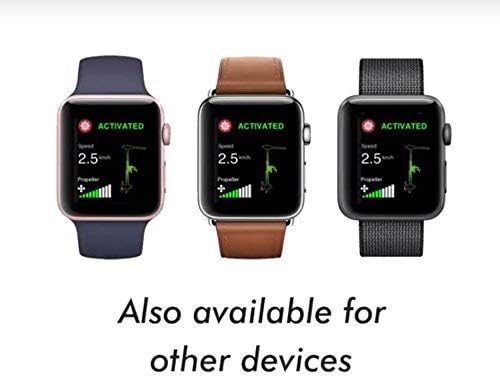

Figure 5.2: The Helmsman APP is available for download on both iOS and Android devices.
Figure 5.3: The Helmsman APP provides a detailed interface for route recording and advanced functions.

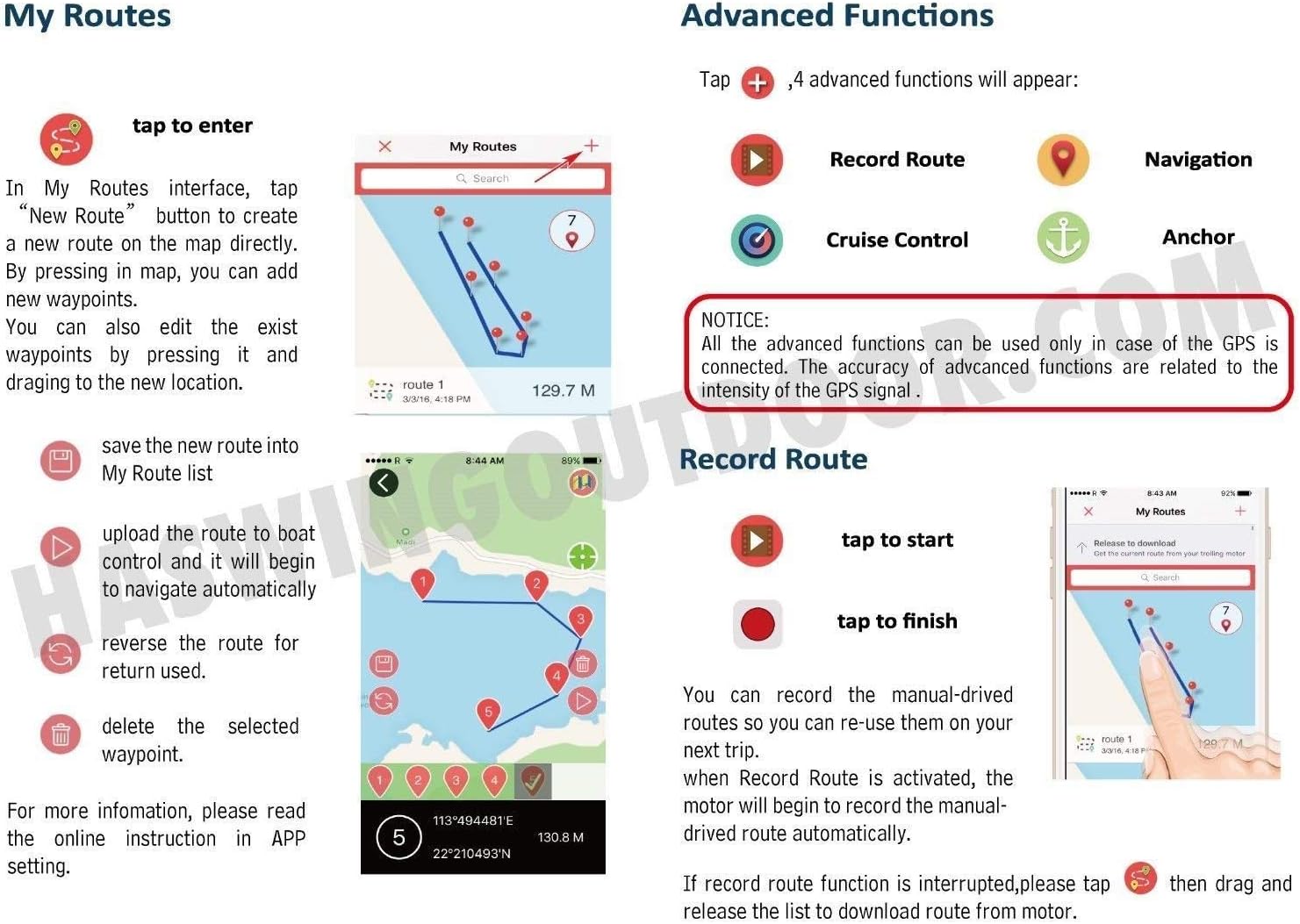

Figure 5.4: Advanced functions of the Helmsman APP, including route management and navigation controls.
6. Bežični daljinski upravljač
The trolling motor comes with a hand-held wireless remote control, allowing you to operate all basic functions from anywhere on the boat. This remote remains functional even if your smart device runs out of power.
- Funkcije: On/Off, Speed Up/Down, Full Speed, Turn Left/Right, Pairing.
- Punjenje: The remote can be charged with a USB charger (500AH recommended).
6.1 Uparivanje bežičnog daljinskog upravljača
To pair the wireless remote with the motor:
- Ensure the motor shaft is vertical and the battery is connected.
- Press and hold the 'Turtle' (speed down) button on the remote and the 'magnifying glass' (pairing) button on the motor simultaneously for 5 seconds.
- Čut ćete tri zvučna signala, što ukazuje na uspješnu vezu. Otpustite oba dugmeta.
Video 6.1.1: Instructions for pairing the 2.4G wireless remote control to the Haswing trolling motor.
6.2 Optional Wireless Foot Control
An optional wireless foot control (Model 50805) may be available for hands-free operation. Refer to the foot control's specific instructions for pairing and use.
Video 6.2.1: Instructions for pairing an optional 2.4G wireless foot control to the motor.
7. Održavanje
Regular maintenance ensures optimal performance and extends the life of your trolling motor.
- Nakon svake upotrebe: Temeljno isperite motor slatkom vodom, posebno nakon upotrebe u slanoj vodi, kako biste spriječili koroziju.
- Pregled propelera: Regularly check the propeller for fishing line, weeds, or damage. Remove any obstructions and replace damaged propellers promptly.
- Održavanje baterije: Keep the battery charged and ensure terminals are clean and free of corrosion.
- Inspekcija kablova: Check all electrical cables for wear, cuts, or loose connections.
8. Otkrivanje problema
If you encounter issues with your Haswing GPS Trolling Motor, refer to the following common troubleshooting steps:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Motor se ne pali | Low battery, loose connection, remote not paired. | Check battery charge, secure all connections, re-pair remote. |
| Motor radi s prekidima | Loose battery connection, propeller obstructed. | Check battery connections, clear propeller. |
| GPS features not working | Weak GPS signal, app not connected. | Budite jasni view of sky, check app connection and GPS signal strength. |
| Daljinski upravljač ne reagira | Remote battery low, remote out of range, interference. | Charge remote, move closer to motor, check for interference. |
8.1 Emergency Protection
The Safety-Buckle in the ultra-rugged charging cable allows for immediate motor shutdown by unplugging it, preventing damage in case of an emergency.
9. Specifikacije
| Feature | Specifikacija |
|---|---|
| Model | 50736-120W |
| Snaga potiska | 55 lbs |
| Max Voltage | DC 12V |
| Power-Max | 660W |
| Amp-Max | 55A |
| Podešavanje dubine | Depth Collar |
| Tip propelera | Propeler sa 3 lopatice / prečnik 9.3 inča |
| Brzina propelera pri punoj snazi | Maks. 1250 o/min pod vodom |
| Potreban tip baterije | 1 x 105AH Deep Cycle |
| Upravljanje | 360 stepeni kontrole |
| Nivo decibela (db) | 50db |
| Tip osovine | Cast Aluminium |
| Dužina osovine | 48 inča |
| Maksimalna dužina broda (prijedlog) | 18.05 stopa (5.5m) |
| Težina artikla | 30.65 funti |
| Materijal | Aluminijum |
| Boja | Bijelo |
| Vrsta montaže | Bow Mount |
| Preporučena upotreba | For Fishing Boats, For Salt Water |
10. Garancija i podrška
Your Haswing GPS Trolling Motor comes with a Dve godine garancije. For warranty claims, technical support, or any product-related inquiries, please contact Haswing customer service. Refer to your purchase documentation for specific contact details.
