Tangkula 10FT Outdoor Patio Umbrella with Solar LED Lights - Instruction Manual

1. Upute za postavljanje

Follow these steps to correctly assemble your Tangkula 10FT Outdoor Patio Umbrella.

1.1 Raspakivanje i identifikacija komponenti

Carefully remove all components from the packaging. Ensure all parts are present before beginning assembly. Refer to the diagram below for component identification.

Slika 1: Eksplodirao view of umbrella components.

1.2 Sklop baze

1. Connect the two main base bars to form a cross shape.
2. Secure the central pole support to the assembled cross base using the provided bolts and wrench.

Figure 2: Cross base assembly.

Napomena: The cross base provides initial stability. For enhanced stability, especially in windy conditions, it is recommended to use additional umbrella weights (not included). Refer to compatible base weights such as B08519Z2FW.

Figure 3: Cross base with recommended weights (not included).

1.3 Spajanje solarnih panela

1. Locate the solar panel on top of the umbrella canopy.
2. Carefully remove the protective plastic film from the solar panel.
3. Connect the solar panel's wire to the corresponding connector located within the umbrella pole. Ensure a secure connection.

1.4 Attaching the Umbrella Canopy

1. Carefully lift the folded umbrella canopy and insert its main pole into the base support.
2. Secure the umbrella pole to the base using the provided knob.

2. Uputstvo za upotrebu

This section details how to operate your patio umbrella for optimal use.

2.1 Otvaranje i zatvaranje kišobrana

The umbrella features a crank handle system for easy opening and closing.

1. To open: Rotate the crank handle clockwise until the canopy is fully extended.
2. To close: Rotate the crank handle counter-clockwise until the canopy is fully retracted.

Figure 4: Operating the crank handle.

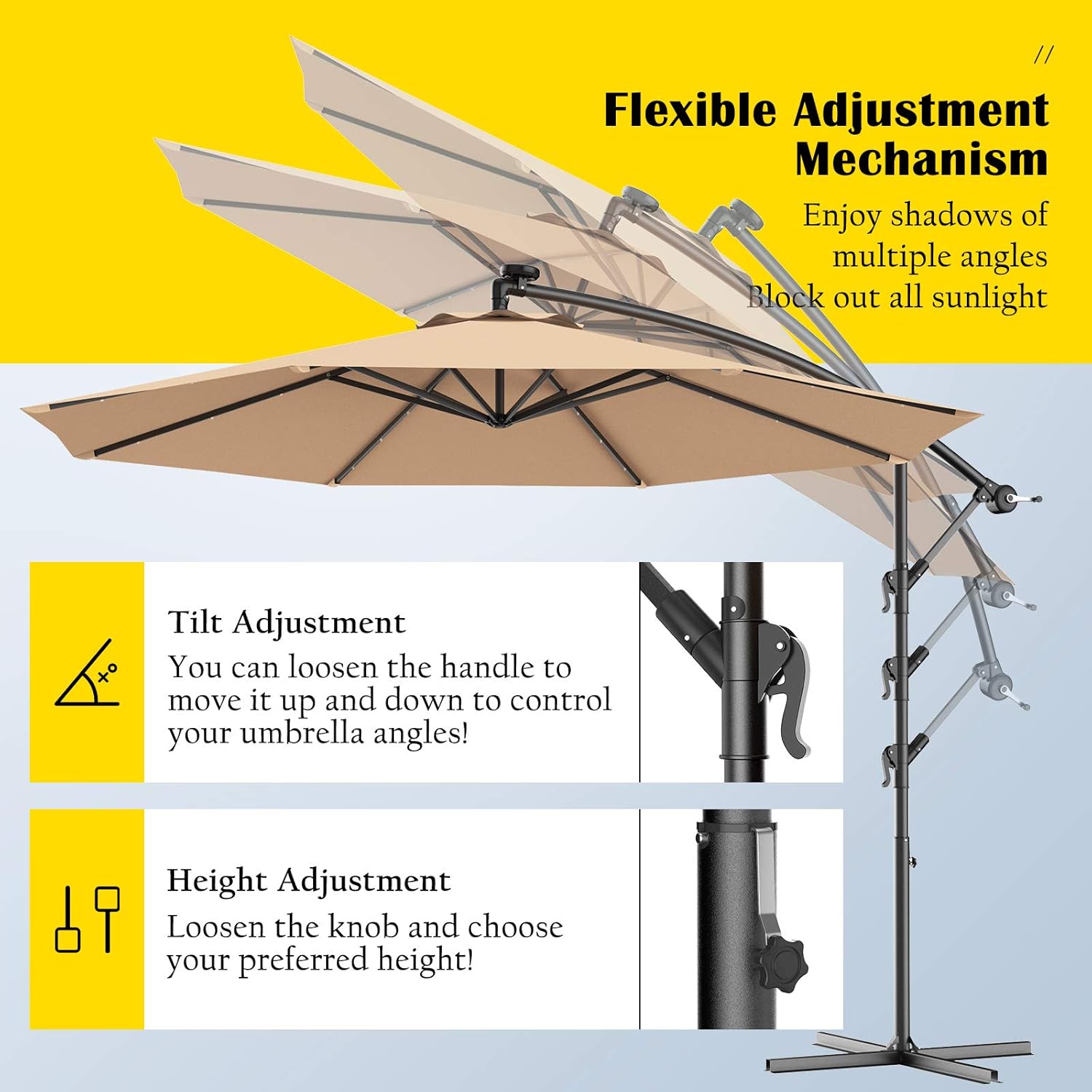

2.2 Adjusting Tilt and Height

The umbrella offers flexible adjustment mechanisms for tilt and height to provide optimal shade.

• Podešavanje nagiba: Loosen the tilt adjustment handle, position the canopy to your desired angle, and then tighten the handle to secure it.
• Podešavanje visine: Loosen the height adjustment knob on the main pole, slide the umbrella to your preferred height, and then tighten the knob to secure it.

Figure 5: Tilt and height adjustment mechanisms.

2.3 Solar LED Lights

The umbrella is equipped with 24 solar-powered LED lights for nighttime illumination. The solar panel charges during the day.

• To activate the lights: Locate the on/off switch on one of the umbrella ribs (typically near the main pole) and flip it to the "ON" position.
• To deactivate the lights: Flip the switch to the "OFF" position.

Figure 6: Solar LED lights operation (Day/Night).

Figure 7: Umbrella with LED lights illuminated at night.

3. Održavanje

Proper maintenance ensures the longevity and performance of your patio umbrella.

3.1 Čišćenje nadstrešnice

• To clean the umbrella canopy, use a soft cloth with water and a mild detergent.
• Avoid using harsh chemicals, abrasive cleaners, or stiff brushes, as these can damage the fabric and its waterproof coating.
• Rinse thoroughly with clean water and allow the canopy to air dry completely before closing or storing.

3.2 Skladištenje

• When not in use for extended periods, or during inclement weather (strong winds, heavy rain, snow), close the umbrella and secure it.
• For long-term storage, store the umbrella in a dry place to prevent damage from moisture, mold, or mildew.
• Consider using a protective cover (not included) to shield the umbrella from dust, dirt, and UV exposure when stored outdoors.

3.3 Opšta njega

• Regularly inspect all bolts and connections to ensure they remain tight. Tighten as necessary.
• Ensure the solar panel is clean and free of debris to maintain charging efficiency.
• Do not hang heavy items from the umbrella ribs or pole.

4. Otkrivanje problema

This section addresses common issues you might encounter with your patio umbrella.

4.1 Solar LED Lights Not Working

• Check the switch: Ensure the on/off switch for the lights is in the "ON" position.
• Solar panel exposure: Verify that the solar panel receives direct sunlight for several hours during the day to charge the battery. Obstructions or cloudy weather can reduce charging efficiency.
• Plastic film: Confirm that the protective plastic film has been removed from the solar panel.
• Veze: Check that the solar panel's wire is securely connected to the internal wiring.
• Trajanje baterije: If the umbrella is new, allow a full day of charging before first use. Over time, rechargeable batteries may degrade and require replacement.

4.2 Umbrella Instability

• Base weights: The cross base requires additional weights for proper stability. Ensure appropriate base weights (e.g., sandbags, concrete blocks, or specialized umbrella base weights) are placed on the cross base.
• Zategnite spojeve: Verify that all bolts and knobs securing the umbrella pole to the base and the tilt mechanism are tightened.
• Wind conditions: Close the umbrella during strong winds to prevent damage or tipping.

4.3 Difficulty Opening/Closing

• Crank mechanism: Ensure the crank mechanism is free of obstructions. Apply a silicone-based lubricant if the mechanism feels stiff.
• Fabric obstruction: Check if the canopy fabric is snagged or caught in the ribs or mechanism.

5. Specifikacije

6. Jamstvo i podrška

For warranty information or product support, please contact Tangkula customer service. Keep your purchase receipt for warranty claims.

Kontakt podatke za podršku često možete pronaći na proizvođačevoj webweb-mjestu ili putem prodavača gdje je proizvod kupljen.
