1. Proizvod je gotovview
The EBARA AGA 0.75 M is a robust single-phase self-priming electric pump constructed from cast iron, designed for efficient clean water transfer. Its applications include domestic water pressure boosting, small-scale garden irrigation, vehicle washing, and general water movement tasks.

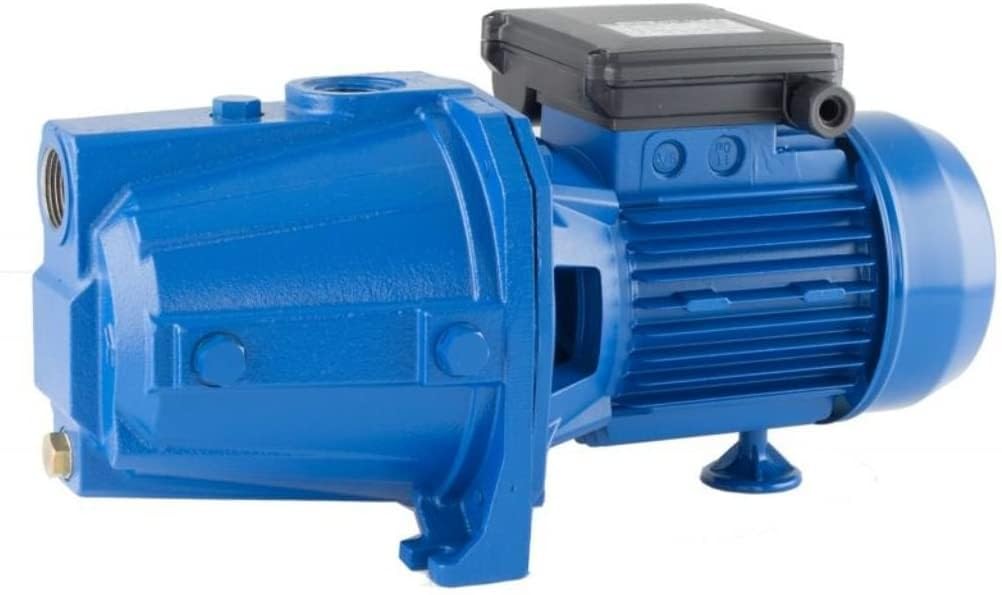

This image shows the EBARA AGA 0.75 M self-priming pump, featuring a blue cast iron body and an integrated electric motor with a black terminal box on top. The pump has visible inlet and outlet connections.
2. Postavljanje i instalacija
Proper installation is crucial for the pump's performance and longevity. Follow these general guidelines:
- plasman: Install the pump in a dry, well-ventilated area, protected from frost and direct sunlight. Ensure a stable, level surface to minimize vibration.
- Priključci cijevi: Connect the suction pipe to the pump's G1 suction port and the delivery pipe to the G1 delivery port. Ensure all connections are airtight to prevent air ingress, which can affect priming. Use appropriate sealants and fittings.
- Električni priključak: The pump operates on 230 V ± 10% 50 Hz single-phase power. Connect the pump to a suitable electrical supply according to local regulations. Ensure the circuit is protected by a permanent capacitor and an automatic reset thermal-amperometric protection device.
- Prajming: As a self-priming pump, it can draw water from a certain depth (up to 8m). Before initial startup, fill the pump body completely with clean water through the priming port until it overflows. This ensures the pump can establish suction.
3. Uputstvo za upotrebu
Once installed and primed, the pump is ready for operation:
- Prvo pokretanje: After priming, switch on the power supply. The pump should start drawing water and build pressure.
- Nadgledanje: Observe the pump during operation. Listen for unusual noises and check for leaks. Ensure consistent water flow and pressure.
- Kontinuirani rad: The pump is designed for continuous duty within its specified operating limits. Avoid running the pump dry, as this can cause damage to the mechanical seal.
- Ugasiti: To stop the pump, simply switch off the power supply.
4. Održavanje
Regular maintenance helps ensure the longevity and efficient operation of your pump:
- Redovni pregled: Periodically check all connections for leaks and ensure the pump is securely mounted. Inspect the power cable for any damage.
- čišćenje: Keep the pump exterior clean and free from debris. Ensure the motor's ventilation fins are not obstructed to prevent overheating.
- Zimovanje (ako je primjenjivo): In areas prone to freezing temperatures, drain the pump completely to prevent damage from ice expansion. Disconnect pipes and open drain plugs. Store the pump in a frost-free environment if possible.
- Mehanička brtva: The mechanical seal is a wear part. If persistent leaks occur from the shaft area, the seal may need replacement by a qualified technician.
5. Otkrivanje problema
Ovaj odjeljak se bavi uobičajenim problemima s kojima se možete susresti:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Pumpa se ne pokreće | No power supply; Motor overload protection tripped; Seized impeller | Check power connection and circuit breaker; Allow motor to cool and reset protection; Contact qualified technician. |
| Pump runs but no water flow | Pump not primed; Air leak in suction line; Suction lift too high; Clogged suction filter | Re-prime the pump; Check all suction connections for leaks; Ensure suction depth is within 8m limit; Clean suction filter. |
| Low pressure or reduced flow | Partial air leak; Partially clogged impeller/pipes; Worn impeller or mechanical seal | Check suction line for small leaks; Inspect and clean impeller/pipes; Contact qualified technician for inspection. |
| Prekomjerna buka ili vibracije | Kavitacija (zrak u vodi); Labava montaža; Habanje ležajeva | Ensure proper priming and no air leaks; Securely fasten pump; Contact qualified technician. |
6. Specifikacije
| Feature | Detalj |
|---|---|
| Proizvođač | Ebara |
| Broj modela | 1100090000 |
| Materijal | Liveno gvožđe |
| Izvor napajanja | Corded Electric |
| Voltage | 230 volti (AC) |
| Maksimalni radni pritisak | 6 bara |
| Maksimalna temperatura tečnosti | 45 °C |
| Maksimalna dubina usisavanja | 8 m |
| Usisni priključak | G1 |
| Delivery Connection | G1 |
| Motor Efficiency | IE2 and IE3 (from 0.75 kW) |
| Klasa izolacije | F |
| Stepen zaštite | IP44 |
| Dimenzije paketa | 40.5 x 18.5 x 18 cm |
| Težina artikla | 12.5 kilograma |
| Baterije uključene | br |
| Baterije su potrebne | br |
| Dostupnost rezervnih dijelova | Informacije nisu dostupne |
7. Garancija i podrška
For warranty information and technical support, please refer to the documentation provided with your purchase or contact your authorized Ebara dealer. Information regarding spare parts availability is currently not provided in the product specifications.
