Cecotec Extreme Track - Uputstvo za upotrebu za sklopivu električnu traku za trčanje

1. Uvod

Thank you for choosing the Cecotec Extreme Track Folding Electric Treadmill. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new fitness equipment. Please read this manual thoroughly before using the treadmill and retain it for future reference.

2. Važna sigurnosna uputstva

To reduce the risk of serious injury, read all instructions before using this treadmill. The manufacturer is not responsible for personal injury or property damage sustained by or through the use of this product.

• Always consult with a physician before starting any exercise program.
• Držite djecu i kućne ljubimce podalje od trake za trčanje tokom rada.
• Place the treadmill on a solid, level surface with at least 2 meters of clear space behind it and 0.6 meters on each side.
• Nosite odgovarajuću odjeću za vježbanje i sportske cipele. Izbjegavajte široku odjeću koja bi se mogla zapetljati.
• Use the magnetic safety key at all times. Attach the clip to your clothing. If the key is removed, the treadmill will stop.
• Ne koristite traku za trčanje ako je oštećen kabel ili utikač, ako ne radi ispravno ili ako je pala ili je oštećena.
• Do not attempt to service the treadmill yourself. Contact qualified service personnel.
• Maximum user weight for this treadmill is 120 kg.
• Ensure the power cord is not pinched or damaged during setup or use.
• Do not use outdoors or in areas of high humidity.
• Always hold the foam grip arms when starting or stopping the treadmill, or when adjusting speed/incline.

3. Sadržaj paketa

Carefully unpack the box and verify that all the following items are present:

• Cecotec Extreme Track Folding Electric Treadmill (main unit)
• Uputstvo za upotrebu
• Power Cable
• Bottle Holder
• Armrests with Foam Grips (pre-attached or separate)
• LCD Screen (control panel)
• USB Connector (integrated)
• MP3 Connector (integrated)
• iPad Holder (integrated or attachable)
• Garantna dokumentacija
• Assembly Tools (Allen keys, screwdriver - if not already included in the blister pack)

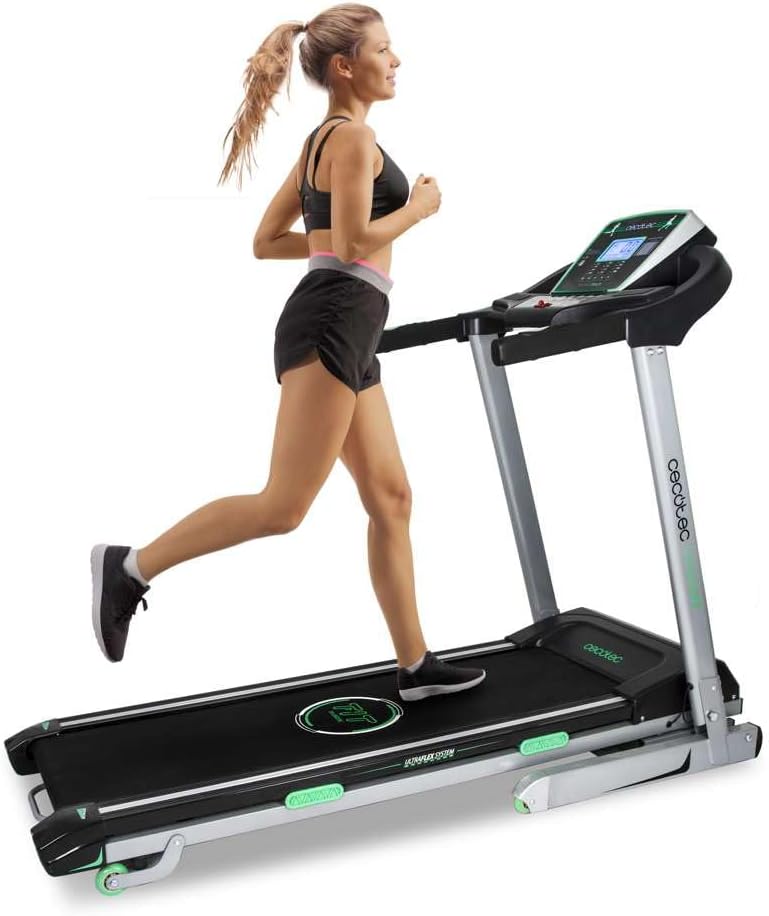

Image 1: Cecotec Extreme Track Folding Electric Treadmill. This image shows the treadmill in its unfolded, operational state with a user running on it, highlighting its design and functionality.

4. Montaža i postavljanje

The Cecotec Extreme Track treadmill comes largely pre-assembled. However, some final assembly steps are required before first use. Due to its weight (62 kg) and dimensions, it is recommended that dvije osobe perform the assembly.

4.1 Rasklapanje trake za trčanje

1. Postavite traku za trčanje na ravnu, stabilnu površinu.
2. Locate the hydraulic folding system mechanism.
3. Carefully lower the running deck until it is fully flat on the floor. Ensure it locks securely into place.

4.2 Attaching the Console and Uprights (if separate)

Follow the detailed instructions in the included user manual for attaching the console and securing the uprights. This typically involves aligning the uprights, securing them with bolts, and connecting any necessary cables to the LCD console.

4.3 Priključak za napajanje

• Ensure the treadmill's power switch is in the OFF position.
• Plug the power cable into the treadmill's power input.
• Uključite drugi kraj kabla za napajanje u uzemljenu električnu utičnicu.

5. Uputstvo za upotrebu

5.1 Kontrolna tabla prekoview

The LCD control panel displays key workout metrics and allows you to control the treadmill's functions. It typically shows:

• brzina: Current running speed (1-18 km/h).
• vrijeme: Trajanje vašeg treninga.
• Udaljenost: Ukupna pređena udaljenost.
• Kalorije: Procijenjene sagorene kalorije.
• Otkucaji srca: Measured via hand pulse sensors on the grip arms.
• Funkcija skeniranja: Cycles through display metrics automatically.

5.2 Početak treninga

1. Ensure the treadmill is plugged in and the power switch is ON.
2. Attach the magnetic safety key to the designated spot on the console and clip the other end to your clothing.
3. Stanite na bočne ograde trake za trčanje.
4. Pritisnite START dugme na konzoli. Remen će početi da se kreće malom brzinom.
5. Pažljivo stanite na traku za trčanje i počnite hodati.
6. Podesite brzinu pomoću BRZINA +/- buttons or quick-speed buttons on the console or grip arms.
7. Adjust the incline using the NAKLON +/- buttons or quick-incline buttons on the console.

5.3 Using Predefined Programs

The treadmill features 12 predefined training programs and 4 preset speed/inclination modes. Consult your specific user manual for detailed instructions on how to select and customize these programs. Generally, you will use a PROGRAM button to cycle through options and MODE dugme za odabir.

5.4 Zaustavljanje treninga

• Pritisnite STOP button on the console. The belt will gradually slow down and stop.
• Alternatively, pull the magnetic safety key from the console to initiate an emergency stop.
• Once the belt has completely stopped, step off the treadmill.

5.5 Media Connectivity

• USB konektor: Use the integrated USB port to charge your mobile device or tablet.
• MP3 Connector: Connect your MP3 player or smartphone via the MP3 input to play audio through the treadmill's speakers.
• iPad Holder: Place your tablet or smartphone in the integrated holder for entertainment during your workout.

6. Održavanje

Redovno održavanje osigurava dugotrajnost i optimalne performanse vaše trake za trčanje.

6.1 Čišćenje

• Uvijek isključite traku za trčanje iz struje prije čišćenja.
• Wipe down the console and other surfaces with a soft, damp krpom. Izbjegavajte abrazivna sredstva za čišćenje ili rastvarače.
• Povremeno usisavajte ispod trake za trčanje kako biste spriječili nakupljanje prašine i prljavštine.

6.2 Podmazivanje remena za trčanje

Proper lubrication of the running belt is crucial for smooth operation and to prevent wear. While the provided manual may lack specific details, general guidelines for treadmill lubrication are:

• Učestalost: Lubricate every 3-6 months, or after approximately 100-150 hours of use, depending on usage intensity.
• Procedura:
  1. Isključite traku za trčanje.
  2. Lagano otpustite vijke zadnjeg valjka da biste podigli remen.
  3. Apply a thin line of 100% silicone lubricant (specifically designed for treadmills) evenly under the center of the running belt.
  4. Tighten the rear roller bolts to their original tension.
  5. Plug in the treadmill and run it at a slow speed (e.g., 3 km/h) for 5 minutes to distribute the lubricant.
• Refer to the specific instructions provided with your treadmill lubricant for best results.

6.3 Zatezanje i poravnanje remena

If the running belt feels loose or drifts to one side, it may need adjustment. Consult the detailed instructions in your user manual for proper belt tensioning and alignment procedures. Incorrect adjustment can damage the belt or motor.

7. Otkrivanje problema

This section addresses common issues you might encounter with your treadmill. If the problem persists, contact customer support.

8. Specifikacije proizvoda

• Model: Extreme Track (07011)
• Snaga motora: 3 CV (Continuous Horsepower)
• Raspon brzine: 1 - 18 km/h
• Incline System: Automatic Motorized Tilt
• Cushioning System: UltraFlex System (8 elastomers)
• Radna površina: 130 x 42 cm
• Programi: 12 Predefined Training Programs, 4 Preset Speed/Incline Modes
• Prikaz: LCD Screen (Speed, Time, Distance, Calories, Heart Rate, Scan Function)
• Povezivanje: USB port (charging), MP3 input, iPad/Tablet holder
• Folding System: AutoFold Tech (Hydraulic)
• sigurnost: Magnetic Safety System
• Maksimalna težina korisnika: 120 kg
• Dimenzije proizvoda (rasklopljeno): 173 cm (dužina) x 78 cm (širina) x 29.5 cm (visina)
• Težina proizvoda: 62 kg
• Materijal: čelična legura
• Boja: Green (as per product details, though main image shows black/grey/green)

9. Garancija i korisnička podrška

Your Cecotec Extreme Track Treadmill comes with a manufacturer's warranty. Please refer to the included Garantna dokumentacija for specific terms, conditions, and duration of the warranty.

For technical assistance, spare parts, or any questions regarding your product, please contact Cecotec customer support. Contact information can typically be found on the warranty documentation or the official Cecotec website.

Prilikom kontaktiranja podrške, pripremite broj modela vašeg proizvoda (07011) i informacije o kupovini.
