Xerox VersaLink B405/DN monokromatski višenamjenski pisač Korisnički priručnik

1. Uvod

This user manual provides detailed instructions for the safe and efficient operation of your Xerox VersaLink B405/DN Monochrome Multifunction Printer. It covers initial setup, daily use, routine maintenance, and troubleshooting common issues. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

Slika 1.1: Prednja strana view of the Xerox VersaLink B405/DN Multifunction Printer.

2. Sigurnosne informacije

Pridržavajte se sljedećih sigurnosnih mjera opreza kako biste spriječili ozljede i oštećenje pisača:

• Uvijek priključujte štampač na uzemljenu utičnicu.
• Ne blokirajte otvore za ventilaciju.
• Držite štampač dalje od vode ili prekomerne vlage.
• Use only specified power cords and accessories.
• Do not attempt to service the printer yourself; refer all servicing to qualified personnel.

3. Sadržaj paketa

Provjerite da li su sve stavke prisutne u paketu:

• Xerox VersaLink B405 Multifunction Printer
• Standard Capacity Toner Cartridge (5900 capacity)
• CD sa softverom i dokumentacijom
• Vodič za instalaciju
• Vodič za brzu upotrebu
• Kabl za napajanje
• Fax kabl

4. Podešavanje

4.1 Raspakivanje i postavljanje

Carefully remove the printer from its packaging. Place the printer on a stable, level surface with adequate ventilation. Ensure sufficient space around the device for operation and maintenance.

4.2 Priključak za napajanje

Connect the provided power cord to the printer's power inlet and then to a grounded electrical outlet.

4.3 Mrežna veza

Connect an Ethernet cable from your network router or switch to the Ethernet port on the rear of the printer. This printer uses an Ethernet hardware interface for network connectivity.

4.4 Instalacija softvera

Insert the software and documentation CD into your computer's CD-ROM drive. Follow the on-screen instructions to install the printer drivers and utility software. Alternatively, visit the official Xerox support webstranica za preuzimanje najnovijih drajvera.

4.5 Umetanje papira

Open the paper tray located at the front of the printer. Adjust the paper guides to fit the size of your paper. Load the paper stack, ensuring it does not exceed the maximum fill line. The printer supports various print media including plain paper, envelopes, and labels, with a maximum media size of 8.5 x 14 inches.

Slika 4.1: Prednja strana view showing the paper trays for loading media.

4.6 Instalacija toner kasete

If the toner cartridge is not pre-installed, open the front access panel of the printer. Carefully insert the standard capacity toner cartridge into its designated slot until it clicks into place. Close the access panel.

5. Uputstvo za upotrebu

The VersaLink B405/DN features an intuitive control panel for managing various functions.

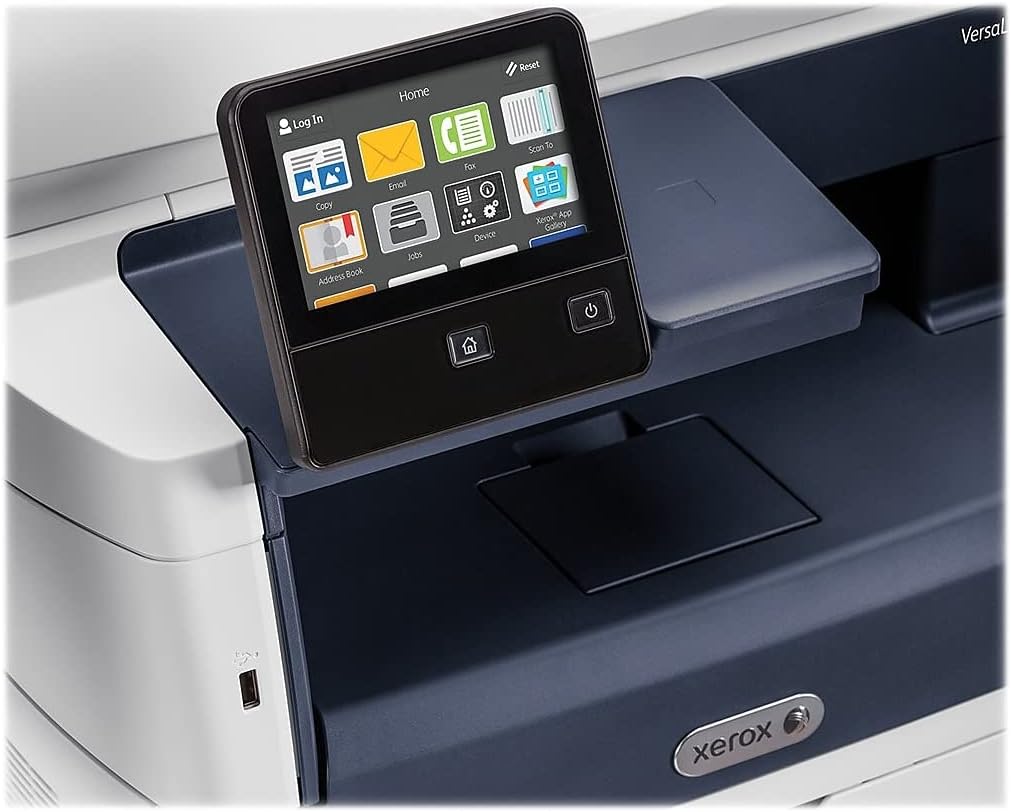

Figure 5.1: The touch-screen control panel for printer operation.

5.1 Štampanje

To print a document from your computer, select the Xerox VersaLink B405/DN from your printer list. Adjust print settings such as paper size, orientation, and duplex printing (automatic dual-sided printing is supported) as needed. Confirm the print job.

5.2 Kopiranje

Place your document face-up in the Automatic Document Feeder (ADF) or face-down on the scanner glass. On the control panel, select the 'Copy' function. Adjust settings like number of copies, lightness/darkness, and two-sided copying. Press the 'Start' button to begin copying.

Figure 5.2: Paper loaded in the Automatic Document Feeder for copying or scanning multiple pages.

5.3 Skeniranje

Place your document in the ADF or on the scanner glass. On the control panel, select the 'Scan' function. Choose your desired scan destination (e.g., Scan to Email, Scan to Network, Scan to USB). Configure scan settings such as resolution and file format. Press 'Start' to initiate the scan.

Figure 5.3: The scanner lid open, showing the flatbed for scanning single pages or delicate documents.

5.4 Faksiranje

Connect the provided fax cord to the printer's fax port and a telephone wall jack. Place your document in the ADF or on the scanner glass. On the control panel, select the 'Fax' function. Enter the recipient's fax number and press 'Start'.

6. Održavanje

6.1 Zamjena tonera

When the printer indicates low toner, order a replacement Xerox toner cartridge. Open the front access panel, remove the old cartridge by pulling it out, and insert the new cartridge until it locks into place. Close the panel.

6.2 Čišćenje

Redovno čistite spoljašnjost štampača mekom,amp cloth. For the scanner glass, use a lint-free cloth and a non-abrasive glass cleaner. Avoid spraying cleaner directly onto the glass.

6.3 Uklanjanje zaglavljenog papira

If a paper jam occurs, the control panel will display instructions. Open the indicated access covers and carefully remove any jammed paper, pulling in the direction of the paper path. Ensure all paper fragments are removed before closing the covers.

7. Otkrivanje problema

Ovaj odjeljak se bavi uobičajenim problemima s kojima se možete susresti:

• Štampač ne reaguje: Check power connections, network cable, and ensure the printer is online. Restart both the printer and your computer.
• Loš kvalitet štampe: Check toner levels. Perform a print quality diagnostic from the printer's control panel or software. Clean the print heads if necessary (refer to the printer's internal menu).
• Zaglavljivanje papira: Follow the instructions on the control panel to locate and clear the jam. Ensure paper is loaded correctly and not creased or damaged.
• Problemi sa skeniranjem: Verify network connectivity. Ensure the scanner glass and ADF are clean. Check scan settings on the control panel.

For more complex issues, consult the full documentation on the provided CD or the Xerox support website.

8. Specifikacije

9. Garancija i podrška

The Xerox VersaLink B405/DN Monochrome Multifunction Printer comes with a standard one-year warranty. For warranty claims, technical support, or service inquiries, please contact Xerox customer support directly. Refer to the official Xerox website or the documentation included with your product for contact details and further support resources.
