FITFIU BESP-22 Indoor Bike Korisničko uputstvo

1. Uvod

Thank you for choosing the FITFIU BESP-22 Indoor Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read it thoroughly before first use and keep it for future reference.

Product Overview

The FITFIU BESP-22 is a robust indoor cycling bike designed for home training. It features a 24kg inertia flywheel, adjustable resistance levels, and a comfortable, adjustable saddle and handlebars. The integrated monitor tracks key workout metrics.

Slika 1.1: Glavna view of the FITFIU BESP-22 Indoor Bike. This image displays the complete assembled bike from a slight angle, highlighting its black and red design, the flywheel, pedals, saddle, and handlebars with the integrated monitor.

Sigurnosne informacije

• Konsultujte se sa lekarom pre nego što započnete bilo koji program vežbanja.
• Prije svake upotrebe provjerite jesu li svi dijelovi dobro zategnuti.
• Držite djecu i kućne ljubimce podalje od opreme tokom rada.
• Postavite bicikl na ravnu, stabilnu površinu.
• Nosite odgovarajuću odjeću i obuću za vježbanje.
• Maksimalna težina korisnika za ovaj bicikl je 120 kg.

2. Postavljanje i montaža

The FITFIU BESP-22 Indoor Bike requires assembly. Please follow these instructions carefully. Tools for assembly are typically included.

Unpacking and Initial Checks

1. Pažljivo izvadite sve komponente iz pakovanja.
2. Verify that all parts listed in the assembly diagram (not provided in this text, refer to physical manual) are present.
3. Važno: Locate and remove any transport stoppers or protective materials from the flywheel and other moving parts. Failure to remove these stoppers will prevent the bike from functioning correctly and may cause damage. These are typically found underneath the flywheel.

Koraci montaže (Opće smjernice)

While specific diagrams are not available here, typical assembly involves:

• Pričvršćivanje prednjeg i zadnjeg stabilizatora na glavni okvir.
• Mounting the pedals to the crank arms (note left and right pedal threading).
• Inserting and securing the saddle post and saddle.
• Inserting and securing the handlebar post and handlebars.
• Connecting any sensor cables for the monitor.

Ensure all bolts and nuts are tightened securely after assembly. Periodically check for tightness during use.

3. Operacija

This section details how to use your FITFIU BESP-22 Indoor Bike effectively and safely.

Adjusting Saddle and Handlebars

Proper adjustment is crucial for comfort and injury prevention.

• Visina sedla: Loosen the adjustment knob on the saddle post. Adjust the saddle so that when your foot is at the bottom of the pedal stroke, your leg is almost fully extended with a slight bend in the knee. Tighten the knob securely.
• Saddle Position (Fore/Aft): Loosen the adjustment knob beneath the saddle. Adjust the saddle forward or backward to align your knee with the ball of your foot when the pedals are horizontal. Tighten the knob securely.
• Visina upravljača: Loosen the adjustment knob on the handlebar post. Adjust the handlebars to a comfortable height that allows for a slight bend in your elbows and a relaxed upper body posture. Tighten the knob securely.

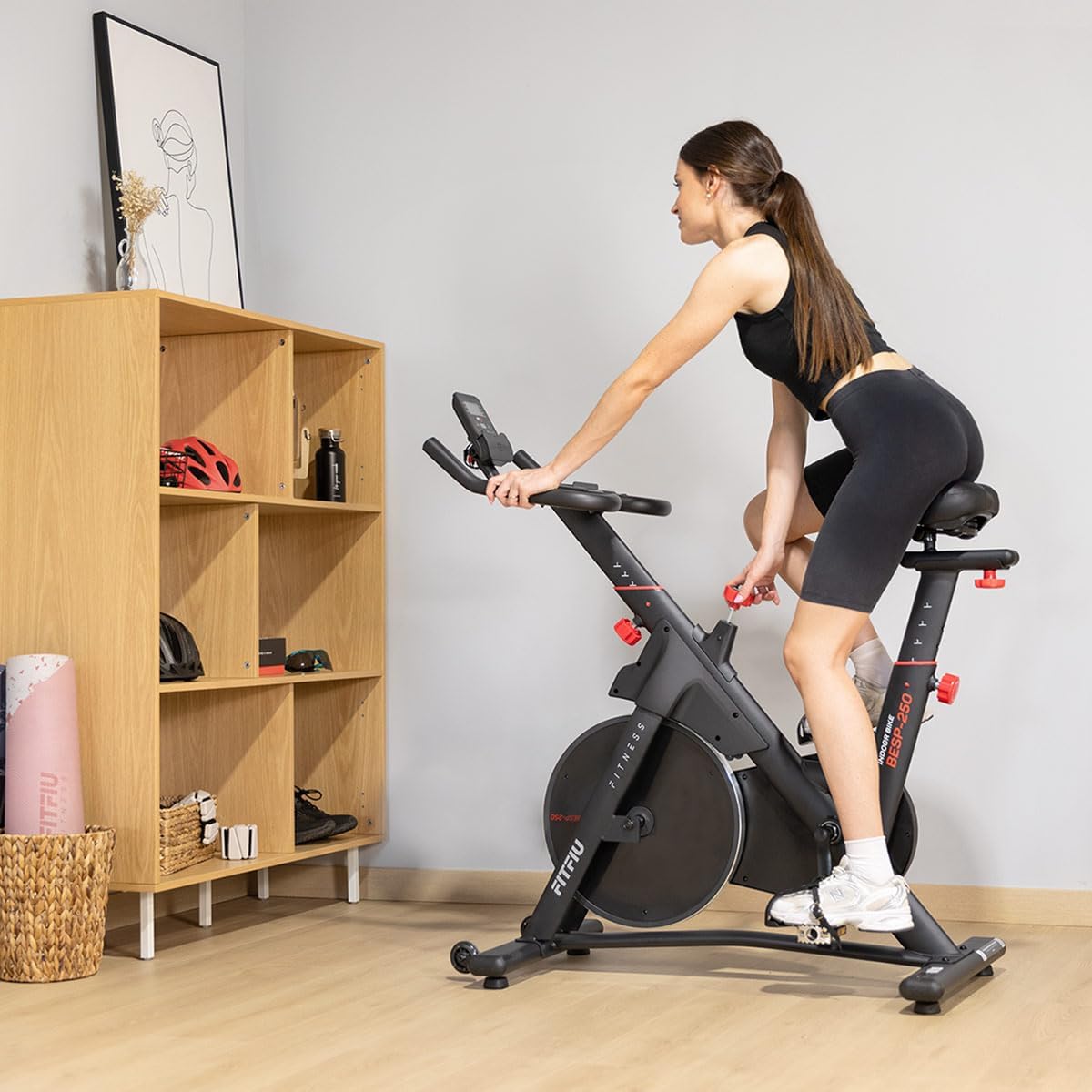

Image 3.1: A user seated on the FITFIU BESP-22 Indoor Bike, demonstrating proper saddle and handlebar positioning for a comfortable ride. The image shows a woman in athletic wear, seated on the bike, with her hands on the handlebars.

Podešavanje otpora

The bike features a friction-based resistance system.

• Povećajte otpor: Turn the red resistance knob clockwise (+). This applies more pressure to the flywheel, making pedaling harder.
• Smanjenje otpora: Turn the red resistance knob counter-clockwise (-). This reduces pressure, making pedaling easier.
• Hitno zaustavljanje: Press down firmly on the resistance knob to quickly stop the flywheel.

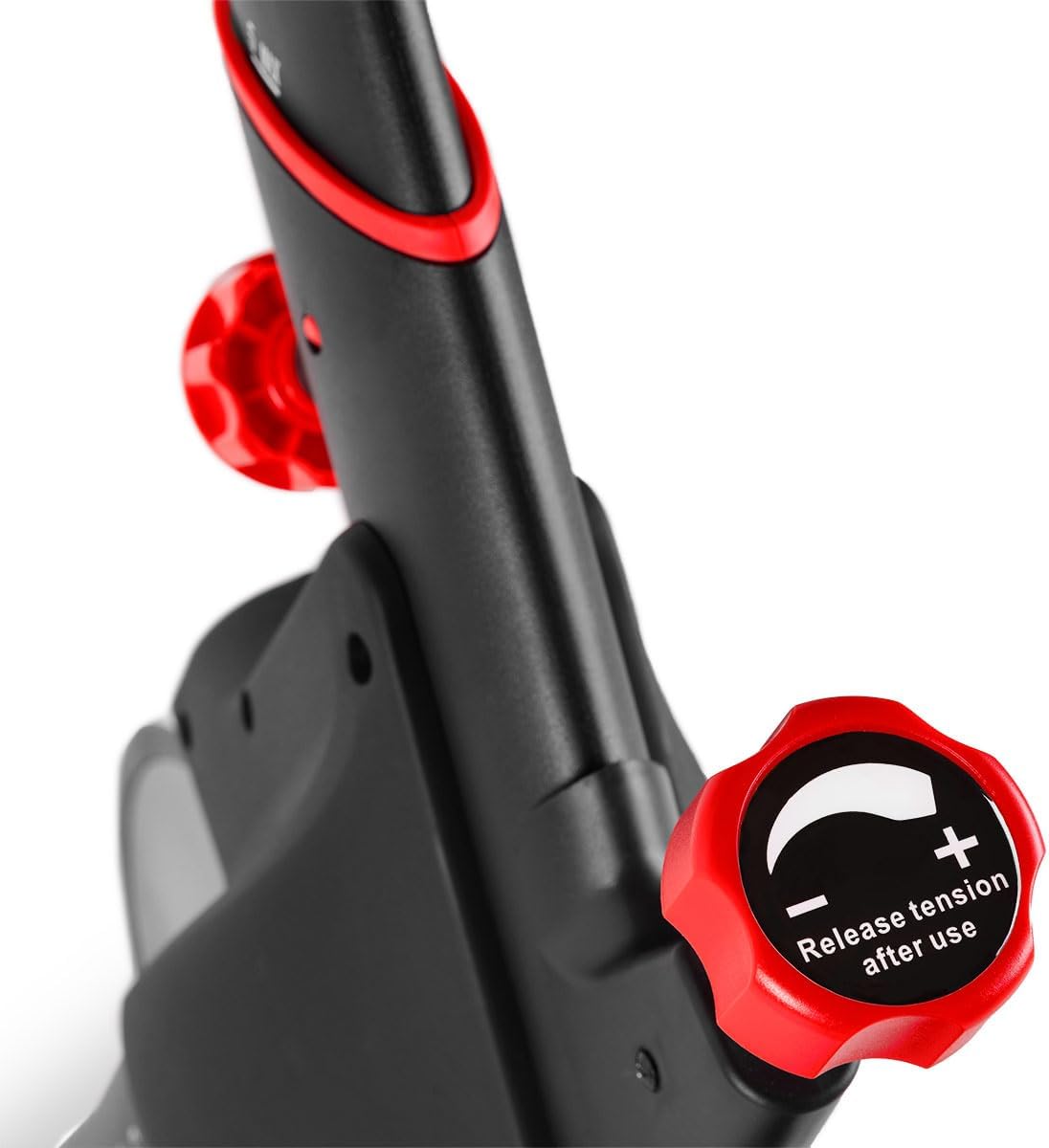

Slika 3.2: Krupni plan view of the red resistance adjustment knob on the FITFIU BESP-22 Indoor Bike. The knob is clearly labeled with '+' and '-' indicators for increasing i dekretasing tension, and instructions to release tension after use.

Korišćenje monitora

The integrated monitor displays various workout metrics. It is battery-powered.

• Funkcije: The monitor typically displays Time, Speed, Distance, Calories, and Pulse (heart rate) via handlebar sensors.
• Operacija: Press the "MODE" button to cycle through display functions. Press "RESET" to clear current workout data.
• Praćenje srčanog ritma: Place both hands firmly on the handlebar sensors to activate the pulse reading. Note that readings may vary and are for reference only.
• baterija: If the monitor is not functioning, check or replace the batteries (usually AAA).

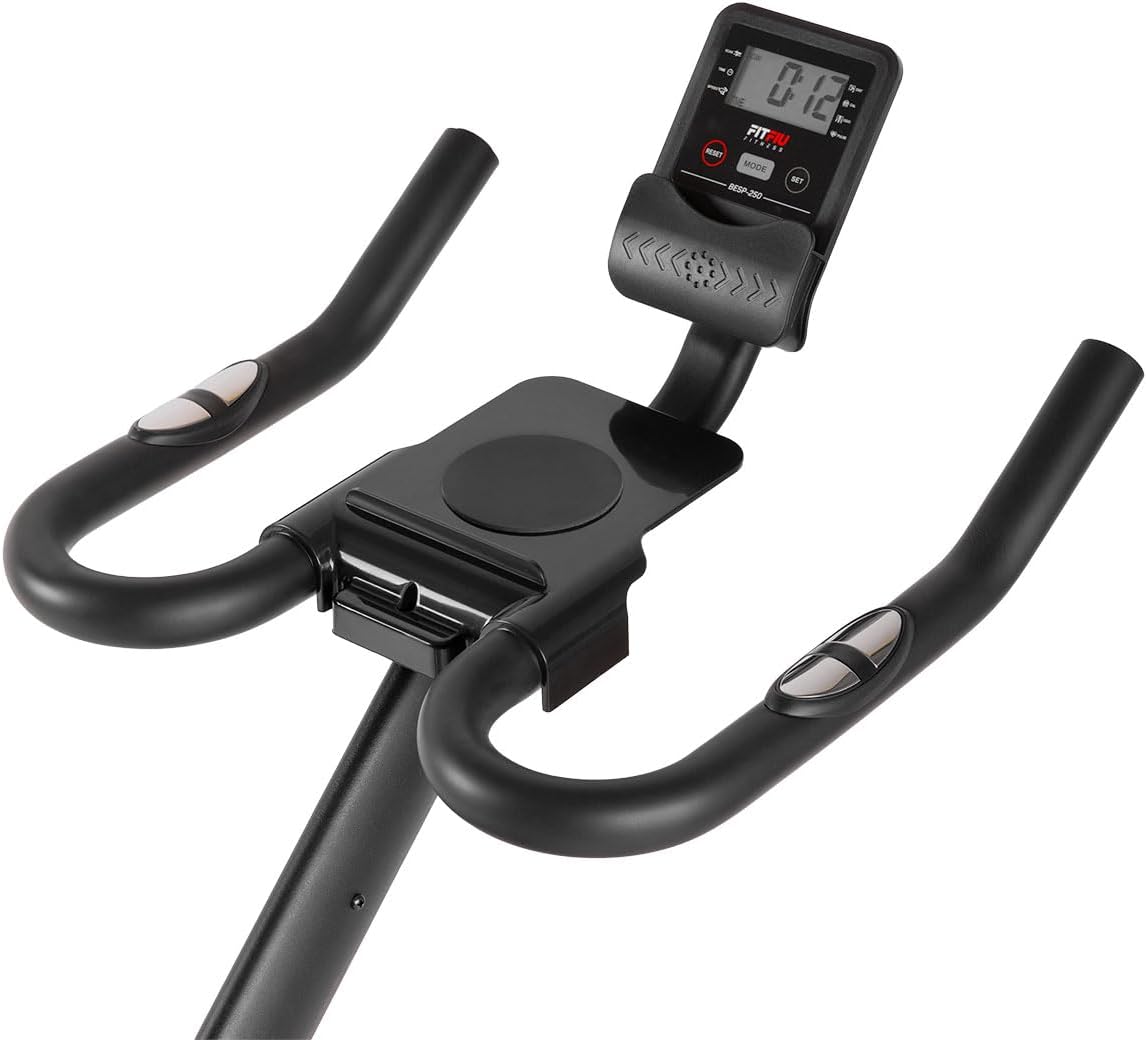

Slika 3.3: Krupni plan view of the FITFIU BESP-22 Indoor Bike's monitor and handlebars. The digital display shows workout metrics, and the handlebars feature integrated pulse sensors and a tablet/phone holder.

Pedals with Toe Clips

The pedals are equipped with toe clips to secure your feet during exercise, providing better power transfer and safety.

• Adjust the straps to ensure a snug fit over your athletic shoes.

4. Održavanje

Regular maintenance ensures the longevity and safe operation of your indoor bike.

Čišćenje

• Obrišite bicikl oglasomamp krpom nakon svake upotrebe kako biste uklonili znoj i prašinu.
• Izbjegavajte upotrebu abrazivnih sredstava za čišćenje ili rastvarača koji bi mogli oštetiti završnu obradu ili elektroničke komponente.

Inspekcije

• sedmično: Check all bolts, nuts, and moving parts for tightness. Re-tighten if necessary.
• mjesečno: Inspect the drive belt for any signs of wear or damage.
• periodično: Check the friction pads for wear. If they become excessively worn, they may need replacement.

Podmazivanje

• Apply a small amount of silicone-based lubricant to the saddle and handlebar posts if they become difficult to adjust.
• The belt drive system is generally maintenance-free and does not require lubrication.

5. Otkrivanje problema

This section addresses common issues you might encounter with your FITFIU BESP-22 Indoor Bike.

6. Specifikacije
