Axis Communications M3037-PVE Network Surveillance Camera User Manual

Uvod

The Axis M3037-PVE is a compact network surveillance camera designed for versatile monitoring. It delivers high-quality images in various lighting conditions, including daylight and low-light environments. This camera supports multiple viewing modes such as 360° overview, panorama, double panorama, 270° corner, and quad views. It features full-duplex audio with echo cancellation and noise reduction, and integrates with IP phone systems via Session Initiation Protocol (SIP). The M3037-PVE also supports the AXIS Camera Application Platform, enabling advanced video analytics like people counting and cross-line detection to enhance situational awareness.

Sadržaj paketa

Provjerite da li su sve komponente prisutne u paketu:

• Axis M3037-PVE Network Surveillance Camera (fixed dome, outdoor, vandal/weatherproof)
• Montažni komplet

Setup

1. Fizička instalacija

The Axis M3037-PVE camera is designed for wall mounting. Use the provided mounting kit to securely attach the camera to the desired location. Ensure the mounting surface is stable and can support the camera's weight.

Slika 1: Close-up of the camera's base, illustrating mounting points.

2. Napajanje i mrežna veza

The camera is powered via Power over Ethernet (PoE). Connect an Ethernet cable from a PoE-enabled switch or injector to the camera's network port. This single connection provides both power and network connectivity. The camera supports Wi-Fi for wireless communication, but a wired Ethernet connection is recommended for initial setup and stable operation.

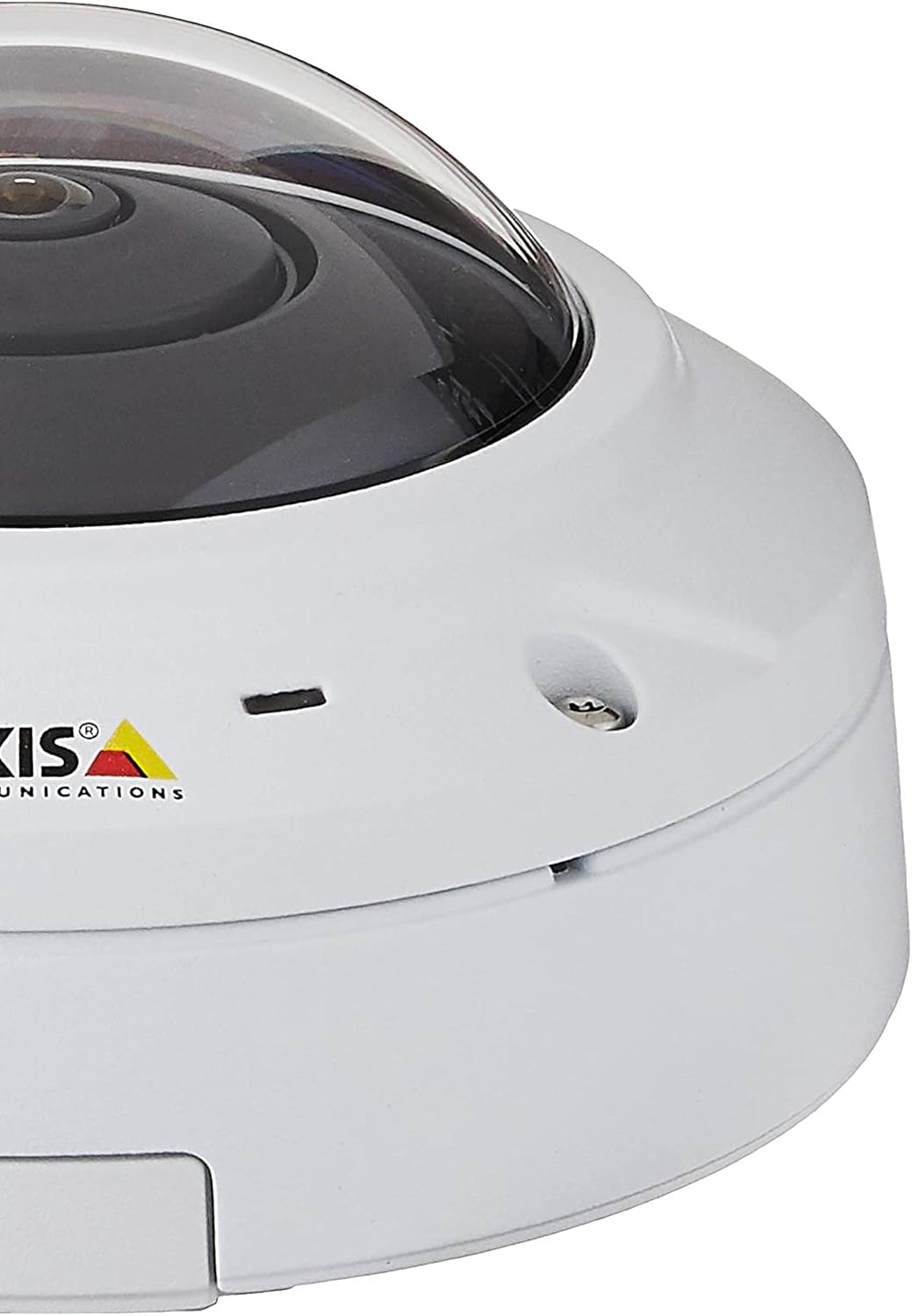

Slika 2: Side view of the camera, highlighting connectivity options.

3. Početna konfiguracija

Once powered, the camera will acquire an IP address. Use the Axis IP Utility or a network scanner to locate the camera on your network. Access the camera's web interfejs preko a web browser using its IP address. Follow the on-screen prompts to set up administrator credentials and basic network settings.

Uputstvo za upotrebu

Viewrežima

The M3037-PVE offers flexible viewing opcije:

• 360° Overview: Provides a complete panoramic view posmatranog područja.
• Dewarped Views: The camera's fisheye lens captures a wide field of view, which can be digitally dewarped into various formats:
  • panorama: A wide, stretched view suitable for long corridors.
  • Double Panorama: Two panoramic views rame uz rame.
  • 270° Corner: Optimized for corner installations.
  • Quad Views: Divides the 360° view into four distinct sections.
• Digital PTZ: Pan, Tilt, and Zoom digitally within any dewarped view to focus on specific areas of interest without mechanical movement.
• više-view Prijenos: Stream multiple dewarped views istovremeno.

Audio karakteristike

The camera includes a built-in weather-proof speaker and microphone, supporting full-duplex audio communication. Echo cancellation and noise reduction features ensure clear audio. Session Initiation Protocol (SIP) support allows for integration with IP phone systems for two-way communication.

Video analitika

Leverage the AXIS Camera Application Platform for advanced surveillance capabilities:

• Brojanje ljudi: Monitor the number of individuals entering or exiting an area.
• Cross-line Detection: Trigger alerts when an object crosses a predefined virtual line.

Kontrolne metode

The camera can be controlled via its web interface or through compatible surveillance management software and mobile applications.

Održavanje

Čišćenje kamere

Regularly clean the camera's dome and lens to ensure optimal image clarity. Use a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the lens coating or housing.

Ažuriranja firmvera

Periodično provjeravajte Axis Communications website for firmware updates. Keeping the camera's firmware up-to-date ensures access to the latest features, security patches, and performance improvements. Follow the instructions provided by Axis for firmware update procedures.

Environmental Considerations

While the camera is weatherproof, ensure its mounting location does not expose it to extreme conditions beyond its operating specifications. Regularly inspect the mounting for stability and check cables for wear or damage.

Rješavanje problema

No Power/No Image

• Verify the Ethernet cable is securely connected to both the camera and the PoE switch/injector.
• Provjerite da li je PoE prekidač/injektor uključen i da li ispravno funkcioniše.
• Check if the PoE port on the switch is active and providing power.

Problemi s mrežnom vezom

• Confirm the camera has a valid IP address. Use the Axis IP Utility to discover devices on the network.
• Provjerite integritet mrežnog kabla.
• Provjerite da nema sukoba IP adresa na vašoj mreži.
• If using Wi-Fi, verify the camera is connected to the correct network and the signal strength is adequate.

Loš kvalitet slike

• Clean the camera lens and dome.
• Adjust camera settings (e.g., exposure, white balance, resolution) via the web interfejs.
• Ensure sufficient lighting in the monitored area, especially for night vision performance.
• Provjerite ima li prepreka u vidnom polju kamere view.

Problemi sa zvukom

• Verify audio settings are enabled in the camera's web interfejs.
• Check microphone and speaker volume levels.
• Ensure no physical obstructions are blocking the microphone or speaker.

Specifikacije

Slika 3: Dimenzije kamere za planiranje instalacije.

Informacije o garanciji

The Axis M3037-PVE Network Surveillance Camera comes with a full manufacturer's warranty. For specific terms, conditions, and duration of the warranty, please refer to the official Axis Communications webweb-mjesto ili dokumentaciju priloženu uz vašu kupovinu. Sačuvajte dokaz o kupovini za potrebe reklamacije.

Napomena: Any returns or warranty claims may require troubleshooting and a case number from Axis Communications support.

Podrška

For technical assistance, product documentation, firmware downloads, or further inquiries, please visit the official Axis Communications support website. You can typically find detailed FAQs, troubleshooting guides, and contact information for customer support there.

Proizvođač: Axis Communications

Webstranica: www.axis.com
