1. Uvod
This manual provides essential information for the safe and proper installation, operation, and maintenance of your Leviton SmartlockPro Blank Face Ground Fault Circuit Interrupter (GFCI). The SmartlockPro self-test GFCI is designed to continuously monitor for ground faults, providing protection against electric shock. It features an automatic internal self-test function and a slim profile radi lakše instalacije.
2. Ključne karakteristike
- Funkcija samotestiranja: Regularly conducts an automatic internal test to confirm proper ground fault response.
- Continuous Protection: Detects and trips on actual ground faults even during self-testing.
- Lampica indikatora statusa: Provides clear feedback on power and protection status, including line/load reversal.
- Poništi zaključavanje: Patented mechanism prevents resetting if the GFCI is damaged or cannot respond to a ground fault.
- Slim dizajn: Reduced depth facilitates easier installation in various electrical boxes.
3. Sigurnosne informacije
WARNING: To avoid fire, shock, or death; turn OFF power at the circuit breaker or fuse box and test that power is OFF before wiring!
- This device must be installed by a qualified electrician or a knowledgeable individual familiar with electrical wiring.
- Uvijek se pridržavajte lokalnih i nacionalnih električnih propisa.
- Nemojte koristiti ovaj uređaj ako se čini da je oštećen.
- Osigurajte pravilno uzemljenje.
- Testirajte GFCI mjesečno kako biste osigurali pravilan rad.
4. Postavljanje i instalacija
The Leviton SmartlockPro GFCI is designed for quick and easy installation due to its slim profile, allowing more room in the electrical box. Ensure power is OFF at the circuit breaker before beginning installation.
4.1 Ožičenje
Properly identify LINE and LOAD wires. The LINE wires bring power from the circuit breaker, and the LOAD wires carry power to downstream outlets protected by this GFCI. Incorrect wiring will prevent the GFCI from providing ground fault protection.
Slika: Sa strane view of the Leviton Blank Face GFCI, showing its slim profile and wiring terminals for connection.
4.2 Video vodič za instalaciju
Video: This official Leviton video demonstrates the easy installation process for a GFCI outlet, highlighting its slim design and wiring connections.
5. Uputstvo za upotrebu
The Blank Face GFCI provides ground fault protection in areas where a standard receptacle is not needed, such as for hard-wired appliances or in conjunction with other protected outlets.
5.1 Self-Test and Indicator Light
The SmartlockPro GFCI continuously monitors its own functionality. A green LED indicator light confirms that the device is working correctly and providing protection. If the LED turns red or does not illuminate, the GFCI may be faulty and requires attention.

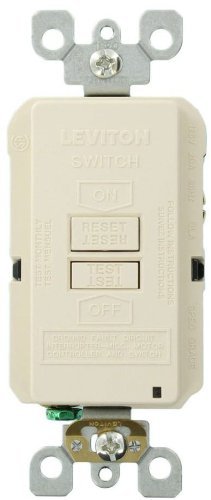

Slika: Front view of the Leviton Blank Face GFCI, showing the TEST and RESET buttons and the LED indicator light.
5.2 Monthly Testing
Even with the self-test feature, it is important to manually test your GFCI monthly to ensure it is functioning correctly. To test:
- Pritisnite TEST button. The GFCI should trip, and the indicator light may change or turn off.
- Pritisnite RESET button. The GFCI should reset, and the indicator light should return to green.
If the GFCI does not trip or reset as described, it may be faulty and should be replaced.
6. Održavanje
Regular maintenance for your Leviton GFCI involves monthly manual testing and visual inspection. Ensure the device is free from physical damage, discoloration, or loose connections. If any issues are observed, refer to the troubleshooting section or contact a qualified electrician.
7. Otkrivanje problema
7.1 GFCI Trips Frequently
If your GFCI trips, it is performing its intended safety function by detecting a ground fault. To identify the cause:
- Inspect the GFCI: Check for any signs of discoloration, burning, or loose connections. If found, replace the GFCI immediately.
- Identifikujte uzrok: Note what was happening when the GFCI tripped. Were you using a specific appliance? Did you plug something in or turn something on?
- Check Appliances/Cords: Visually inspect any connected appliances or their cords for damage (e.g., frayed wires). Unplug any device with obvious damage or faults.
- Resetovati: After addressing potential causes, press the RESET button. If it resets, the issue was likely with the appliance or cord.
- Uporno okidanje: If the GFCI continues to trip, or if the reason for the trip is not obvious, it is time to contact a qualified electrician.
7.2 GFCI Troubleshooting Video
Video: This official Leviton video explains what to do when your GFCI outlet trips and when it's appropriate to call an electrician.
8. Specifikacije
| Specifikacija | Vrijednost |
|---|---|
| Broj modela stavke | GFRBF-T |
| Dimenzije proizvoda | 1.69 x 1.32 x 4.21 inča; 3.2 unci |
| Brand | Leviton |
| Boja | Light Almond |
| Materijal | Polikarbonat (PC) |
| Voltage | 125 Volts |
| Proizvođač | Leviton Direct |
| Datum prve dostupnosti | 5. avgusta 2015 |
9. Garancija i podrška
Leviton products are backed by a manufacturer's warranty. For specific warranty details, technical support, or further assistance, please refer to the documentation included with your product or visit the official Leviton webstranica. Preporučuje se da sačuvate dokaz o kupovini za potrebe reklamacije.
