Sonim XP7 XP7700 Smartphone User Manual

1. Uvod

This manual provides essential information for setting up, operating, and maintaining your Sonim XP7 XP7700 smartphone. Designed for durability, the Sonim XP7 is an ultra-rugged 4G/LTE device built to withstand challenging environments.

Ključne karakteristike:

• 2G/3G/4G/LTE Network Compatibility
• MSM8926 1.2 GHz Quad core Chipset
• Corning Gorilla Glass 2 with glove touch, blanview displej
• 16GB Internal storage / 1GB RAM
• Micro-SIM Card Type
• Ultra-Rugged, Waterproof design

2. Device Overview

Familiarize yourself with the physical components of your Sonim XP7 smartphone.

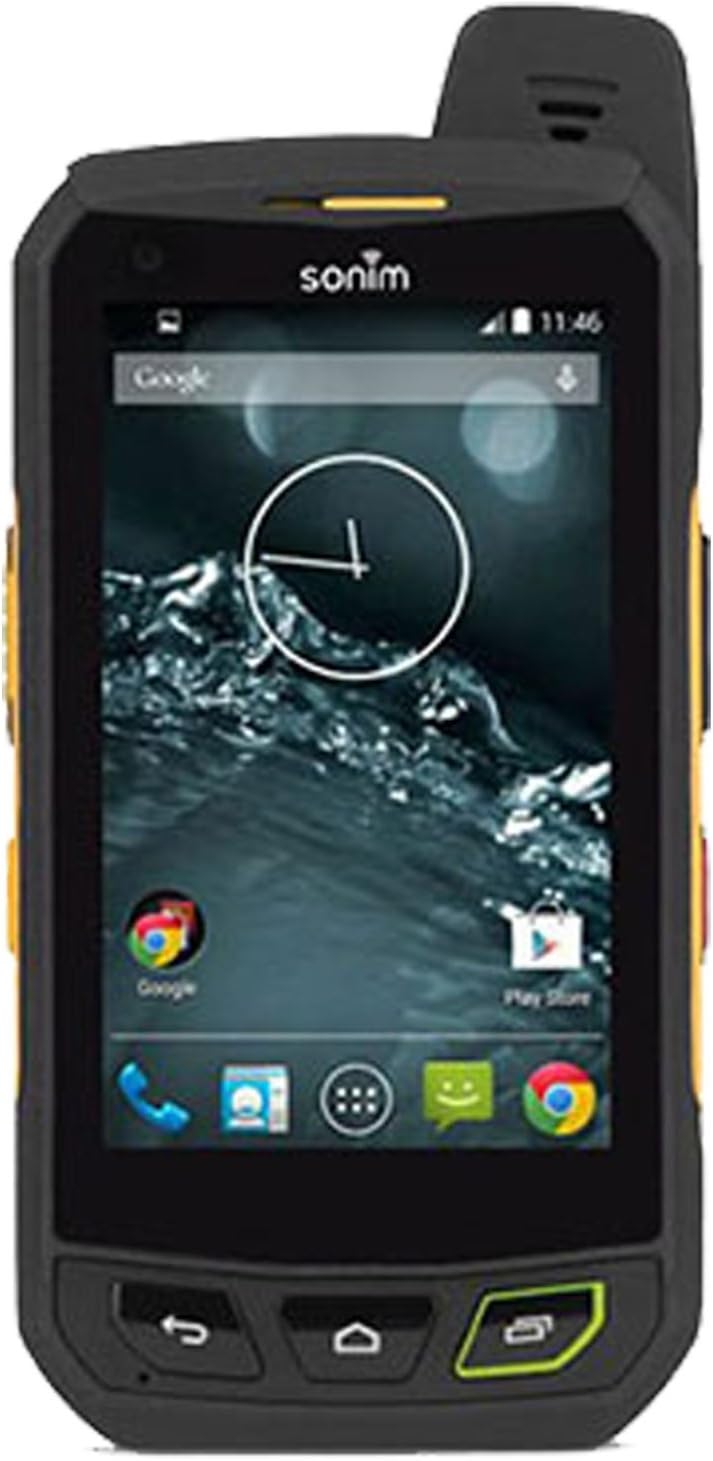

Slika 1: Prednja strana View of Sonim XP7. Displays the screen, physical buttons, and front camera.

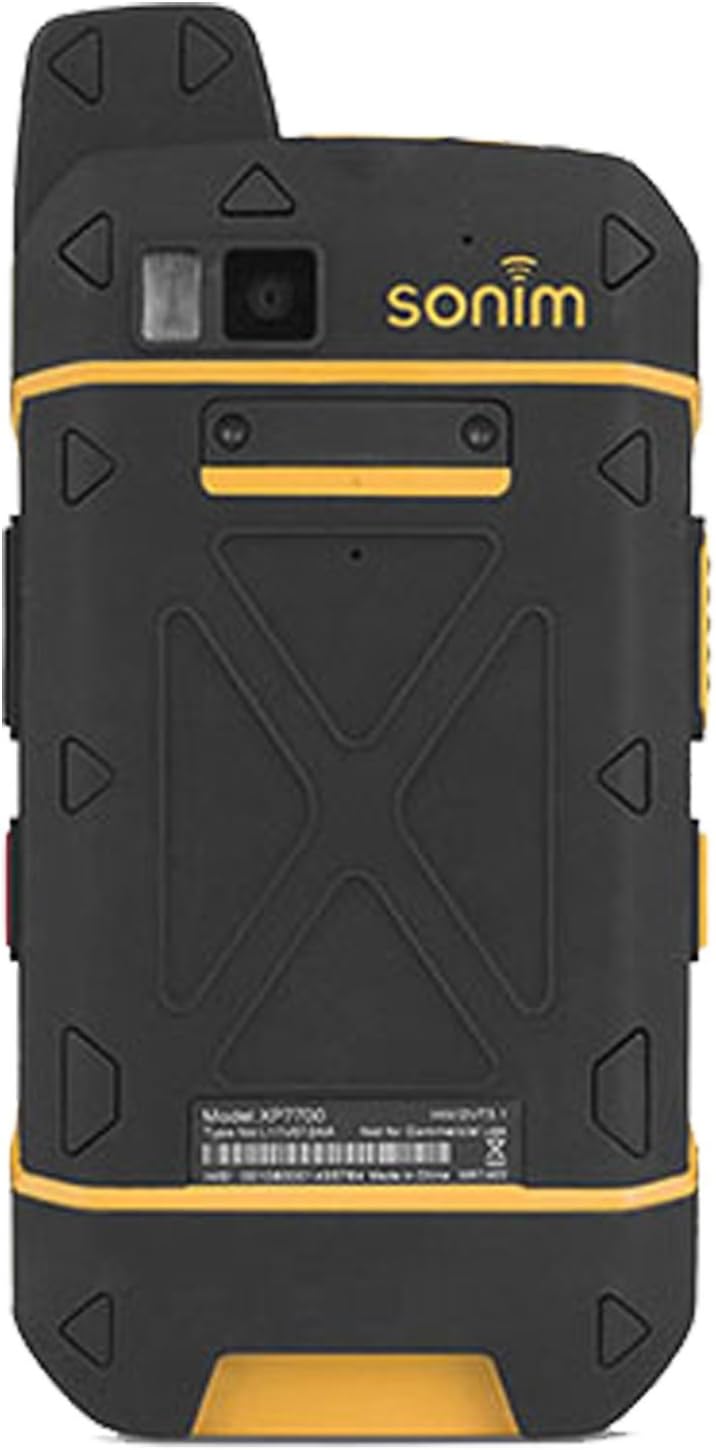

Slika 2: Natrag View of Sonim XP7. Highlights the rear camera, LED flash, and Sonim branding.

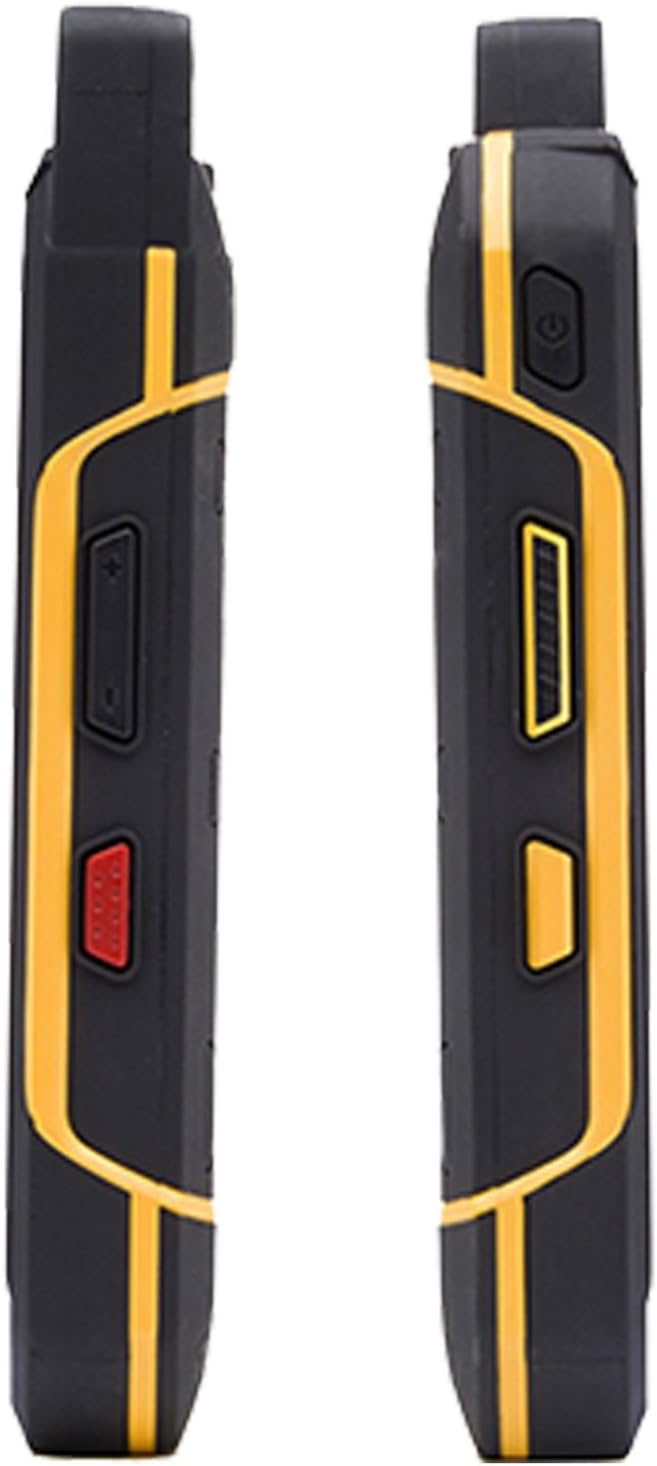

Slika 3: Bočna strana View of Sonim XP7. Illustrates the side buttons, including volume controls and a programmable red button.

3. Podešavanje

3.1 Instalacija SIM kartice

1. Uvjerite se da je uređaj isključen.
2. Locate the SIM card slot cover on the side of the phone.
3. Pažljivo otvorite poklopac.
4. Insert your Micro-SIM card into the designated slot with the gold contacts facing down.
5. Close the SIM card slot cover securely to maintain water and dust resistance.

3.2 Punjenje baterije

Your Sonim XP7 comes with a Lithium Ion battery. Use the provided adapter to charge your device.

1. Connect the adapter to the charging port on your phone.
2. Uključite adapter u utičnicu.
3. Indikator punjenja na ekranu će prikazivati ​​status punjenja.
4. A full charge provides approximately 10 hours of talk time.

3.3 Početno uključivanje

Press and hold the Power button until the Sonim logo appears. Follow the on-screen prompts to complete the initial setup, including language selection and network configuration.

4. Operating Your Sonim XP7

4.1 Osnovna navigacija

The Sonim XP7 runs on Android 4.4. Navigate the interface using the touchscreen and physical buttons. The device features a glove-touch display for operation with work gloves.

4.2 Making Calls and Messaging

Use the Phone application to make calls. The device features a 100-decibel speaker for clear audio in noisy environments. Access the Messaging application for sending and receiving text messages.

4.3 Povezivanje

Your Sonim XP7 supports Bluetooth for connecting to wireless accessories and cellular networks for data and communication.

• Bluetooth: To enable Bluetooth, go to Settings > Wireless & networks > Bluetooth.
• Mobilni podaci: Ensure your SIM card is active and cellular data is enabled in Postavke > Potrošnja podataka.

4.4 Posebne karakteristike

The Sonim XP7 is built with several features for demanding use:

• Ultra-Rugged: Designed to meet military durability standards.
• vodootporan: Can withstand immersion in water.
• Corning Gorilla Glass 2: Provides enhanced screen protection against scratches and impacts.
• Dodir rukavice: Omogućava rad na ekranu osjetljivom na dodir dok nosite rukavice.

5. Održavanje

5.1 Čišćenje

To clean your Sonim XP7, wipe it with a damp krpom. Izbjegavajte upotrebu jakih hemikalija ili abrazivnih materijala koji bi mogli oštetiti čvrstu vanjštinu uređaja ili ekran.

5.2 Njega baterija

To prolong battery life, avoid exposing the device to extreme temperatures. Charge the battery regularly and avoid complete discharge when possible.

5.3 Durability Tips

While the Sonim XP7 is built to be rugged and waterproof, always ensure all port covers are securely closed to prevent water and dust ingress, especially before exposing the device to wet or dusty conditions.

6. Otkrivanje problema

If you encounter issues with your Sonim XP7, try the following basic troubleshooting steps:

• Uređaj se ne uključuje: Ensure the battery is charged. Connect the device to the charger for at least 15 minutes before attempting to power it on again.
• Nema mrežnog signala: Check that your SIM card is correctly inserted. Verify that cellular data is enabled in settings. If the issue persists, contact your service provider.
• Ekran na dodir ne reaguje: Restart the device. If the screen remains unresponsive, ensure it is clean and dry.
• Problemi sa zvukom: Check volume settings. Ensure no debris is blocking the speaker or microphone.

For more complex issues, refer to the official Sonim support resources or contact your retailer.

7. Specifikacije

8. Garancija i podrška

This device typically comes with a 30-day store warranty. For specific warranty details and support, please refer to the documentation provided at the time of purchase or contact your retailer directly. Manufacturer support information may also be available on the official Sonim website.
