SIIG Single Monitor Desk Mount (Model CE-MT1H12-S1) Instruction Manual

Product Overview

The SIIG Single Monitor Desk Mount (Model CE-MT1H12-S1) is a height-adjustable, gas spring-assisted full-motion desktop mount designed for monitors ranging from 15 inches to 27 inches and weighing up to 17.6 lbs (8 kg). It provides smooth and effortless viewing angle adjustments for optimal ergonomic positioning. The VESA plate supports both portrait and landscape monitor orientations, offering flexibility for various tasks and preferences.

Važna sigurnosna uputstva

• Read all instructions carefully before installation and use to ensure proper setup and prevent damage.
• Ne prekoračujte maksimalnu nosivost od 8 kg. Preopterećenje može uzrokovati nestabilnost i potencijalne povrede.
• Ensure the mounting surface (desk) is strong enough to support the combined weight of the mount and monitor.
• Use only the provided hardware. If any parts are missing or damaged, contact SIIG customer support immediately.
• Keep children and pets away from the installation area during assembly to prevent accidents.
• Prijedlog 65 Upozorenje: Ovaj proizvod sadrži kemikalije za koje je u državi Kalifornija poznato da uzrokuju rak i urođene mane ili druge reproduktivne štete.

Sadržaj paketa

Verify that all components are present and undamaged before beginning installation. If any items are missing or appear damaged, please contact SIIG customer support.

• Monitor Arm Assembly (Gas Spring Arm)
• Stolni štap
• VESA tanjir
• C-Clamp Baza
• Grommet Mount Base
• Mounting Hardware (various screws, washers)
• Allen Keys (for assembly and tension adjustment)
• Obujmice za upravljanje kablovima

This image displays the individual components of the monitor mount, including the gas spring arm, desk pole, C-clamp, and various mounting hardware.

Postavljanje i instalacija

Step 1: Choose Mounting Method

The monitor mount offers two installation options: C-clamp for desk edges or grommet mount for desks with existing holes.

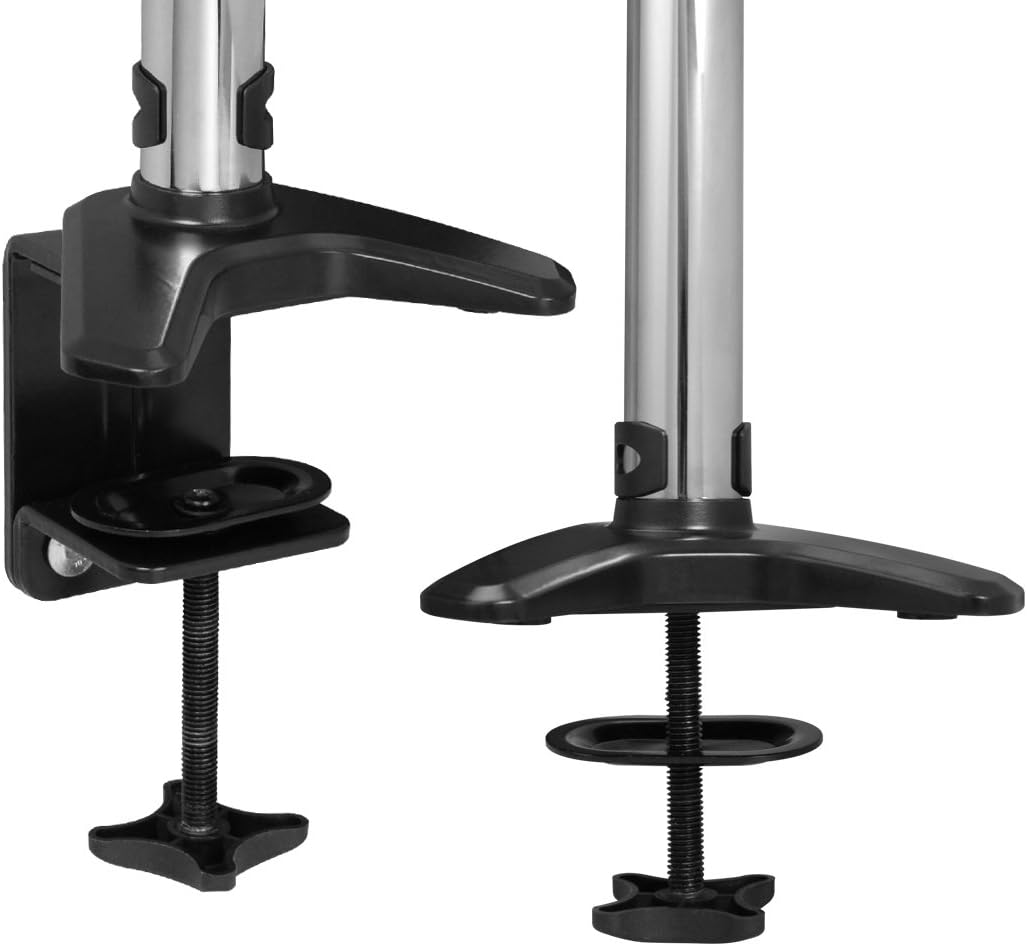

This image illustrates the two available mounting options: the C-clamp for desk edges and the grommet mount for desks with existing holes.

C-Clamp Instalacija

1. Pričvrstite C-clamp base to the bottom of the desk pole.
2. Postavite clamp on the edge of your desk and tighten the screw until the base is securely fastened.

Montaža otvora za montažu

1. If your desk has a grommet hole, use the grommet mount base.
2. Insert the desk pole through the grommet hole and secure it from underneath the desk with the provided hardware.

Step 2: Attach Monitor to VESA Plate

1. Carefully align the VESA plate with the mounting holes on the back of your monitor.
2. Secure the monitor to the VESA plate using the appropriate screws provided in the hardware kit. Ensure they are tightened firmly but do not overtighten.

Step 3: Mount Monitor Arm to Pole

1. Slide the monitor arm assembly onto the desk pole.
2. Adjust the arm to your desired initial height and tighten the collar screw on the pole to secure it in place.

Korak 4: Upravljanje kablovima

Route monitor cables (power, video, etc.) through the integrated cable management clips located on the arm and along the pole. This helps maintain a tidy and organized workspace.

Installation and Adjustment Video

This video demonstrates the complete installation process for the SIIG Single Monitor Desk Mount, including attaching the clamp, mounting the monitor, routing cables, and adjusting the arm's movement.

Uputstvo za upotrebu

Podešavanje visine

The gas spring mechanism allows for smooth and effortless vertical adjustment. Gently push or pull the monitor to the desired height. The arm provides up to 13 inches of vertical adjustment from its lowest to highest point.

This image shows the vertical adjustment range of the monitor arm, highlighting the 13-inch height capability.

Podešavanje napetosti

If the monitor sags or rises too easily, the gas spring tension needs adjustment. Use the included 6mm Allen key:

• Okreni se u smjeru kazaljke na satu to reduce tension for lighter monitors.
• Okreni se suprotno od kazaljke na satu to increase tension for heavier monitors.

Multiple turns may be needed to achieve the desired tension. Test the adjustment by moving the monitor after each set of turns.

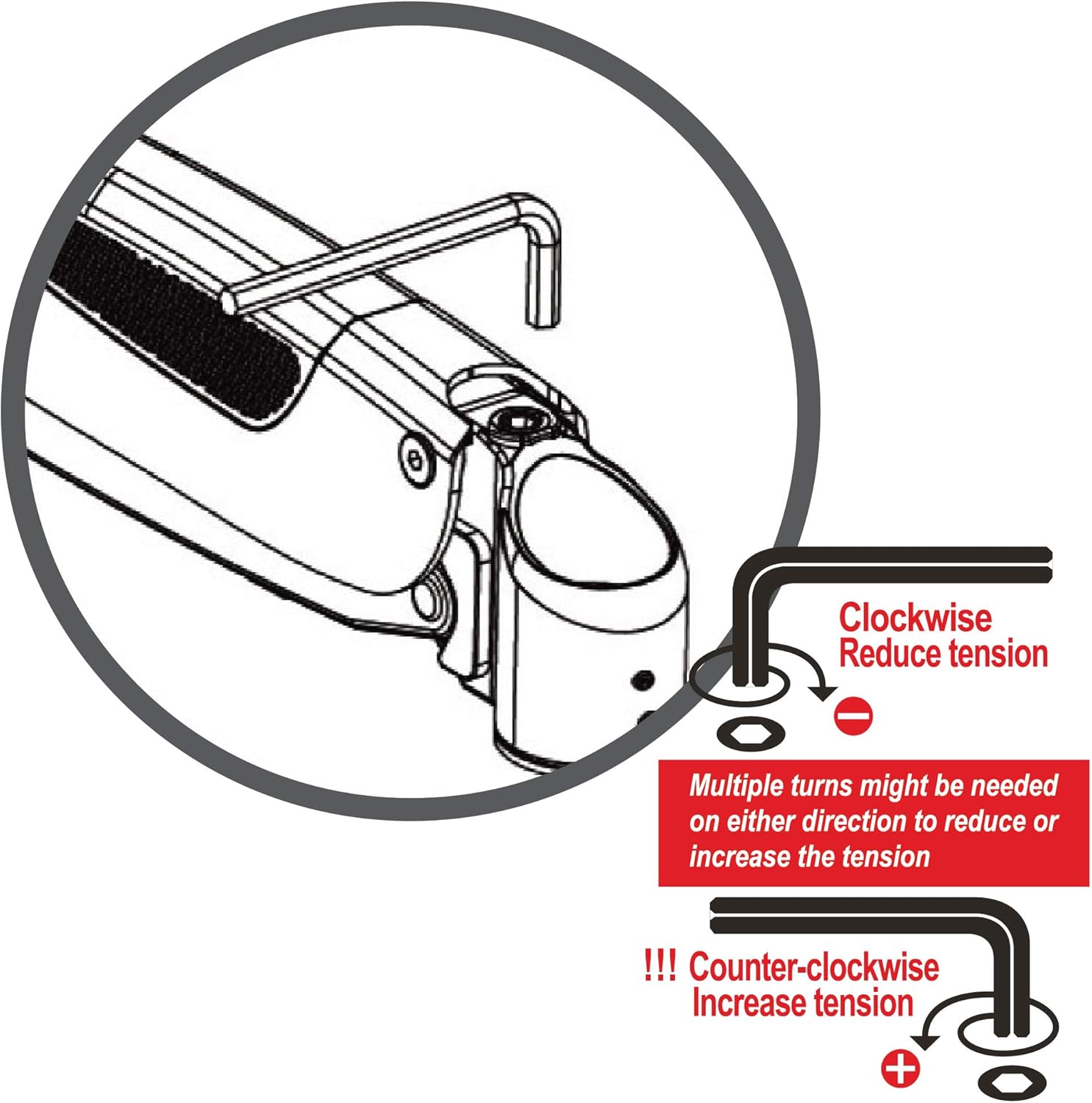

This diagram provides instructions on how to adjust the gas spring tension using the provided Allen key to accommodate different monitor weights.

Nagib, okretanje i rotacija

The VESA plate and arm joints provide extensive movement capabilities:

• Nagib: Adjust the monitor screen up or down by up to 90 degrees.
• Okretni: Rotate the monitor horizontally 360 degrees around the pole.
• rotacija: Rotate the monitor 360 degrees at the VESA plate for easy switching between portrait and landscape orientations.
• Ispruženje ruke: The arm can extend up to 22 inches from the mounting pole, allowing you to pull the monitor closer or push it further away.

This image demonstrates the maximum extension of the monitor arm, which is 22 inches from the base.

Njega i održavanje

• Regularly check all screws and connections to ensure they are tight and secure. Loose connections can affect stability and performance.
• Očistite nosač mekom krpomamp krpom. Izbjegavajte upotrebu abrazivnih sredstava za čišćenje, rastvarača ili jakih hemikalija, jer mogu oštetiti završnu obradu.
• Do not attempt to lubricate the gas spring mechanism. It is designed to be maintenance-free.

Rješavanje problema

Monitor Sags or Does Not Stay in Position

• Rješenje:

  Adjust the gas spring tension. Use the 6mm Allen key and turn counter-clockwise to increase tension for heavier monitors. Continue adjusting until the monitor holds its position.

Monitor is Difficult to Move

• Rješenje:

  Adjust the gas spring tension. Use the 6mm Allen key and turn clockwise to reduce tension for lighter monitors. Continue adjusting until the monitor moves smoothly.

Mount is Unstable or Wobbles

• Rješenje:

  Osigurajte C-clamp or grommet mount is securely tightened to the desk. Verify that the desk surface itself is stable and not prone to wobbling. Re-tighten all connection points on the arm and pole.

Specifikacije proizvoda

Informacije o garanciji

For detailed warranty information regarding your SIIG Single Monitor Desk Mount, please refer to the official SIIG website or contact SIIG customer support directly. Keep your proof of purchase for warranty claims.

Korisnička podrška

If you encounter any issues, have questions, or require further assistance with your SIIG Single Monitor Desk Mount, please visit the SIIG Store on Amazon or contact SIIG customer service through their official channels. Our support team is ready to help.
