This manual provides detailed instructions for the installation, operation, and maintenance of your Moen 87066 One-Handle High Arc Pulldown Kitchen Faucet. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product. Keep this manual for future reference.
Image: The Moen 87066 Chrome One-Handle High Arc Pulldown Kitchen Faucet, showcasing its sleek design and integrated soap dispenser.
Sigurnosne informacije
- Uvijek isključite glavni dovod vode prije ugradnje ili servisiranja slavine.
- Nosite odgovarajuću ličnu zaštitnu opremu, kao što su zaštitne naočale, tokom instalacije.
- Osigurajte da su svi spojevi sigurni kako biste spriječili curenje.
- Ako niste sigurni u vezi bilo kojeg dijela procesa instalacije, obratite se kvalificiranom vodoinstalateru.
- Ne koristite abrazivna sredstva za čišćenje ili jake hemikalije na hromiranoj površini, jer to može oštetiti površinu.
Sadržaj paketa
Prije početka instalacije provjerite da li su sve komponente prisutne:
- Moen 87066 One-Handle High Arc Pulldown Kitchen Faucet (Chrome)
- Montažni hardver
- Vodovi za dovod tople i hladne vode
- Deck plate (if required for multi-hole sinks)
- Upute za instalaciju
Specifikacije
| Feature | Detalj |
|---|---|
| Brand | Moen |
| Naziv modela | Moen 87066 One-Handle High |
| Tip završetka | Chrome |
| Materijal | Plastic (Handle: Chrome) |
| Vrsta montaže | Nosač na palubi |
| Broj drške | 1 |
| Broj rupa | 1 |
| Dizajn izljeva | Visoki luk |
| Posebne karakteristike | Pull Down Sprayer, Easy to Install, Power Clean Spray Technology |
| Maksimalni protok | 1.5 galona u minuti |
| Dužina creva | 68 inča |
| Težina artikla | 3.06 funte |
| Dimenzije proizvoda | 30.98"D x 7.87"Š x 62.23"H |
| ADA usklađeno | Da |

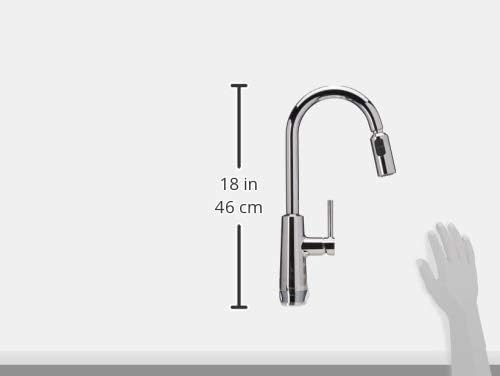

Image: A diagram illustrating the dimensions of the Moen 87066 faucet, indicating an 18-inch (46 cm) height from the base to the top of the arc.
Postavljanje i instalacija
The Moen 87066 faucet features the Duralock quick connect system for simplified installation. Follow these general steps:
- Pripremite sudoper: Ensure the sink hole is clean and free of debris. If replacing an old faucet, remove it and clean the area thoroughly.
- Ugradnja ploče palube (opcionalno): If your sink has multiple holes and you are using the included deck plate, place it over the sink holes.
- Montirajte slavinu: Insert the faucet body through the sink hole(s) and secure it from underneath the sink using the provided mounting hardware. Tighten securely but do not overtighten.
- Priključite vodovodne cijevi: Connect the hot and cold water supply lines to the corresponding valves. The Duralock system allows for a quick and secure connection. Ensure a tight seal to prevent leaks.
- Spojite crijevo prskalice: Connect the pulldown sprayer hose to the faucet's main body using the quick connect fitting.
- Težina instalacije: Attach the hose weight to the pulldown hose at the specified location to ensure proper retraction of the sprayer.
- Test na curenje: Slowly turn on the main water supply and check all connections for leaks. Operate the faucet to ensure proper water flow and sprayer function.
Image: The Moen 87066 faucet installed in a modern kitchen setting, demonstrating its high arc design over a stainless steel sink.
Uputstvo za upotrebu
- Protok i temperatura vode: The single lever handle controls both water flow and temperature. Move the handle up to increase flow and down to decrease. Move the handle left for hot water and right for cold water.
- Pulldown Sprayer: Grasp the sprayer head and pull it down from the spout. The Reflex system ensures smooth operation and secure docking when not in use.
- Režimi prskanja: The sprayer head typically features a button or switch to toggle between aerated stream and powerful spray (Power Clean Spray Technology). Press the button to switch modes.
- pristajanje: When finished, gently guide the sprayer head back into the spout. The Reflex system will securely dock it in place.
Održavanje
Pravilna njega će pomoći u održavanju završnog sloja i performansi vaše Moen slavine.
- Čišćenje završne obrade: Redovno čistite hromirani završni sloj mekom krpomamp cloth. For stubborn spots, use a mild soap and water solution, then rinse thoroughly and dry with a soft cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Održavanje aeratora: If water flow decreases, the aerator may be clogged. Unscrew the aerator from the sprayer head, clean any debris, and rinse it before reattaching.
- Pregled crijeva: Periodically inspect the pulldown hose for any signs of wear or damage.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nizak protok vode | Clogged aerator; partially closed shut-off valves; kinked supply line. | Očistite aerator. Provjerite jesu li zaporne slavine potpuno otvorene. Provjerite ima li savijenih dovodnih cijevi. |
| Curenja iz baze slavine | Labava matica za montažu; oštećeni O-prstenovi. | Tighten the mounting nut underneath the sink. If leaks persist, contact customer support for replacement parts. |
| Raspršivač se ne uvlači u potpunosti | Hose weight improperly positioned or obstructed; debris in hose path. | Adjust the hose weight. Clear any obstructions around the hose under the sink. |
| Problemi s temperaturom vode | Nepravilan priključak dovodne linije za toplu/hladnu vodu; problemi s bojlerom. | Provjerite jesu li tople i hladne cijevi ispravno spojene. Provjerite postavke bojlera. |
Informacije o garanciji
Moen faucets are backed by a limited lifetime warranty against leaks, drips, and finish defects to the original homeowner. Other components are warranted for a specific period. For complete warranty details and terms, please refer to the official Moen webweb-mjesto ili kontaktirajte Moen korisničku službu.
Napomena: Proof of purchase may be required for warranty claims.
Korisnička podrška
For further assistance, technical support, or to order replacement parts, please contact Moen customer service:
- Webstranica: www.moen.com
- Telefon: Pogledajte Moen webstranica za regionalne kontakt brojeve.
When contacting support, please have your faucet model number (87066) and date of purchase readily available.
